Pump Shaft

    NOTE: Inspect the pump drive shaft in the area that the bearings ride. If worn, install a new shaft and main control.

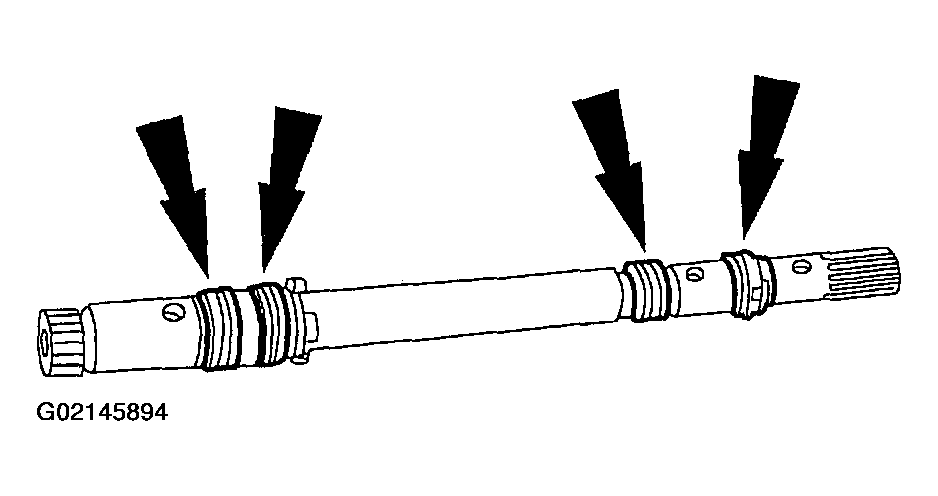

    Fig 1: Inspecting Pump Drive Shaft
    G02145894Courtesy of FORD MOTOR CO.
  1. Remove the Teflon® seals and inspect the shaft.
    2. NOTE: Make sure that the seals are installed correctly.

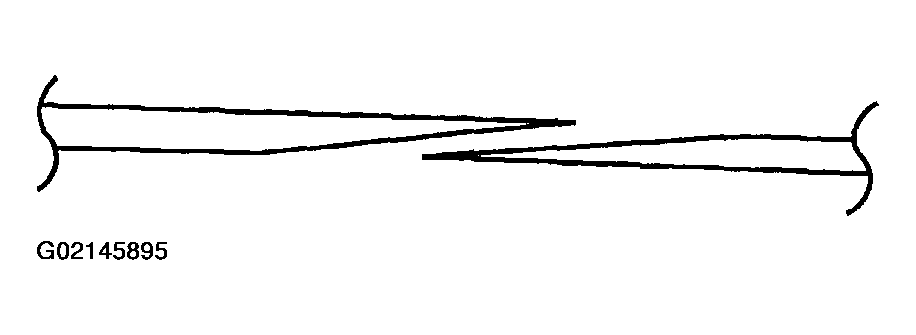

    Fig 2: Installing Pump Shaft Seals
    G02145895Courtesy of FORD MOTOR CO.
  2. Install four new seals on the pump shaft.
