Reverse Clutch: Disassembly

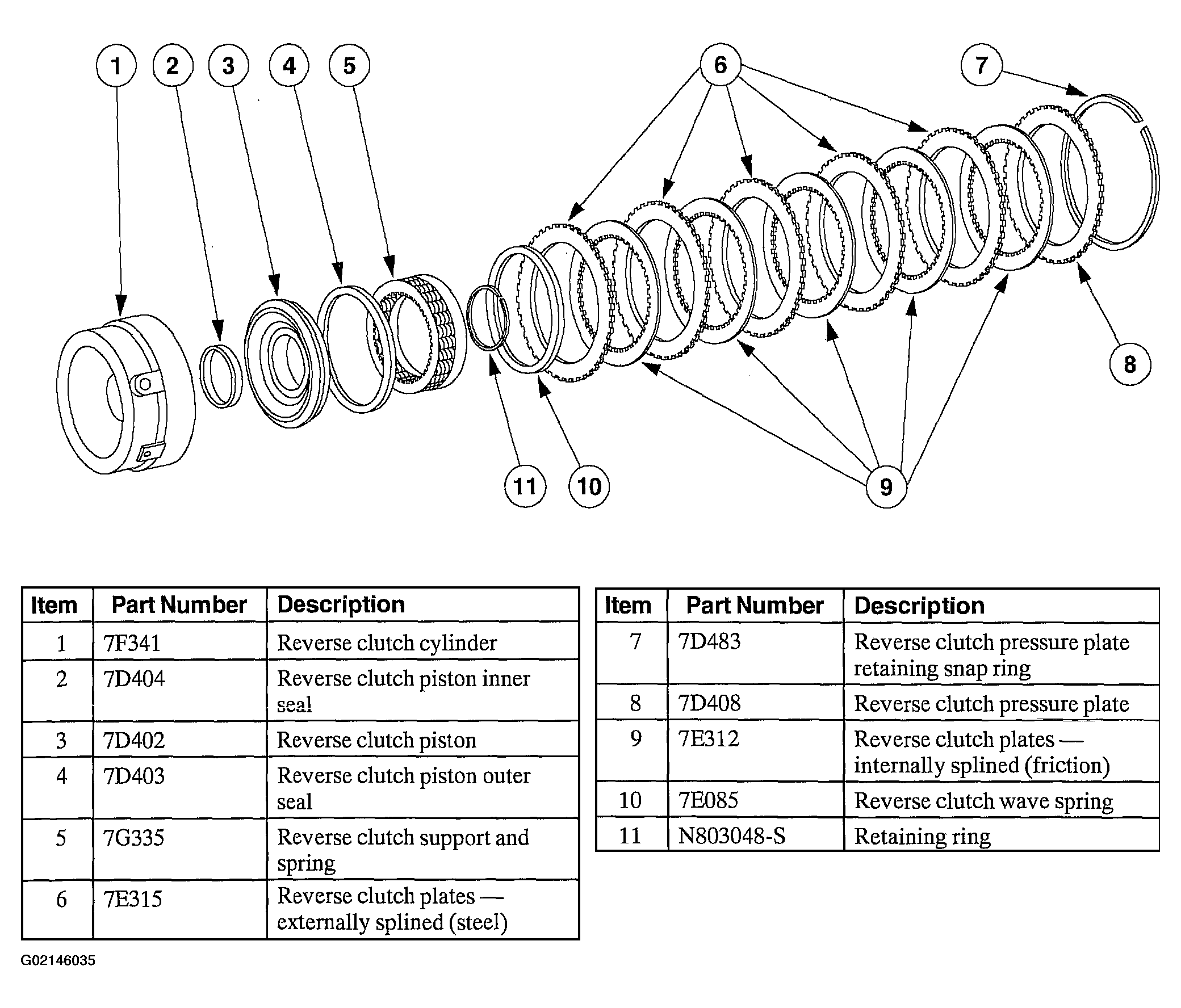

Fig 1: Exploded View Of Reverse Clutch Components
G02146035Courtesy of FORD MOTOR CO.
  1. Remove the reverse clutch pack assembly.
    1. Remove the reverse clutch pressure plate retaining snap ring.
    2. Remove the reverse clutch pressure plate.
    3. Remove the clutch pack.
    4. Remove the wave spring.

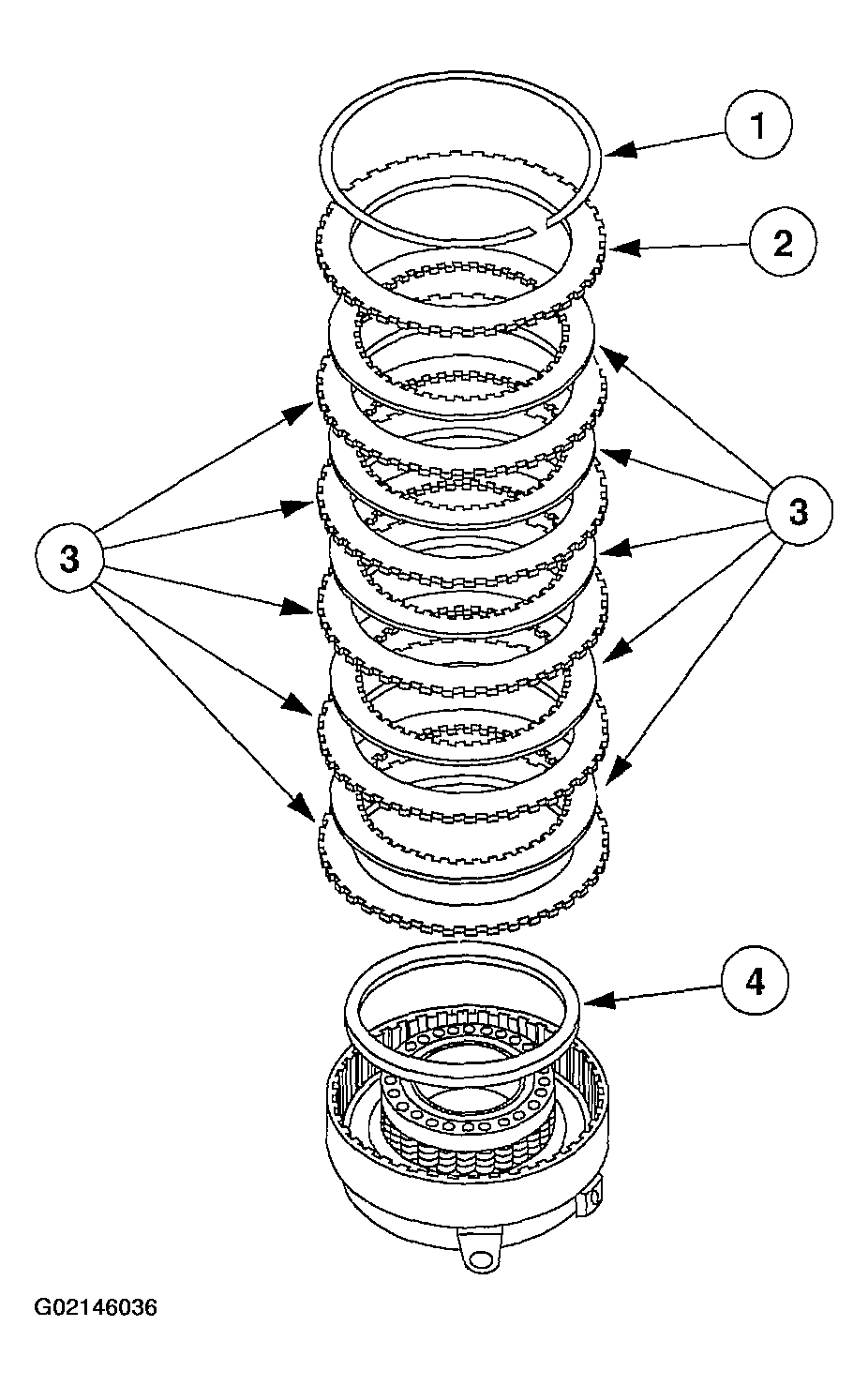

    Fig 2: Removing Reverse Clutch Pack Assembly
    G02146036Courtesy of FORD MOTOR CO.
    2. CAUTION: Do not fully compress the spring retainer.

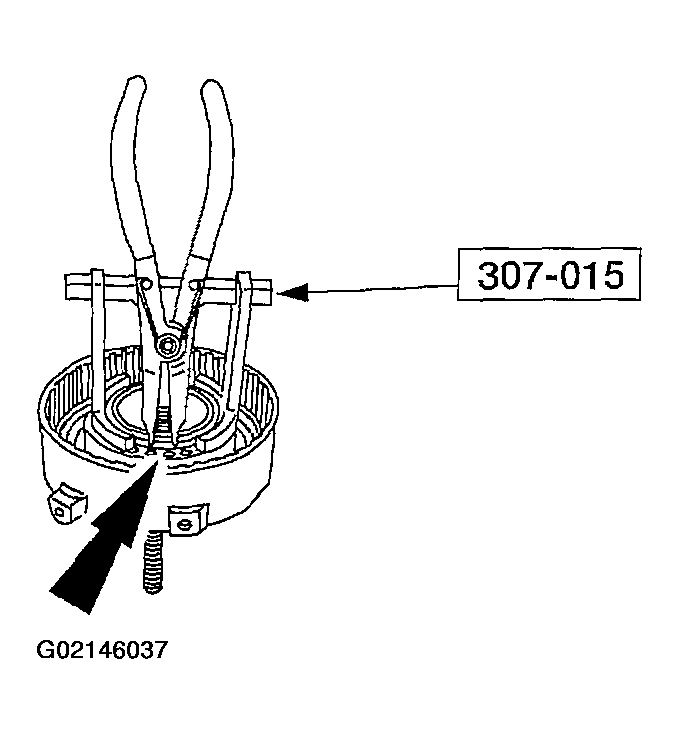

    Fig 3: Removing Snap Ring
    G02146037Courtesy of FORD MOTOR CO.
  2. Use the special tool, remove the snap ring.
  3. Remove the reverse clutch support and spring.

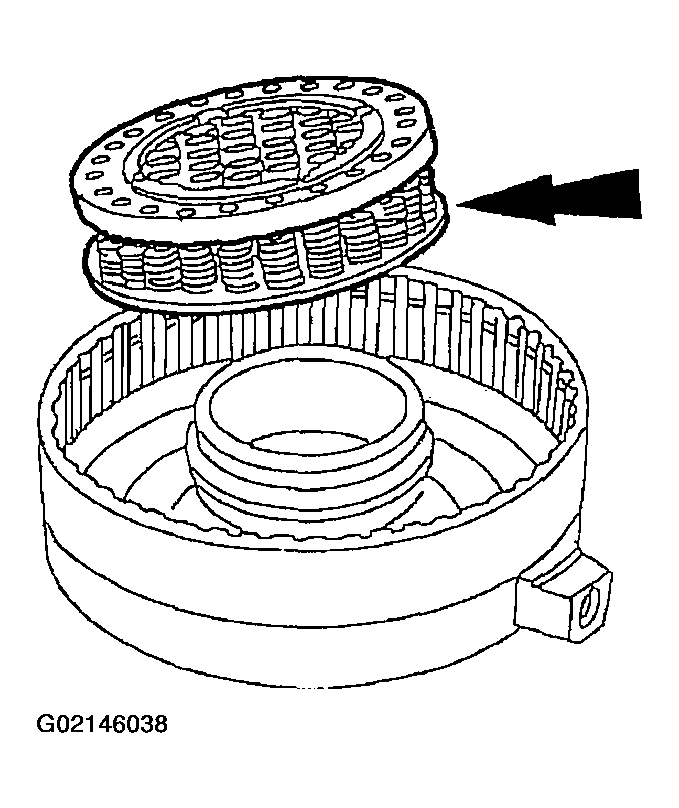

    Fig 4: Removing Reverse Clutch Support And Spring
    G02146038Courtesy of FORD MOTOR CO.
  4. Remove the reverse clutch piston.

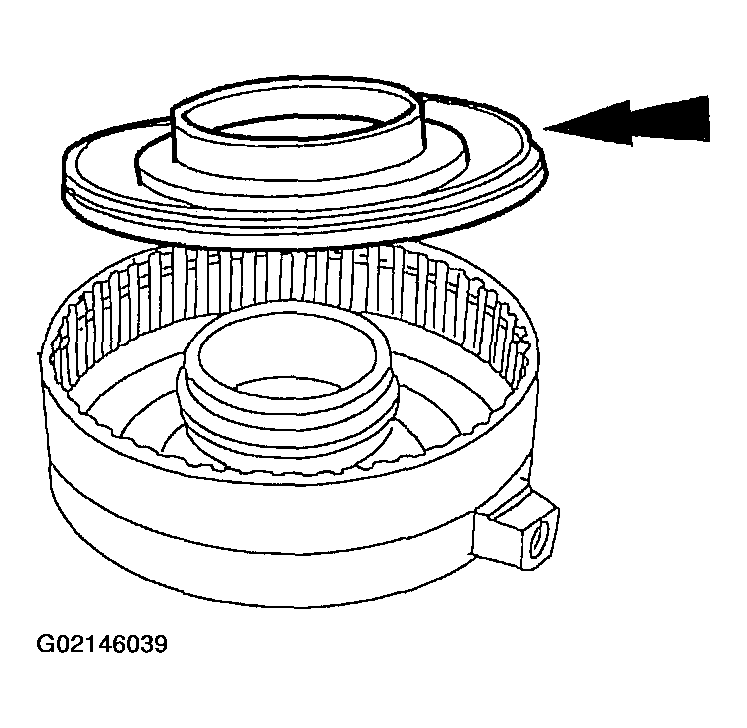

    Fig 5: Removing Reverse Clutch Piston
    G02146039Courtesy of FORD MOTOR CO.
  5. Remove the reverse clutch piston outer seal.

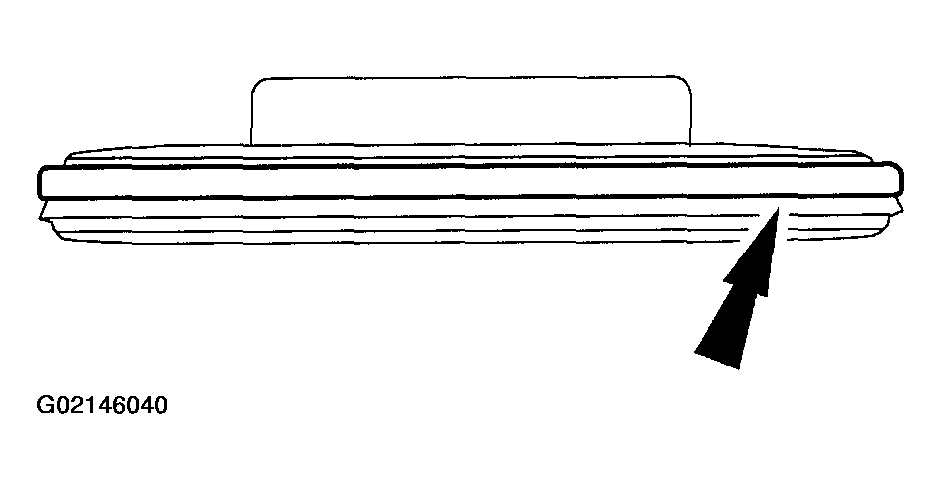

    Fig 6: Removing Reverse Clutch Piston Outer Seal
    G02146040Courtesy of FORD MOTOR CO.
  6. Remove the reverse clutch piston inner seal.

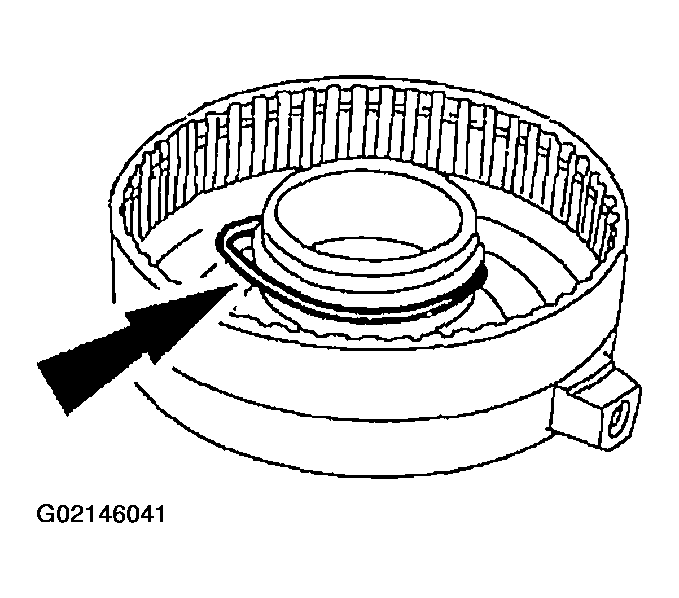

    Fig 7: Removing Reverse Clutch Piston Inner Seal
    G02146041Courtesy of FORD MOTOR CO.
