Differential Fluid Seals: Installation

  1. Using the special tool, install the LH differential seal.

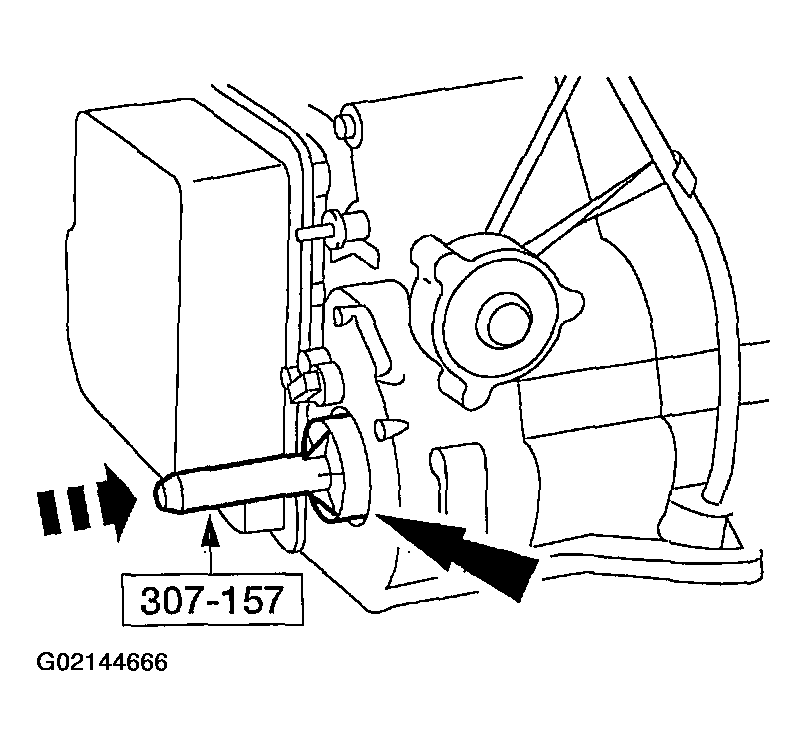

    Fig 1: Installing LH Differential Seal
    G02144666Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the RH seal.

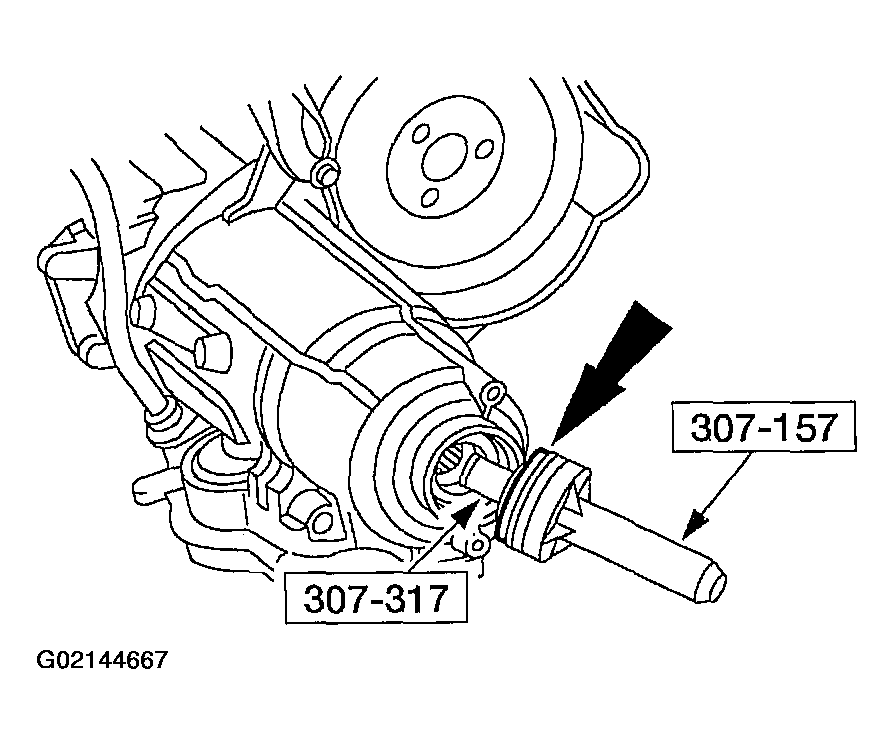

    Fig 2: Installing RH Differential Seal
    G02144667Courtesy of FORD MOTOR CO.
  3. Install the halfshafts. For additional information, refer to AXLE SHAFTS .
  4. Install the front wheels. For additional information, refer to WHEELS & TIRES .
  5. Lower the vehicle.
