Digital Transmission Range (TR) Sensor: Removal

  1. Set the parking brake.
  2. Place the transaxle range selector lever in NEUTRAL.

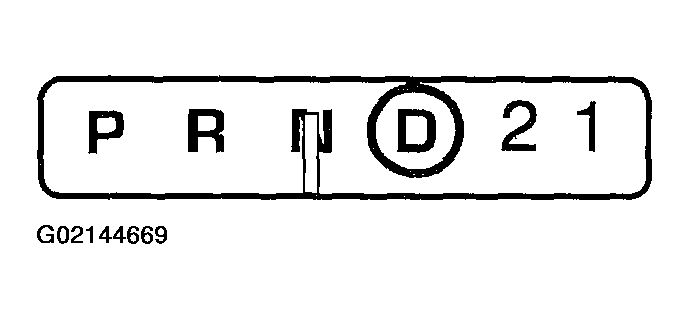

    Fig 1: Placing Transaxle Range Selector In NEUTRAL
    G02144669Courtesy of FORD MOTOR CO.
  3. Remove the engine air cleaner assembly. For additional information, refer to AIR INDUCTION SYSTEMS .
  4. Disconnect the digital transmission range (TR) sensor electrical connector.

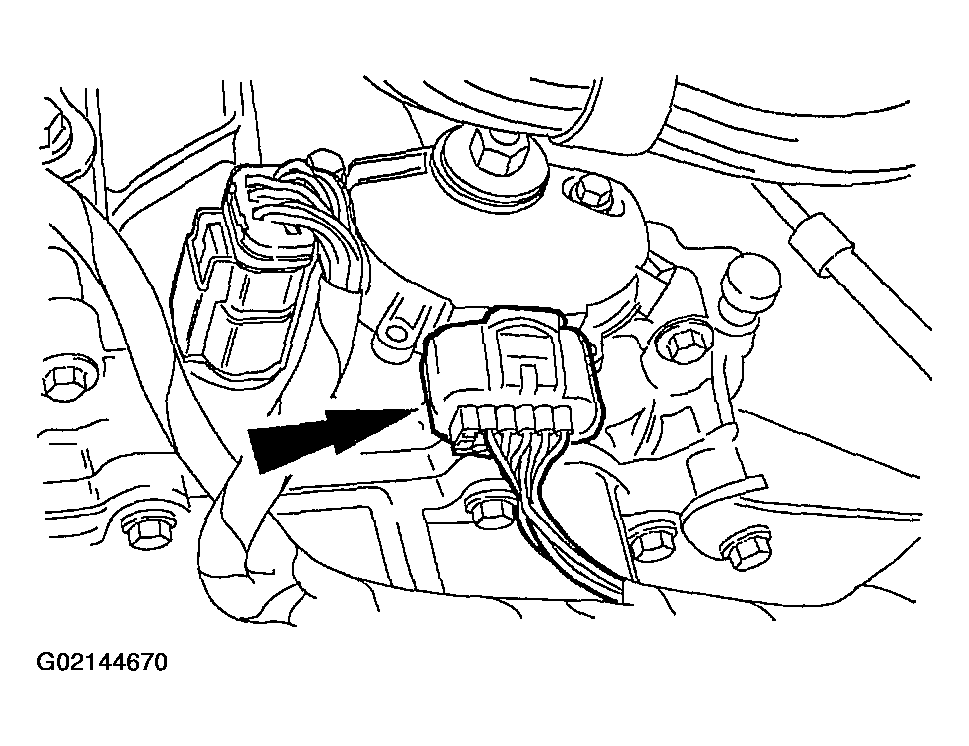

    Fig 2: Disconnecting Digital Transmission Range Sensor Electrical Connector
    G02144670Courtesy of FORD MOTOR CO.
  5. Disconnect the shift cable from the manual control lever.

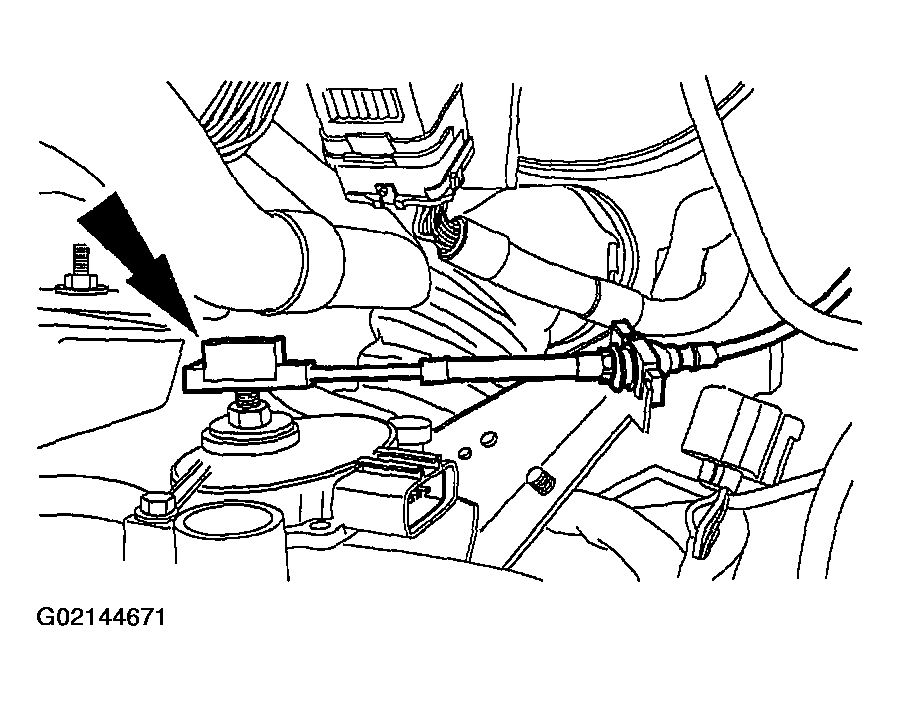

    Fig 3: Disconnecting Shift Cable From Manual Control Lever
    G02144671Courtesy of FORD MOTOR CO.
  6. Remove the manual control lever.

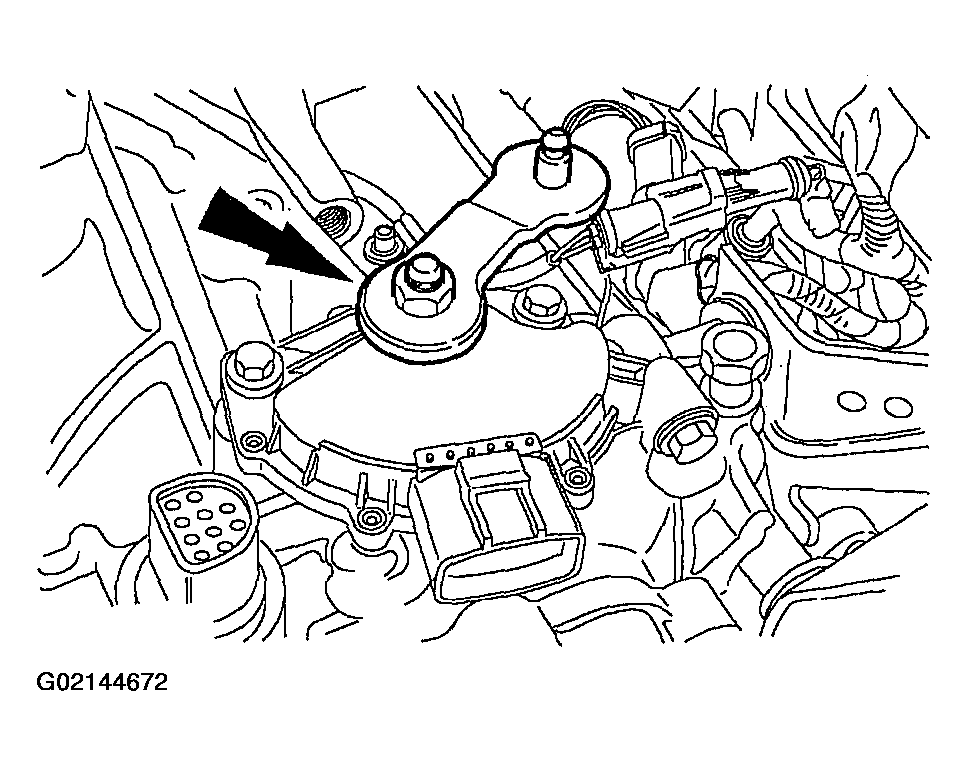

    Fig 4: Removing Manual Control Lever
    G02144672Courtesy of FORD MOTOR CO.
  7. Remove the digital TR sensor.

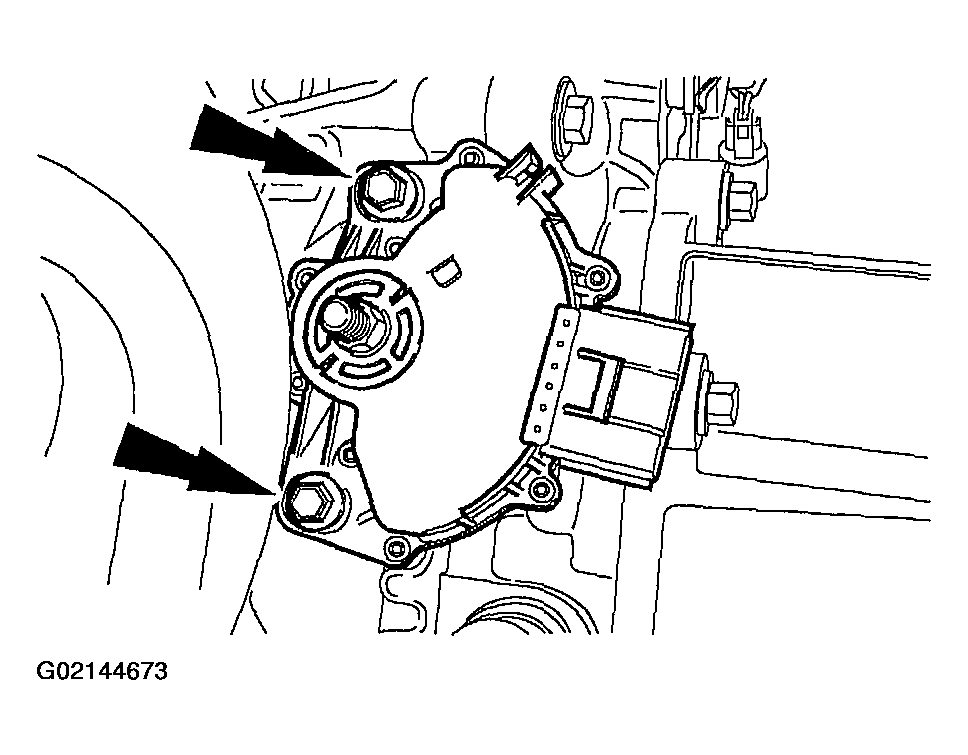

    Fig 5: Removing Digital TR Sensor
    G02144673Courtesy of FORD MOTOR CO.
