Pinpoint Test C: The Control Linkage Is Binding

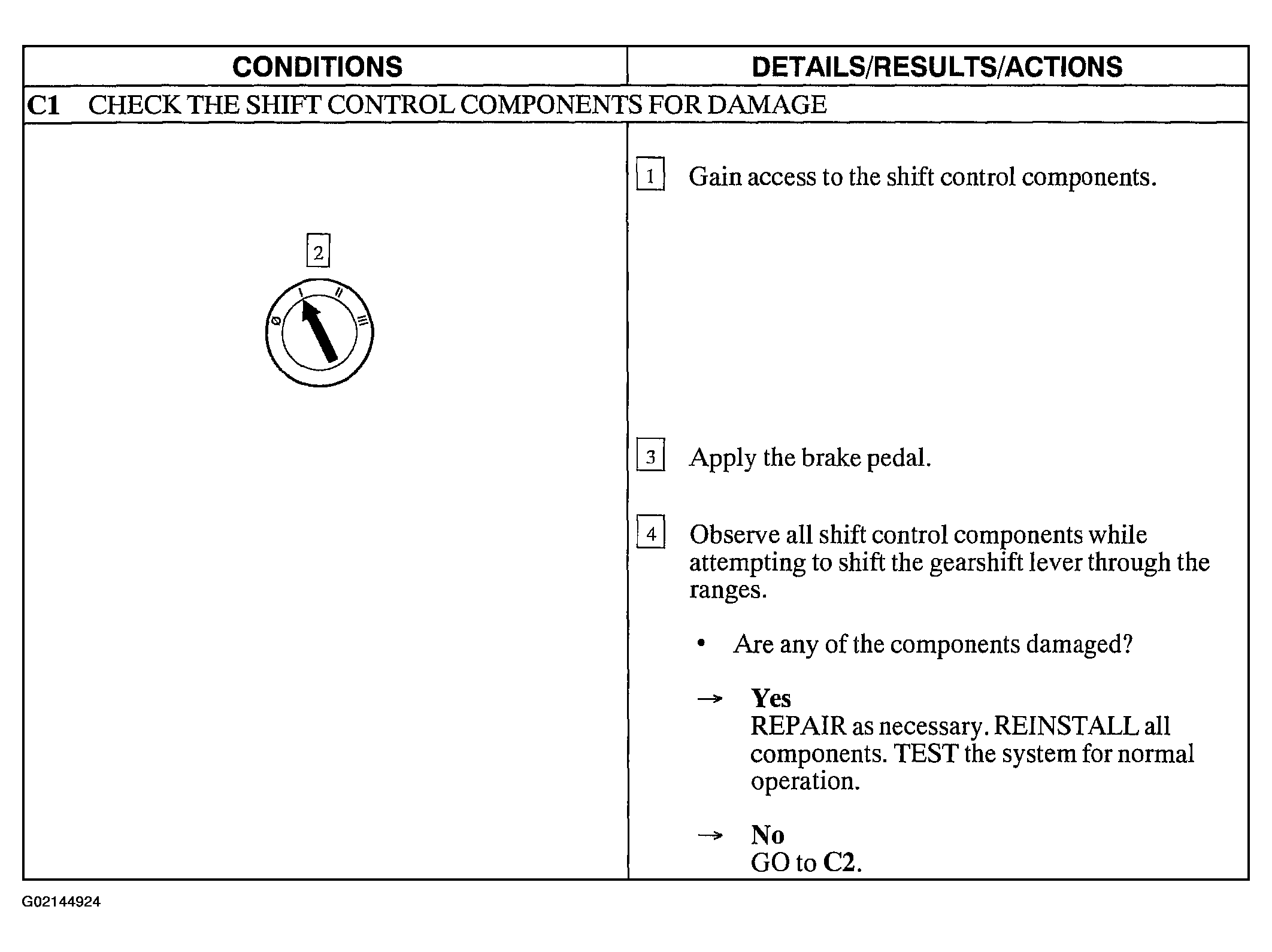

Fig 1: Pinpoint Test C: Control Linkage Is Binding (C1)

Courtesy of FORD MOTOR CO.

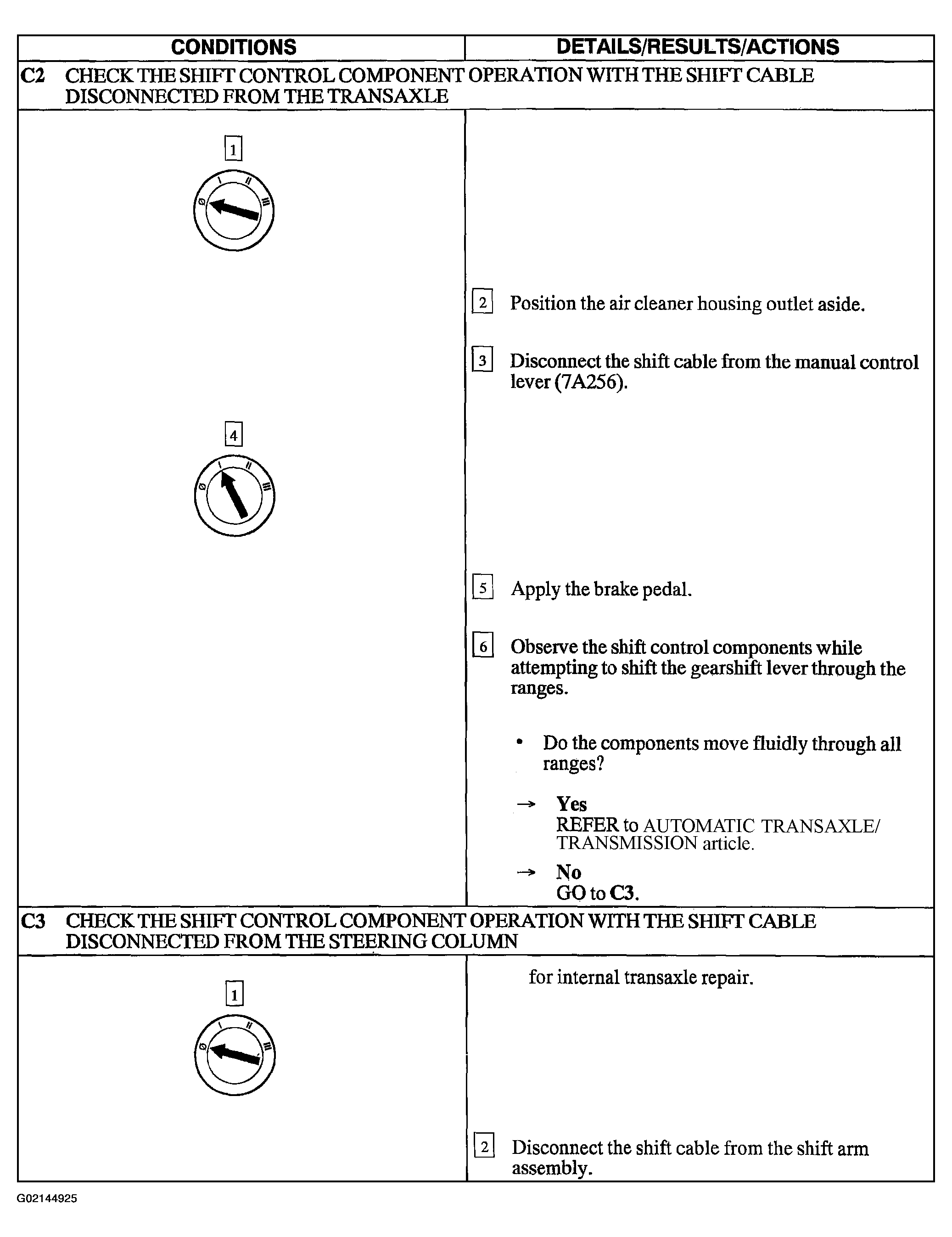

Fig 2: Pinpoint Test C: Control Linkage Is Binding (C2 & C3)

Courtesy of FORD MOTOR CO.

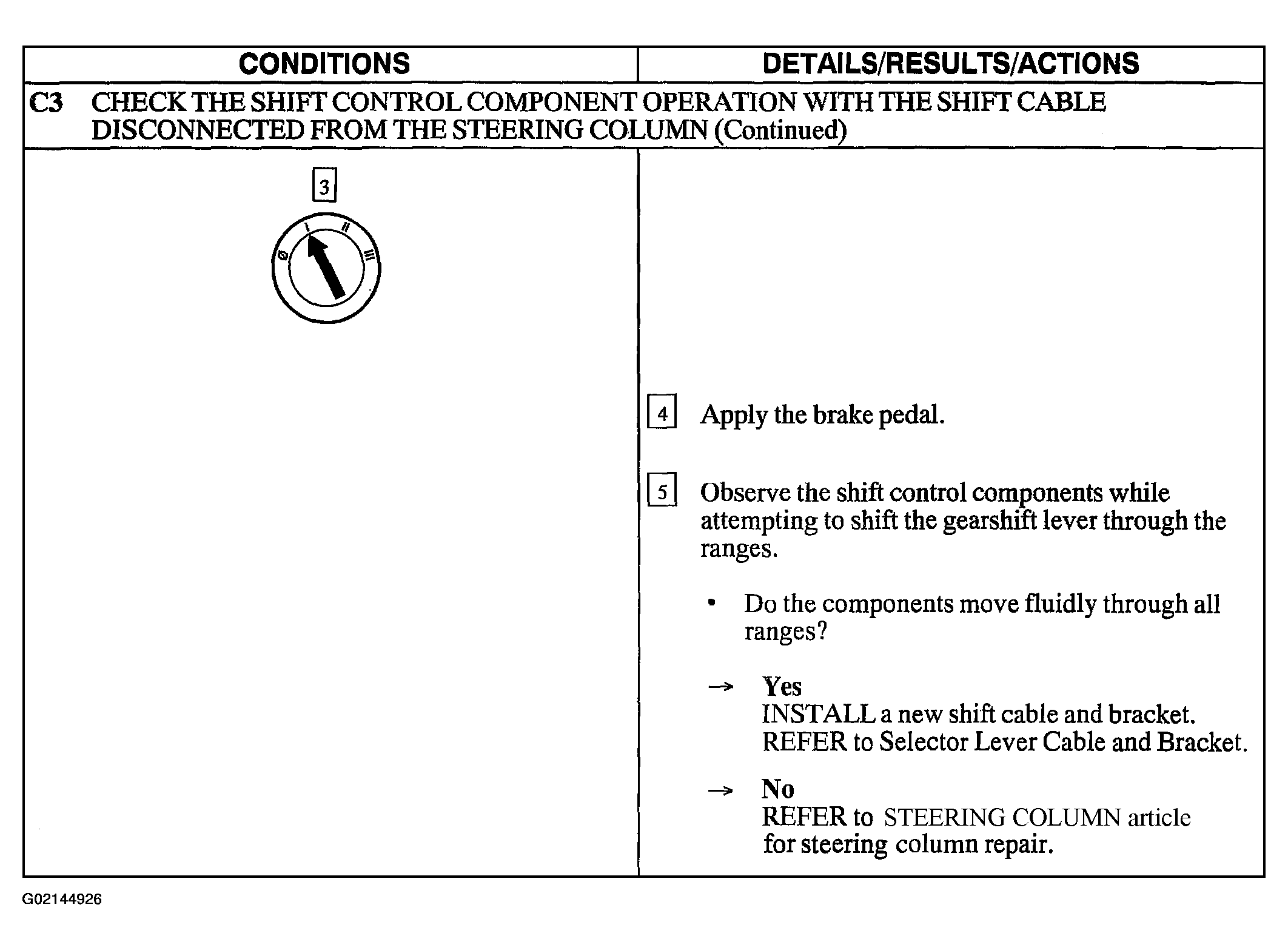

Fig 3: Pinpoint Test C: Control Linkage Is Binding (C3 Cont.)

Courtesy of FORD MOTOR CO.
