Coolant Temperature Sensor/Switch (For Computer): Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Partially drain the cooling system.

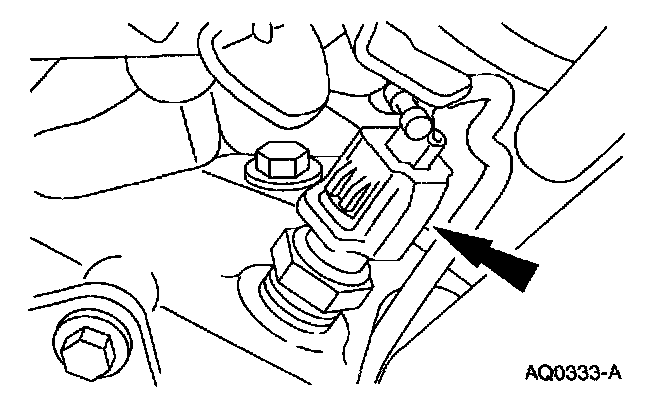

3. Disconnect the Engine Coolant Temperature (ECT) sensor electrical connector.







4. Remove the ECT.

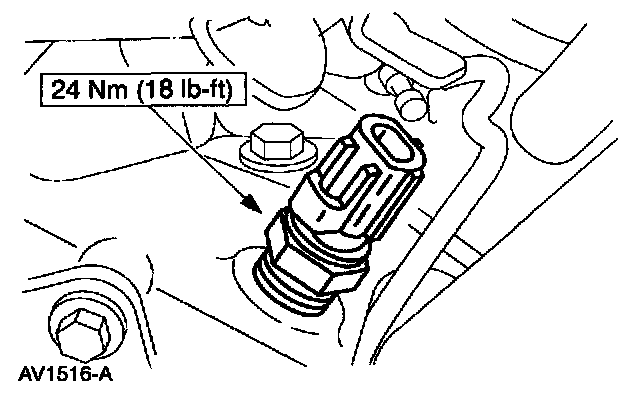

INSTALLATION
1. To install, reverse the removal procedure.
