System Specifications

Automatic Transaxle/Transmission





Capacity

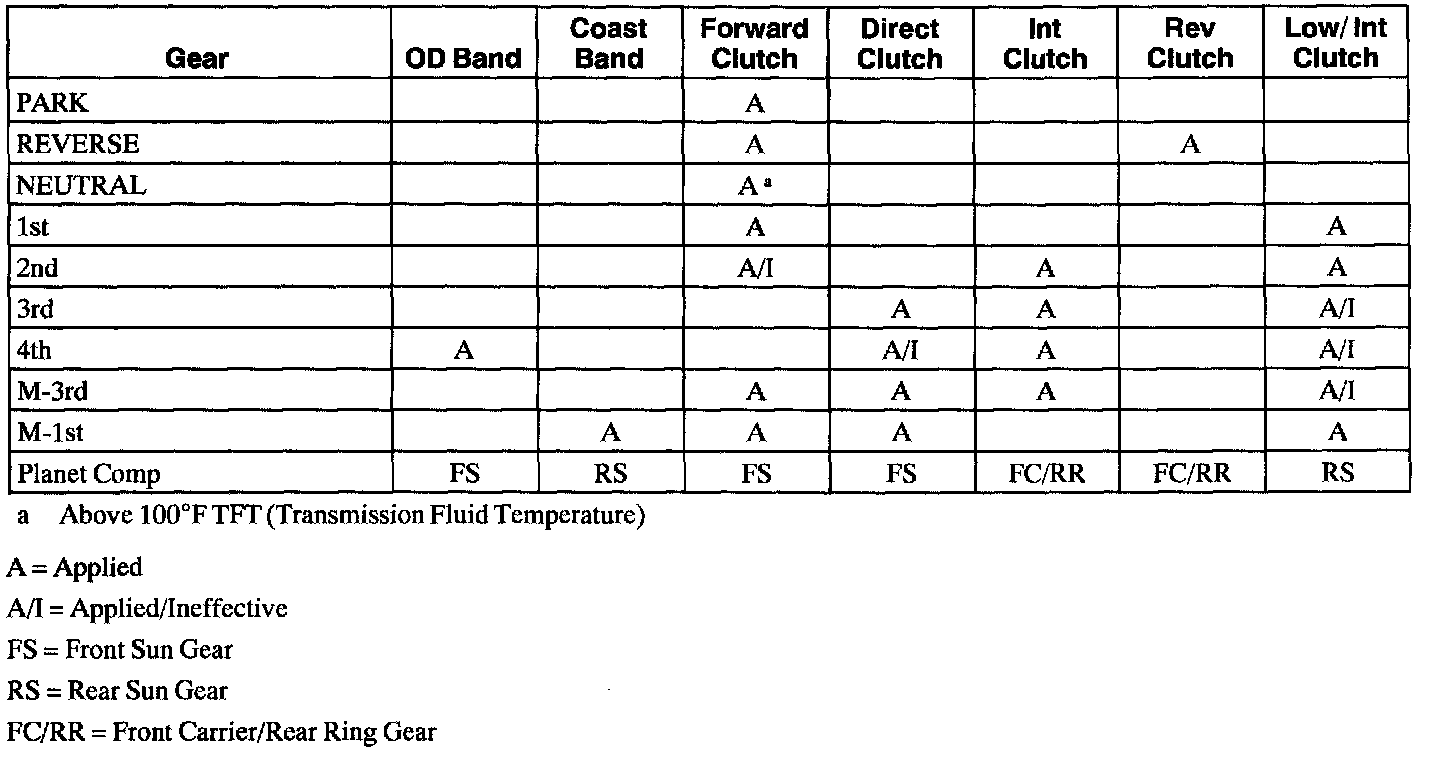

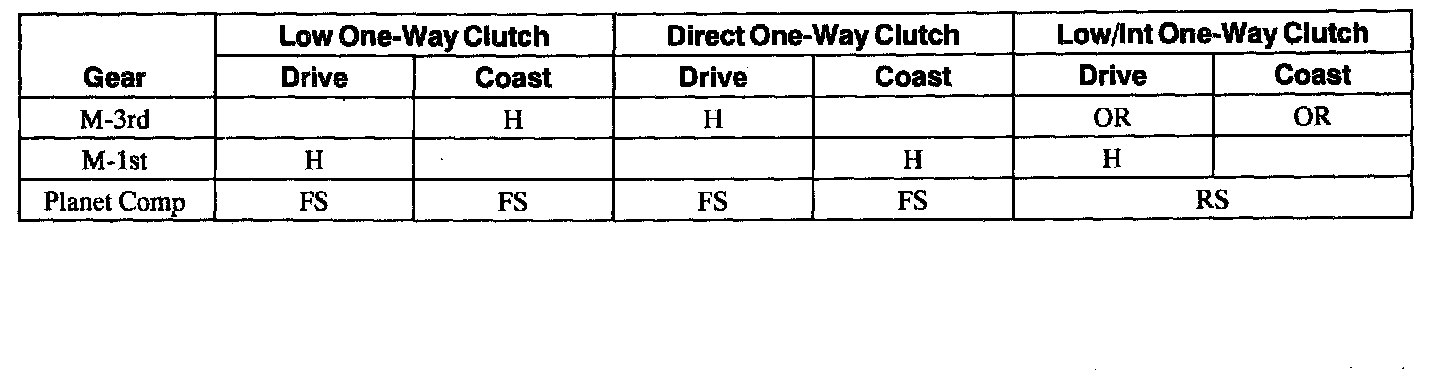

Band and Clutch Application Chart 1








H=Holding
OR=Overrunning
FS=Front Sun Gear
RS=Rear Sun Gear

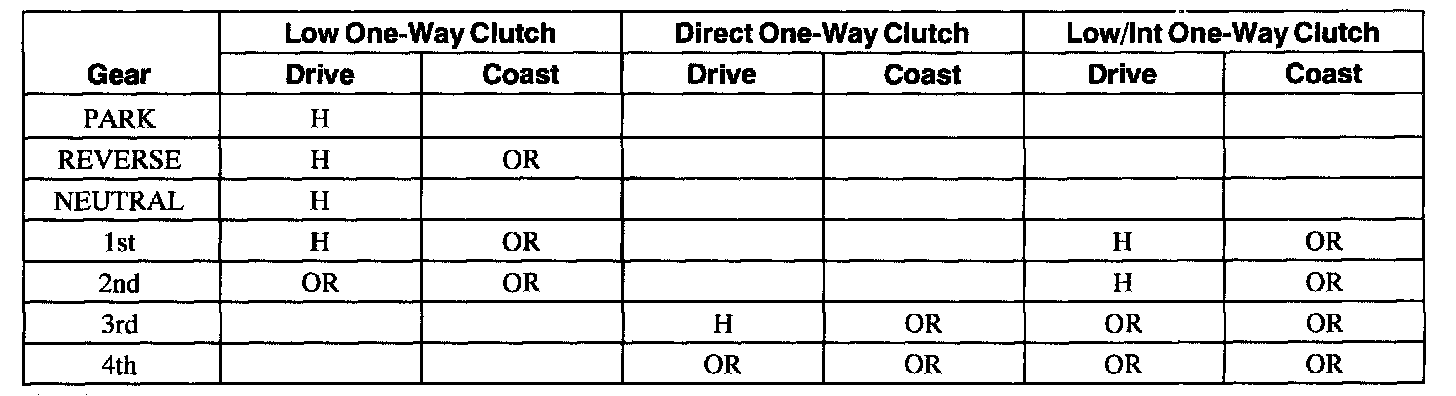

Band and Clutch Application Chart 2





Line Pressure Chart

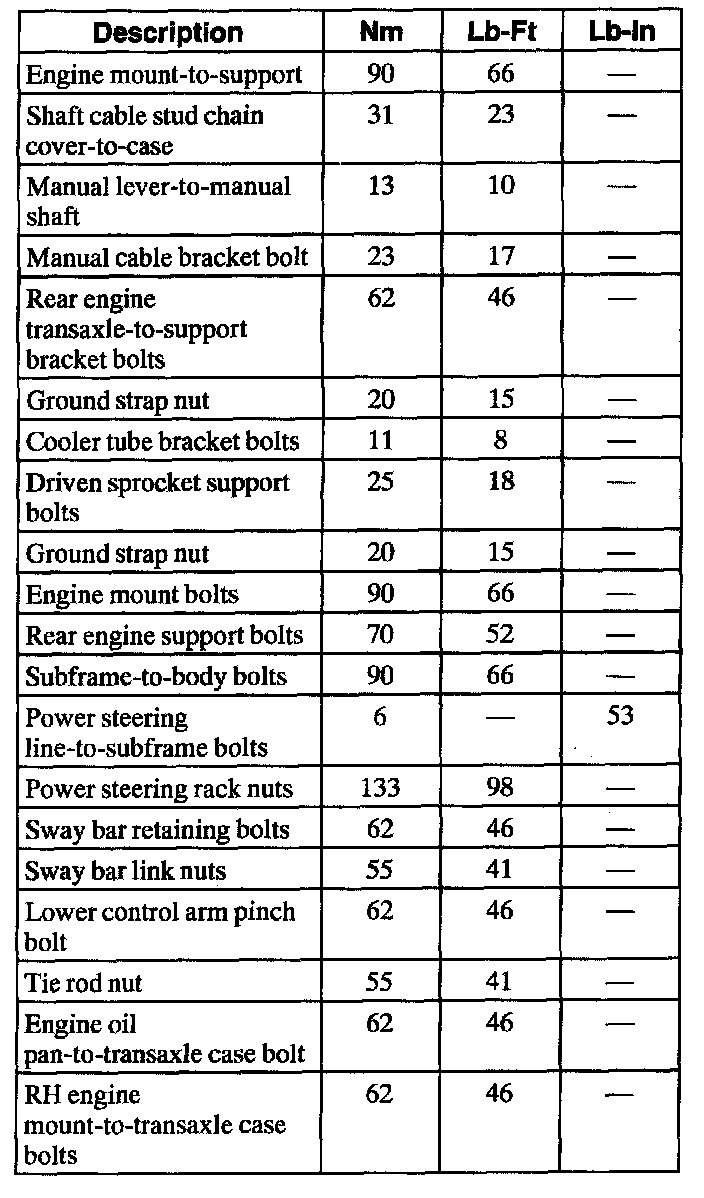

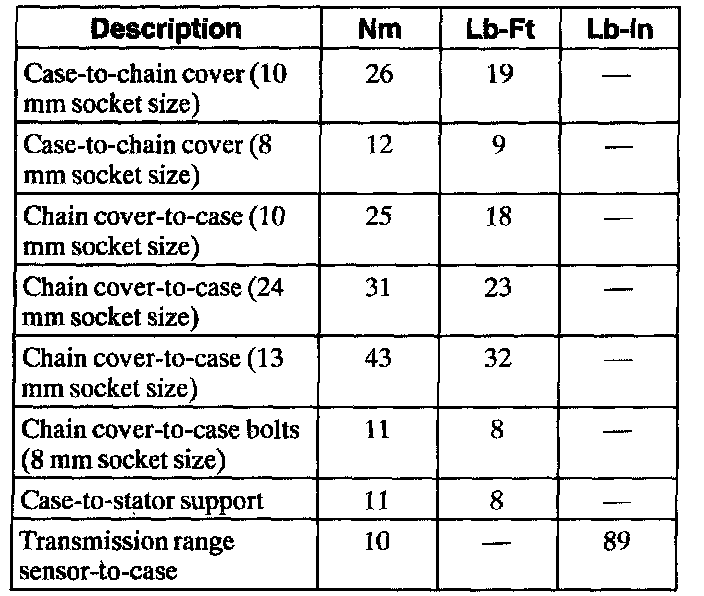

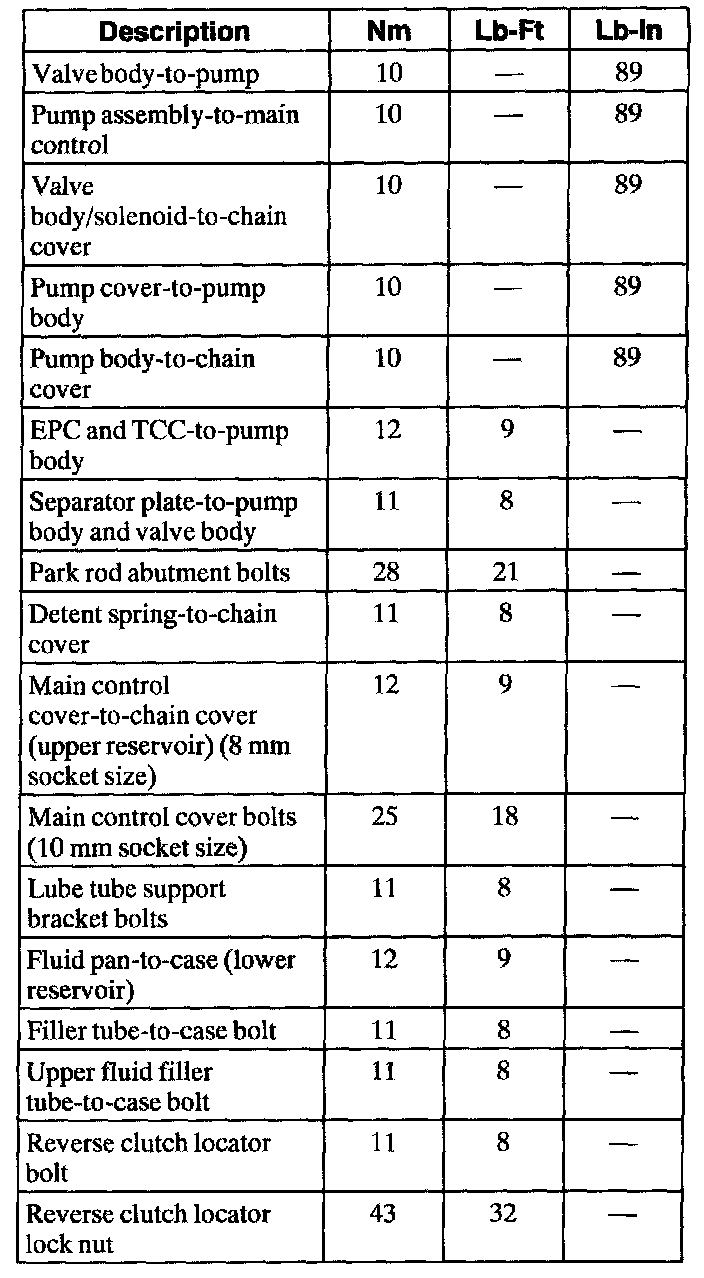

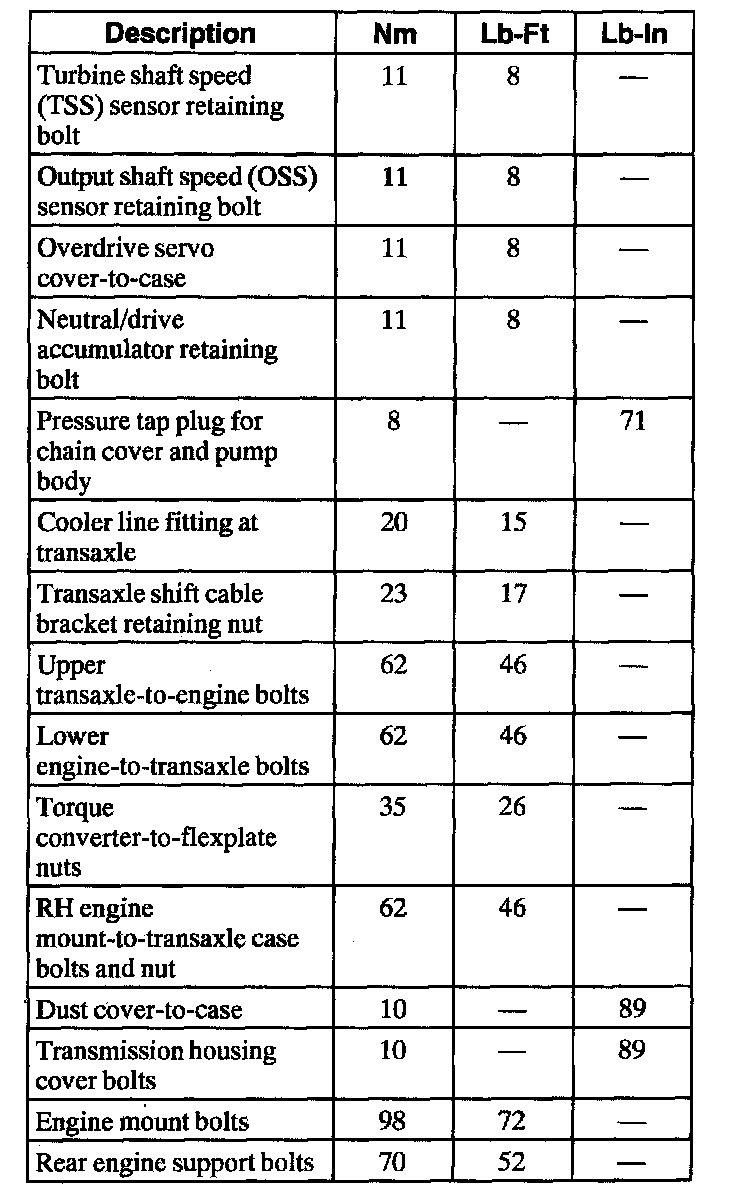

Torque Specifications

Transaxle/Transmission Cooling

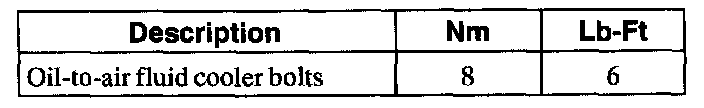

Torque Specifications

Automatic Transaxle/Transmission External Controls

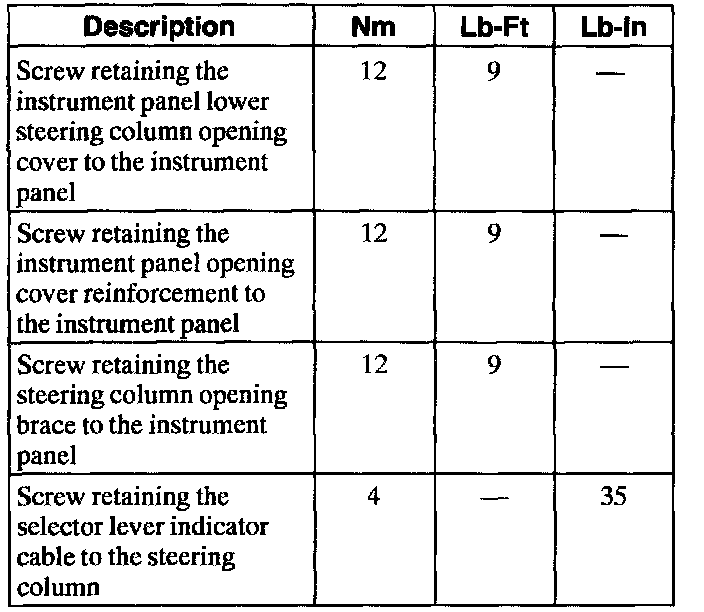

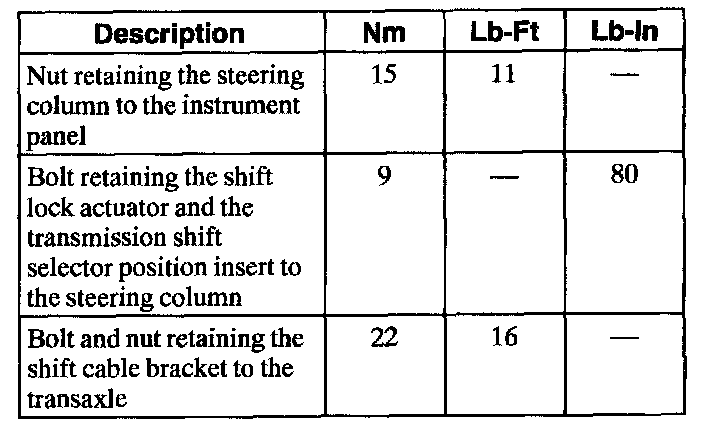

Torque Specifications
