Pinpoint Test DT: Drive Cycle Test

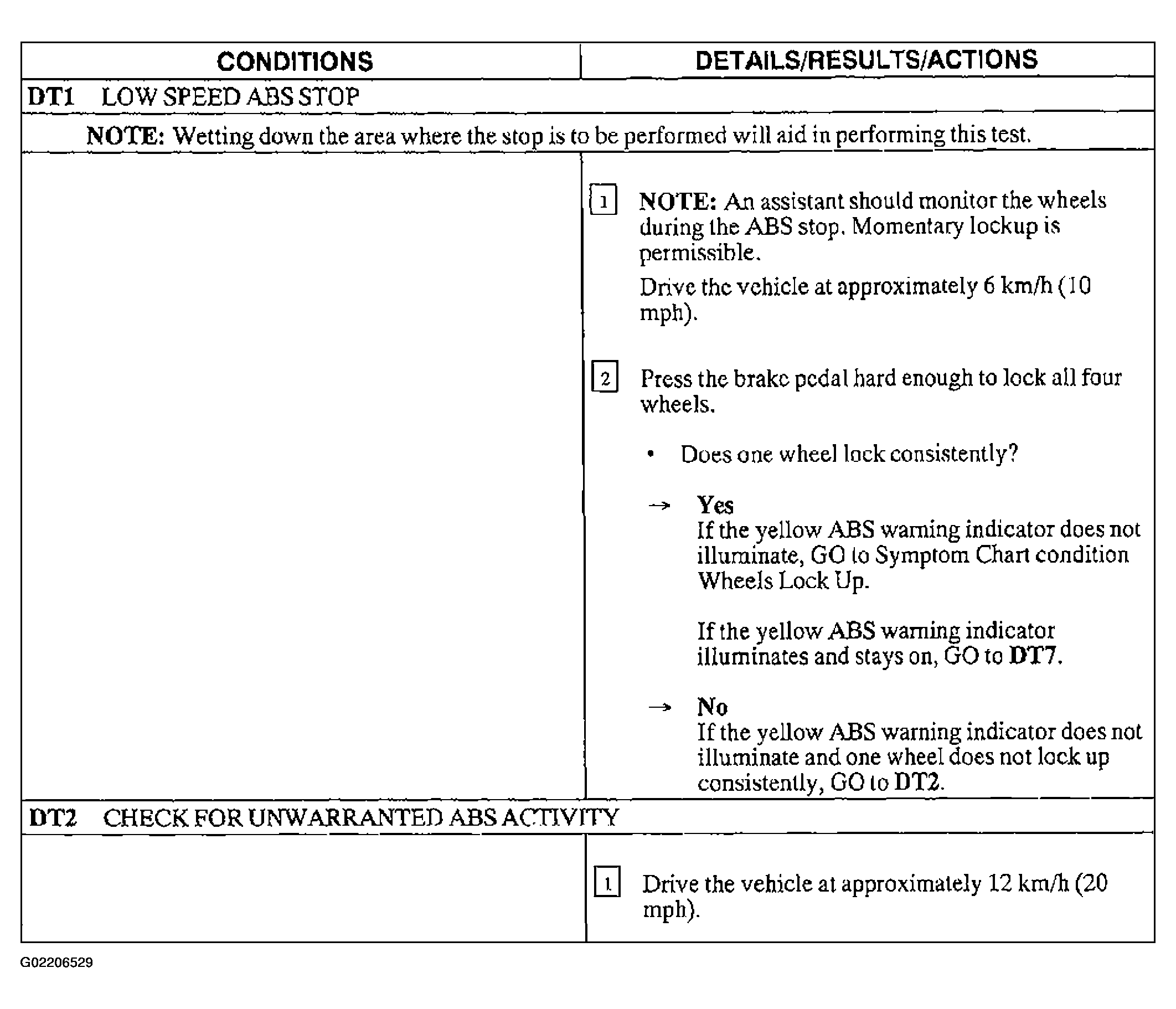

Fig 1: Pinpoint Test DT: Drive Cycle Test (Steps DT1)
G02206529Courtesy of FORD MOTOR CO.

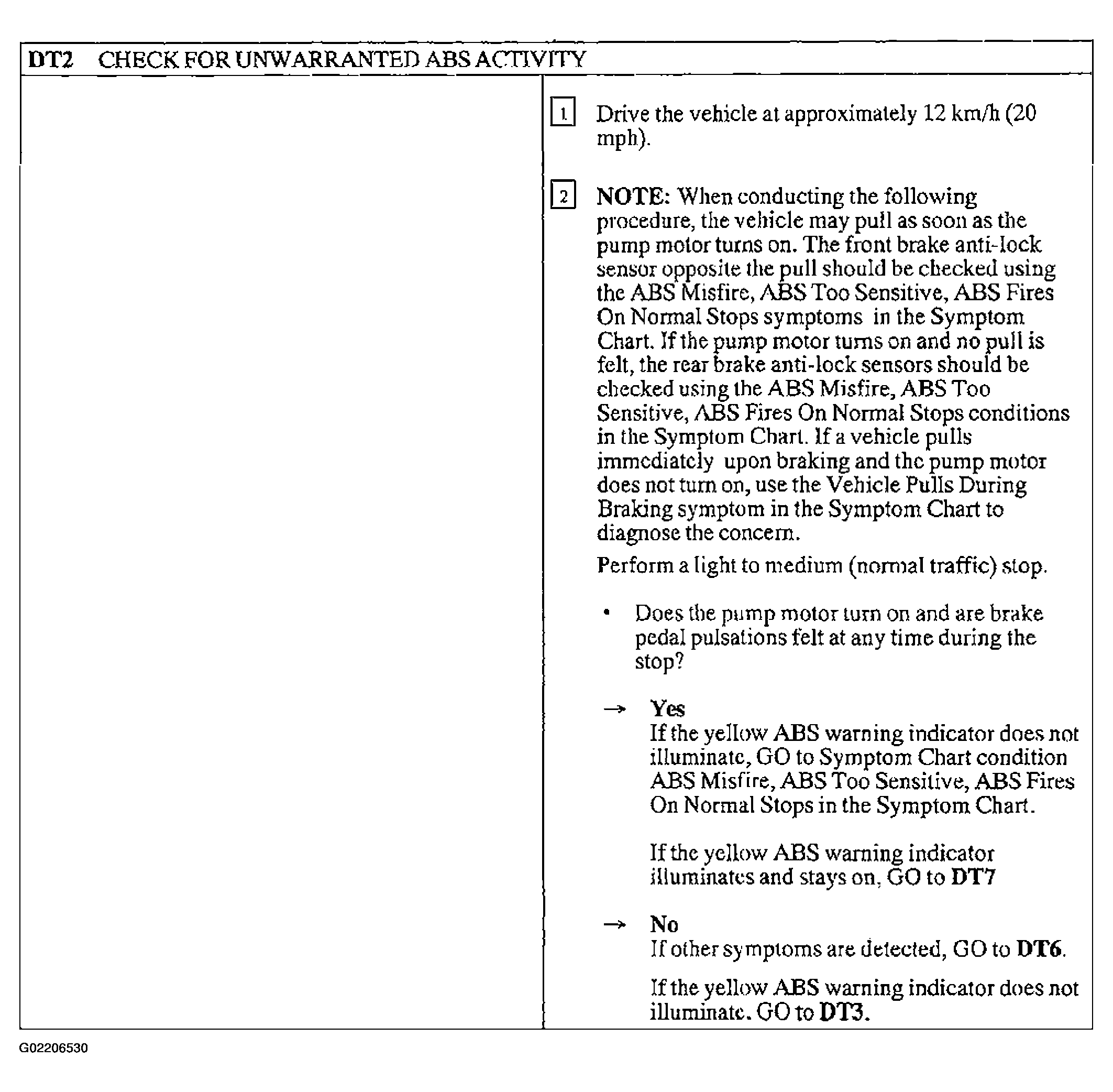

Fig 2: Pinpoint Test DT: Drive Cycle Test (Step DT2)
G02206530Courtesy of FORD MOTOR CO.

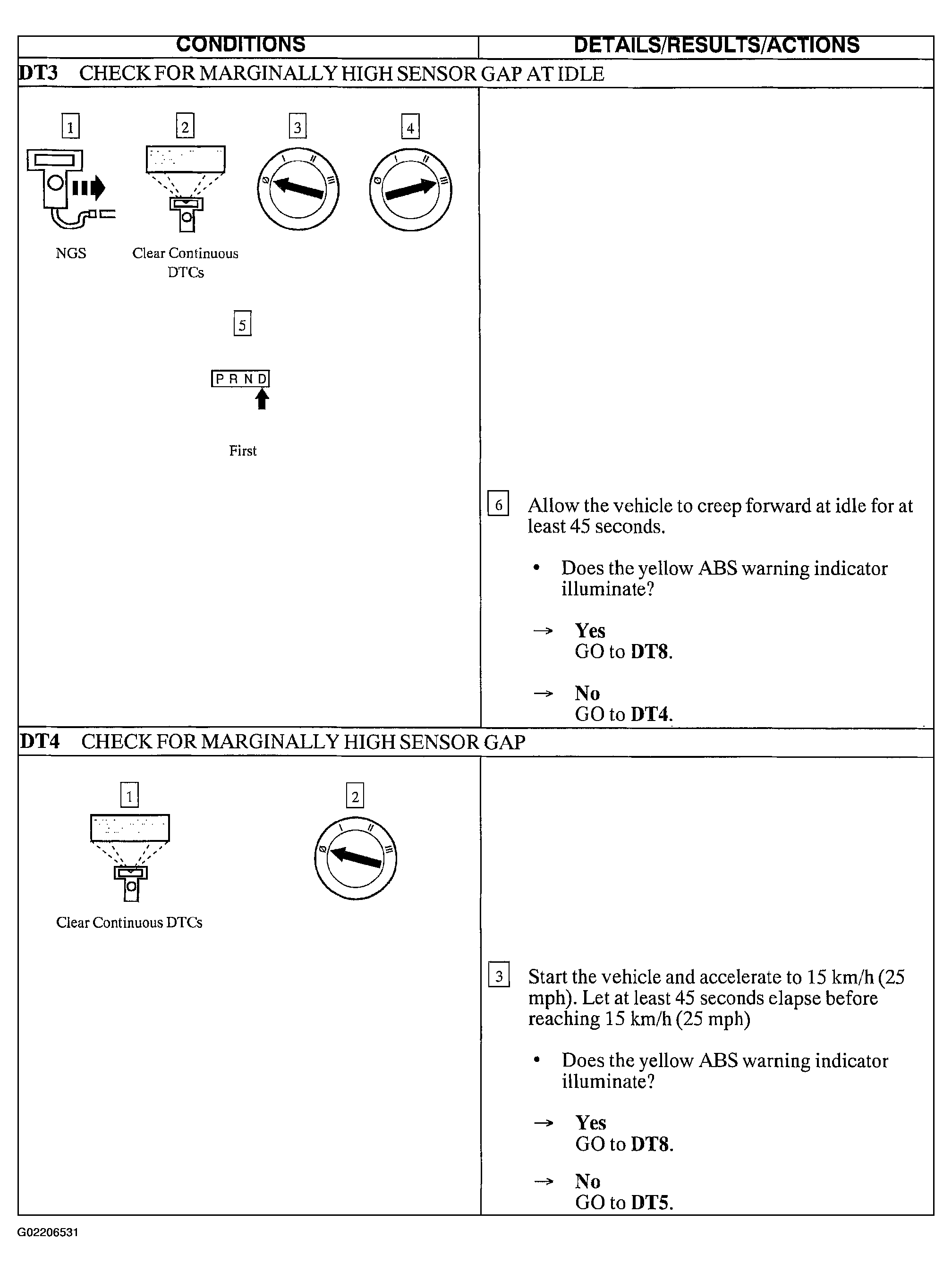

Fig 3: Pinpoint Test DT: Drive Cycle Test (Steps DT3 & DT4)
G02206531Courtesy of FORD MOTOR CO.

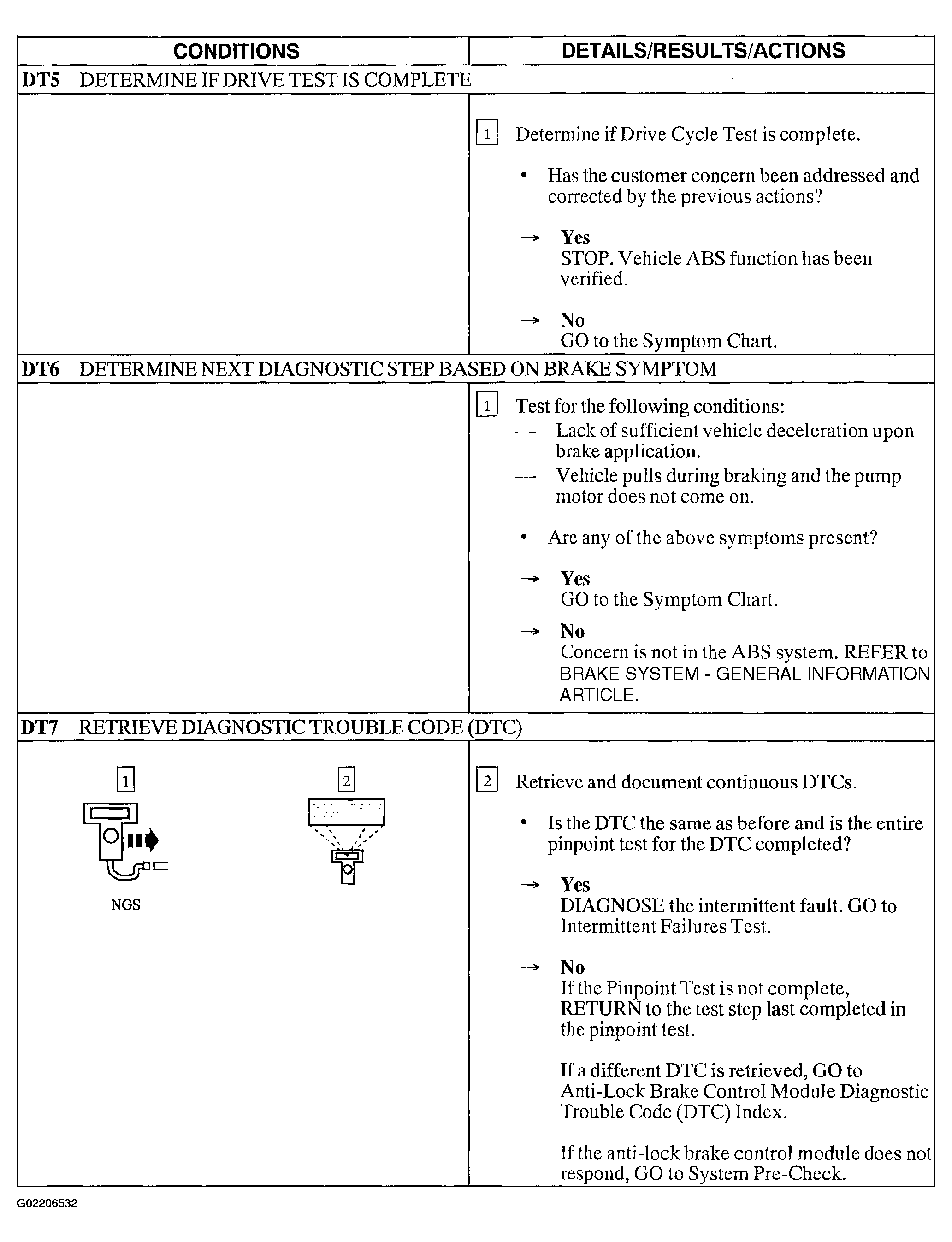

Fig 4: Pinpoint Test DT: Drive Cycle Test (Steps DT5-DT7)
G02206532Courtesy of FORD MOTOR CO.

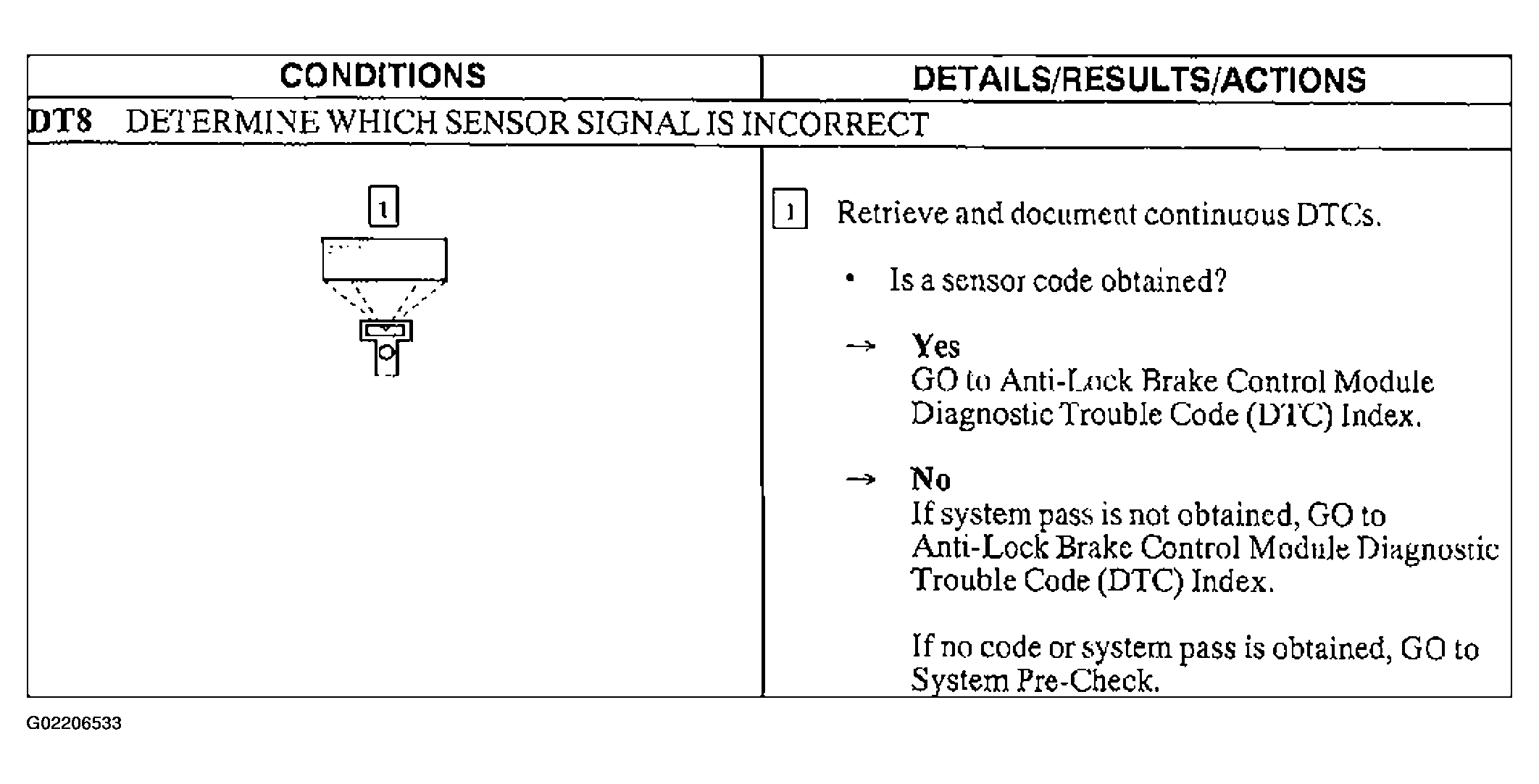

Fig 5: Pinpoint Test DT: Drive Cycle Test (Step DT8)
G02206533Courtesy of FORD MOTOR CO.
