Pinpoint Test L: C1185 - Open Anti-Lock Relay

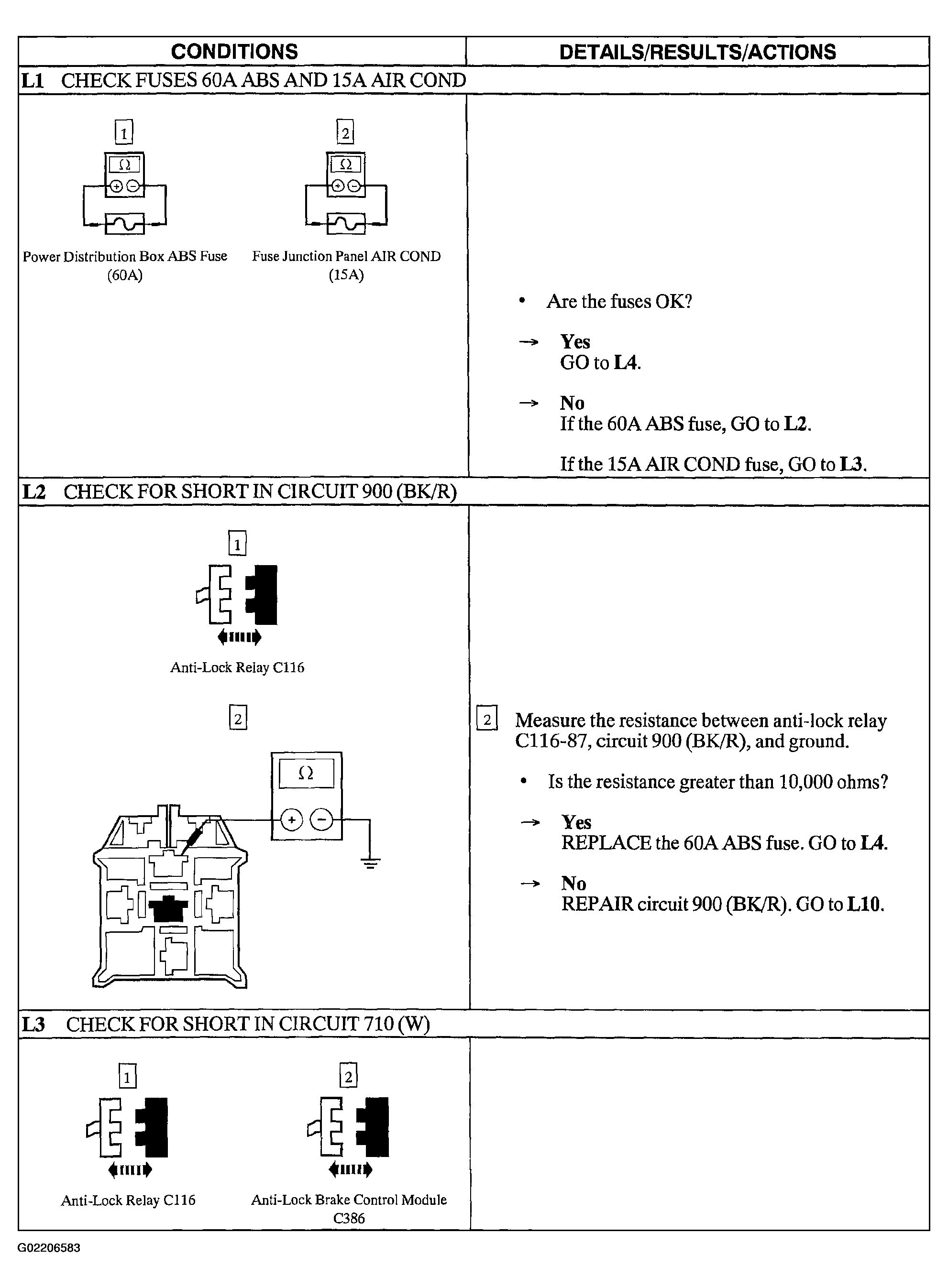

Fig 1: Pinpoint Test L: C1185 - Open Anti-Lock Relay (Steps L2-L3)

Courtesy of FORD MOTOR CO.

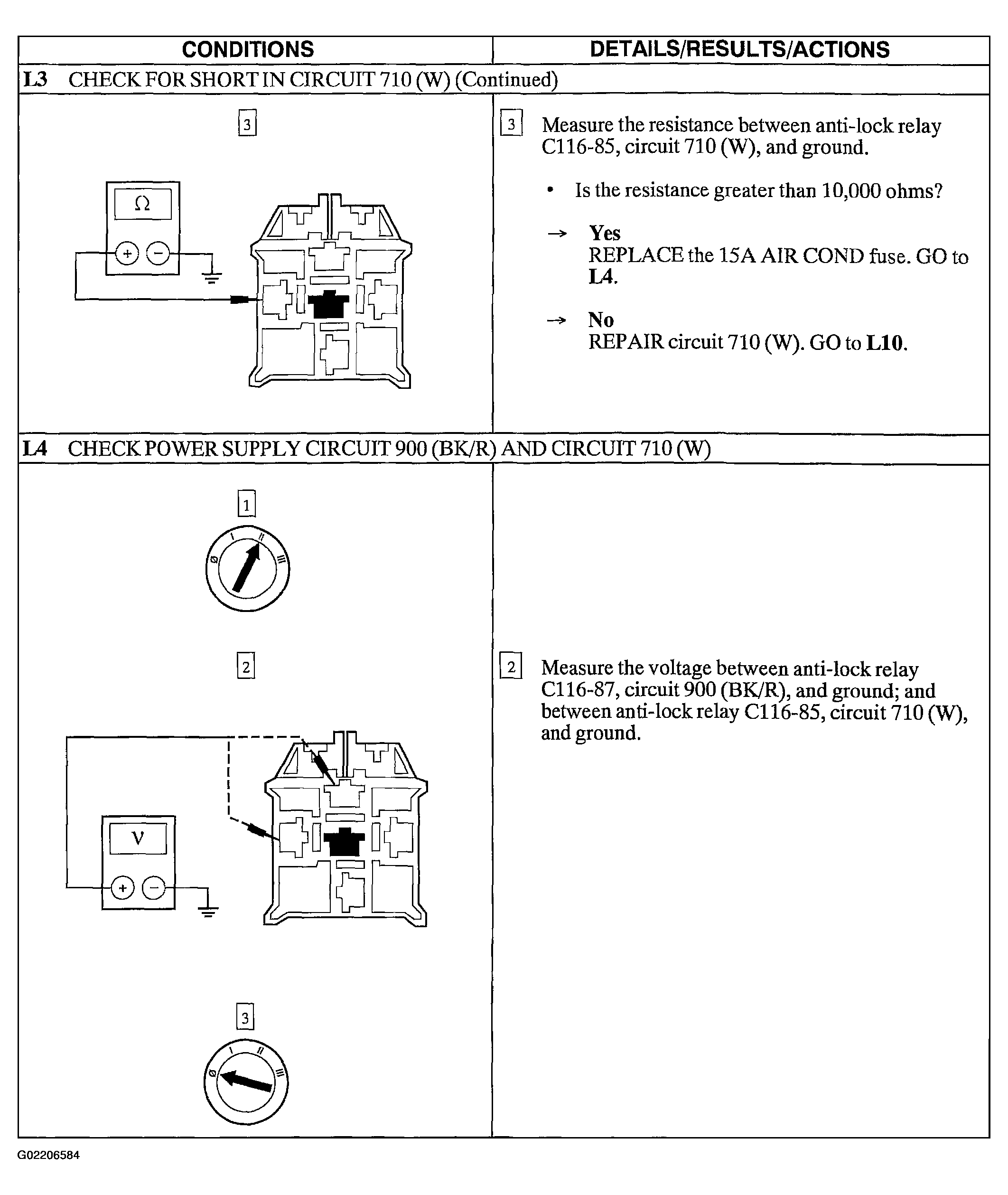

Fig 2: Pinpoint Test L: C1185 - Open Anti-Lock Relay (Steps L3 & L4)

Courtesy of FORD MOTOR CO.

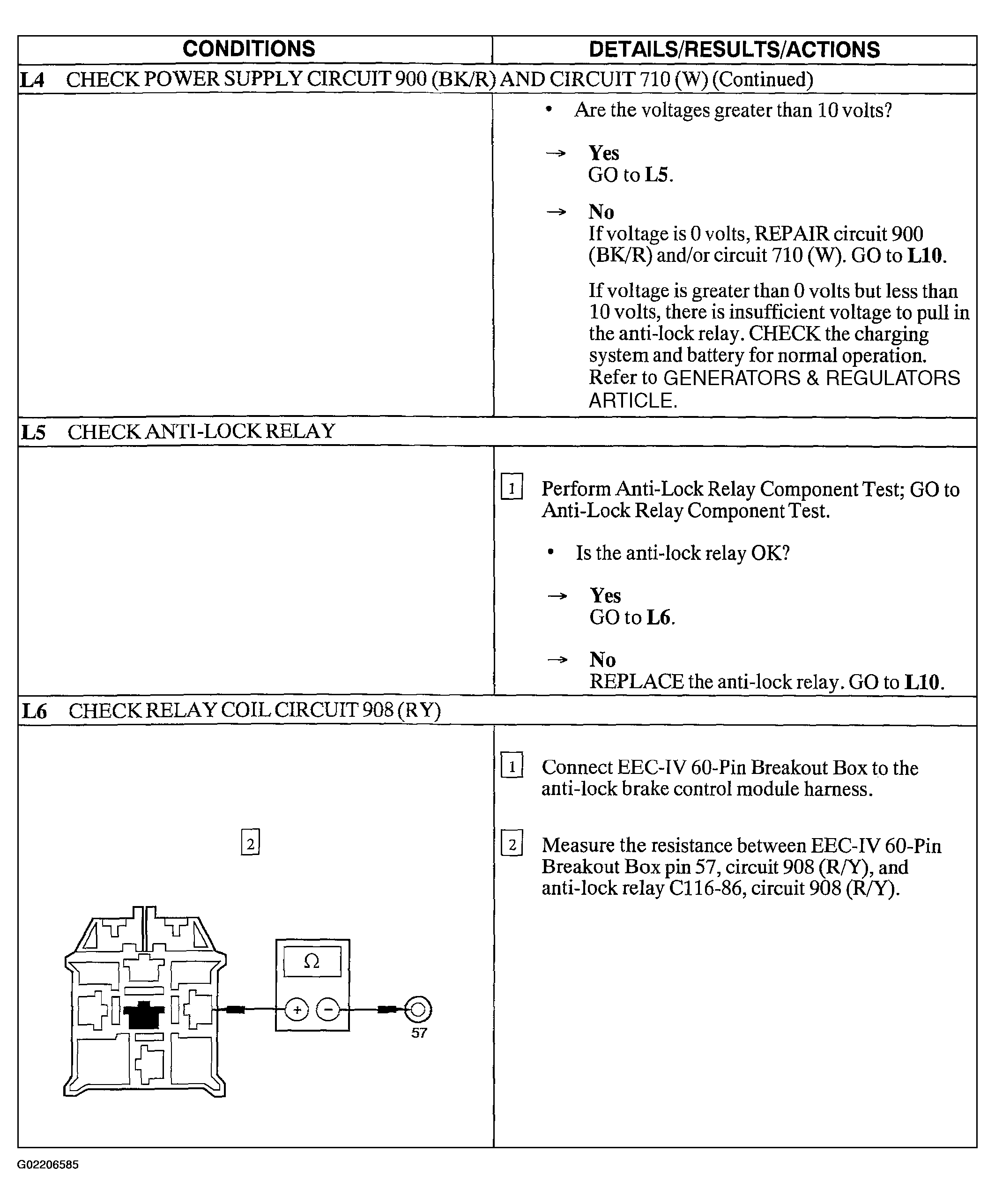

Fig 3: Pinpoint Test L: C1185 - Open Anti-Lock Relay (Steps L4-L6)

Courtesy of FORD MOTOR CO.

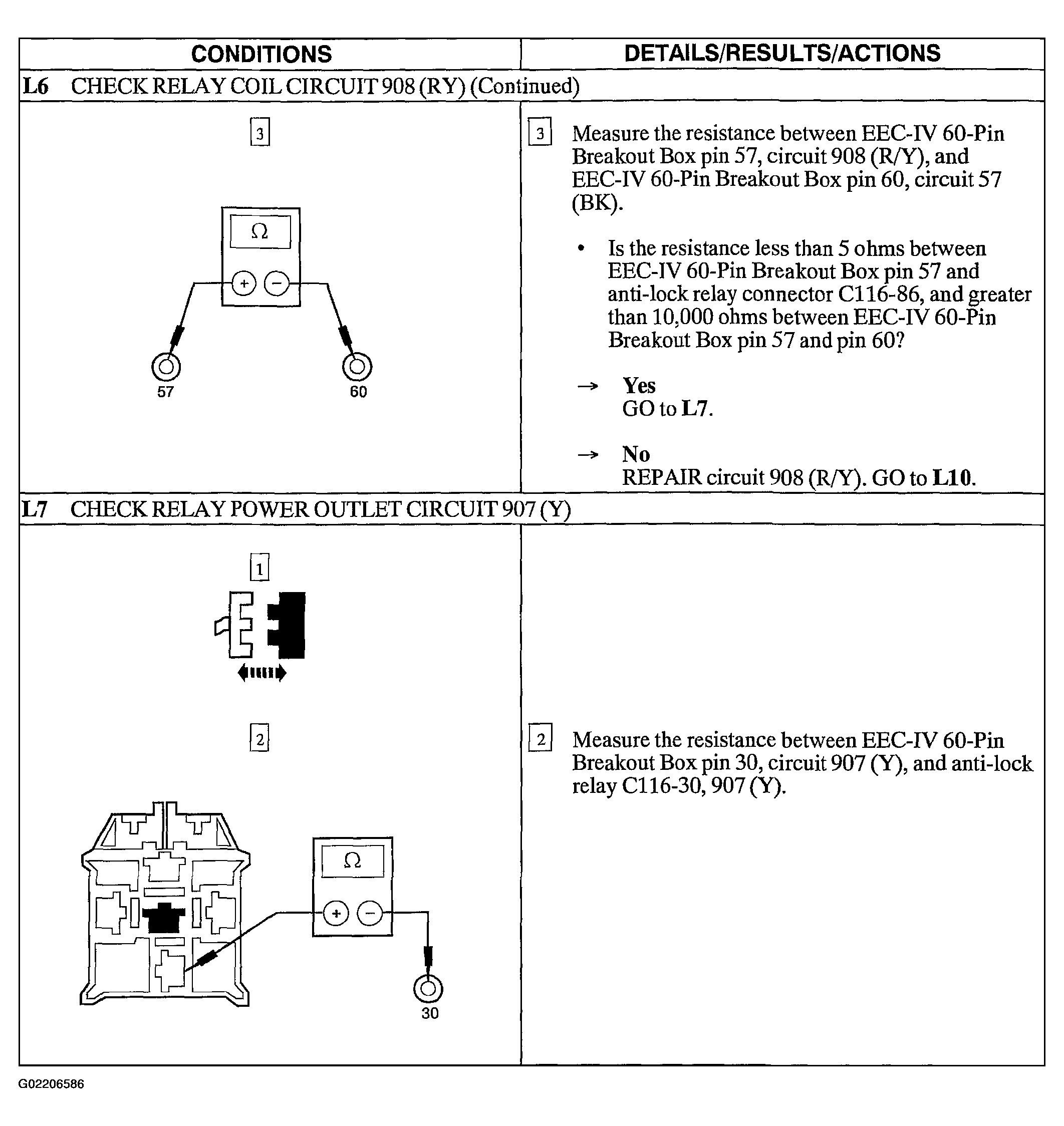

Fig 4: Pinpoint Test L: C1185 - Open Anti-Lock Relay (Steps L6 & L7)

Courtesy of FORD MOTOR CO.

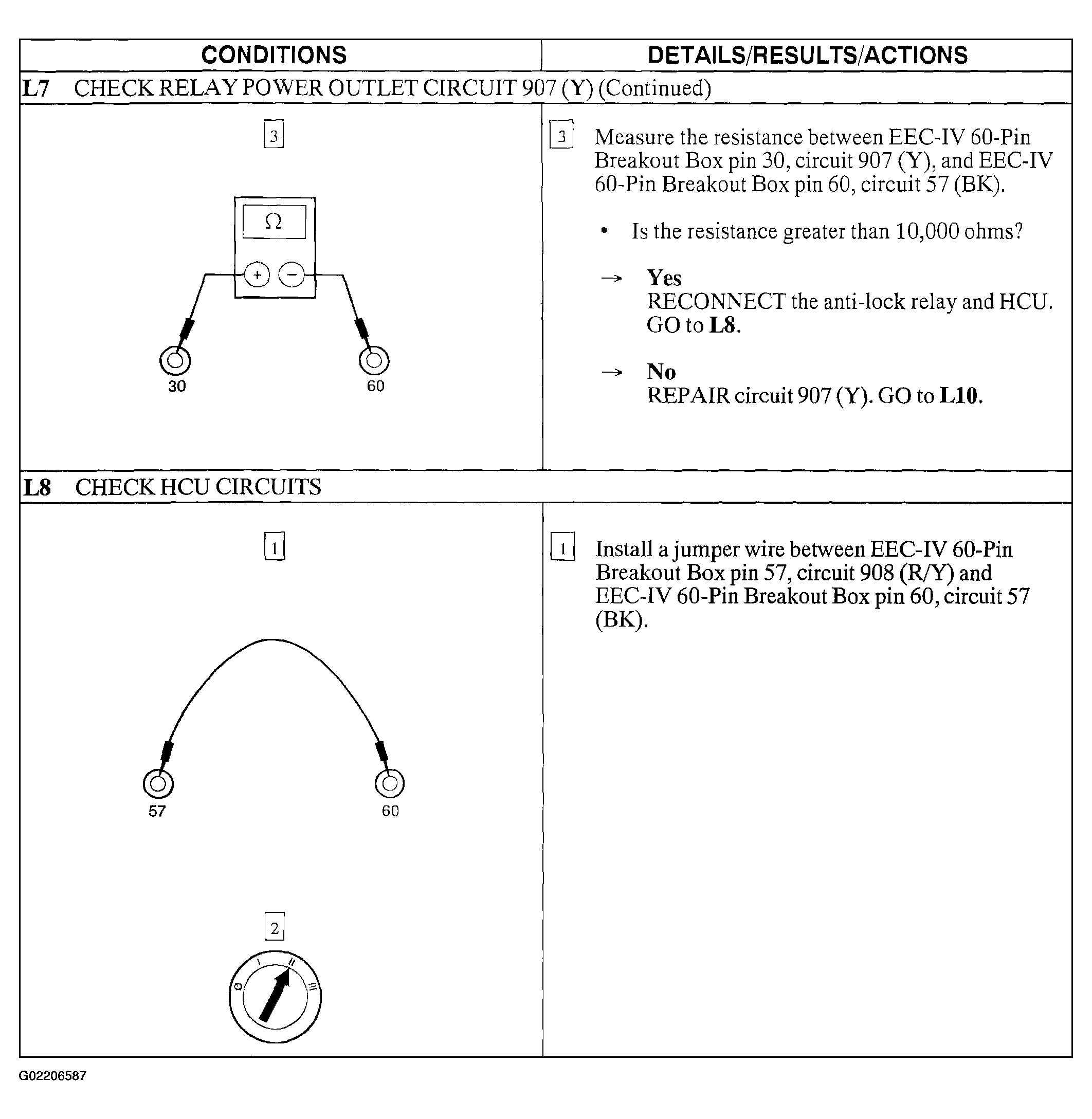

Fig 5: Pinpoint Test L: C1185 - Open Anti-Lock Relay (Steps L7 & L8)

Courtesy of FORD MOTOR CO.

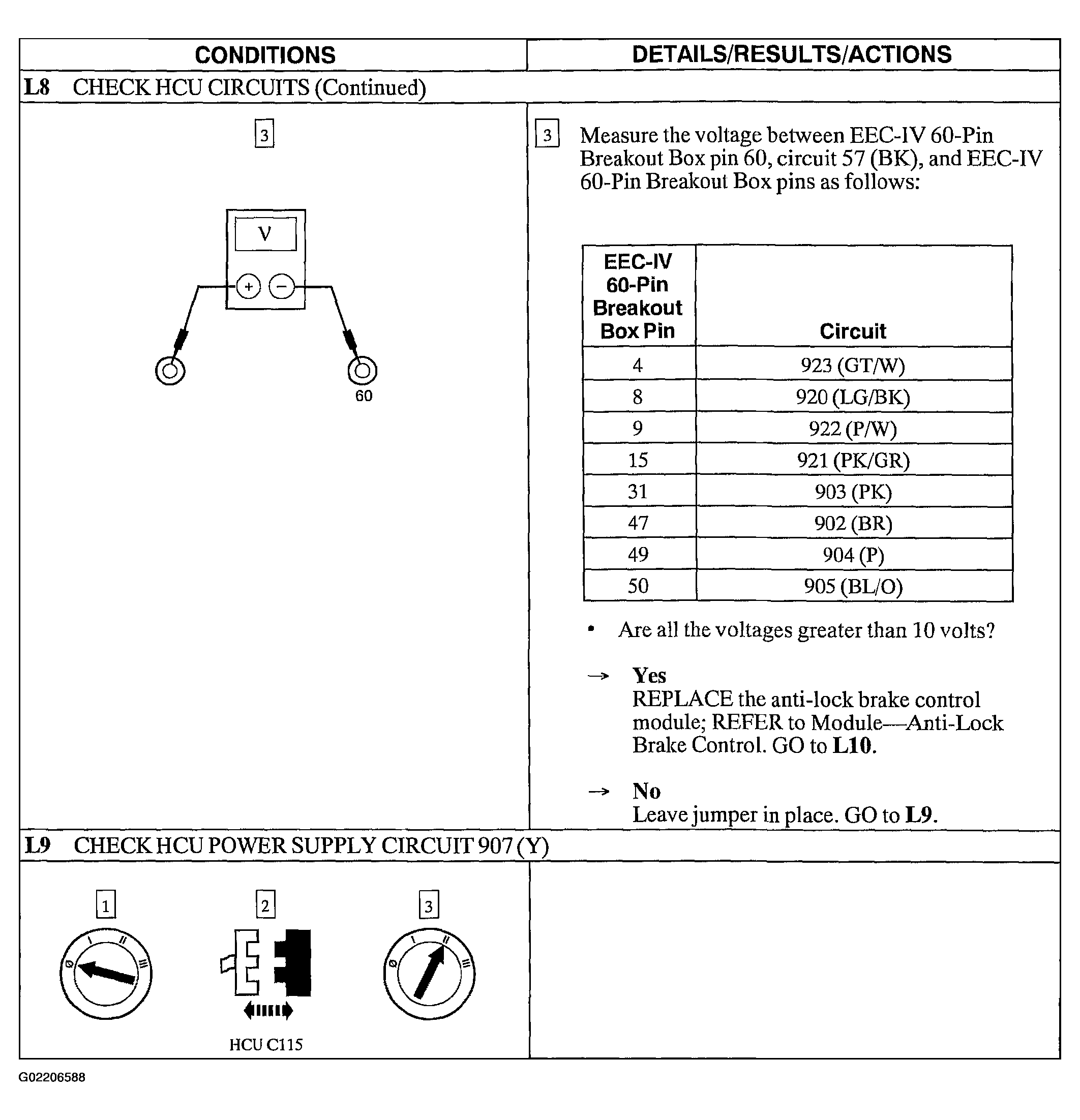

Fig 6: Pinpoint Test L: C1185 - Open Anti-Lock Relay (Steps L8 & L9)

Courtesy of FORD MOTOR CO.

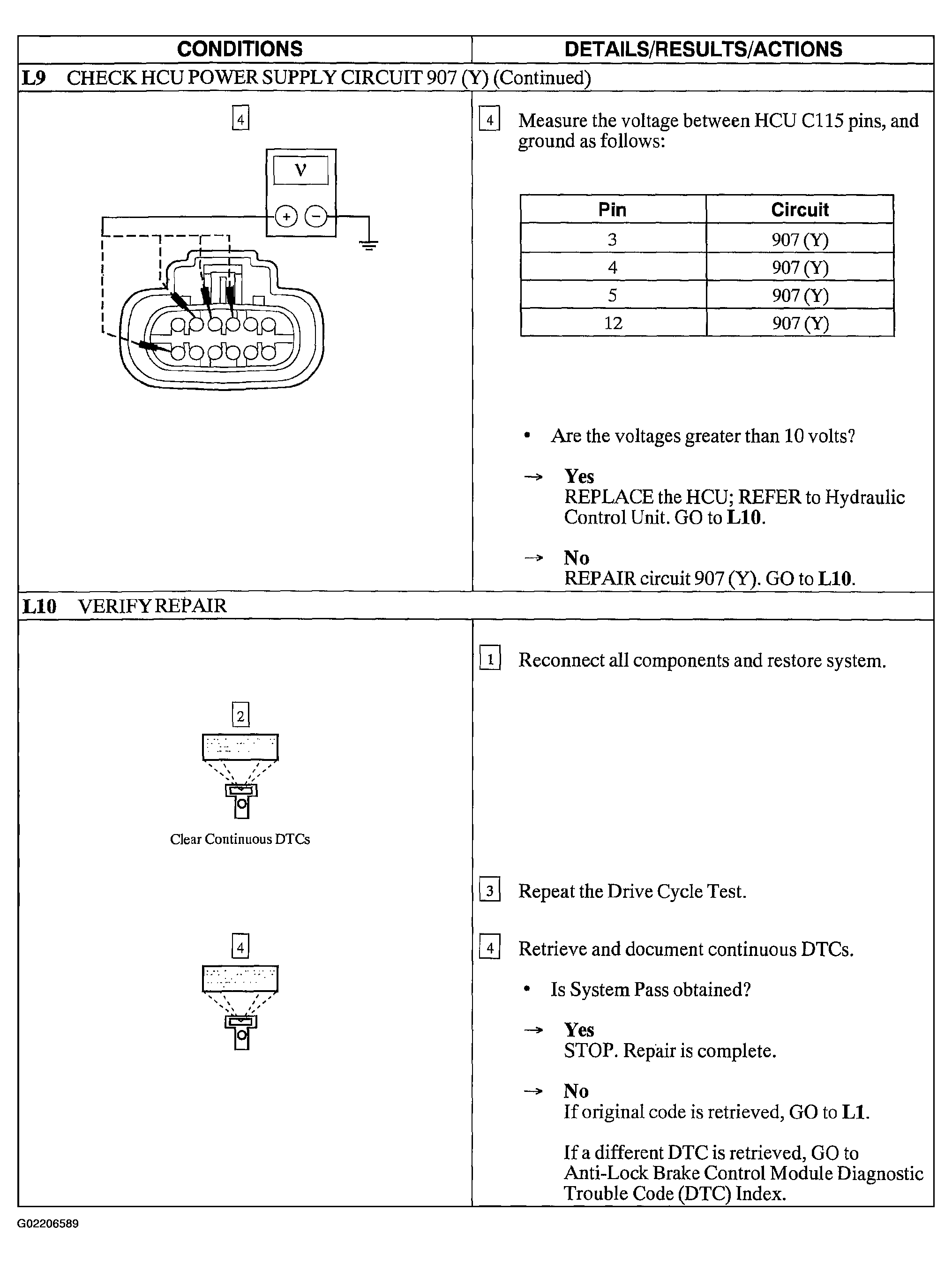

Fig 7: Pinpoint Test L: C1185 - Open Anti-Lock Relay (Steps L9 & L10)

Courtesy of FORD MOTOR CO.
