Sensor - Rear Anti-Lock Brake: Removal

Disconnect the battery ground cable (14301). For additional information, refer to BATTERY .
Disconnect the anti-lock brake sensor electrical connector.

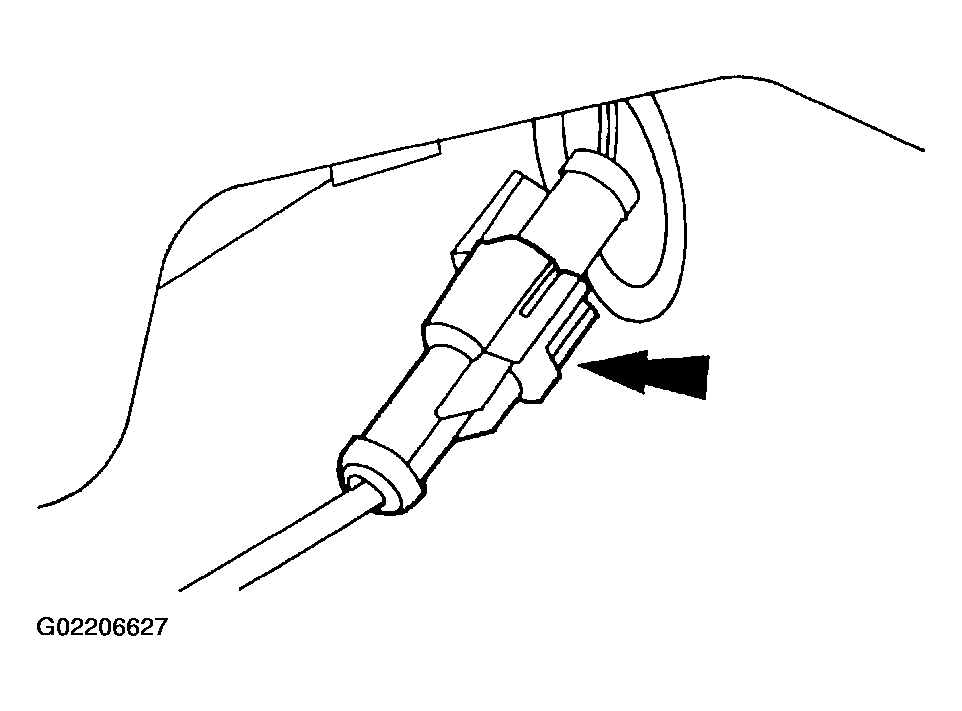

Fig 1: Disconnecting Anti-Lock Brake Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the wheel and tire assembly.
Remove the rear anti-lock brake sensor wire grommet.

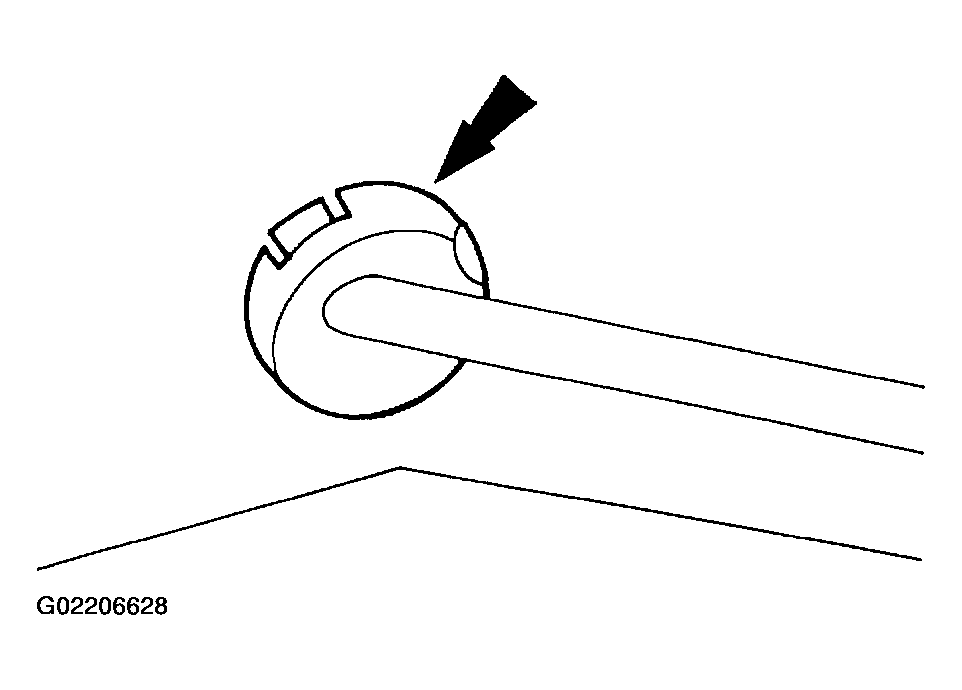

Fig 2: Removing Rear Anti-Lock Brake Sensor Wire Grommet
Courtesy of FORD MOTOR CO.
Disconnect the rear anti-lock brake sensor wire from the wiring harness upper clip.

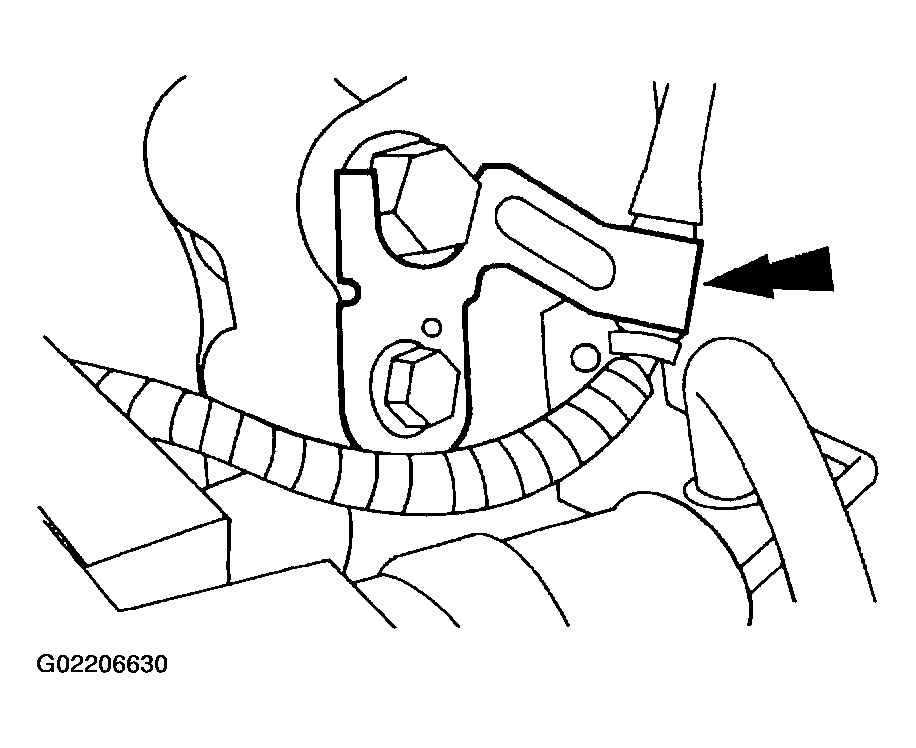

Fig 3: Disconnecting Rear Anti-Lock Brake Sensor Wire From Wiring Harness Upper Clip
Courtesy of FORD MOTOR CO.
Disconnect the rear anti-lock brake sensor wire from the wiring harness lower clip.

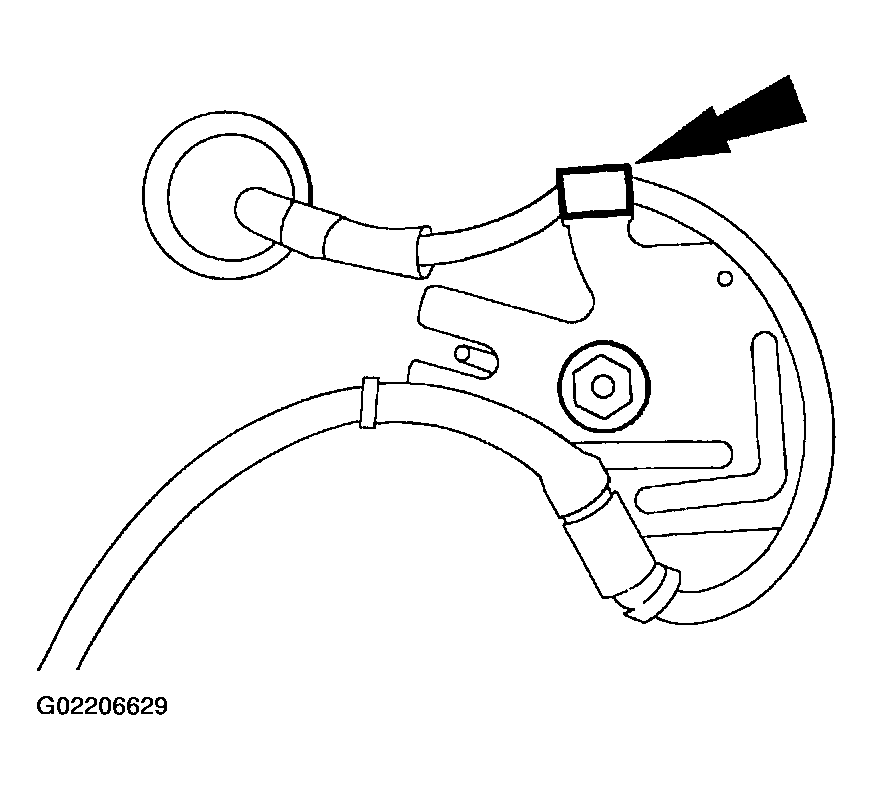

Fig 4: Disconnecting Rear Anti-Lock Brake Sensor Wire From Wiring Harness Lower Clip
Courtesy of FORD MOTOR CO.
Remove the rear anti-lock brake sensor.
1. Remove the bolt.

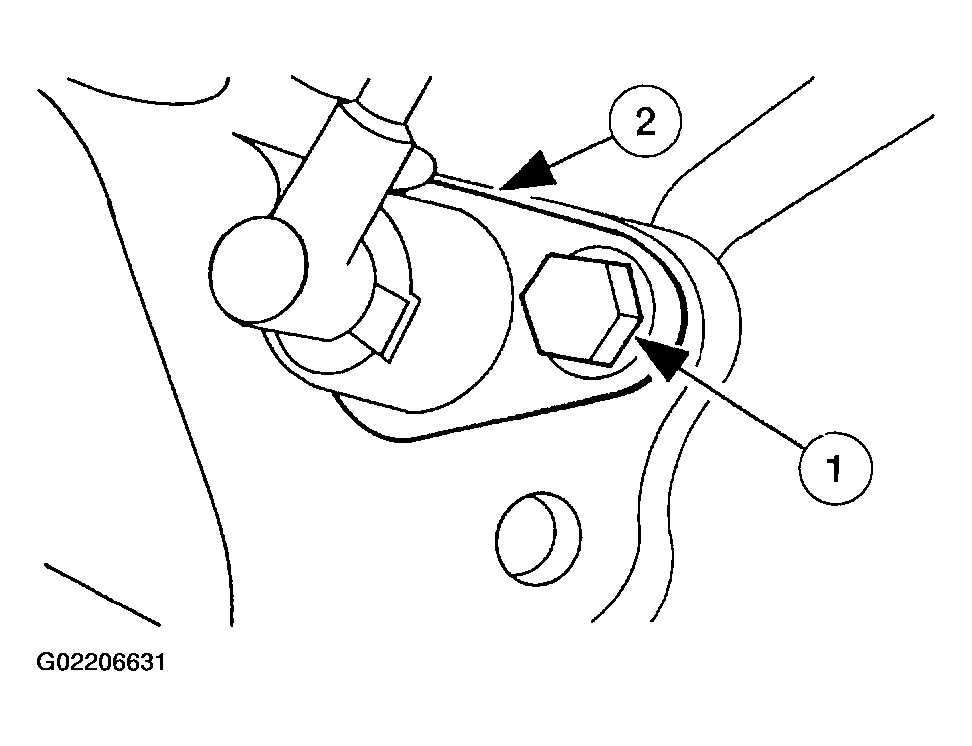

  Fig 5: Removing Rear Anti-Lock Brake Sensor
  Courtesy of FORD MOTOR CO.
2. Remove the rear anti-lock brake sensor.
