Hydraulic Leak Check

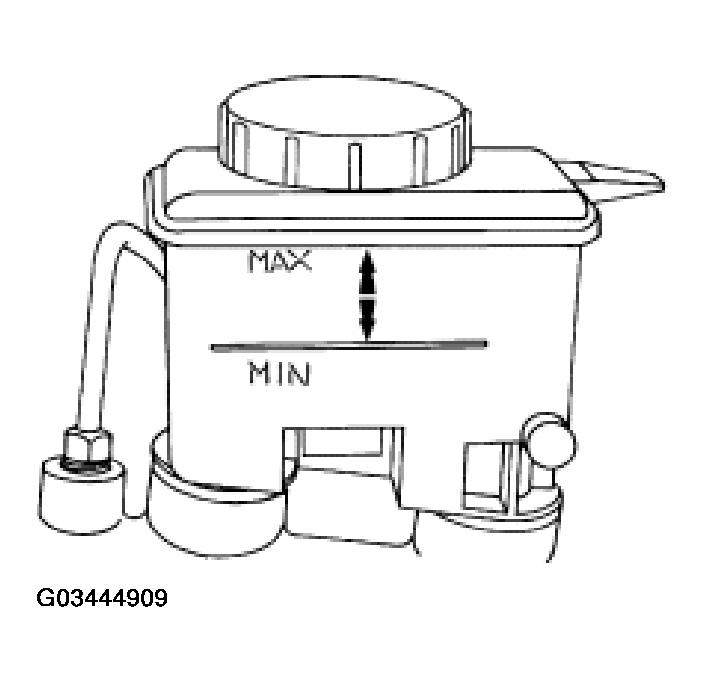

- Check the brake fluid level. If the fluid level is below the MIN line on the brake master cylinder reservoir add the required amount of Motorcraft High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 meeting Ford specification ESA-M6C25-A or DOT 3 equivalent.
Courtesy of FORD MOTOR CO.

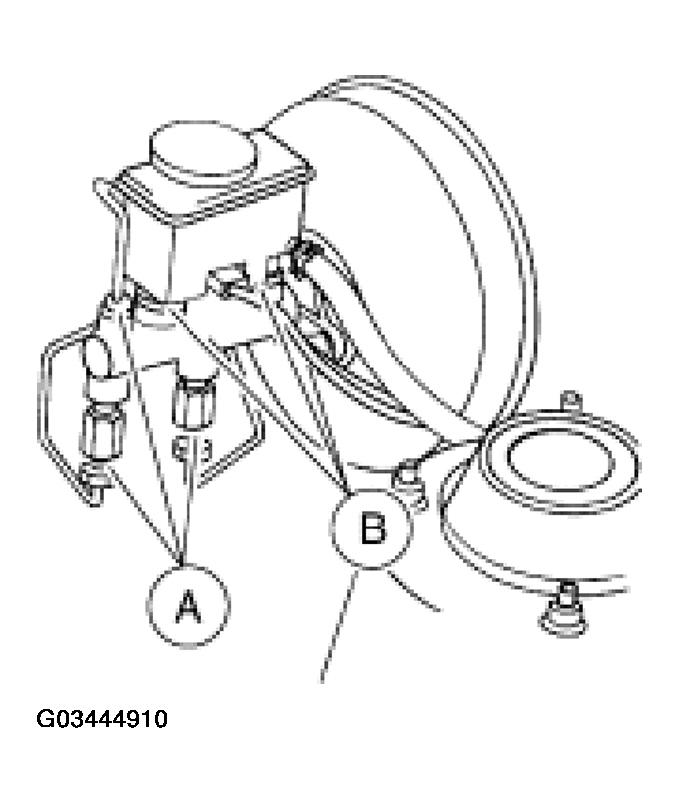

- Inspect the (A) brake line nuts and the (B) brake master cylinder reservoir for fluid leaks.
Courtesy of FORD MOTOR CO.
- Inspect the brake lines and hoses for fluid leaks.
- If equipped, inspect the rear wheel cylinder for leaks.
- If equipped, inspect the rear disc brake caliper for leaks.
- Inspect the front disc brake calipers for leaks.
- If a hydraulic leak is detected, refer to
DISC & DRUM
.
