Connecting Rod - Cleaning

  1. CAUTION: Do not use a caustic cleaning solution or damage to connecting rods can occur.
    2. NOTE: If the connecting rod large end is mechanically split or cracked to produce a unique parting face, a locking joint is produced. Parts are not interchangeable.

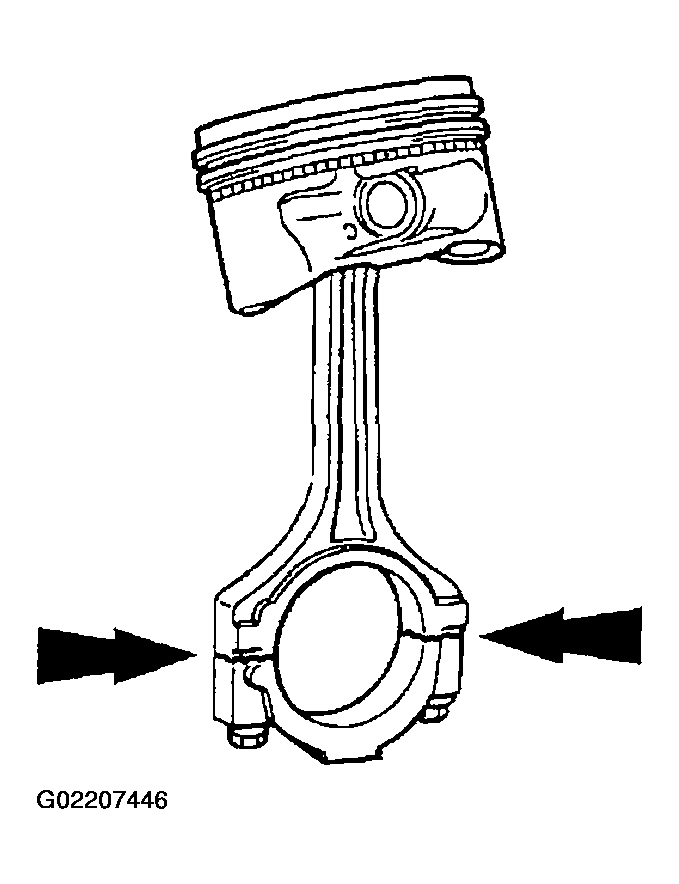

    Fig 1: Identifying Connecting Rod Large End Parting Face
    G02207446Courtesy of FORD MOTOR CO.
  2. Mark and separate the parts and clean with solvent. Clean the oil passages.
