Connecting Rod - Piston Pin Side Clearance

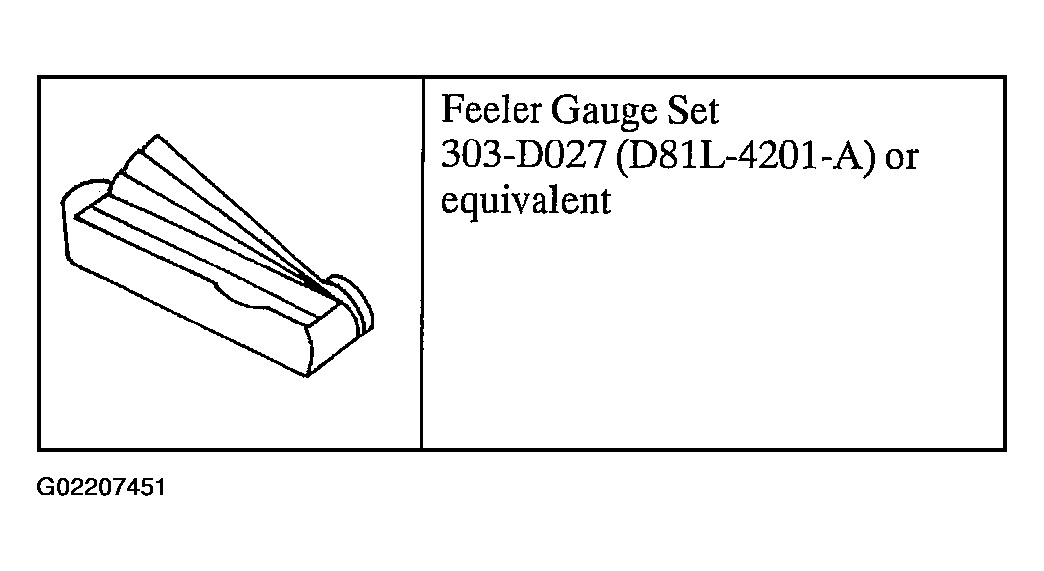

Fig 1: Identifying Special Tool
G02207451Courtesy of FORD MOTOR CO.
  1. Measure the clearance between the connecting rod and the piston. Verify the measurement is within specification.
    • For additional information, refer to Specifications in the appropriate ENGINE article .
    • If out of specification, install new components as necessary. Refer to the appropriate ENGINE article for the procedure.

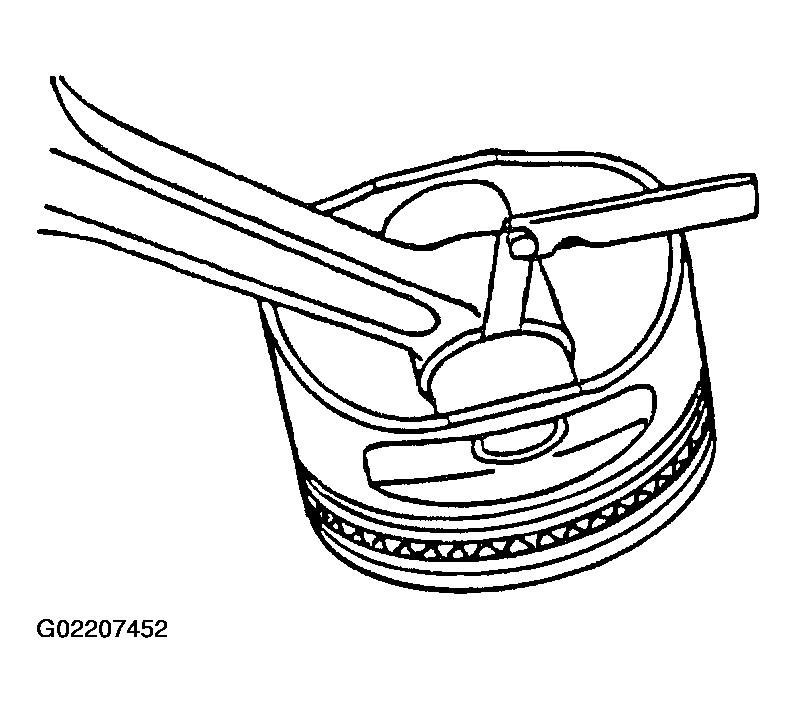

    Fig 2: Measuring Clearance Between Connecting Rod And Piston
    G02207452Courtesy of FORD MOTOR CO.
