Cylinder Head - Distortion

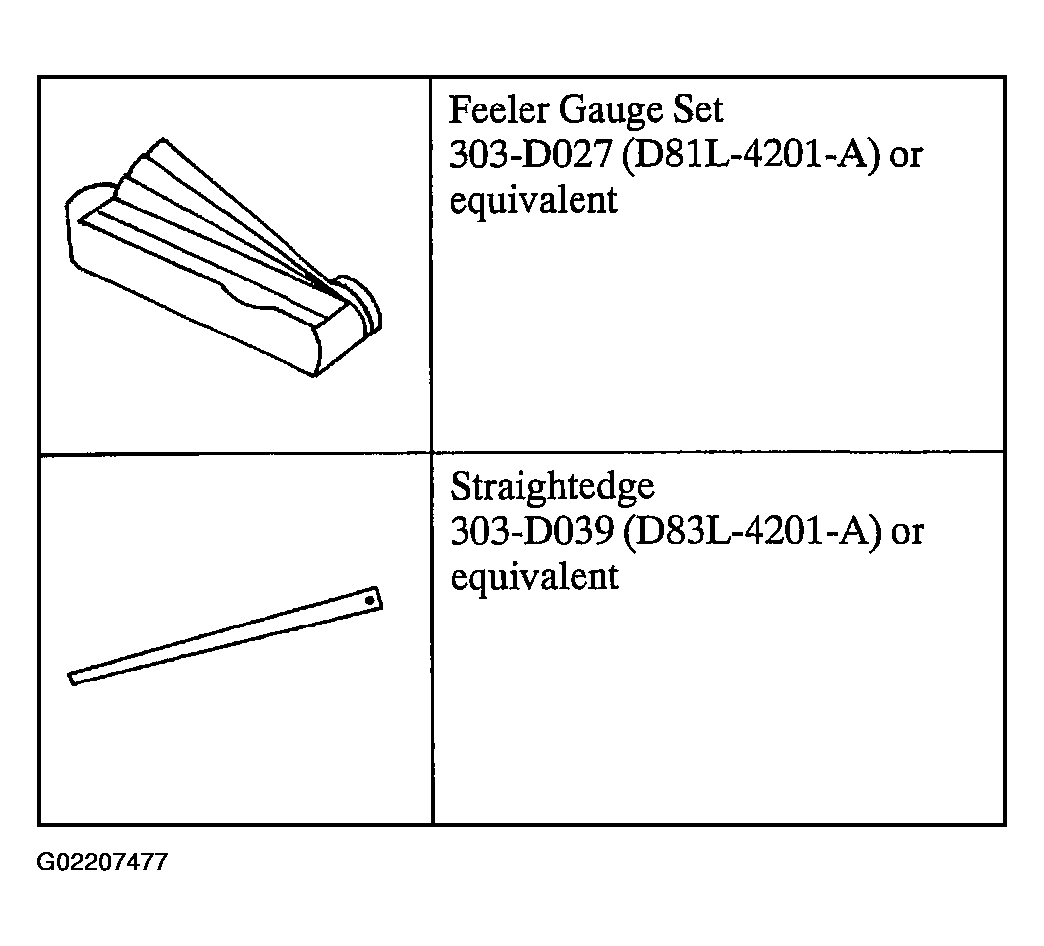

Fig 1: Identifying Special Tools
G02207477Courtesy of FORD MOTOR CO.
  1. Use a straightedge and a feeler gauge to inspect the cylinder head for flatness. If the cylinder head is distorted, resurface or install a new cylinder head.
    • Refer to the appropriate ENGINE article for the procedure.

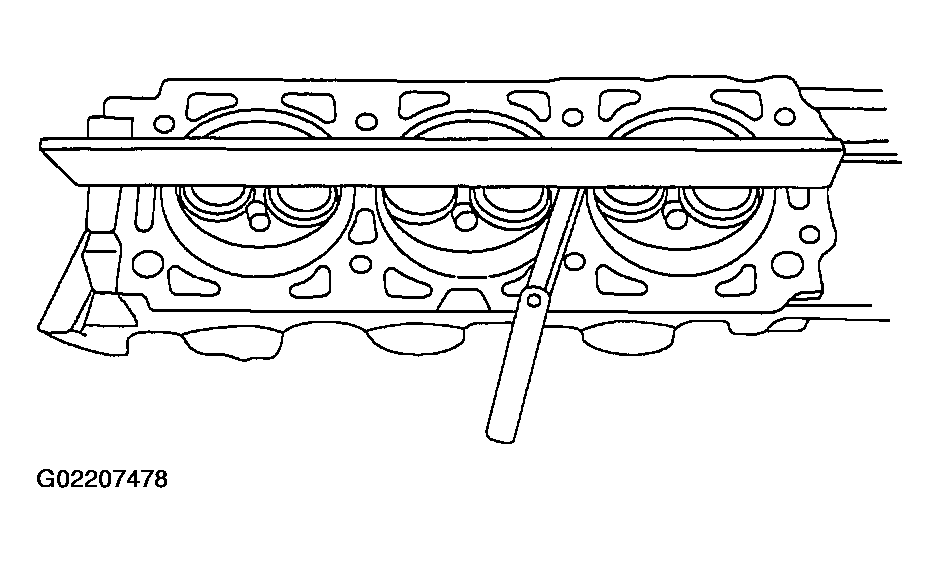

    Fig 2: Inspecting Cylinder Head Flatness
    G02207478Courtesy of FORD MOTOR CO.
