Piston - Pin Diameter

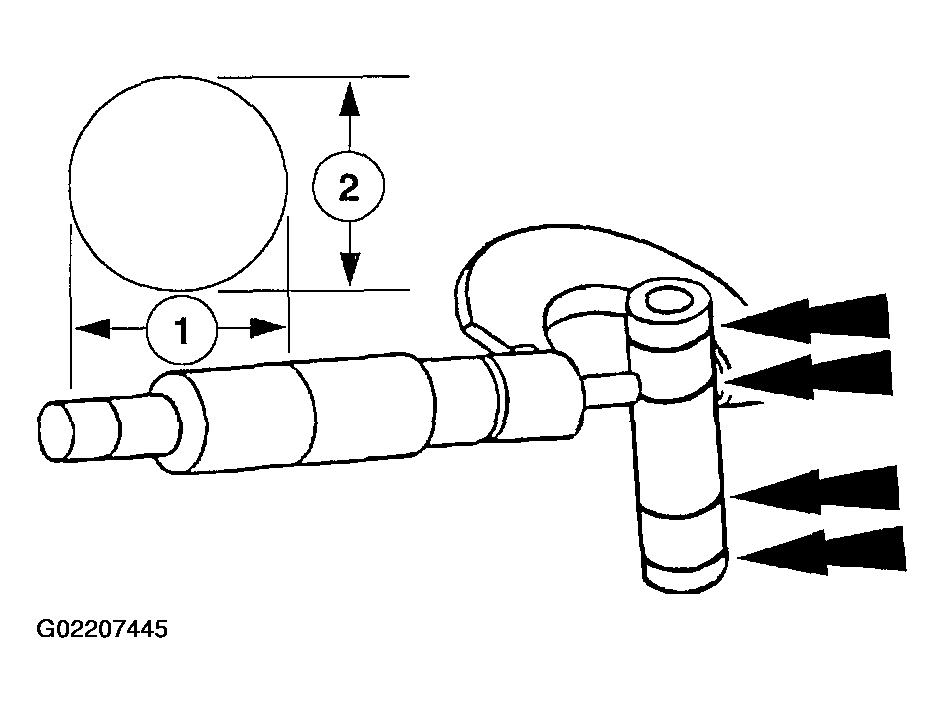

- Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification.
- Refer to the appropriate ENGINE article for the procedure.
- If out of specification, install new components as necessary. Refer to the appropriate ENGINE article for the procedure.
