Valve - Guide Inner Diameter

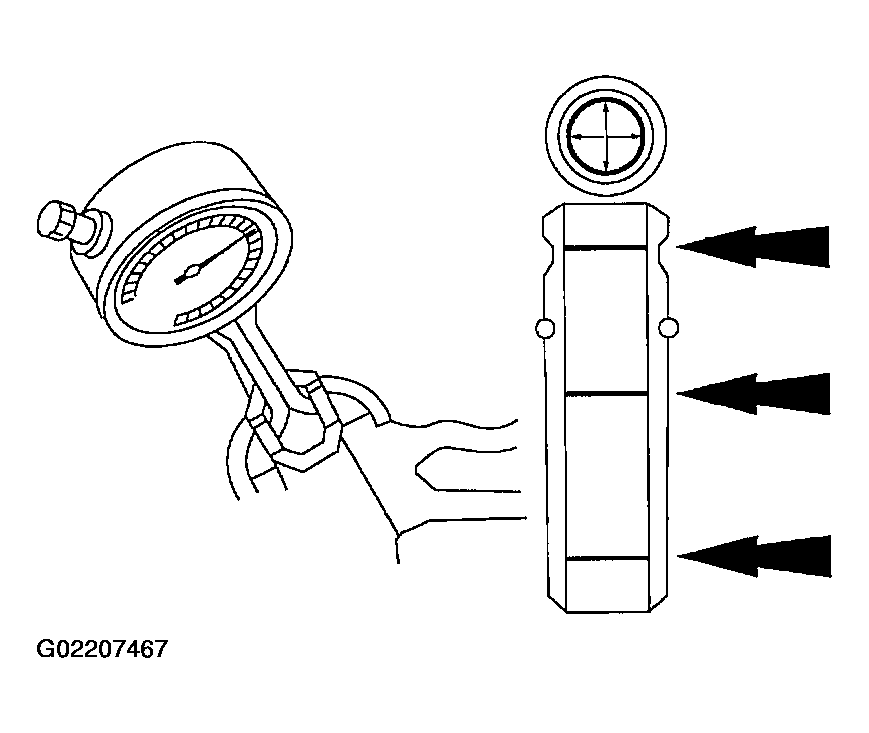

- Measure the inner diameter of the valve guides in two directions where indicated.
- For additional information, refer to Specifications in the appropriate ENGINE article .
- If the valve guide is not within specifications, ream the valve guide and install a valve with an oversize stem or remove the valve guide and install a new valve guide.
