Valve - Spring Installed Length

  1. Measure the installed length of each spring.
    • Refer to the appropriate ENGINE article for the procedure.
    • If out of specification, install new components. Refer to the appropriate ENGINE article for the procedure.

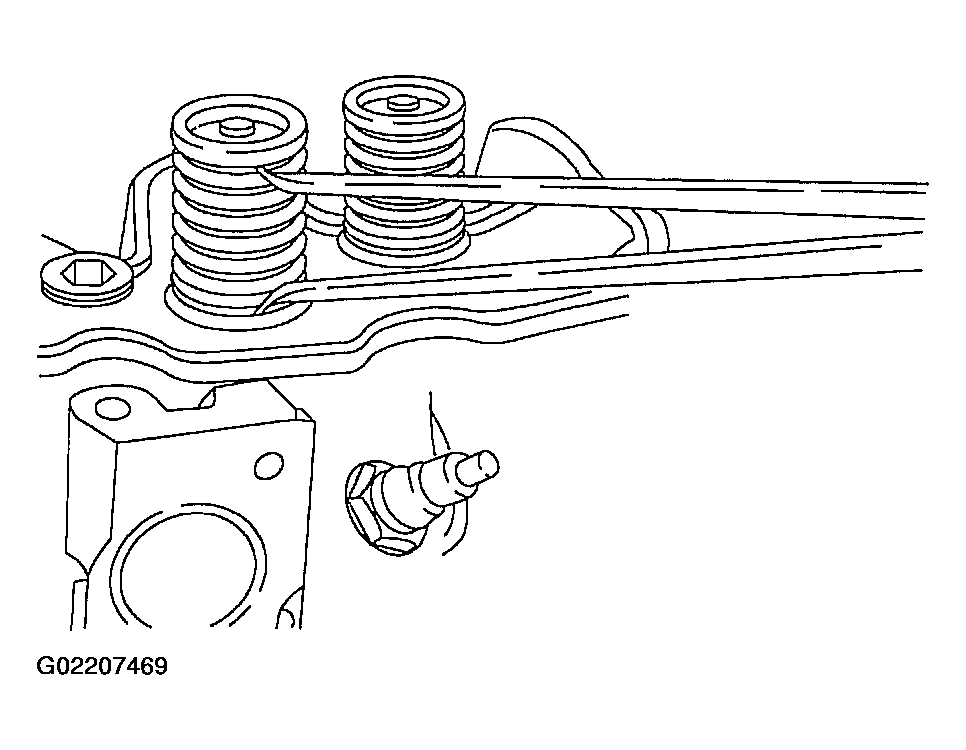

    Fig 1: Measuring Valve Spring Installed Length
    G02207469Courtesy of FORD MOTOR CO.
