Generic Electronic Module (GEM): Removal
WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

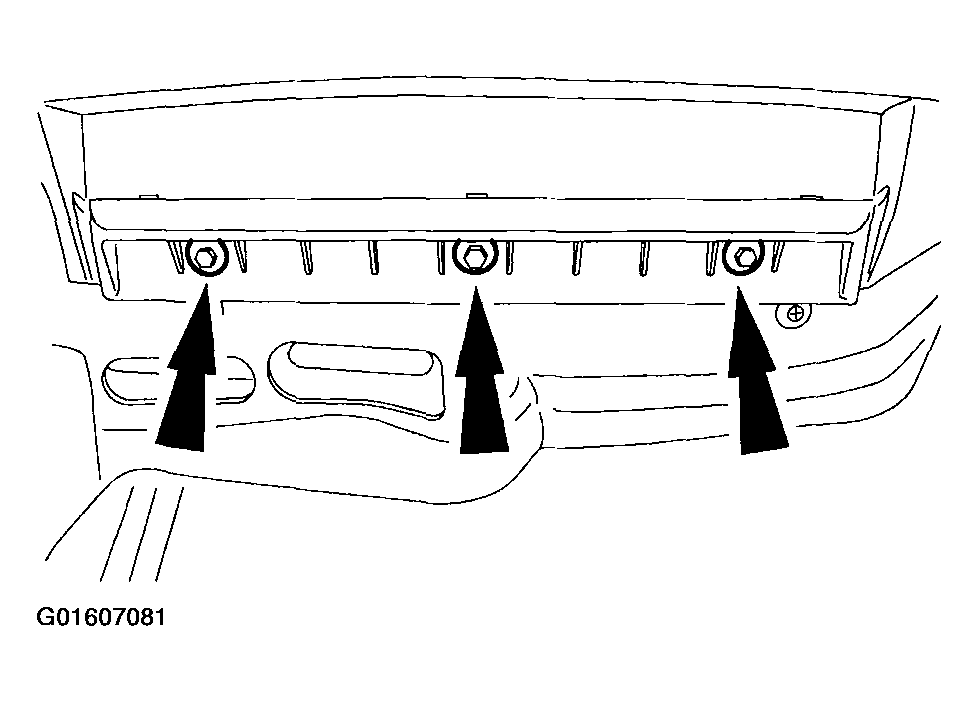

- Remove the glove compartment.

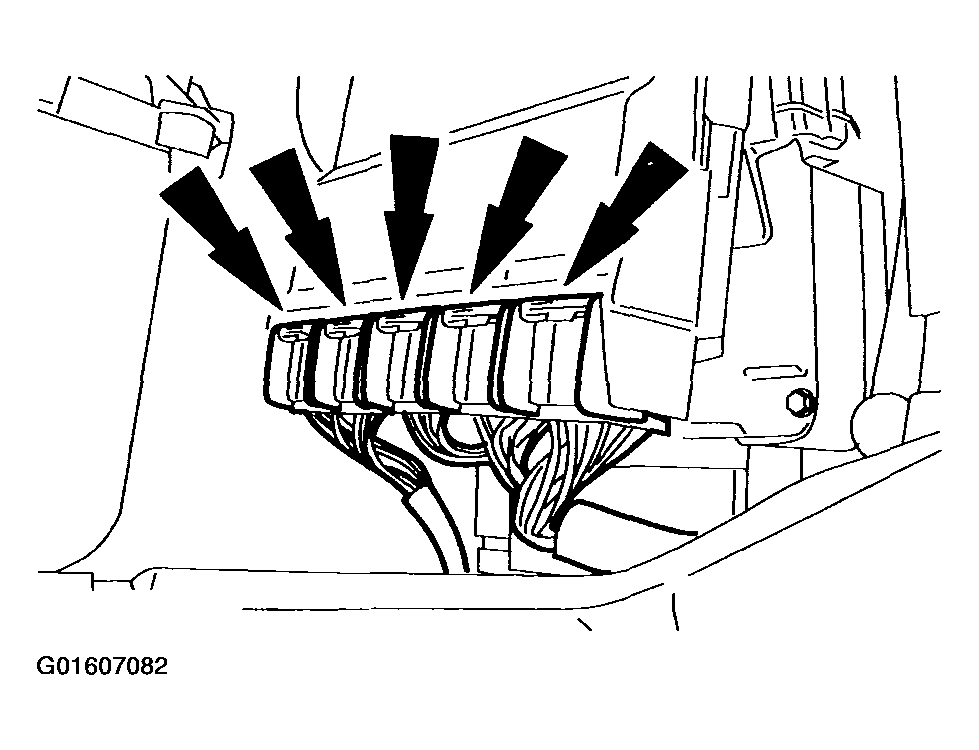

- Disconnect the GEM electrical connectors.

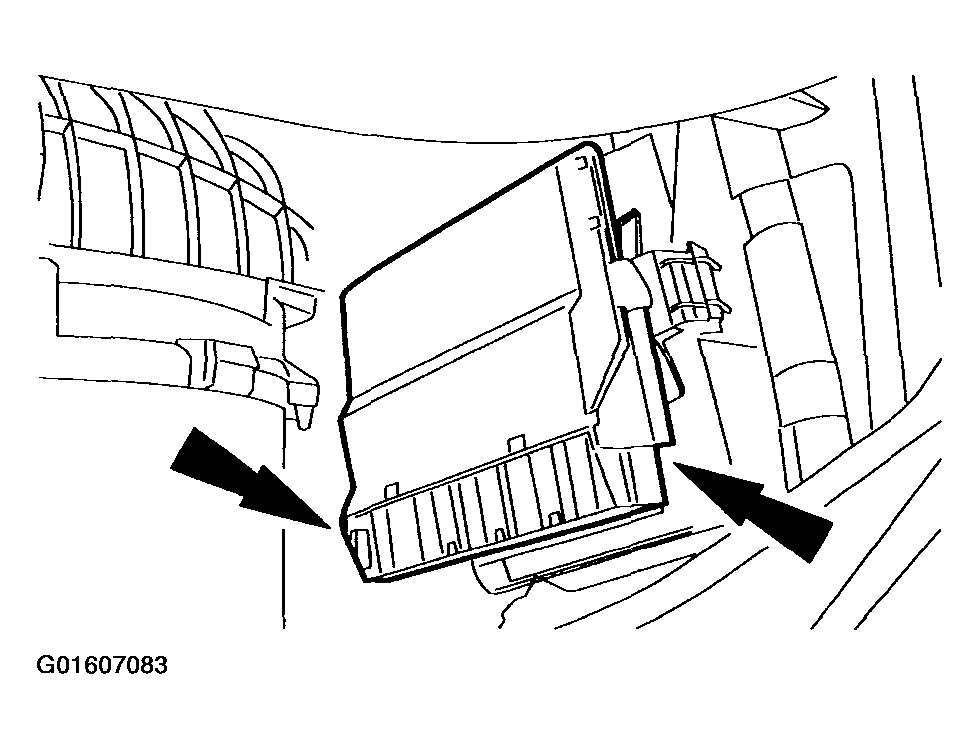

- Remove the GEM.
CAUTION:
Prior to removal of the GEM, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. Refer to MODULE CONTROLLED FUNCTIONS .
