Generic Electronic Module (GEM): Removal

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Prior to removal of the GEM, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. Refer to MODULE CONTROLLED FUNCTIONS .

Disable the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
Remove the glove compartment.

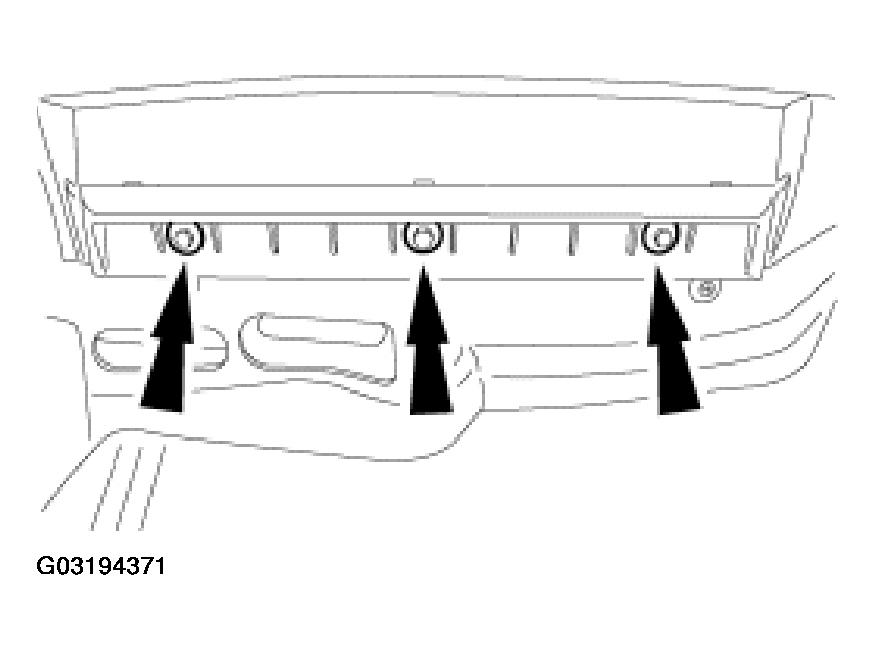

Fig 1: Removing Glove Compartment
Courtesy of FORD MOTOR CO.
Disconnect the GEM electrical connectors.

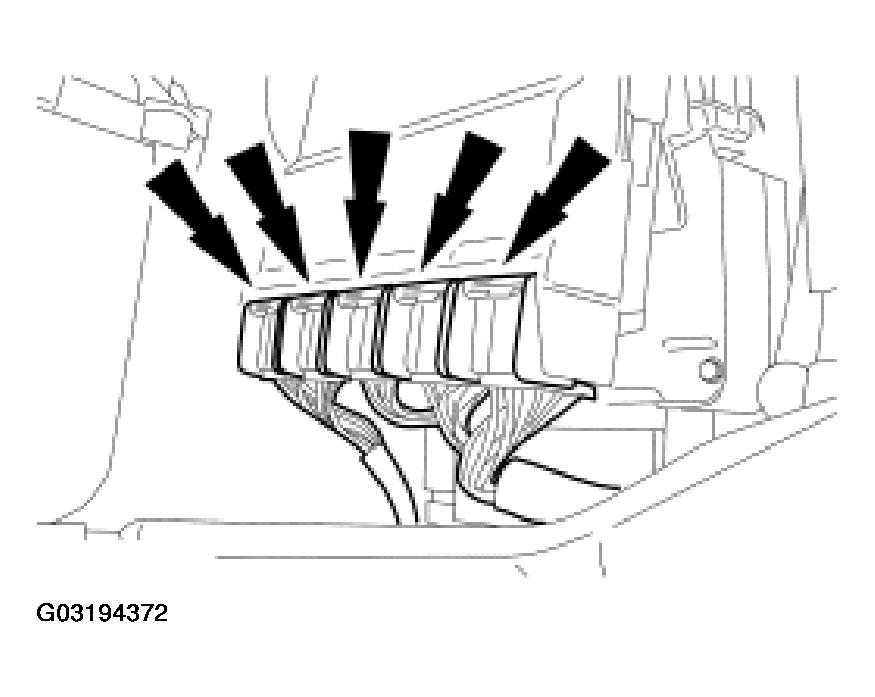

Fig 2: Disconnecting The GEM Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the GEM.

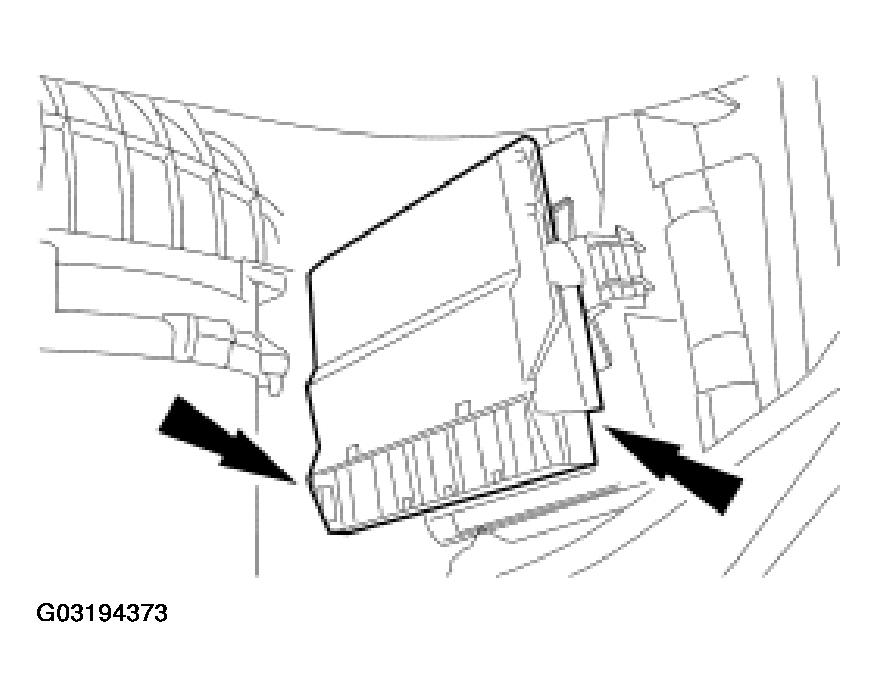

Fig 3: Removing The GEM
Courtesy of FORD MOTOR CO.
