Steering System

The power steering system has a typical rack-and-pinion design consisting of the following components:

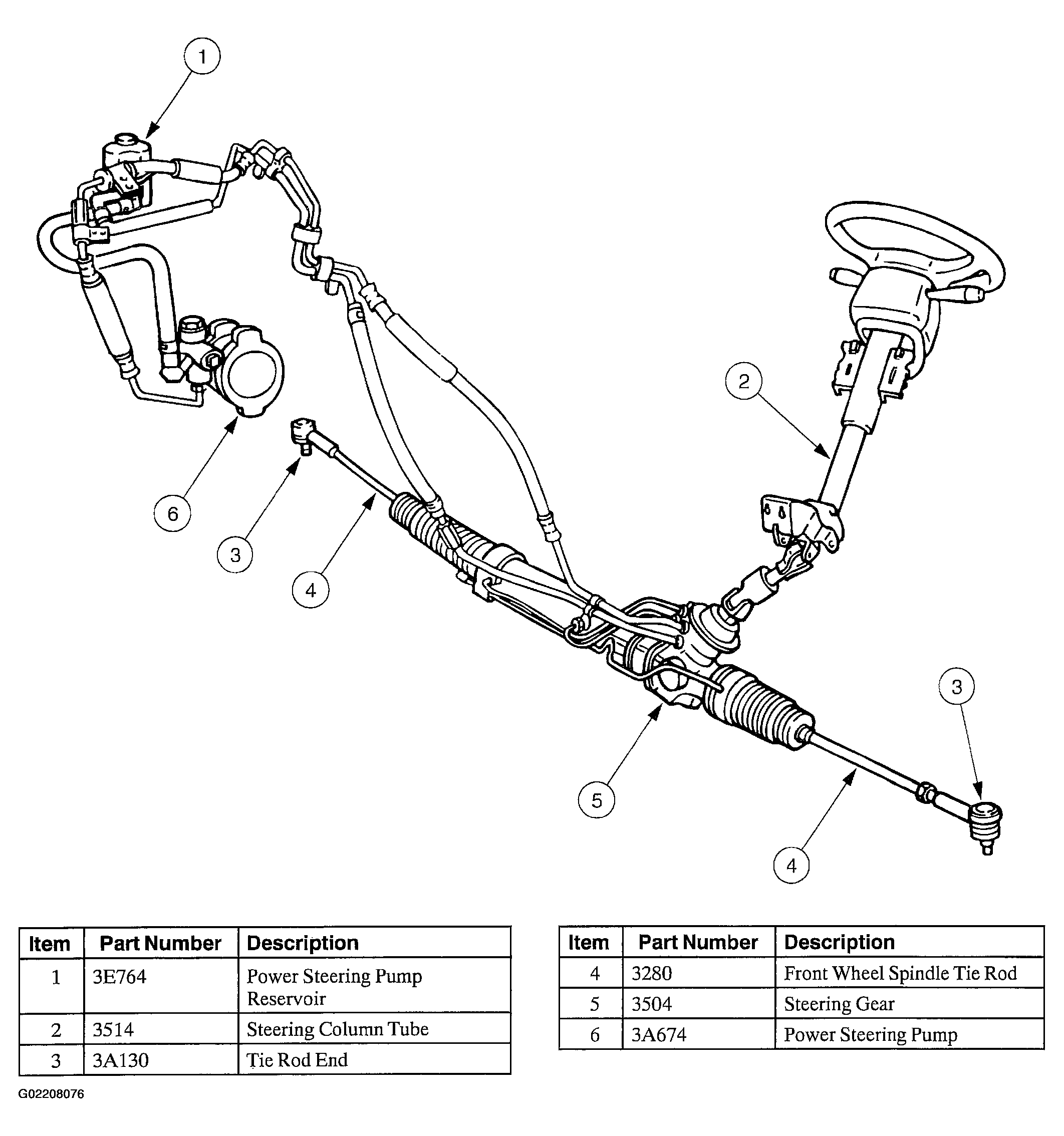

Fig 1: Identifying Steering System Components - Escort/Tracer Sedan/Wagon

Courtesy of FORD MOTOR CO.

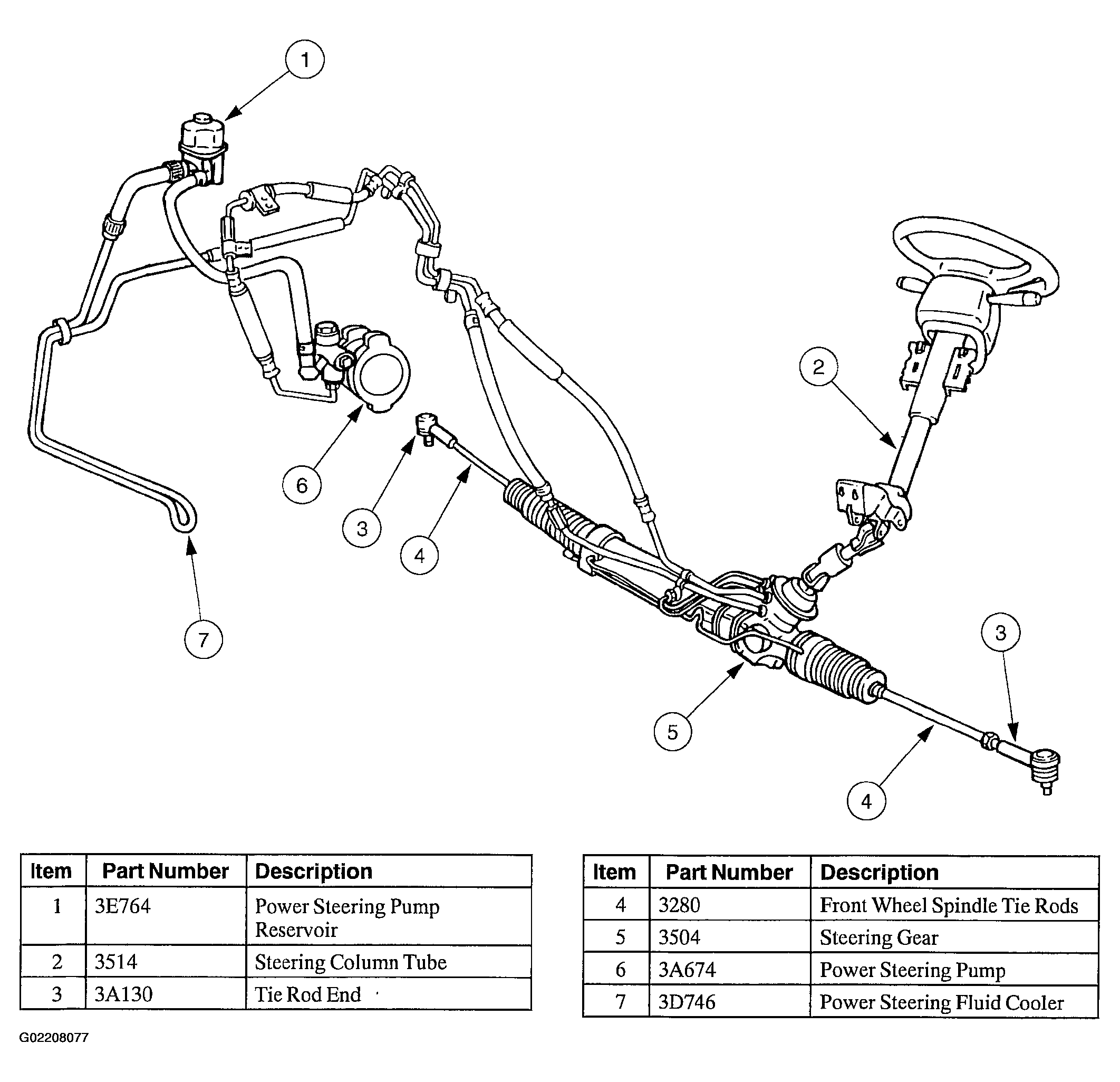

Fig 2: Identifying Steering System Components - Escort Coupe

Courtesy of FORD MOTOR CO.

For information on the power steering pump reservoir (3E764), refer to POWER STEERING article.

For information on the steering wheel and column assembly, refer to STEERING COLUMN article.

For information on the power steering fluid lines, refer to POWER STEERING article.

For information on the power steering pump (3A674), refer to POWER STEERING article.

For information on the steering gear (3504), refer to POWER STEERING article.

For information on the tie rod end (3A130), refer to POWER STEERING article.

For information on the power steering fluid cooler (3D746), refer to POWER STEERING article.
