Piston - Ring End Gap

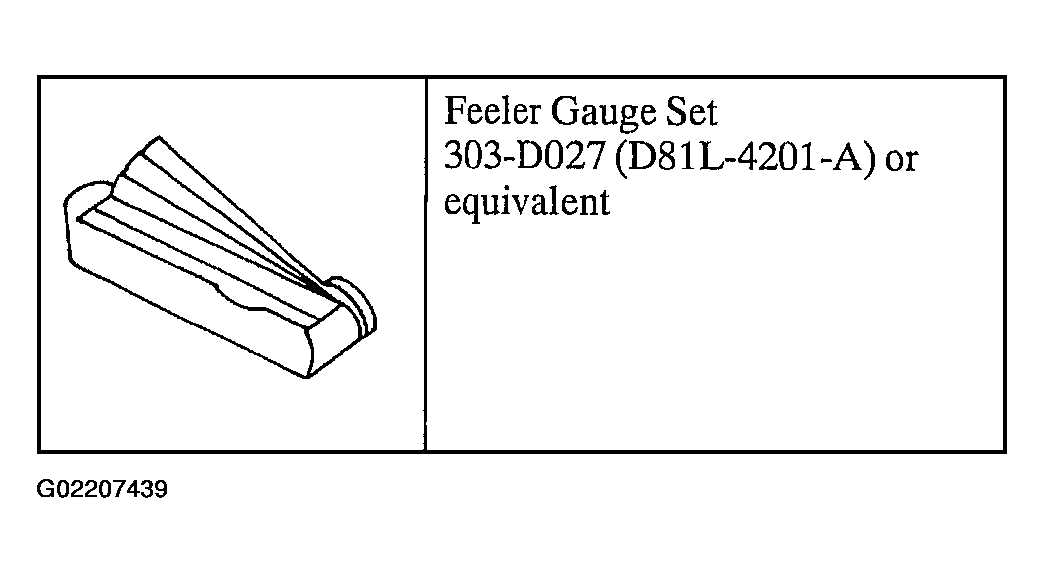

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

CAUTION: Use care when fitting piston rings to avoid possible damage to the piston ring or the cylinder bore.

CAUTION: Piston rings should not be transferred from one piston to another.

NOTE: Cylinder bore must be within specification for taper and out-of-round.

Use a piston without rings to push a piston ring in a cylinder to the bottom of ring travel.

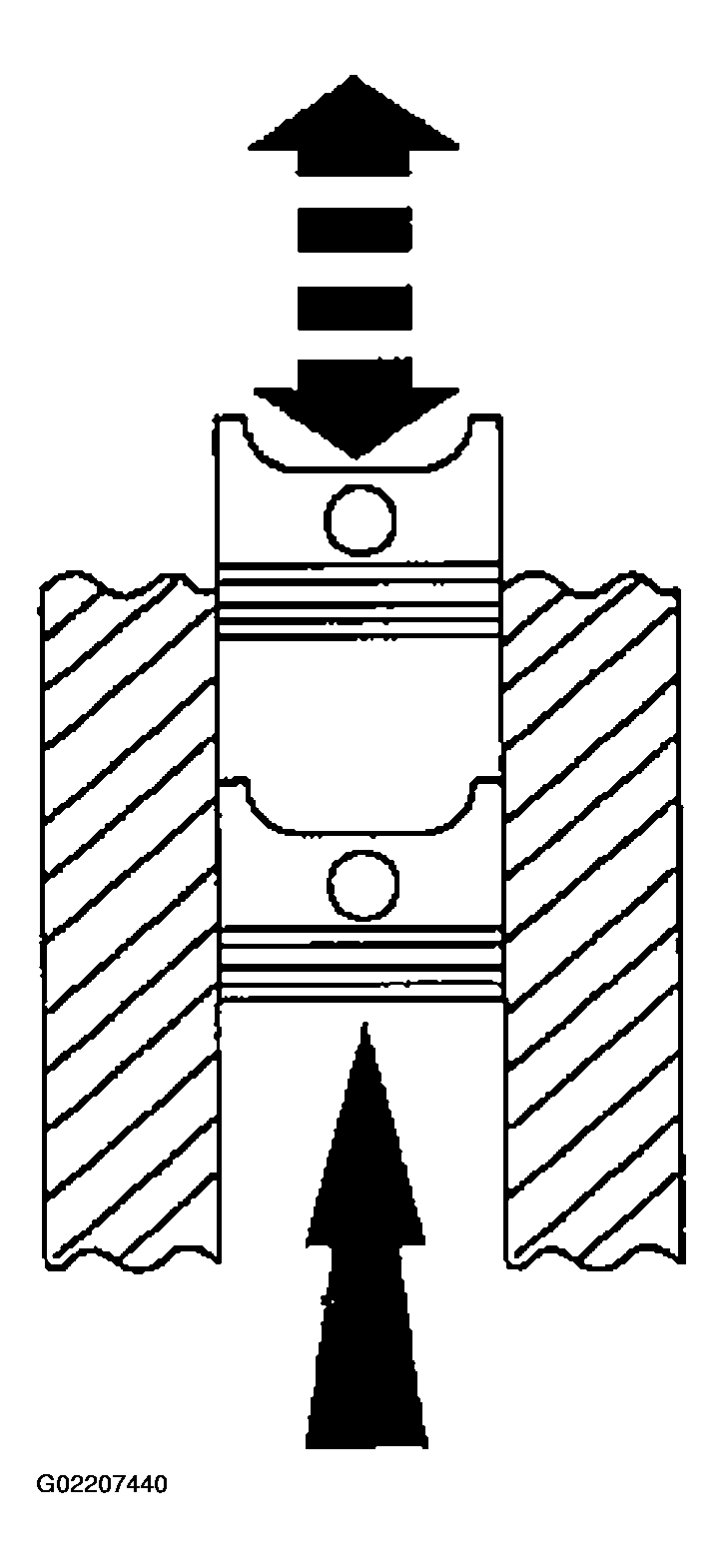

Fig 2: Pushing Piston Ring In Cylinder
Courtesy of FORD MOTOR CO.
Use a feeler gauge to measure the top piston ring end gap and the second piston ring end gap.
- For additional information, refer to Specifications in the appropriate ENGINE article .

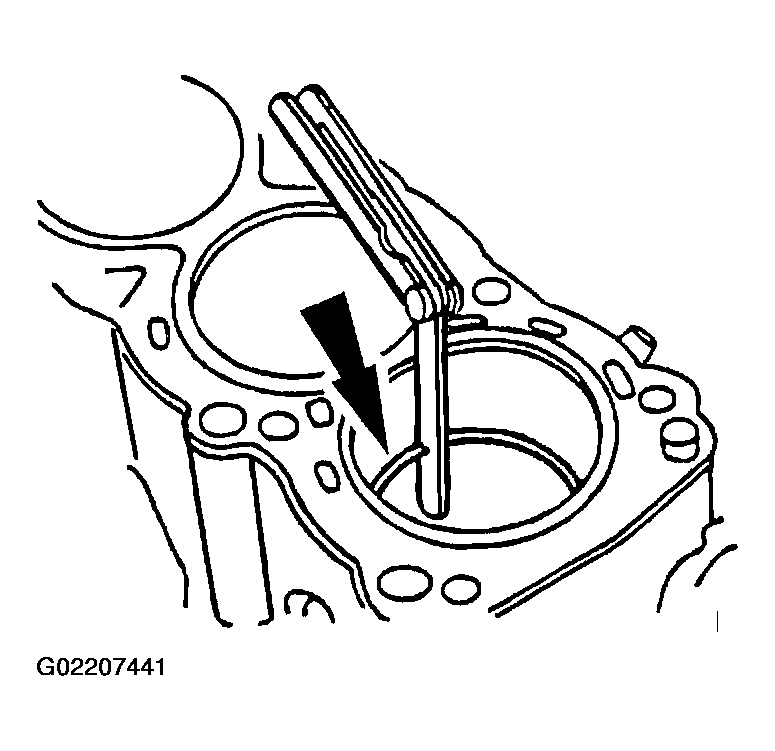

Fig 3: Measuring Top And Second Piston Ring End Gap
Courtesy of FORD MOTOR CO.
