Oil Cooler: Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A

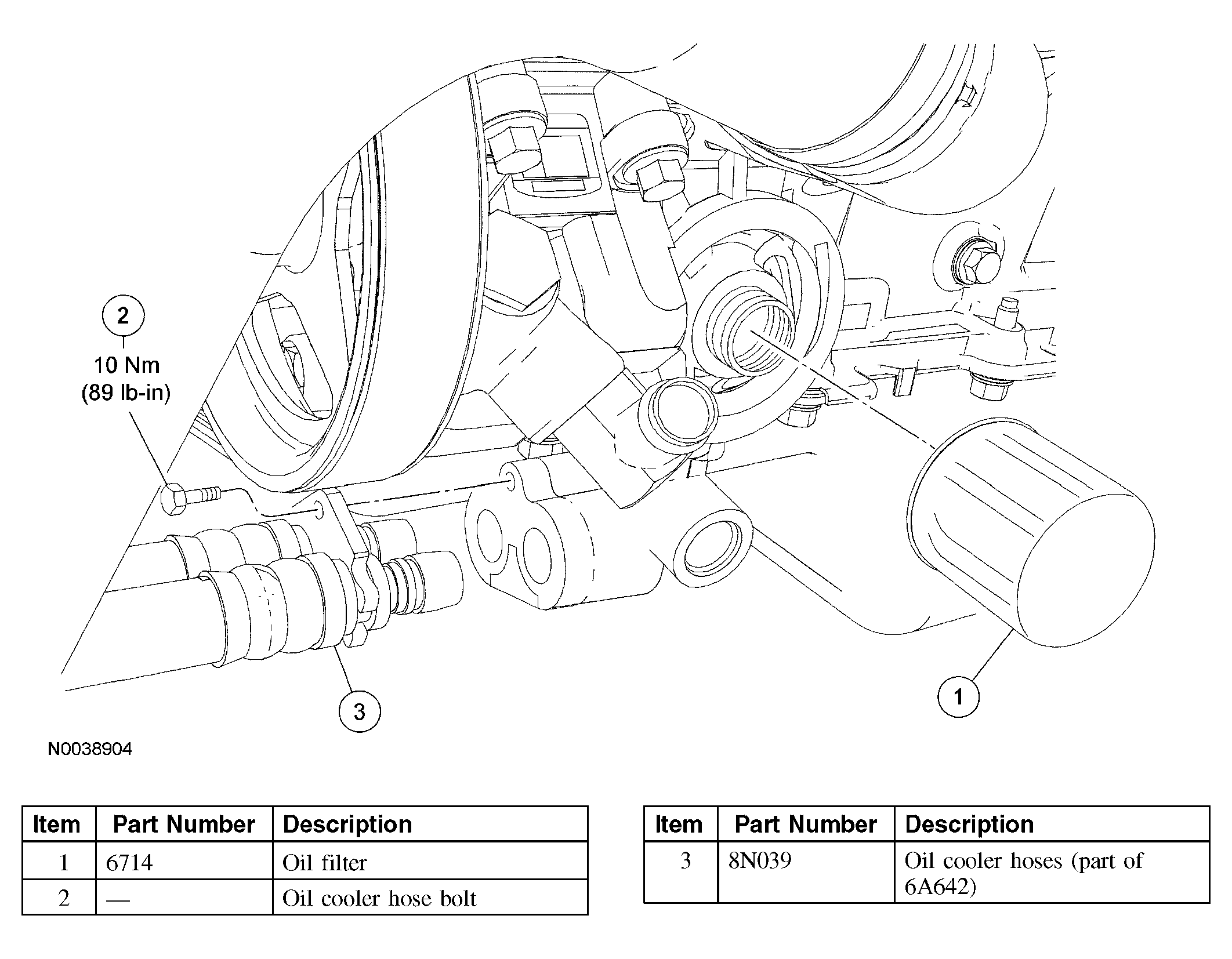

Fig 1: Identifying Oil Cooler Components (1 Of 2)
G04583528Courtesy of FORD MOTOR CO.

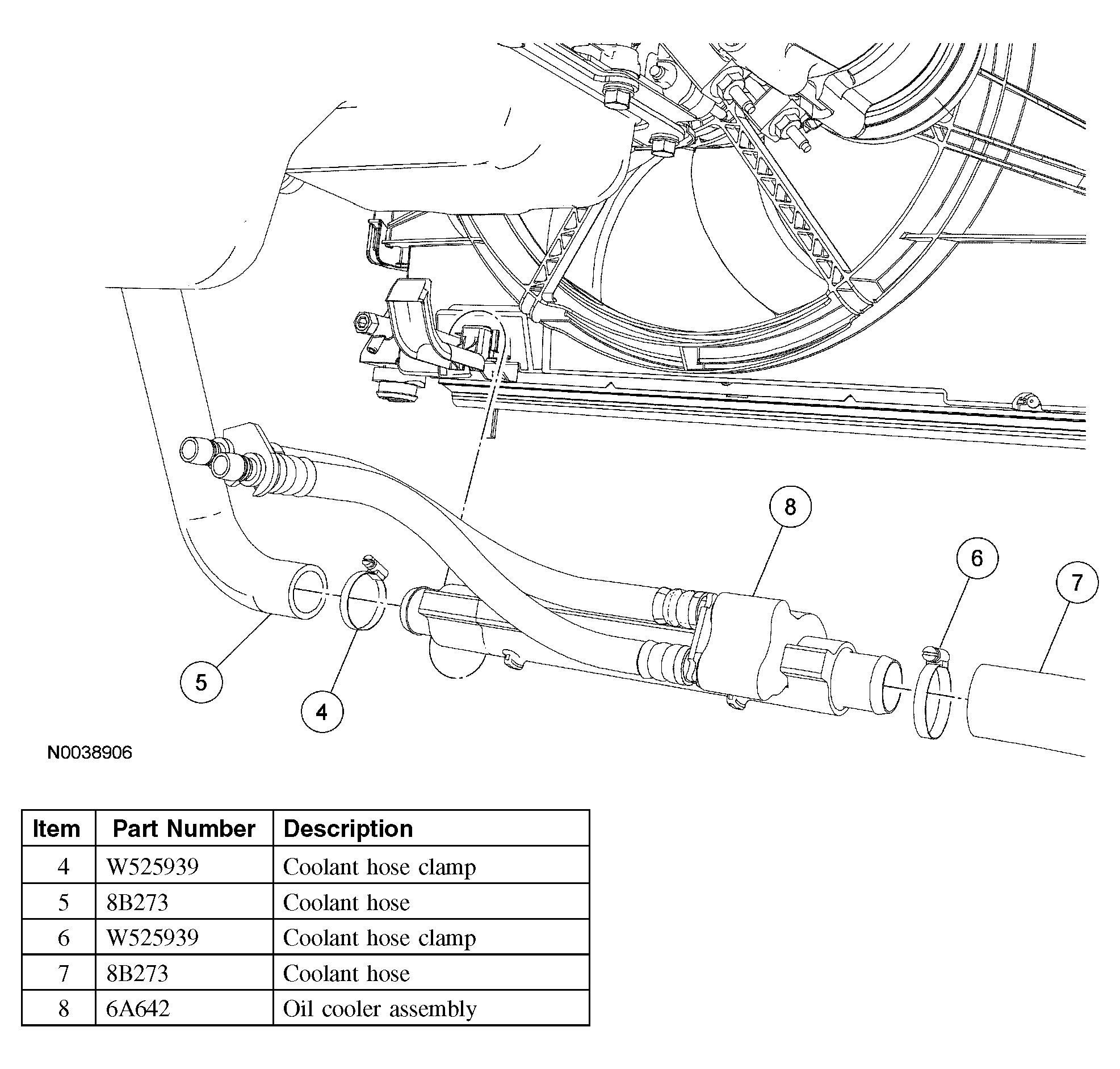

Fig 2: Identifying Oil Cooler Components (2 Of 2)
G04583529Courtesy of FORD MOTOR CO.
