Compressor Manifold and Tube Assembly - Hybrid: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D |
WSH-M1C231-B |

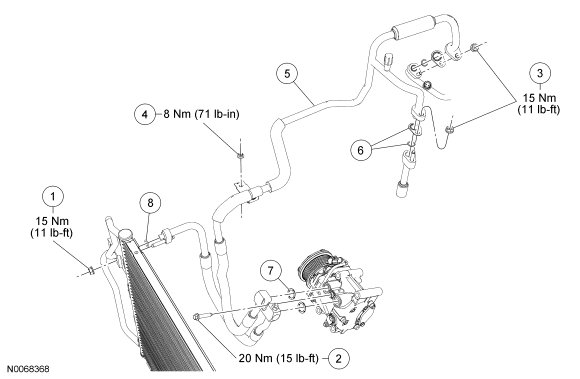

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Condenser inlet fitting nut |
| 2 | W704692 | A/C compressor manifold bolt |
| 3 | W520413 | Evaporator outlet line fitting nuts (2 required) |
| 4 | W707137 | Compressor manifold and tube bracket nut |
| 5 | 19D850 | Compressor manifold and tube assembly |
| 6 | 19B596 | O-ring seal and gasket seal kit |
| 7 | 19E889 | O-ring seal (2 required) |
| 8 | 19E889 | O-ring seal |
