Speed Control Cable: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly. For additional information, refer to AIR CLEANER ASSEMBLY .
  2. Remove the parts in the order indicated in the following illustration and table.

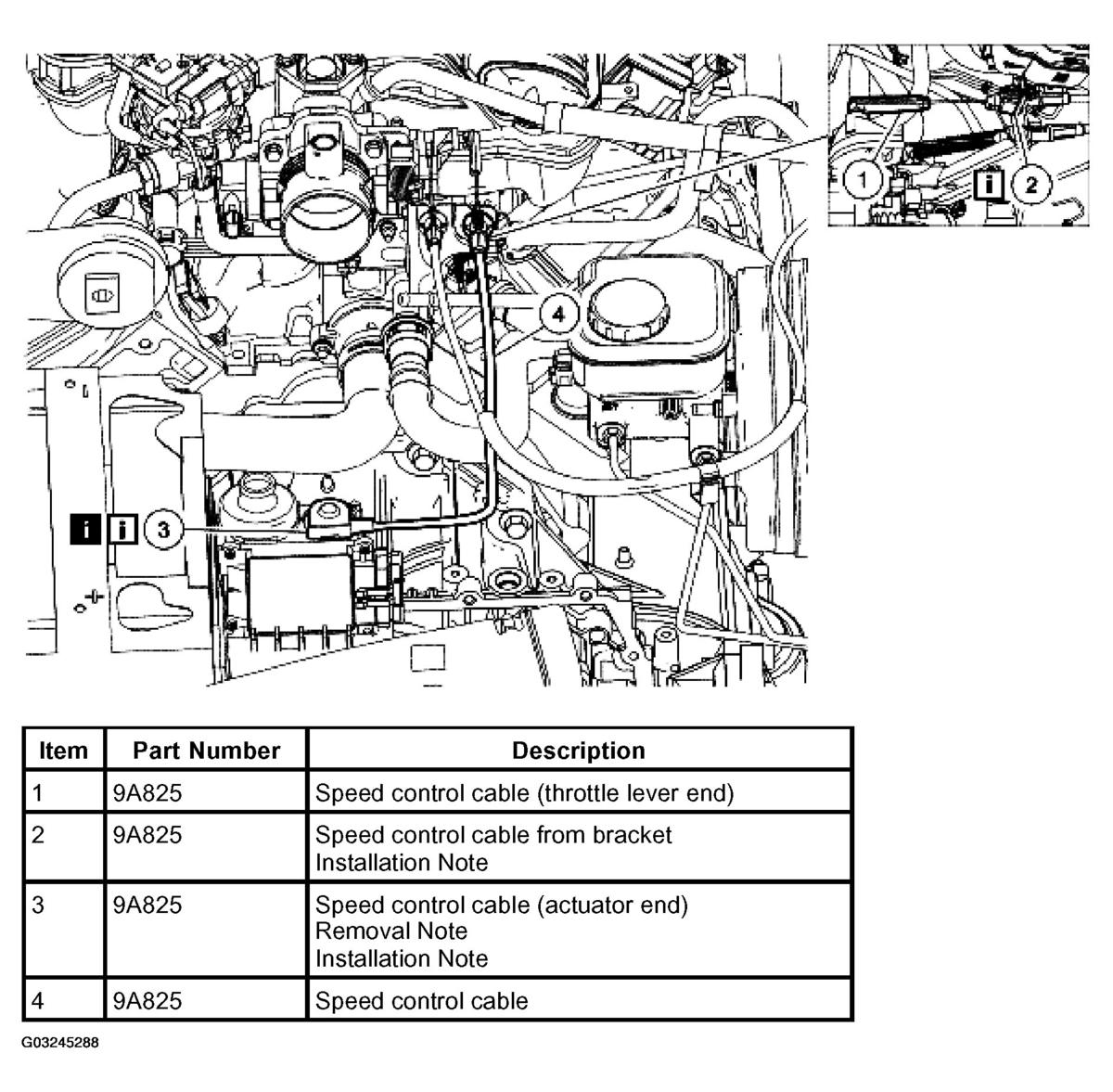

    Fig 1: Speed Control Cable Components Removal Sequence
    G03245288Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
