Connecting Rod - Bushing Diameter

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the inner diameter of the connecting rod bushing, if equipped. Verify the diameter is within specification.
    • If out of specification, install new components as necessary.

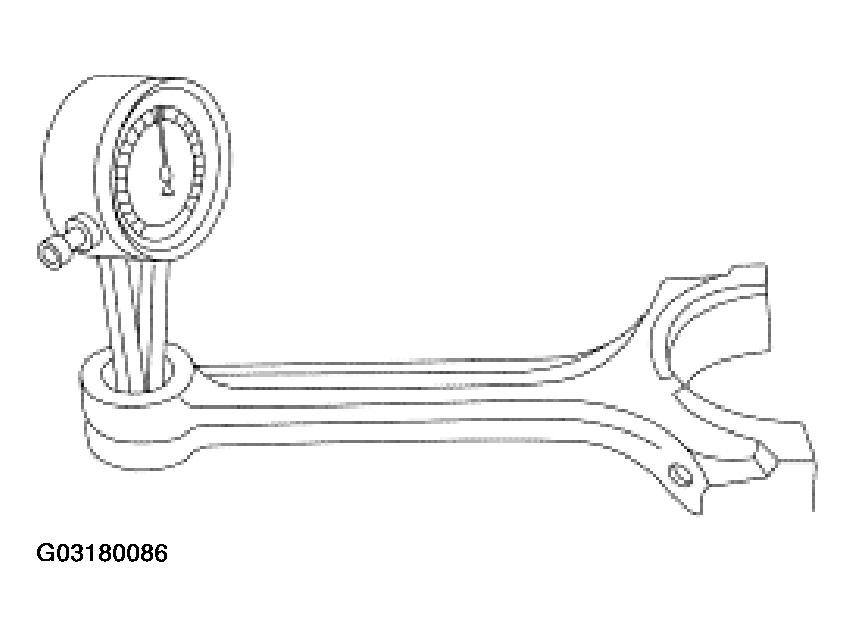

    Fig 1: Measuring Inner Diameter Of Connecting Rod Bushing
    G03180086Courtesy of FORD MOTOR CO.
