Removal and Installation

All vehicles - Move the front seat to the full forward position.
Two-door - Remove the quarter trim panel. .
Four-door Remove the front door scuff plate.

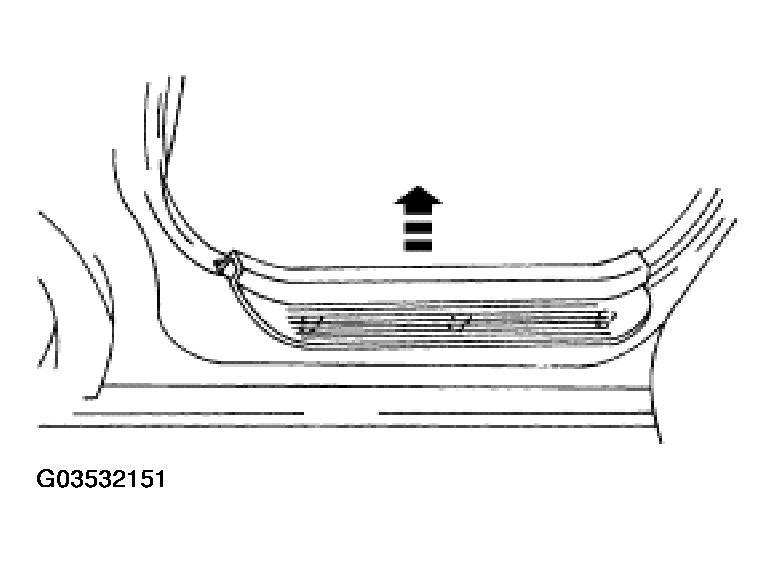

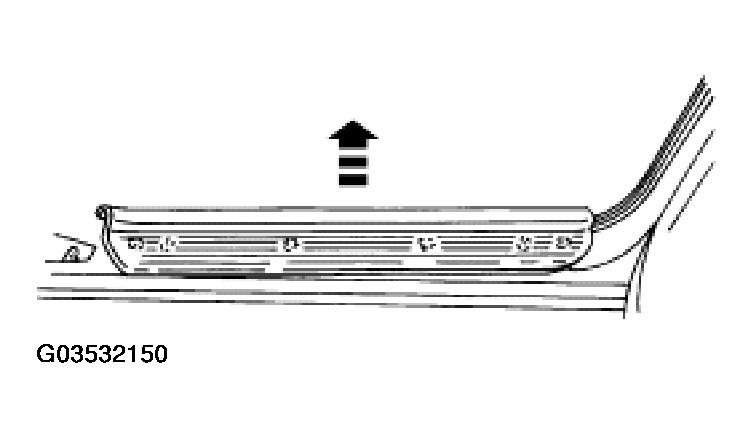

Fig 1: Removing Front Door Scuff Plate
Courtesy of FORD MOTOR CO.
4. Remove the rear door scuff plate.

Fig 2: Removing Rear Door Scuff Plate
Courtesy of FORD MOTOR CO.
All vehicles -
NOTE: Do not attempt to remove the front safety belt lower anchor bolt from the front safety belt retractor.

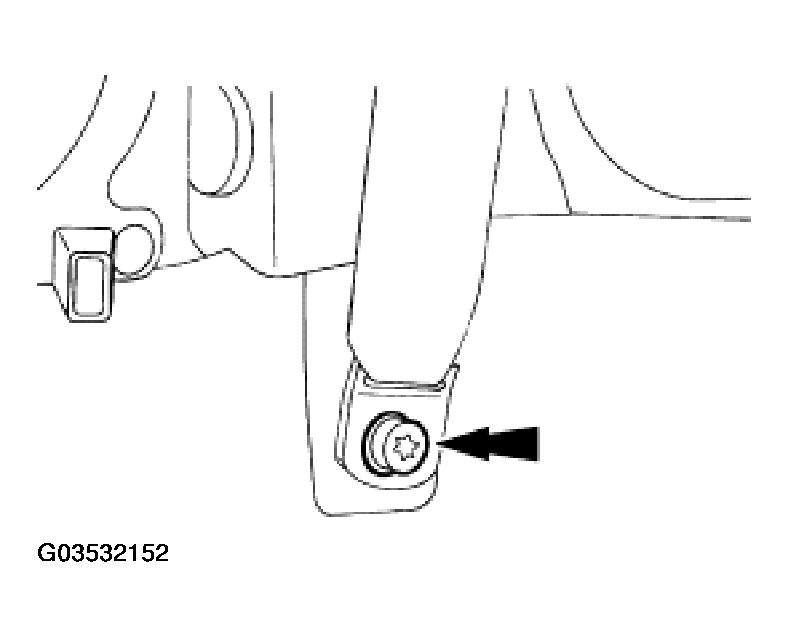

Use Safety Belt Bolt Bit to loosen the front safety belt lower anchor bolt.

Fig 3: Loosening Front Safety Belt Lower Anchor Bolt
Courtesy of FORD MOTOR CO.
Four-door - Remove the center body pillar inside lower finish panel.

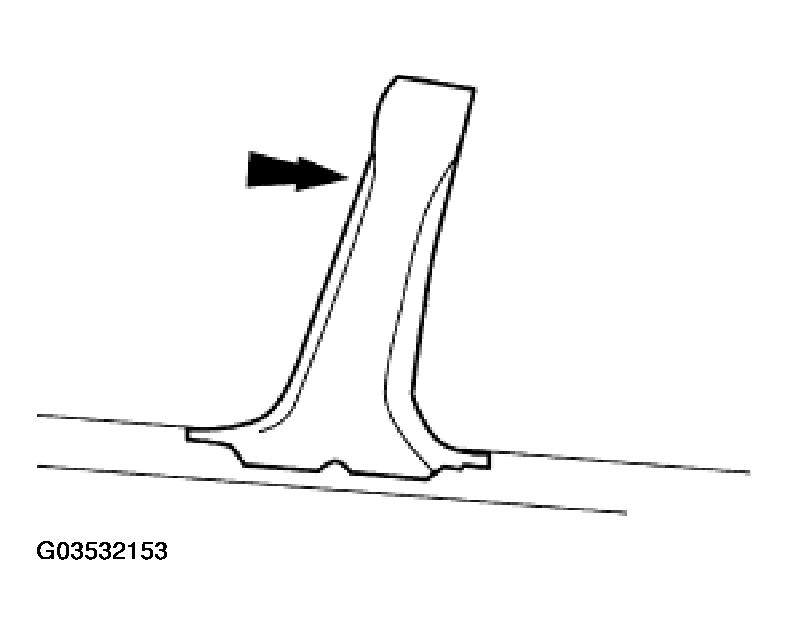

Fig 4: Removing Center Body Pillar Inside Lower Finish Panel
Courtesy of FORD MOTOR CO.
All vehicles - Remove the front safety belt upper guide.
1. Open the front safety belt upper cover.
2. Use Safety Belt Bolt Bit to remove the upper guide bolt.
3. Remove the front safety belt upper guide.

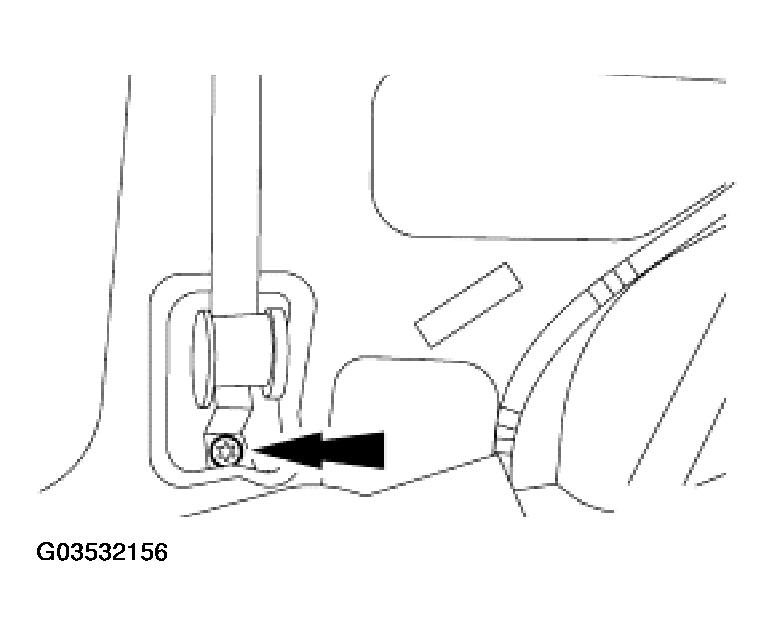

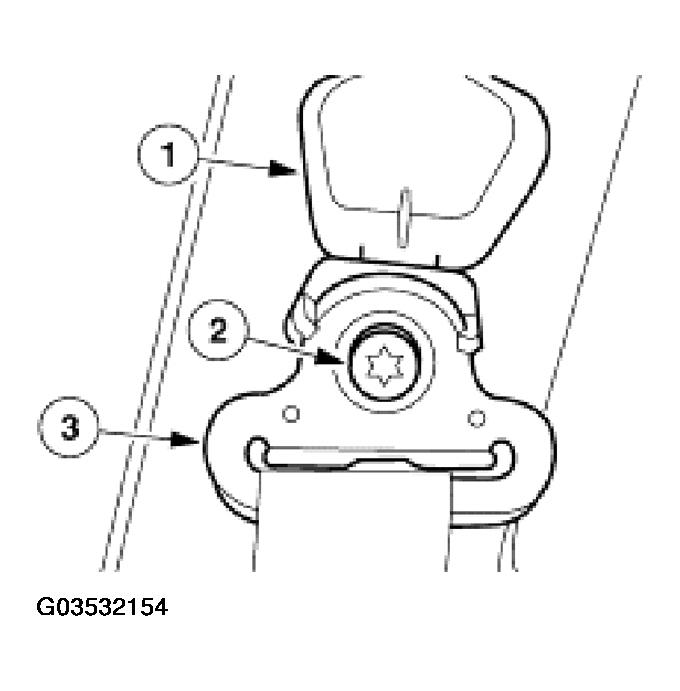

  Fig 5: Removing Front Safety Belt Upper Guide
  Courtesy of FORD MOTOR CO.

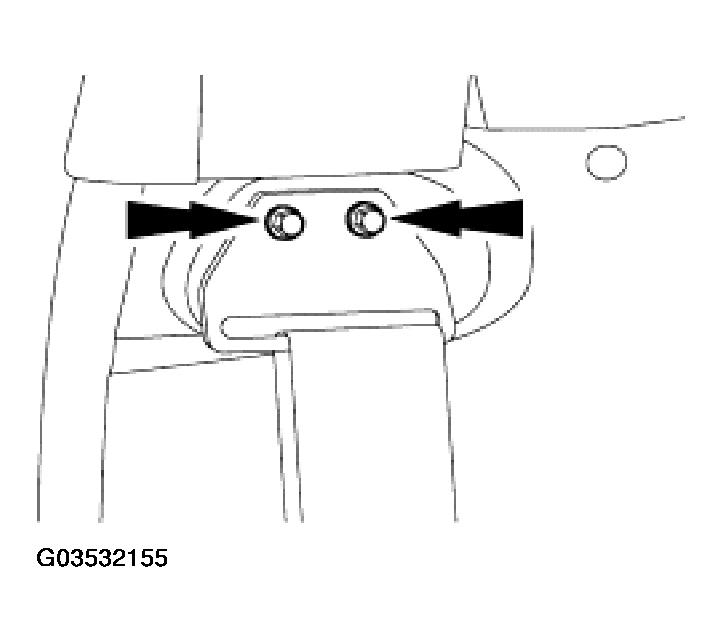

Remove the front safety belt lower guide bolts.

Fig 6: Removing Front Safety Belt Lower Guide Bolts
Courtesy of FORD MOTOR CO.
Use Safety Belt Bolt Bit to remove the bolt from the front safety belt retractor and remove the front safety belt retractor and tongue (611B08) as an assembly.

Fig 7: Removing Bolt From Front Safety Belt Retractor
Courtesy of FORD MOTOR CO.

NOTE: Make sure the front safety belt webbing is not twisted prior to installation.

NOTE: Ensure that the front passenger safety belt retractor is not stuck in the ALR mode after installation.

NOTE: Apply Ford Threadlock 262 (E2FZ -19554-B) or equivalent to fasteners when installing safety belt buckle or retractor assemblies.

NOTE: Perform the Functional Test to ensure that the new retractor operates correctly. For additional information, refer to FUNCTIONAL TEST .

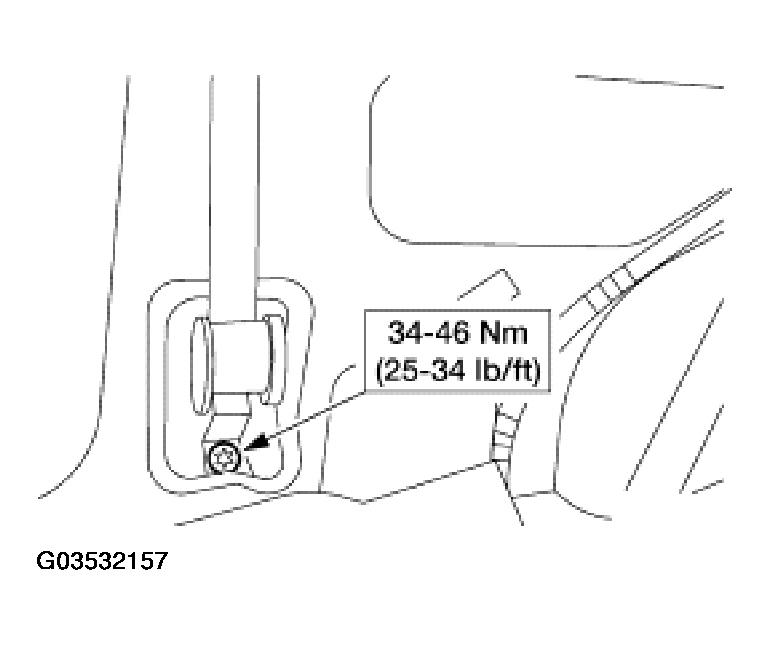

Fig 8: Installing Front Safety Belt Retractor Bolt

Courtesy of FORD MOTOR CO.

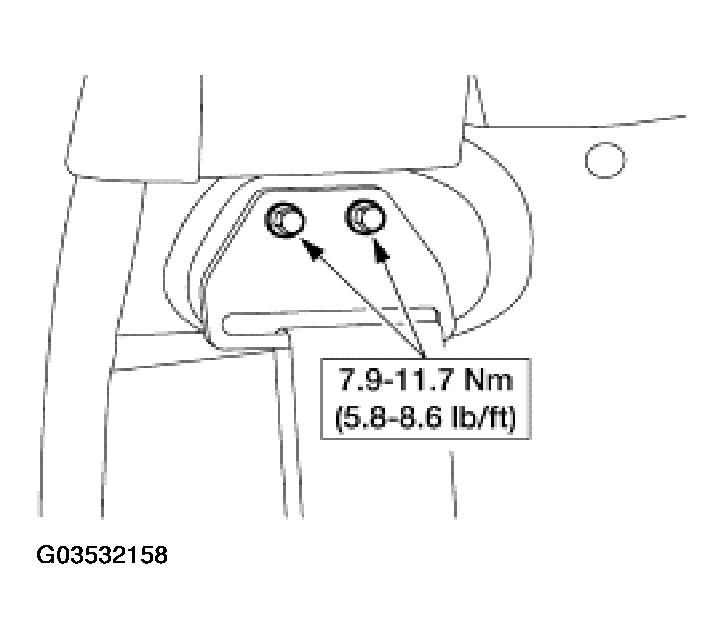

Fig 9: Installing Safety Belt Lower Guide Bolts

Courtesy of FORD MOTOR CO.

Fig 10: Installing Front Safety Belt Upper Guide Bolt

Courtesy of FORD MOTOR CO.

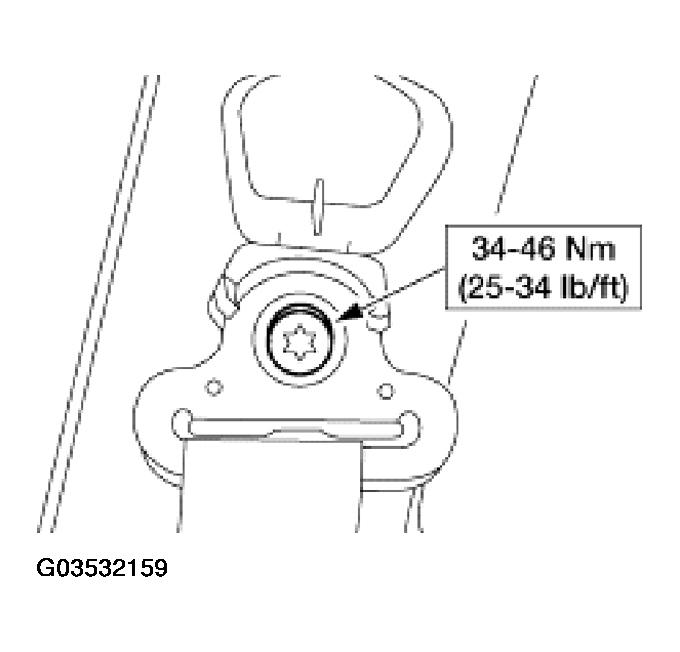

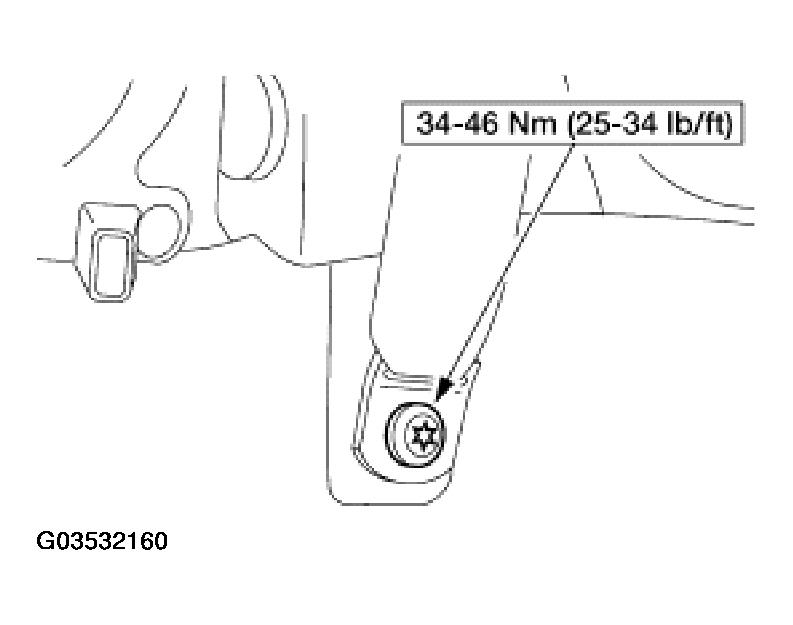

Fig 11: Installing Front Safety Belt Lower Anchor Bolt

Courtesy of FORD MOTOR CO.
