Output Shaft: Notes

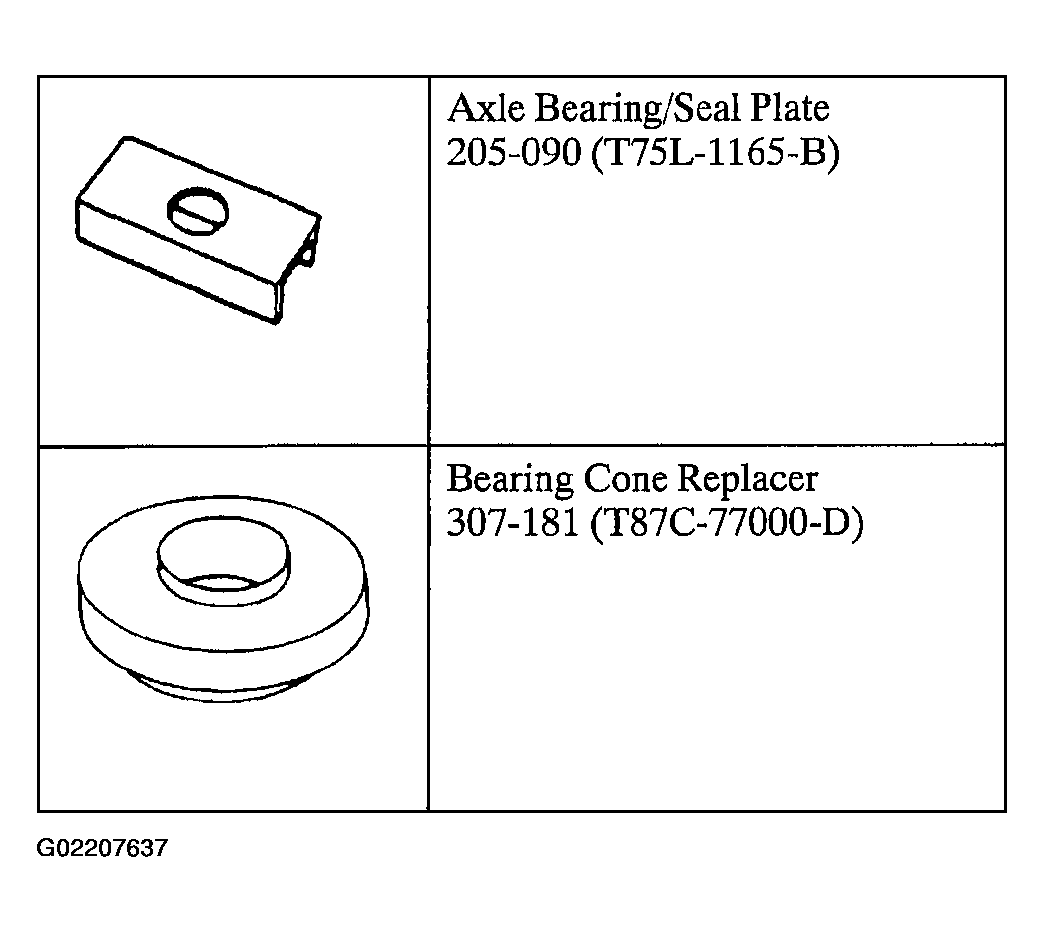

Fig 1: Identifying Special Tools (1 Of 3)
G02207637Courtesy of FORD MOTOR CO.

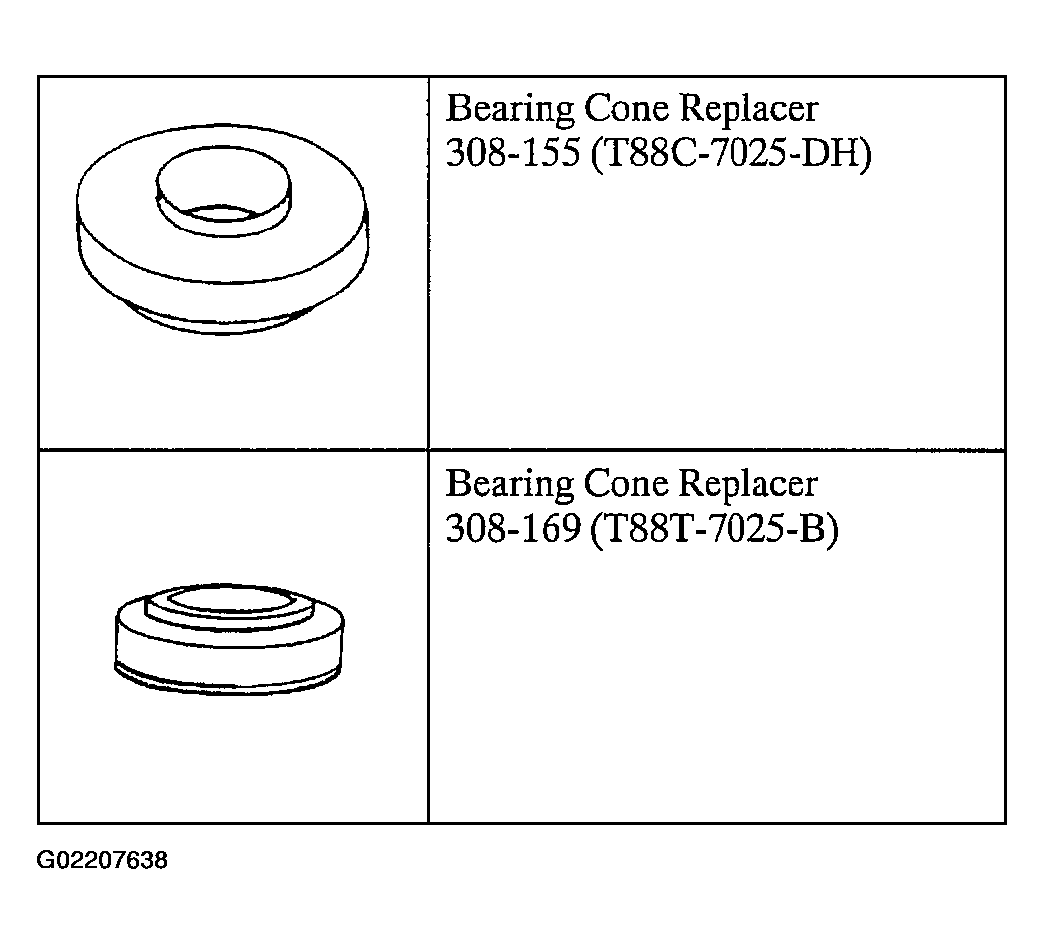

Fig 2: Identifying Special Tools (2 Of 3)
G02207638Courtesy of FORD MOTOR CO.

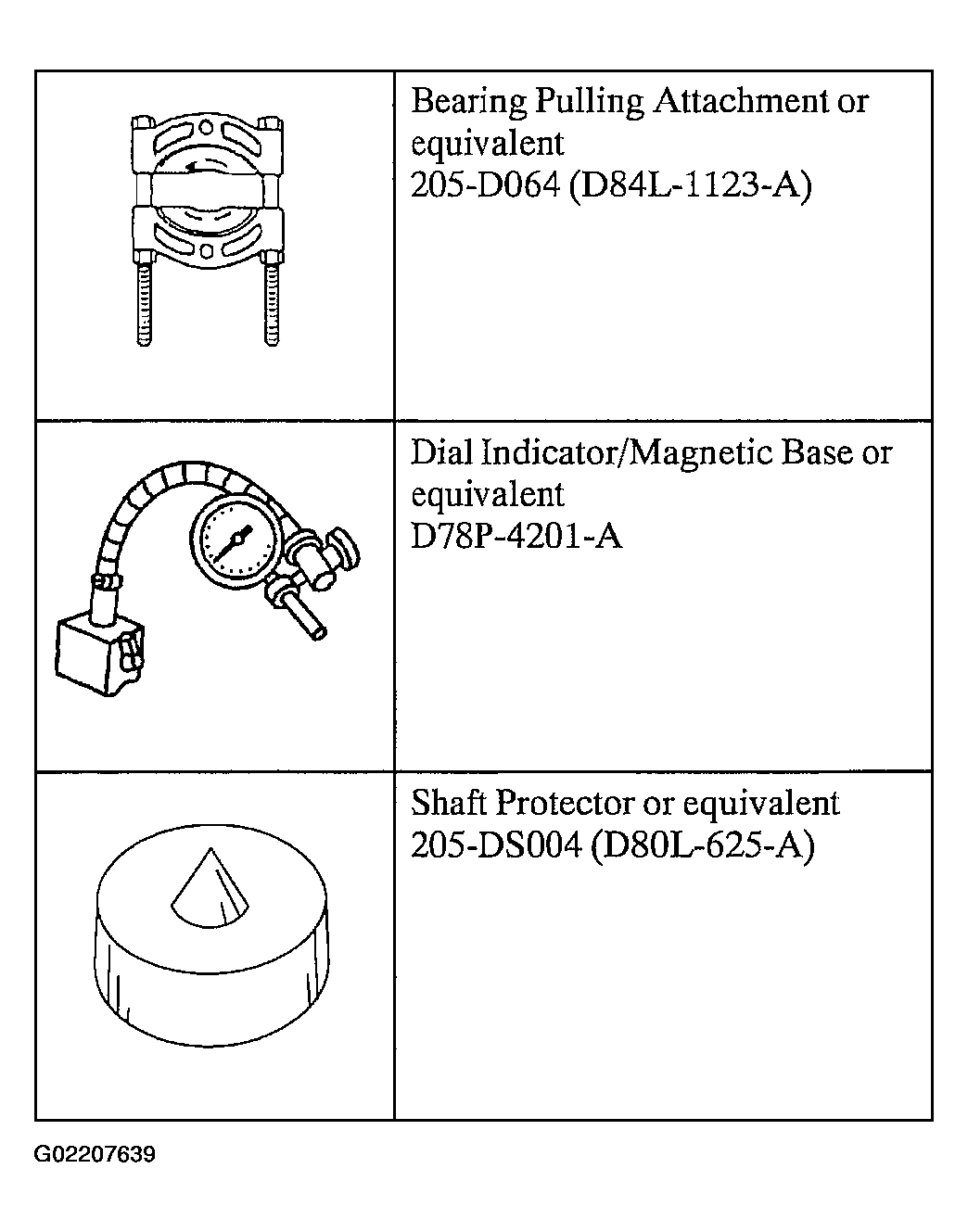

Fig 3: Identifying Special Tools (3 Of 3)
G02207639Courtesy of FORD MOTOR CO.

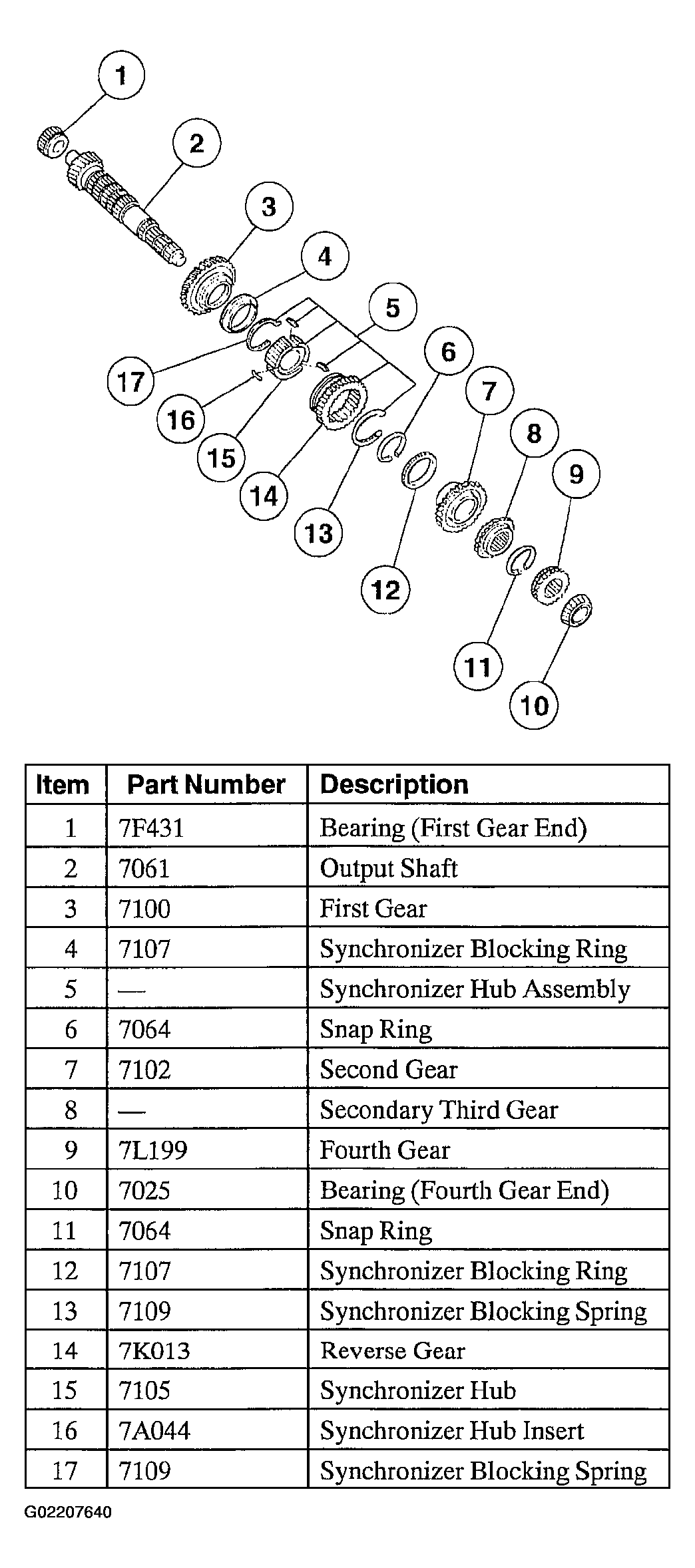

Fig 4: Exploded View Of Output Shaft Components
G02207640Courtesy of FORD MOTOR CO.
