Disassembly And Assembly Of Subassemblies: Synchronizers: Assembly

NOTE: Align the index marks during assembly.

Assemble the synchronizer.
1. Position the synchronizer hub and sleeve together.

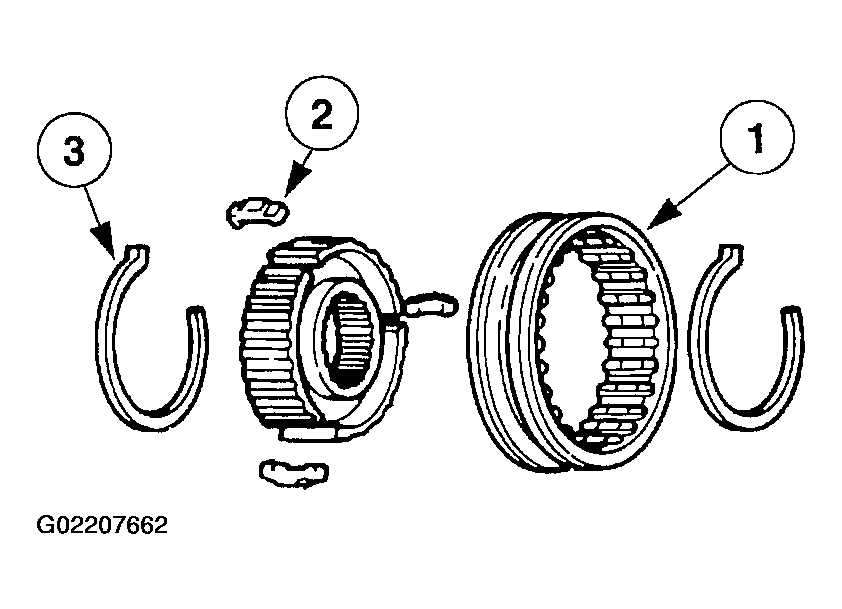

  Fig 1: Assembling Synchronizer
  Courtesy of FORD MOTOR CO.
2. Install the synchronizer hub inserts.
3. Install the synchronizer blocking springs.
