Disassembly And Assembly Of Subassemblies: Synchronizers: Disassembly

NOTE: Prior to disassembly, note the position of the index marks.

Disassemble the synchronizer assembly.
1. Remove the synchronizer blocking springs.

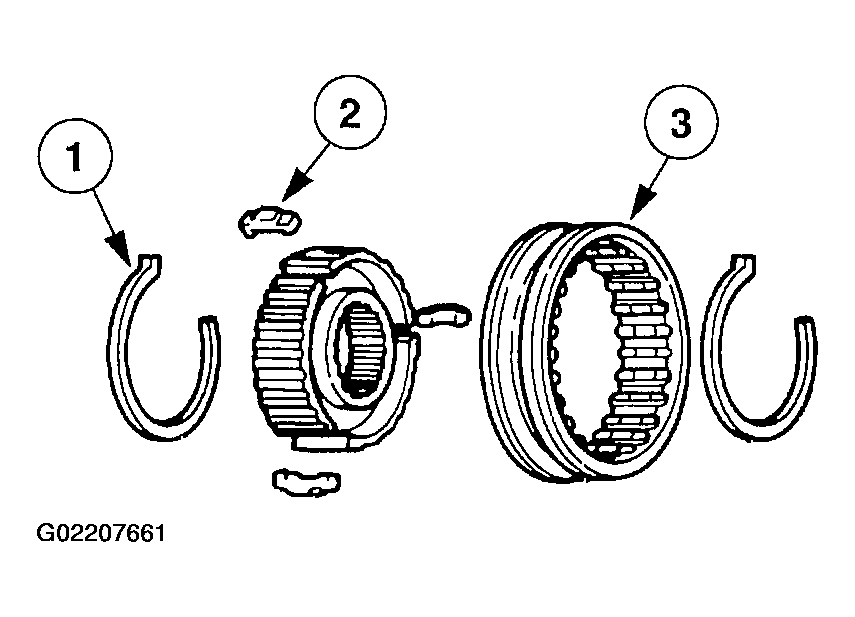

  Fig 1: Disassembling Synchronizer Assembly
  Courtesy of FORD MOTOR CO.
2. Remove the synchronizer hub inserts.
3. Separate the synchronizer hub from the sleeve.
Inspect all synchronizer components for wear and damage.
