Fill Procedure

Park the vehicle on level ground and apply the parking brake.
Disconnect the vehicle speed sensor (VSS) electrical connector.

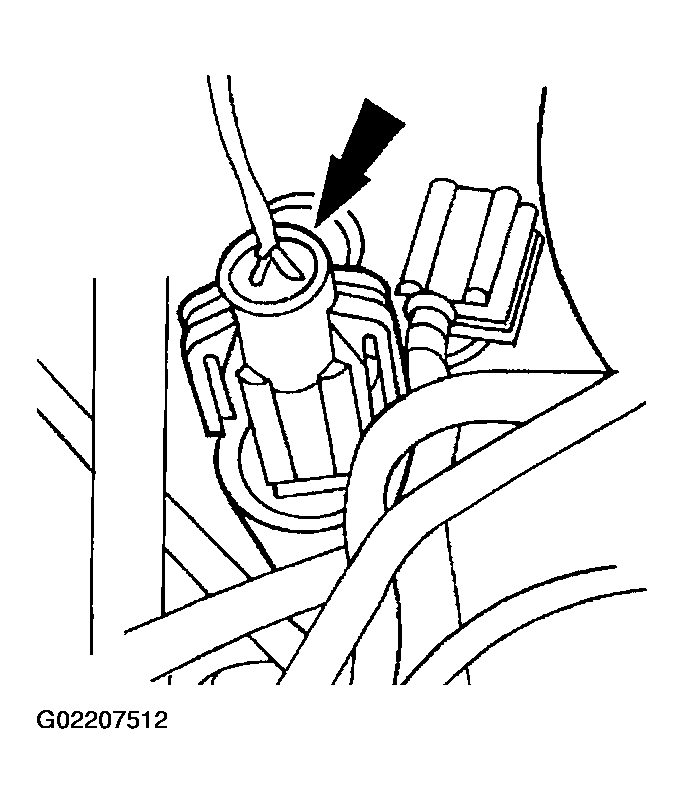

Fig 1: Disconnecting Vehicle Speed Sensor (VSS) Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the bolt and the VSS.

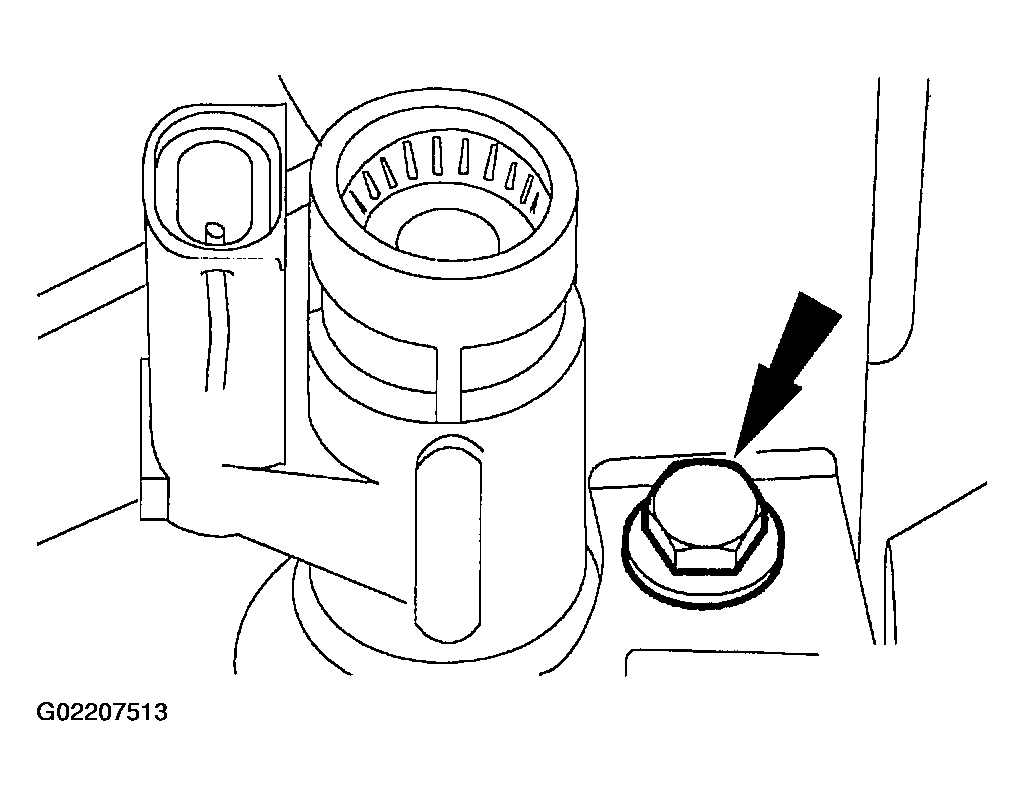

Fig 2: Removing Bolt And VSS
Courtesy of FORD MOTOR CO.
Place a funnel into the VSS hole.

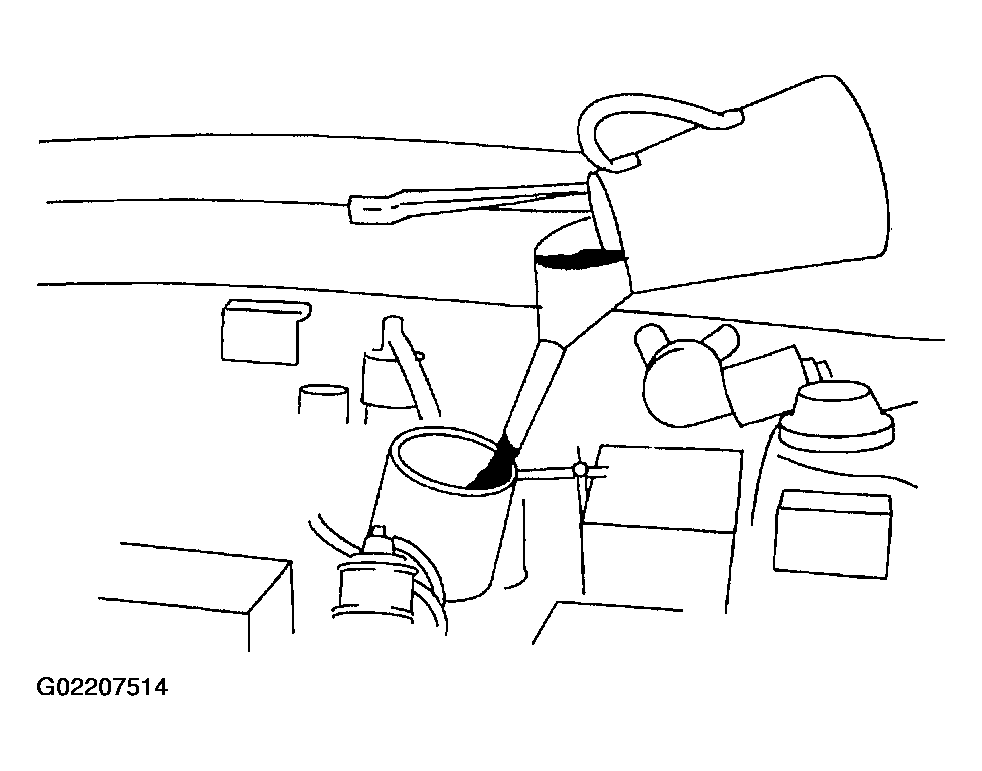

Fig 3: Adding Transaxle Fluid
Courtesy of FORD MOTOR CO.
Add the specified transaxle fluid until the full level on the VSS is reached.

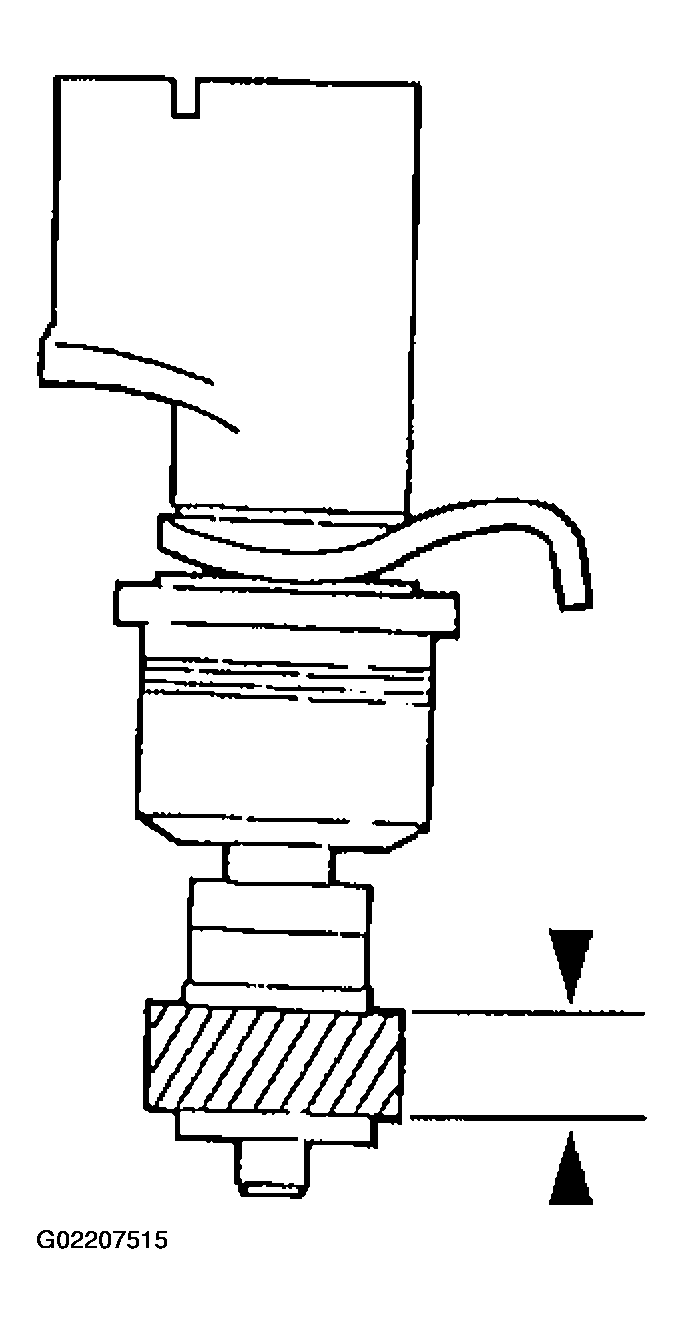

Fig 4: Identifying Transaxle Fluid Level On VSS
Courtesy of FORD MOTOR CO.
Install the VSS and the bolt.

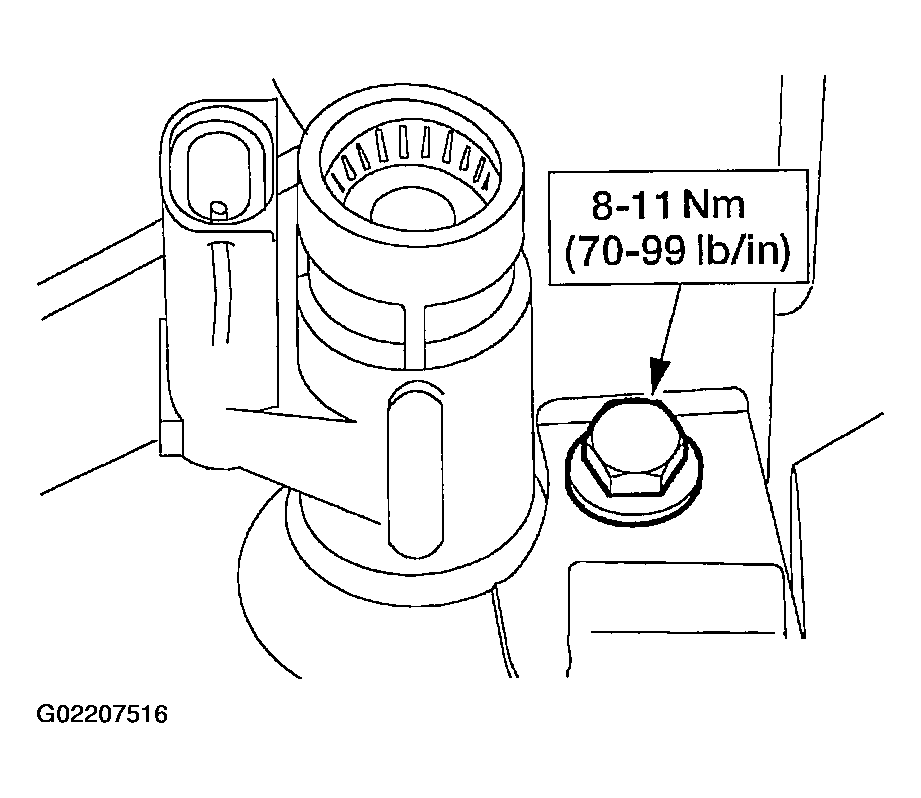

Fig 5: Installing VSS And Bolt
Courtesy of FORD MOTOR CO.
Connect the VSS electrical connector.

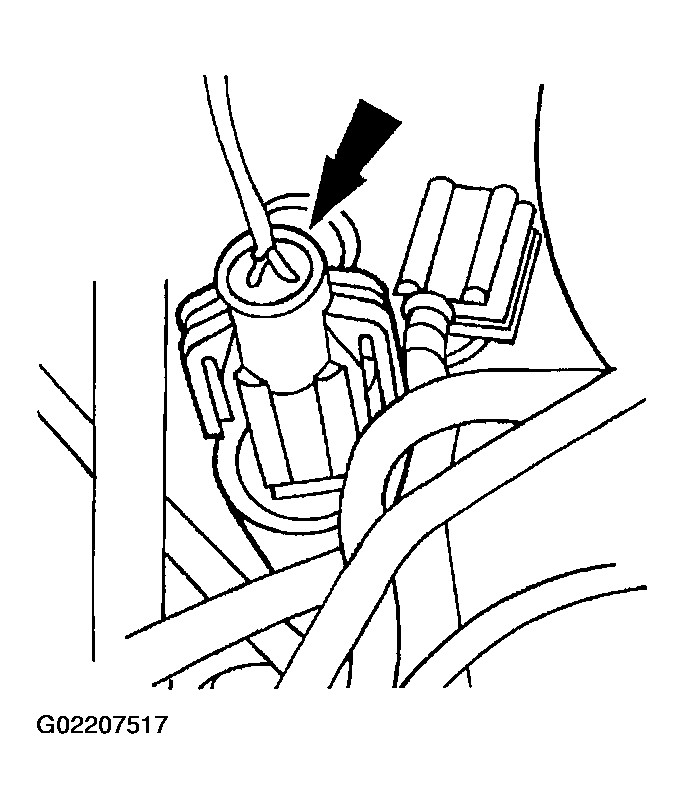

Fig 6: Connecting VSS Electrical Connector
Courtesy of FORD MOTOR CO.
