Support Insulator - LH: Notes

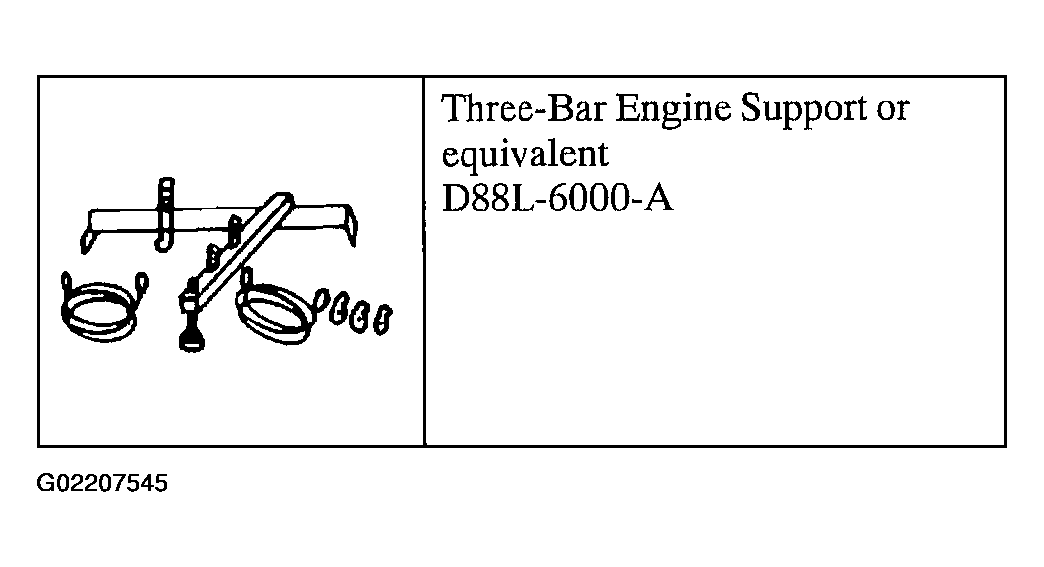

Fig 1: Identifying Special Tools
G02207545Courtesy of FORD MOTOR CO.
  1. Remove the battery tray.
    2. NOTE: 2.0L Zetec shown; 2.0L SPI similar.

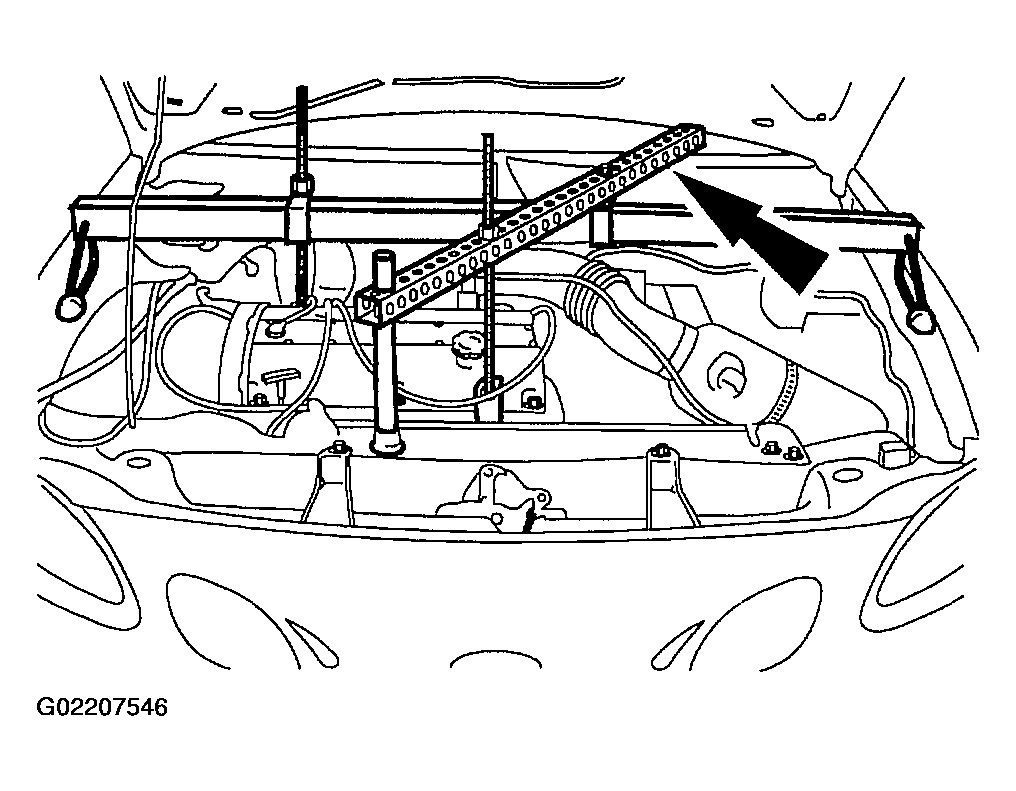

    Fig 2: Installing Three-Bar Engine Support
    G02207546Courtesy of FORD MOTOR CO.
  2. Install Three-Bar Engine Support.
  3. Remove the wiring harness from the LH support insulator and position aside.

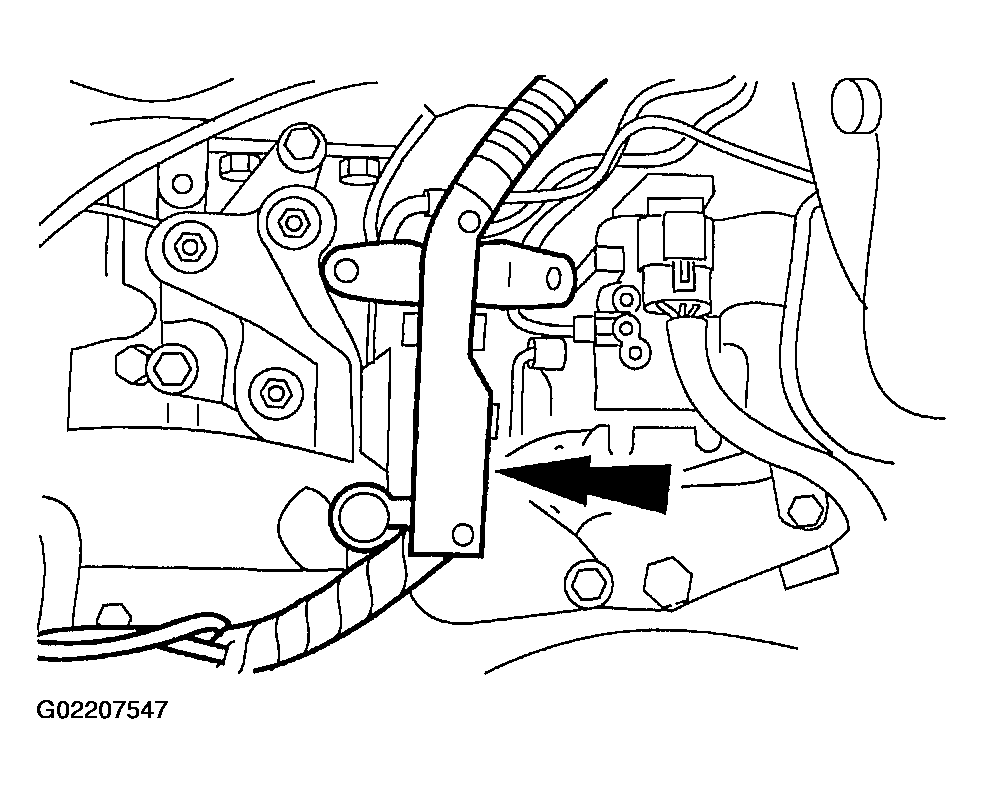

    Fig 3: Removing Wiring Harness From LH Support Insulator
    G02207547Courtesy of FORD MOTOR CO.
  4. If equipped with the 2.0L SPI, disconnect the clutch slave cylinder tube and hose from the LH insulator.
    1. Remove the retaining clip.

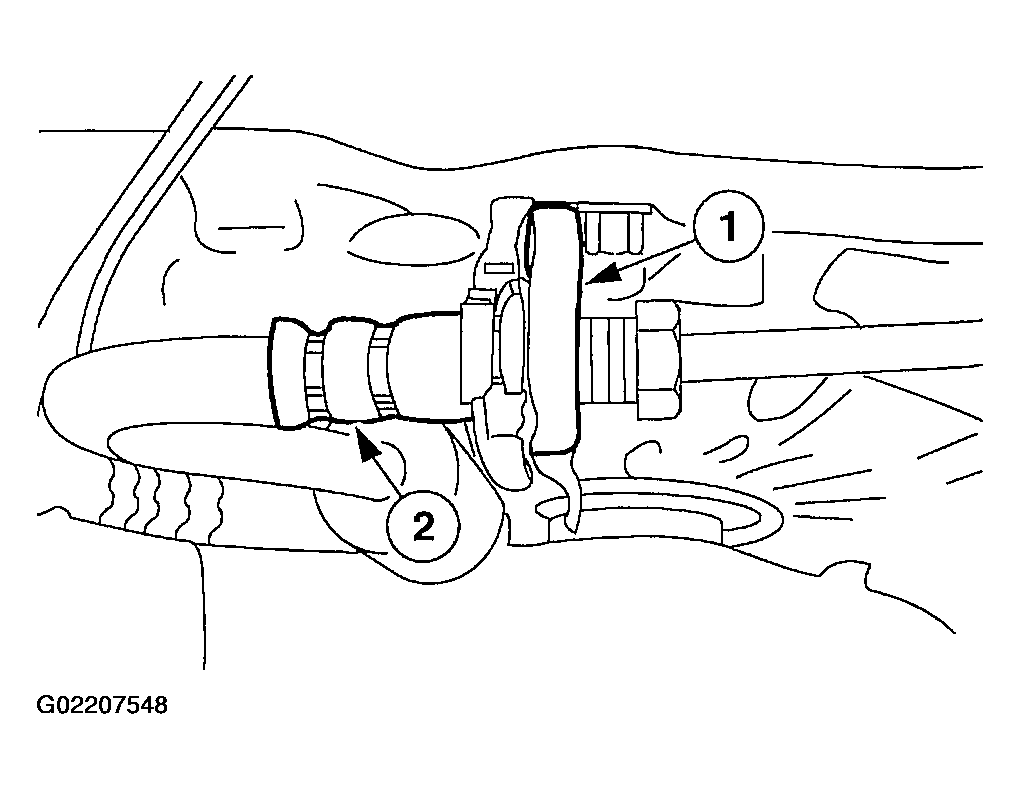

      Fig 4: Disconnecting Clutch Slave Cylinder Tube And Hose From LH Insulator
      G02207548Courtesy of FORD MOTOR CO.
    2. Position the clutch slave cylinder tube and hose aside.
  5. Remove the LH support insulator to transaxle nuts and washers.

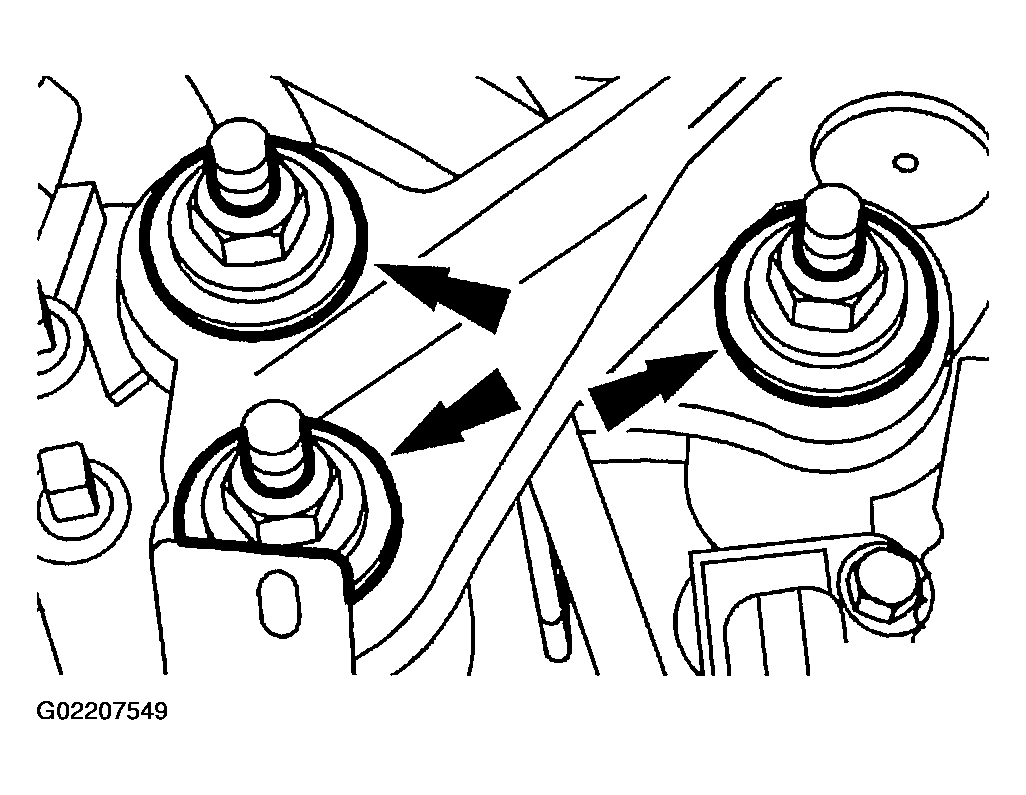

    Fig 5: Removing LH Support Insulator To Transaxle Nuts And Washers
    G02207549Courtesy of FORD MOTOR CO.
  6. Remove the LH support insulator.
    1. Remove the nuts.

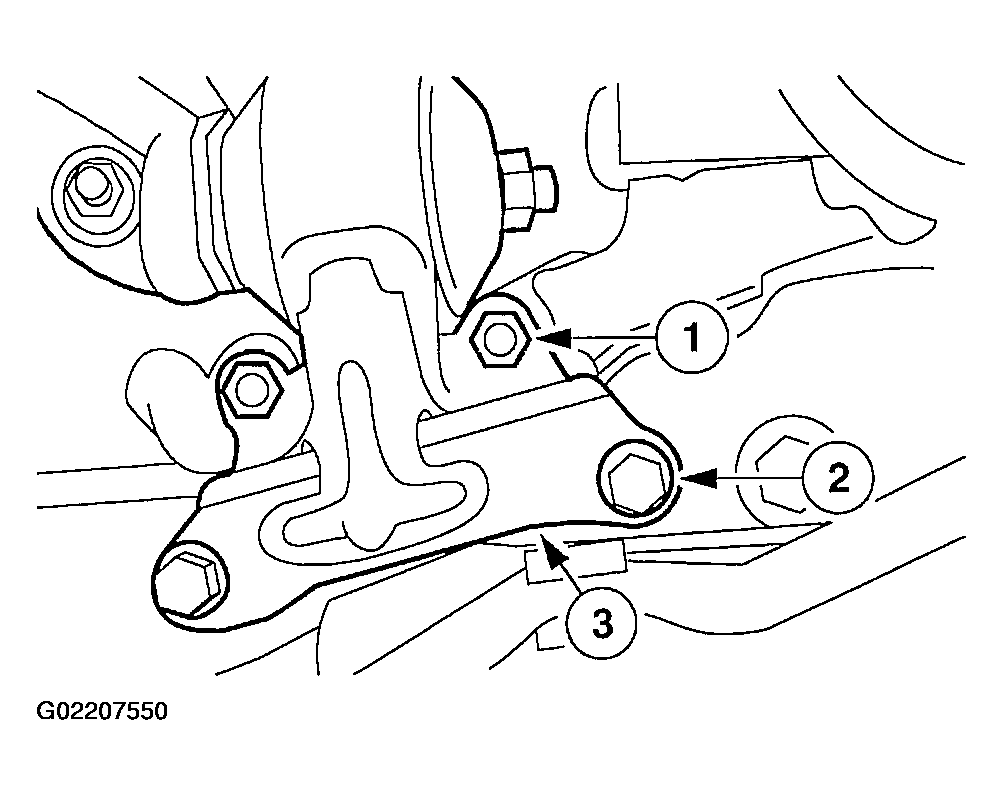

      Fig 6: Removing LH Support Insulator
      G02207550Courtesy of FORD MOTOR CO.
    2. Remove the bolts.
    3. Remove the LH support insulator.
