Vehicle Speed Sensor (VSS): Removal

  1. Disconnect the Vehicle Speed Sensor (VSS) electrical connector.

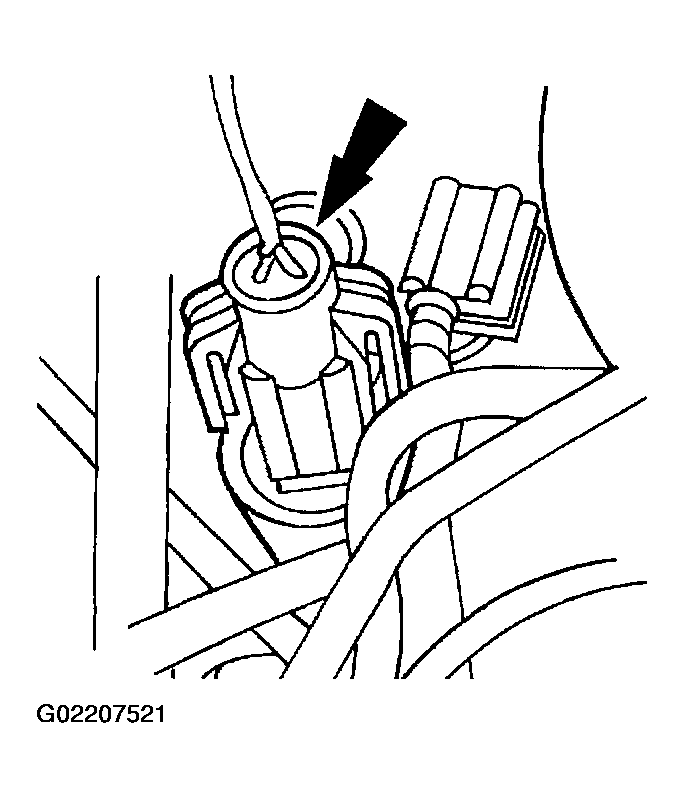

    Fig 1: Disconnecting Vehicle Speed Sensor (VSS) Electrical Connector
    G02207521Courtesy of FORD MOTOR CO.
  2. Remove the bolt and the VSS.

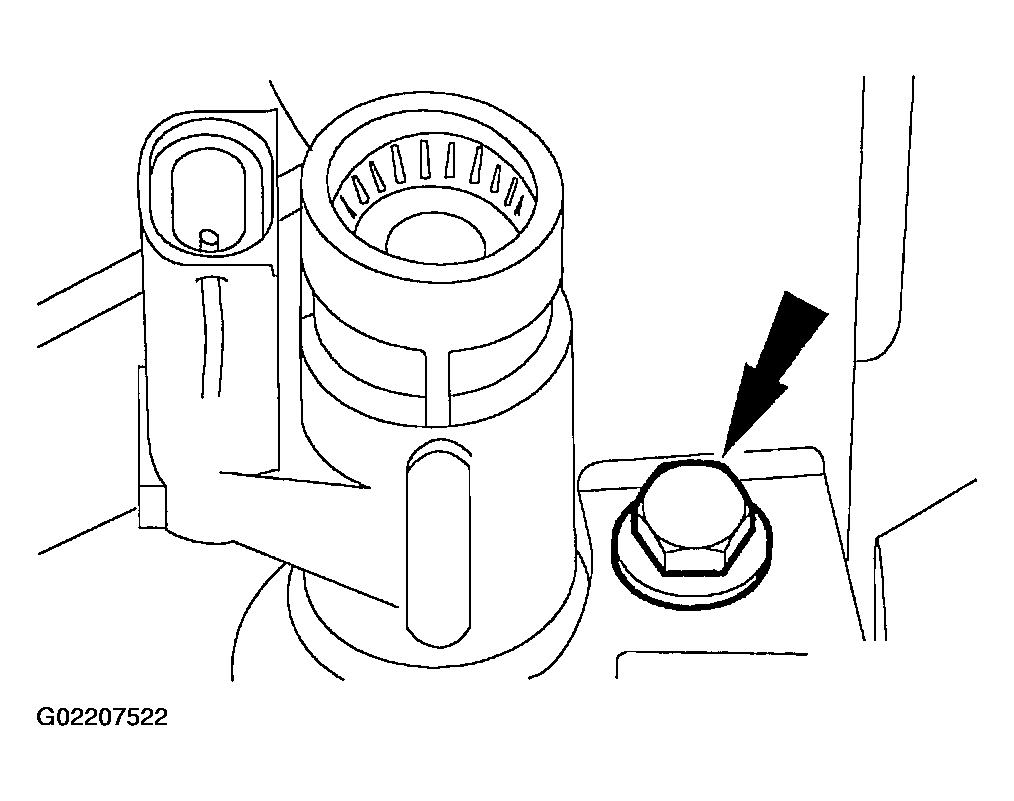

    Fig 2: Removing Bolt And VSS
    G02207522Courtesy of FORD MOTOR CO.
