Manual Transmission: Installation: Transaxle: Installation

Apply a thin coating of Premium Long-Life Grease XG-1-C or K or equivalent meeting Ford specification ESA-M1C75-13 to the spline of the input shaft.

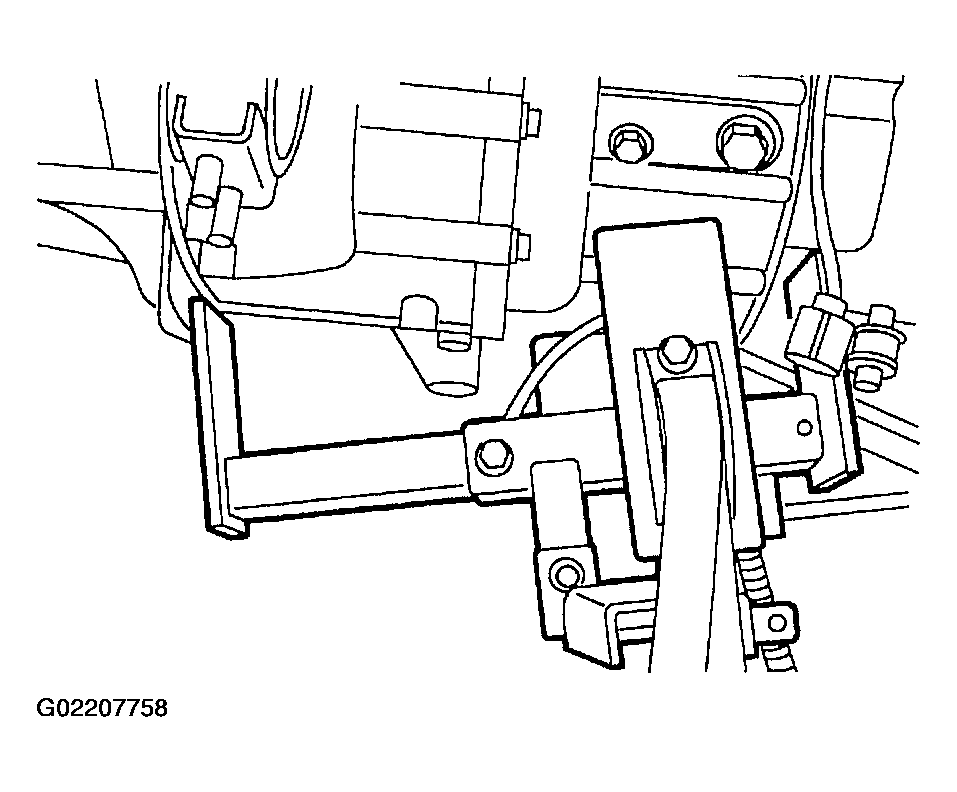

Secure the transaxle on Transmission Jack. Raise the transaxle to the proper height and position the transaxle to the engine.

Fig 1: Securing Transaxle To Jack
Courtesy of FORD MOTOR CO.

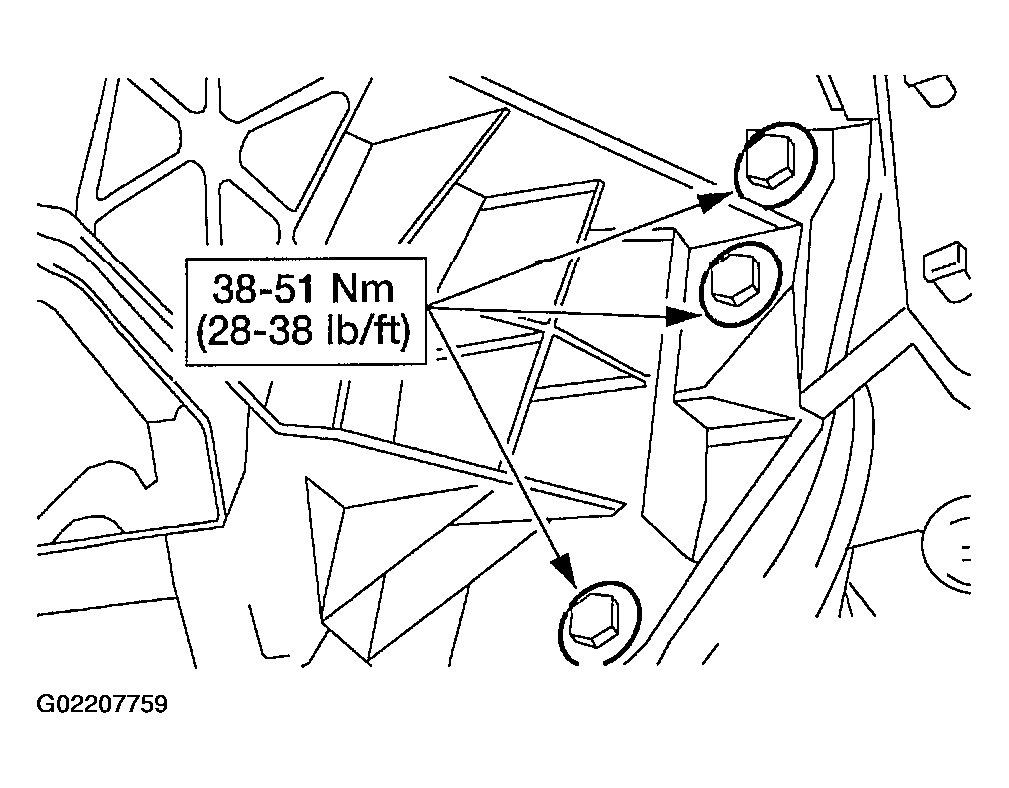

Install the middle transaxle to engine bolts.

Fig 2: Installing Middle Transaxle To Engine Bolts
Courtesy of FORD MOTOR CO.

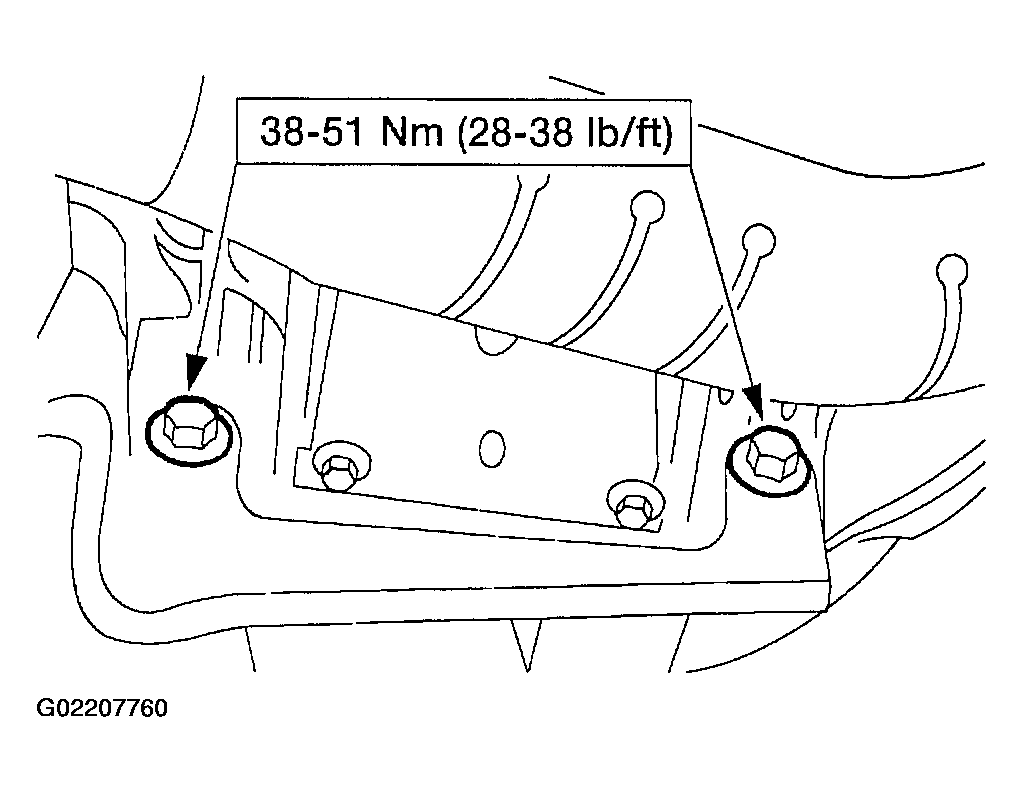

Install the lower transaxle to engine bolts.

Fig 3: Installing Lower Transaxle To Engine Bolts
Courtesy of FORD MOTOR CO.
Install the clutch slave cylinder (7A508) nuts.

Fig 4: Installing Clutch Slave Cylinder Nuts
Courtesy of FORD MOTOR CO.

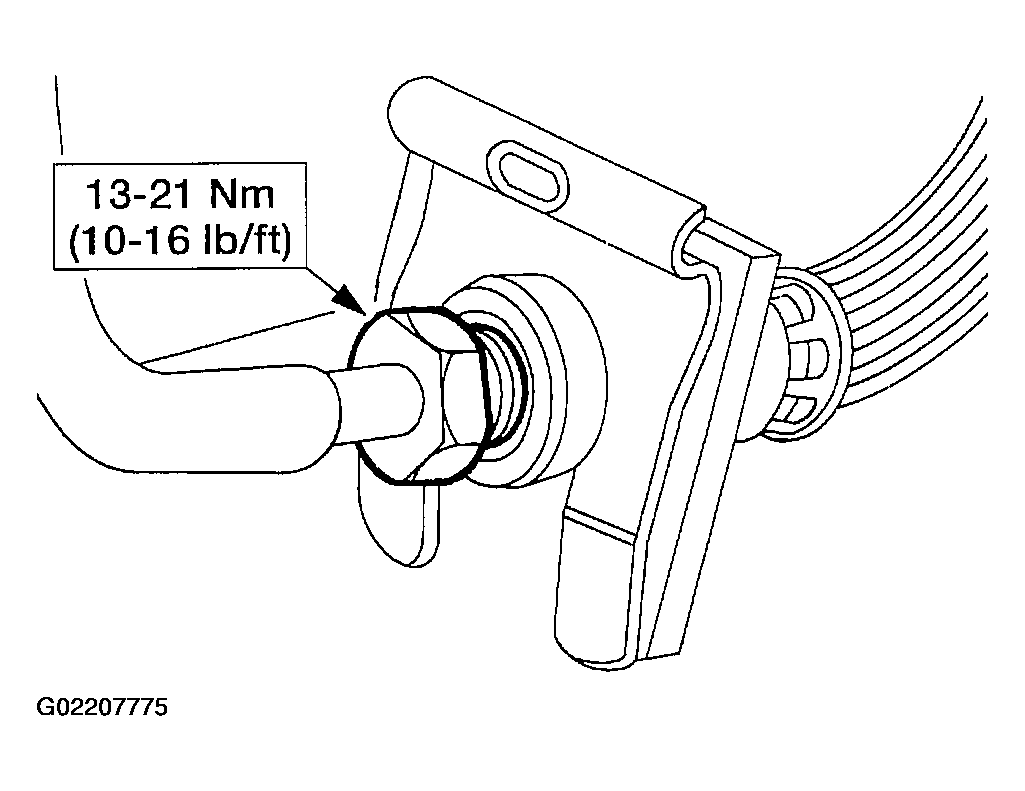

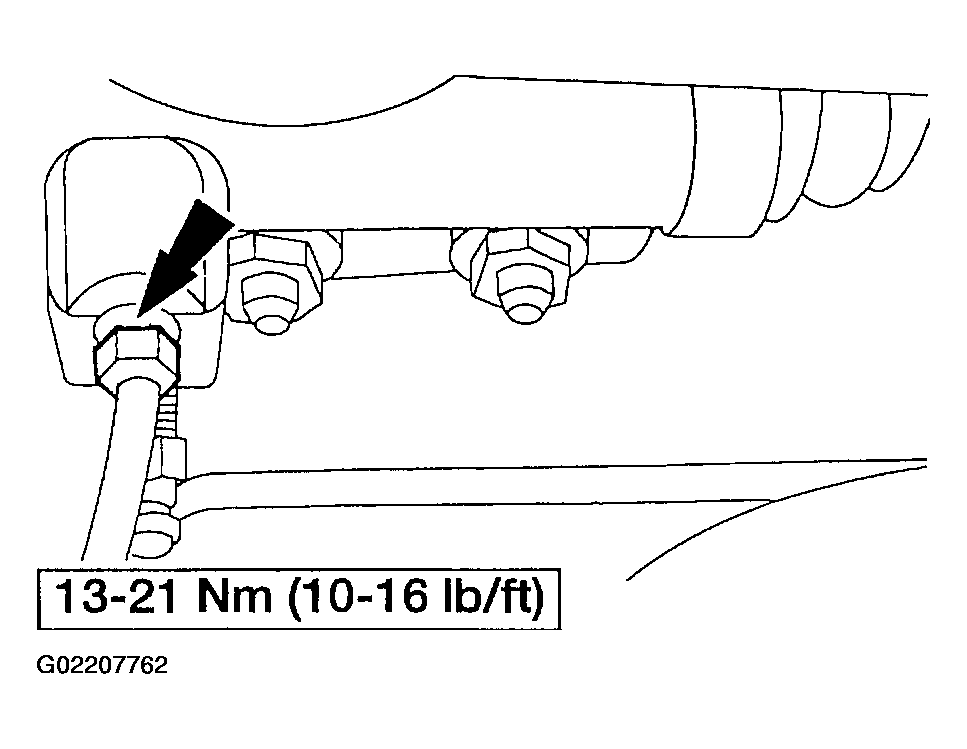

Install the lower clutch slave cylinder tube and connect the tube nut.

Fig 5: Installing Lower Clutch Slave Cylinder Tube
Courtesy of FORD MOTOR CO.

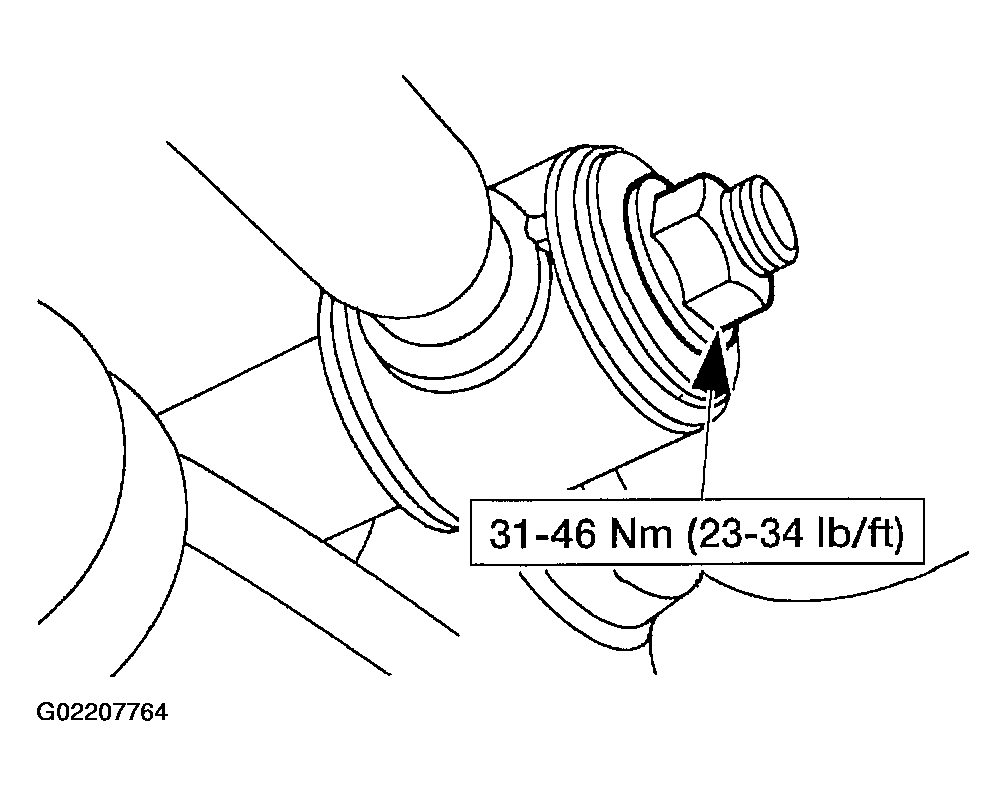

Position the transaxle gearshift rod and clevis to the input shift shaft and install the transaxle gearshift bolt and transaxle gearshift rod nut.

Fig 6: Installing Transaxle Gearshift Bolt And Transaxle Gearshift Rod Nut
Courtesy of FORD MOTOR CO.

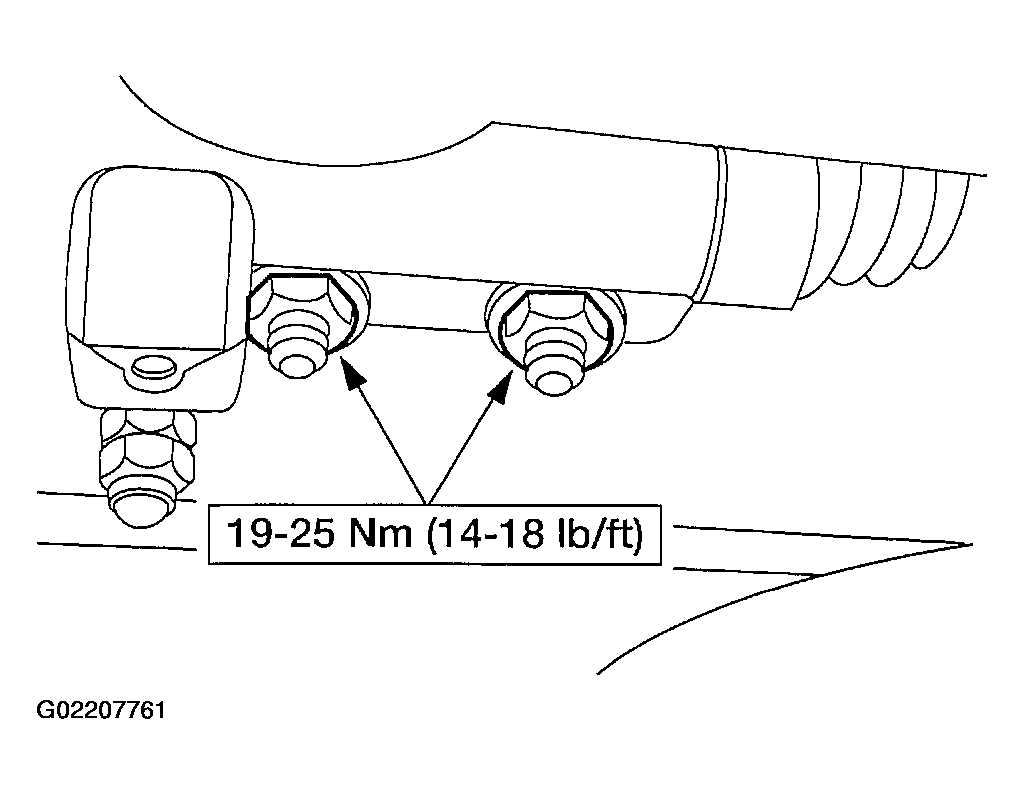

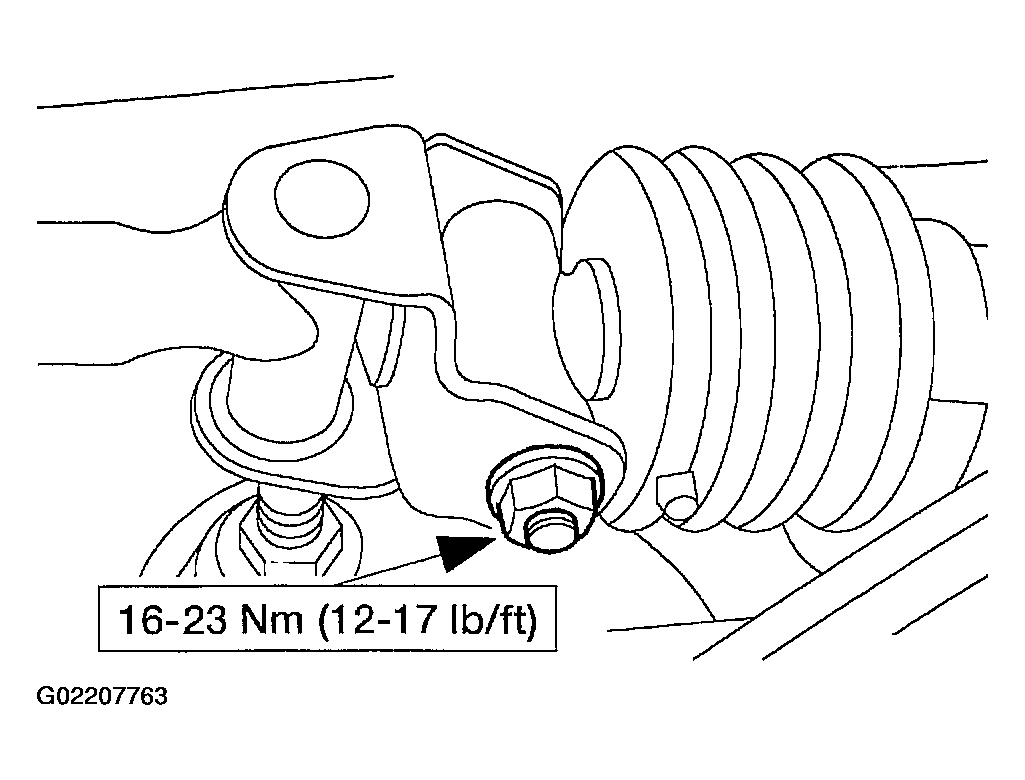

Install the gearshift stabilizer bar and support nut.

Fig 7: Installing Gearshift Stabilizer Bar And Support Nut
Courtesy of FORD MOTOR CO.
Install the catalytic converter.

Fig 8: Installing Catalytic Converter
Courtesy of FORD MOTOR CO.

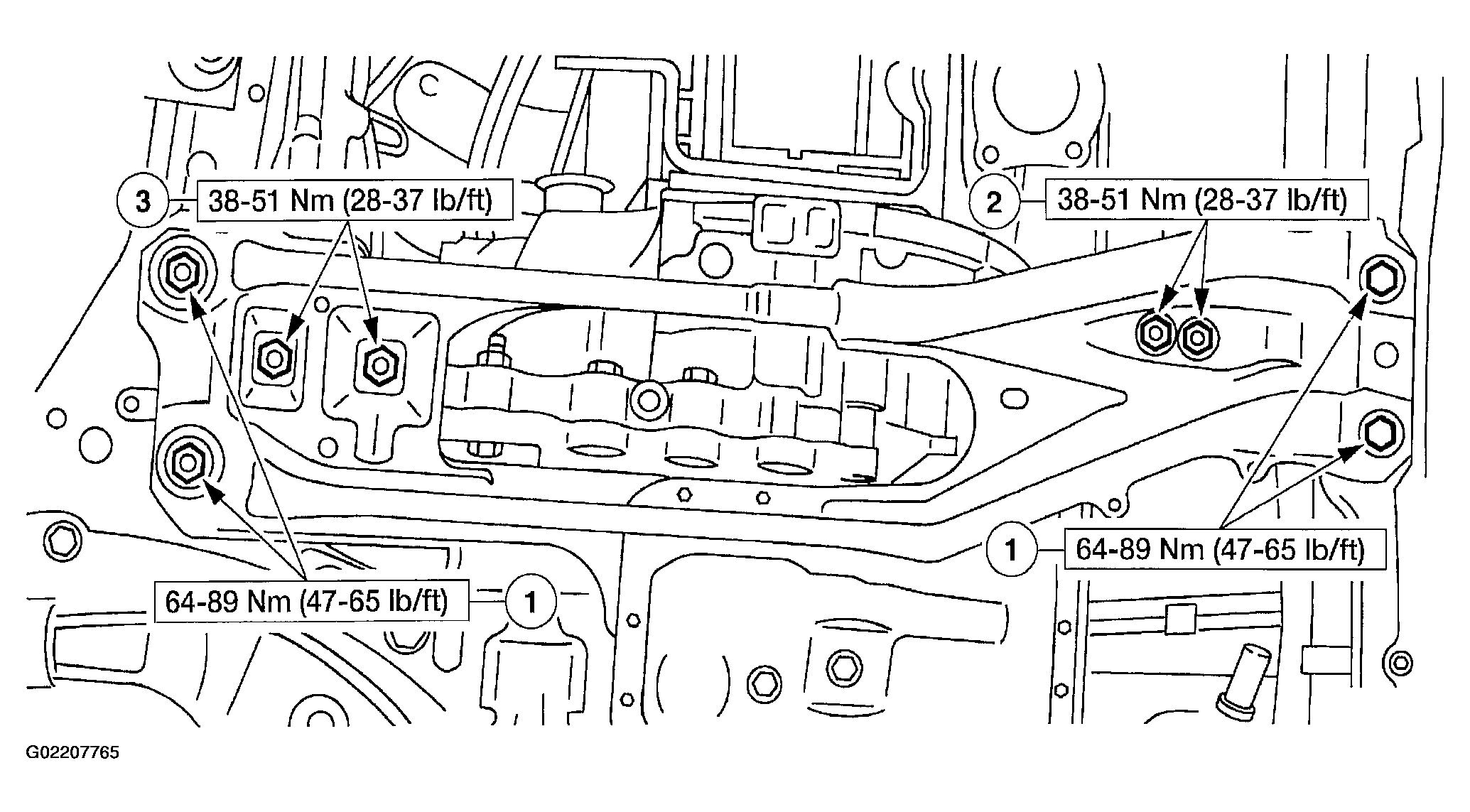

Install the engine support crossmember.
1. Install the bolts and nuts.
2. Install the lower front insulator nuts.
3. Install the lower rear insulator nuts and connect the A/C line.
Install the halfshafts; refer to AXLE SHAFTS .
Install the starter motor; refer to STARTER ASSEMBLY .

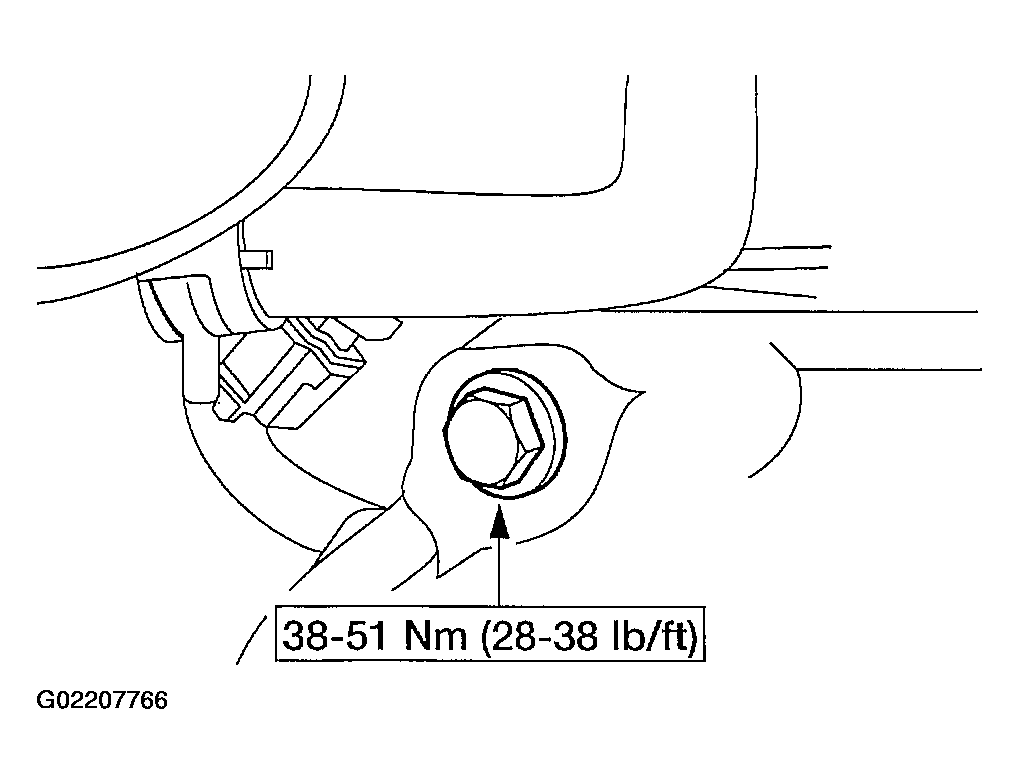

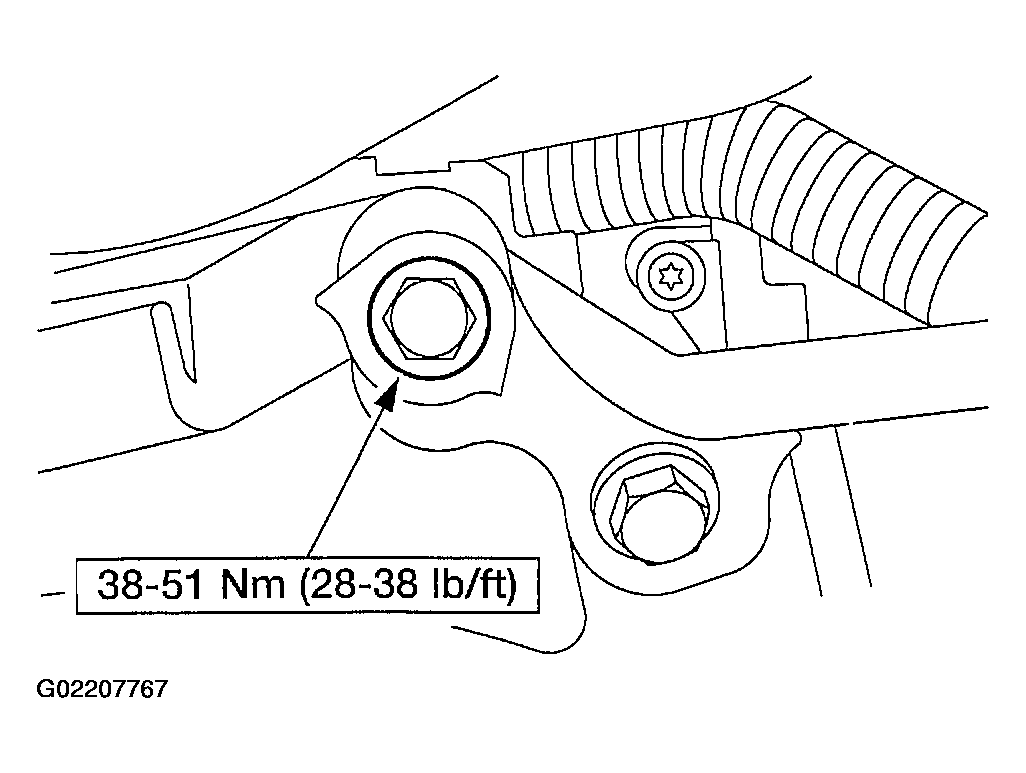

Install the front upper transaxle to engine bolt.

Fig 9: Installing Front Upper Transaxle To Engine Bolt
Courtesy of FORD MOTOR CO.
Install the rear upper transaxle to engine bolt.

Fig 10: Installing Rear Upper Transaxle To Engine Bolt
Courtesy of FORD MOTOR CO.

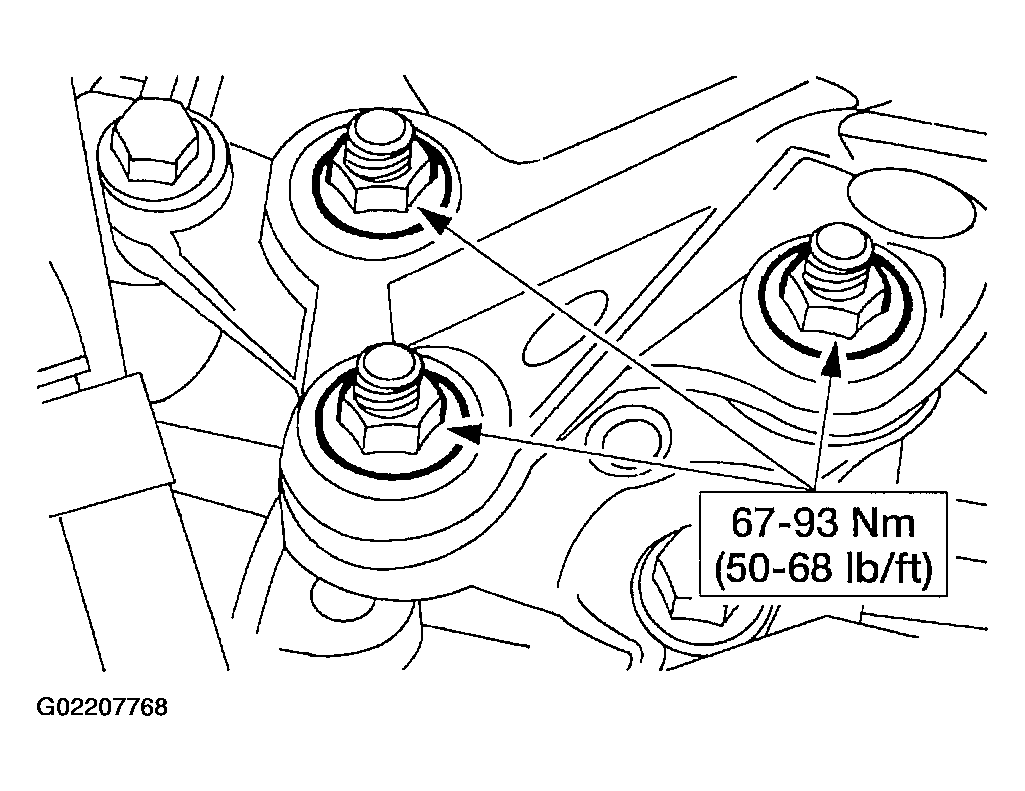

Install the LH engine support insulator nuts and washers.

Fig 11: Installing LH Engine Support Insulator Nuts And Washers
Courtesy of FORD MOTOR CO.

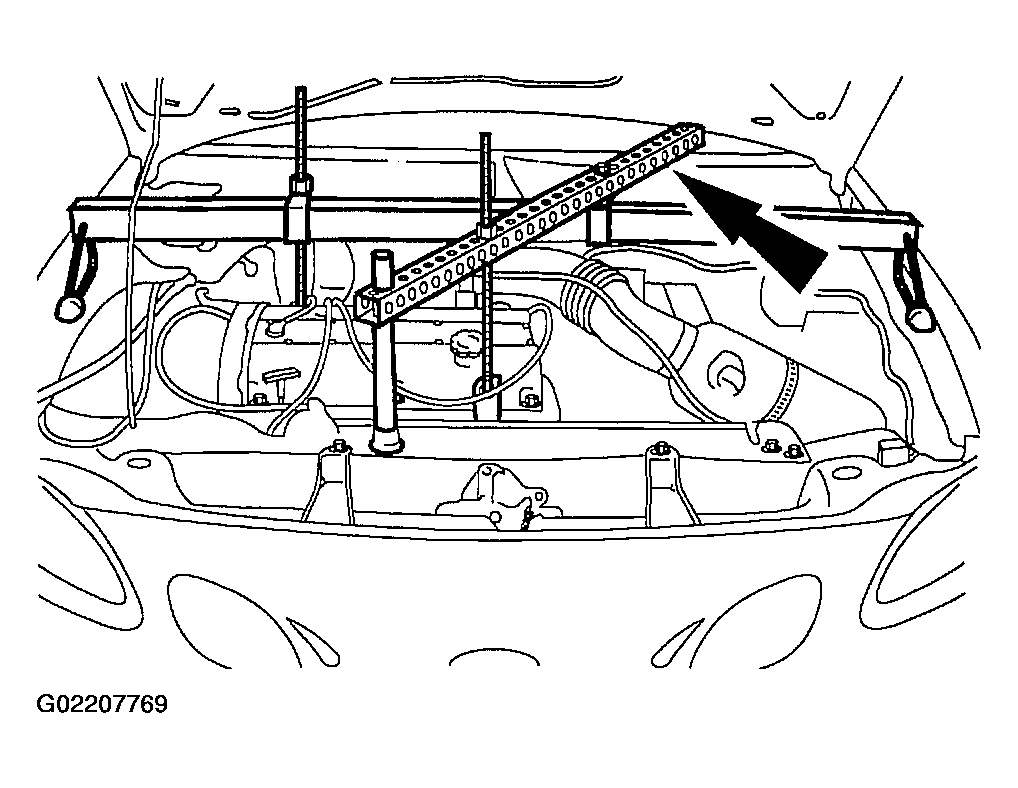

Remove Three-Bar Engine Support.

Fig 12: Removing Three-Bar Engine Support
Courtesy of FORD MOTOR CO.

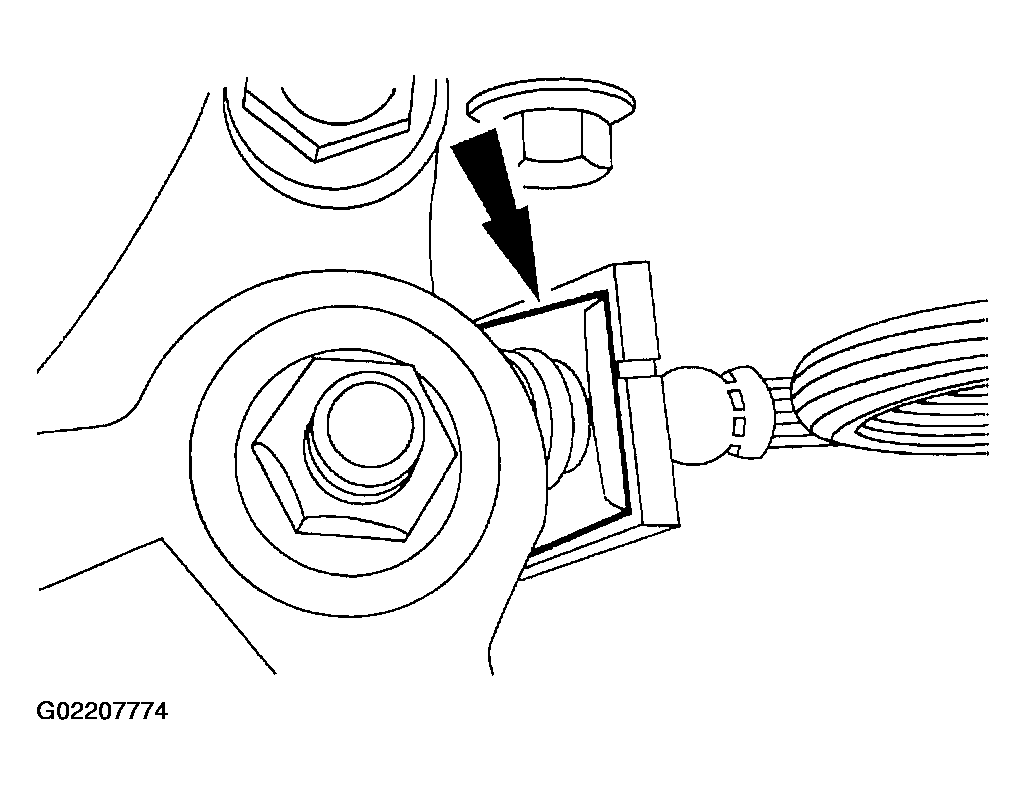

Connect the park neutral position (PNP) switch connector.

Fig 13: Connecting Park Neutral Position (PNP) Switch Connector
Courtesy of FORD MOTOR CO.

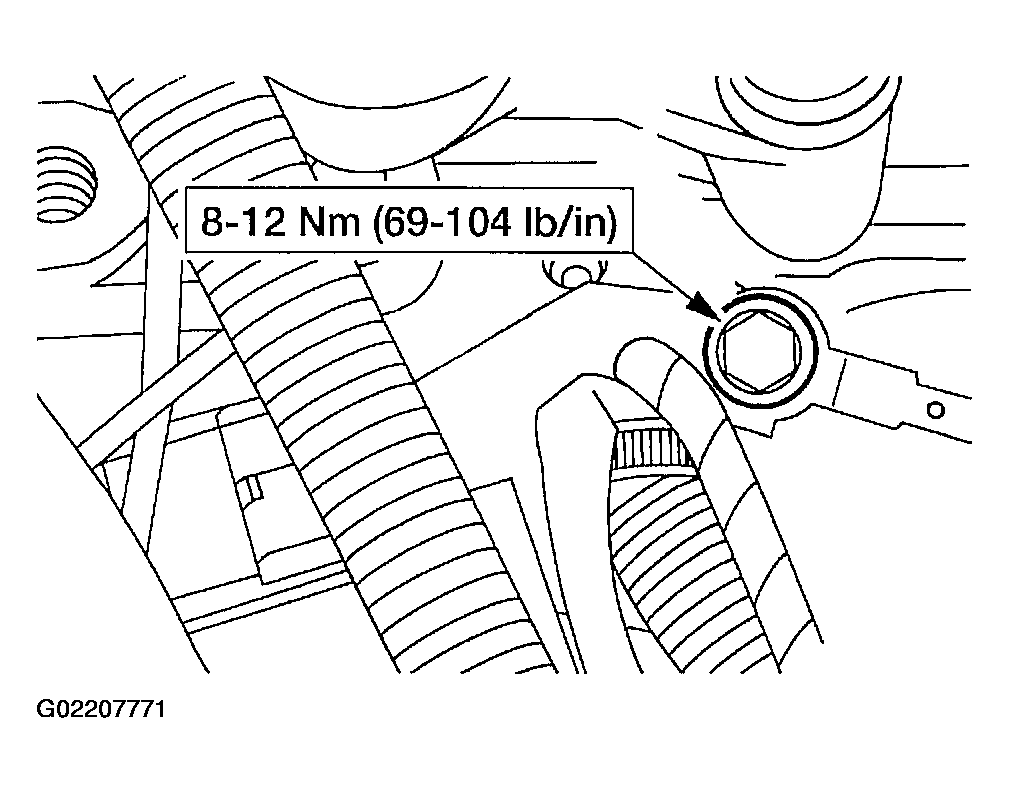

Install the electrical connector bracket and the bolt.

Fig 14: Installing Electrical Connector Bracket And Bolt
Courtesy of FORD MOTOR CO.

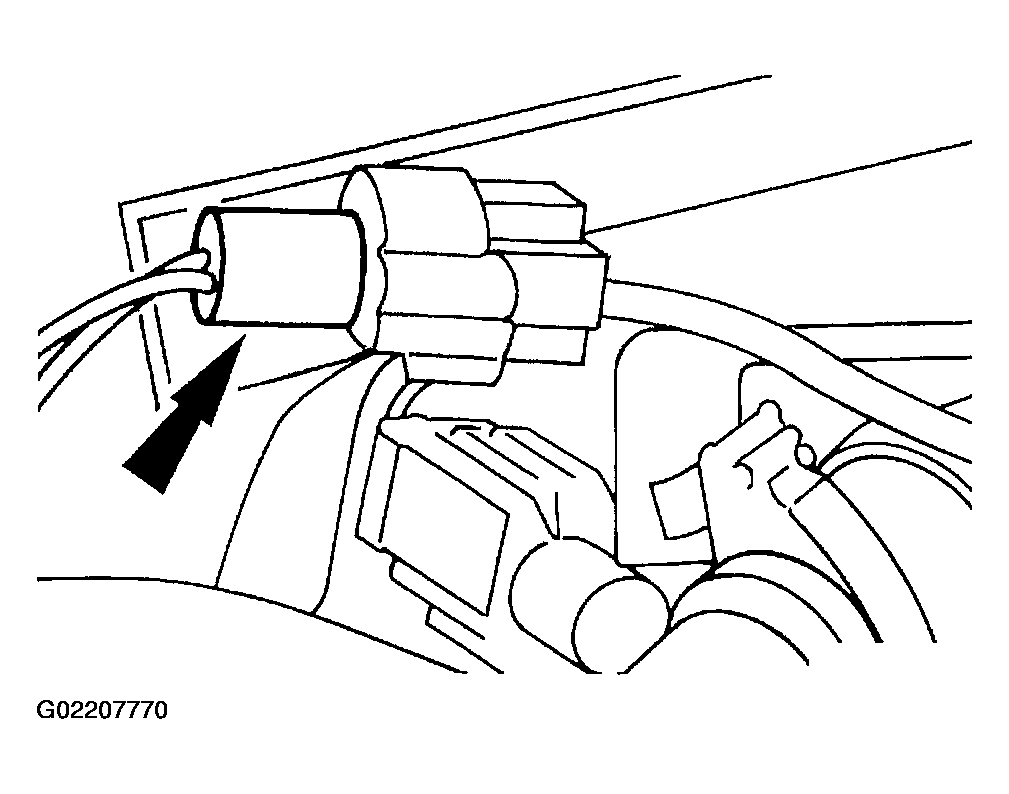

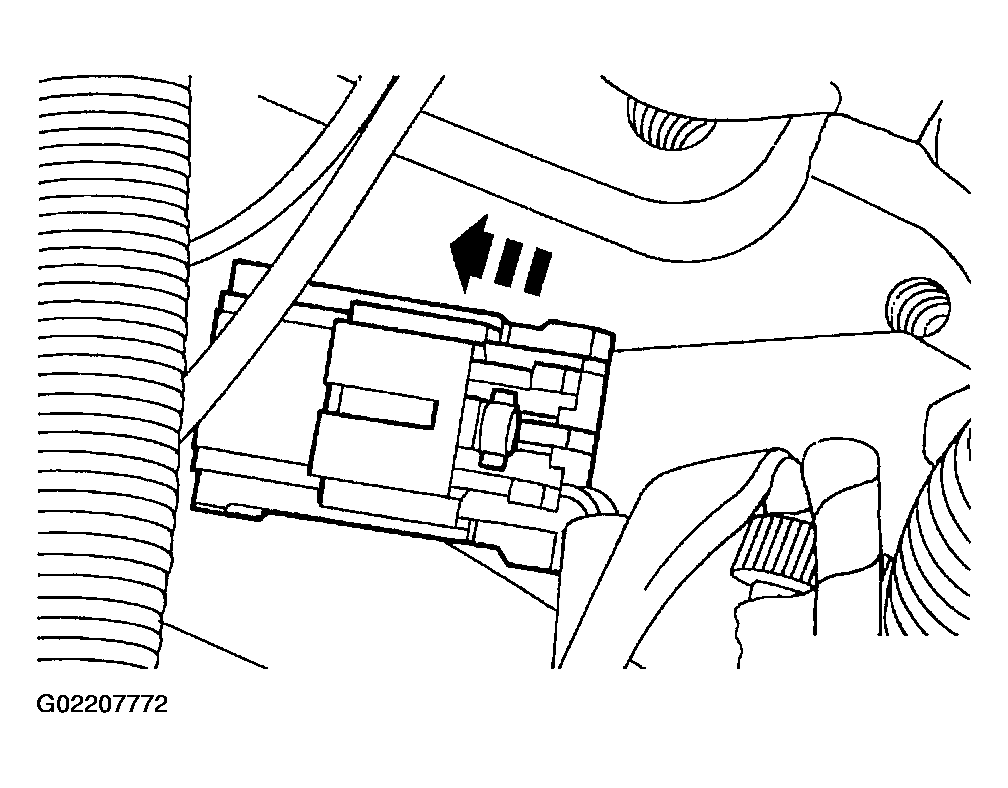

Connect the backup lamp switch connector.

Fig 15: Connecting Backup Lamp Switch Connector
Courtesy of FORD MOTOR CO.

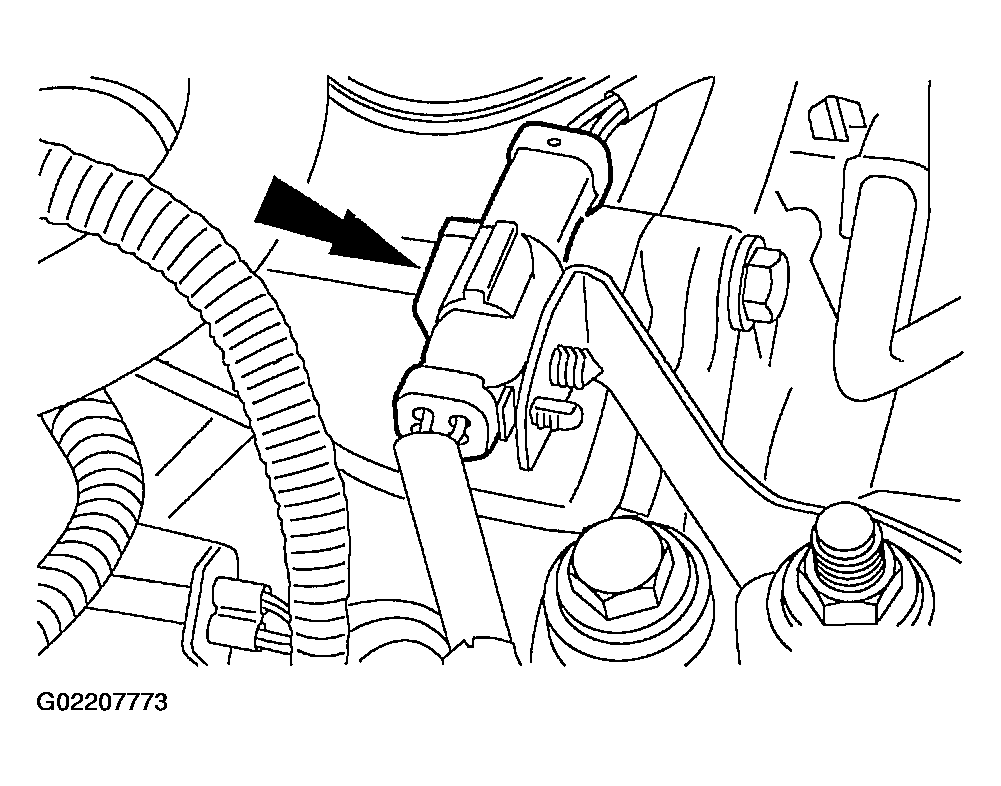

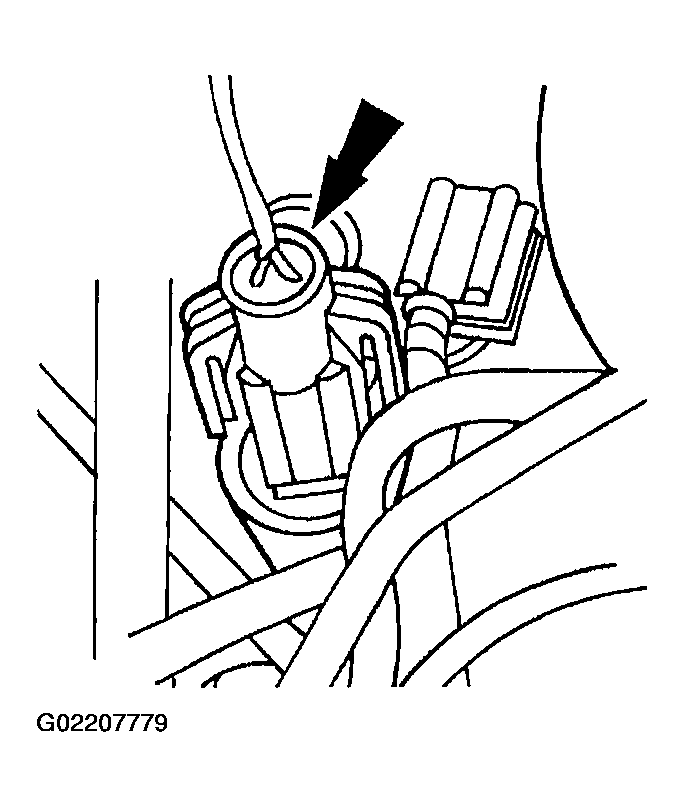

Connect the heated oxygen sensor (HO2S) connector.

Fig 16: Connecting Heated Oxygen Sensor (HO2S) Connector
Courtesy of FORD MOTOR CO.
Position the hydraulic clutch hose in the bracket and install the retaining clip.

Fig 17: Installing Retaining Clip
Courtesy of FORD MOTOR CO.
Connect the clutch slave cylinder tube nut to the hydraulic clutch hose.

Fig 18: Connecting Clutch Slave Cylinder Tube Nut To Hydraulic Clutch Hose
Courtesy of FORD MOTOR CO.
- Bleed the hydraulic system; refer to BLEED PROCEDURE .

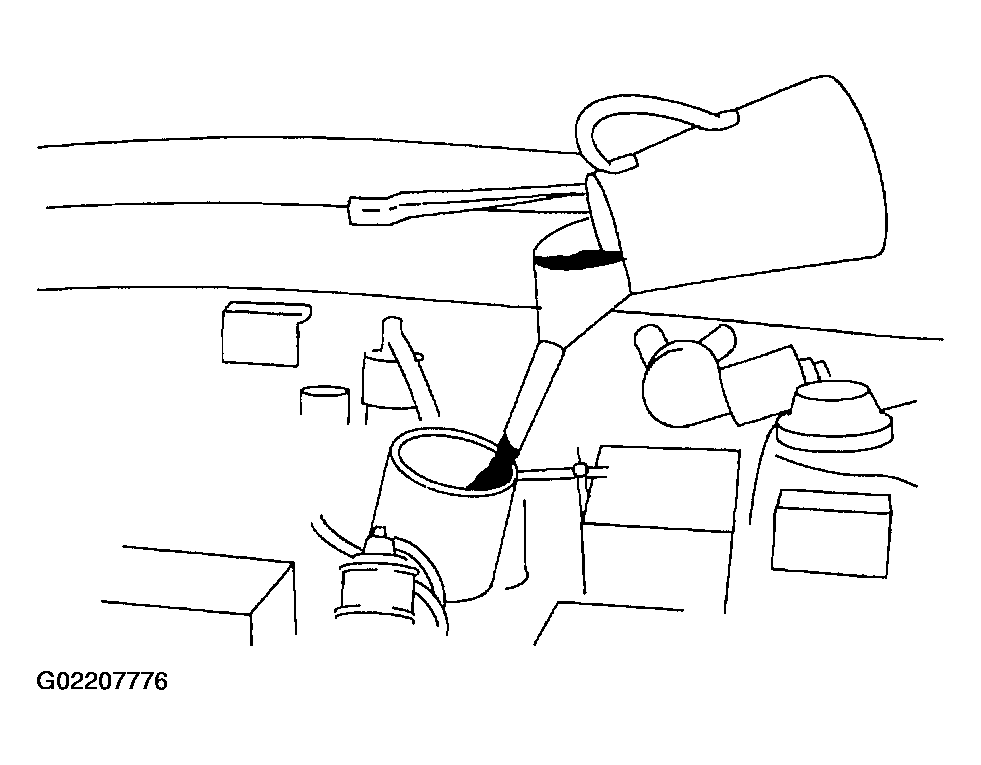

Place a funnel into the vehicle speed sensor (VSS) hole.

Fig 19: Adding Transaxle Fluid
Courtesy of FORD MOTOR CO.

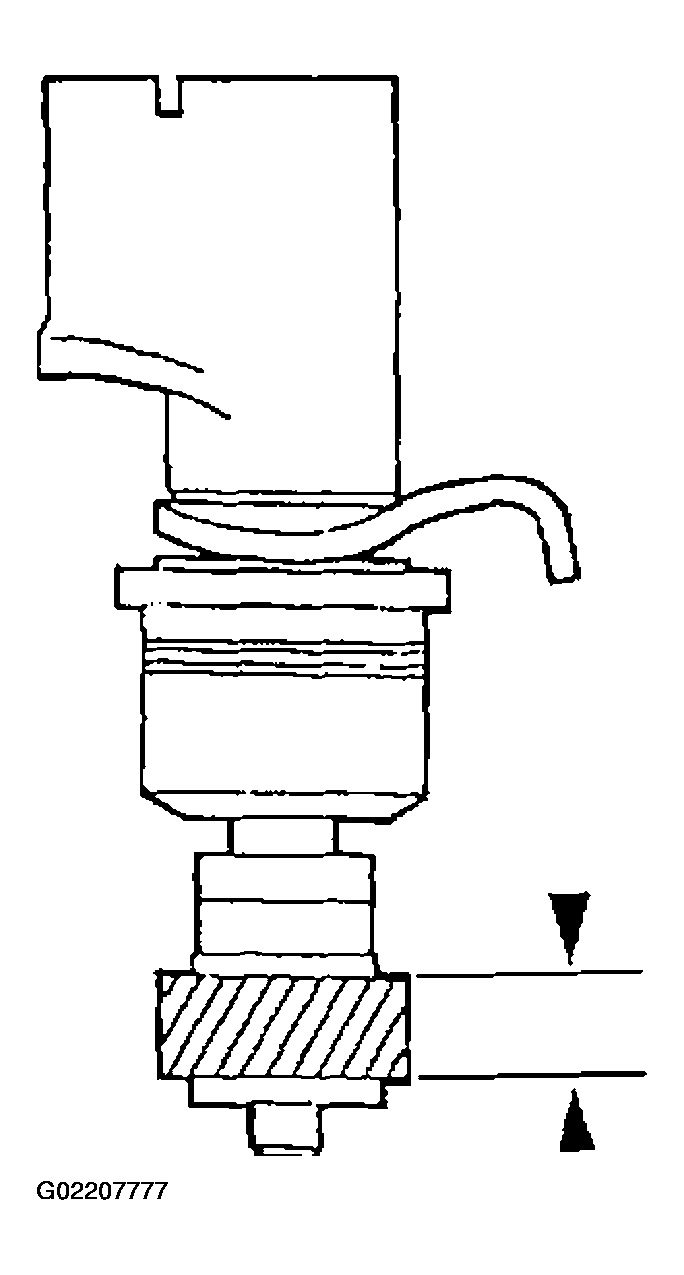

Add the specified transaxle fluid until the full level on the VSS is reached.

Fig 20: Identifying Transaxle Fluid Level
Courtesy of FORD MOTOR CO.

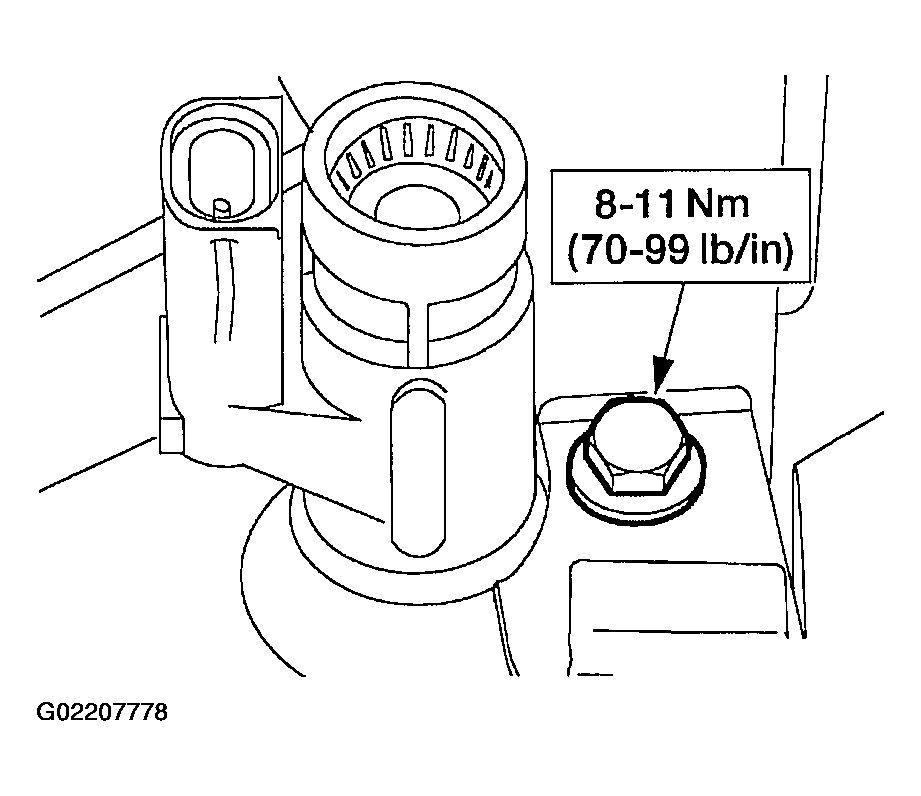

Install the VSS and the bolt.

Fig 21: Installing VSS And Bolt
Courtesy of FORD MOTOR CO.
Connect the VSS electrical connector.

Fig 22: Connecting VSS Electrical Connector
Courtesy of FORD MOTOR CO.
Install the battery tray; refer to BATTERY .
Check the system for normal operation.
