Trouble Shooting

Check the following items before proceeding with testing:

• Check battery for state of charge.
• Check cable connections at battery and starter motor for looseness or corrosion.
• Ensure transmission is fully engaged in Park or Neutral.
• Check fuse No. 101 (30-amp) in Battery Junction Box (BJB). See Fig 1. BJB is located on right side of engine compartment.
• Check fuse No. 9 (5-amp) in Central Junction Box (CJB). See Fig 2. CJB is located behind left side of instrument panel.

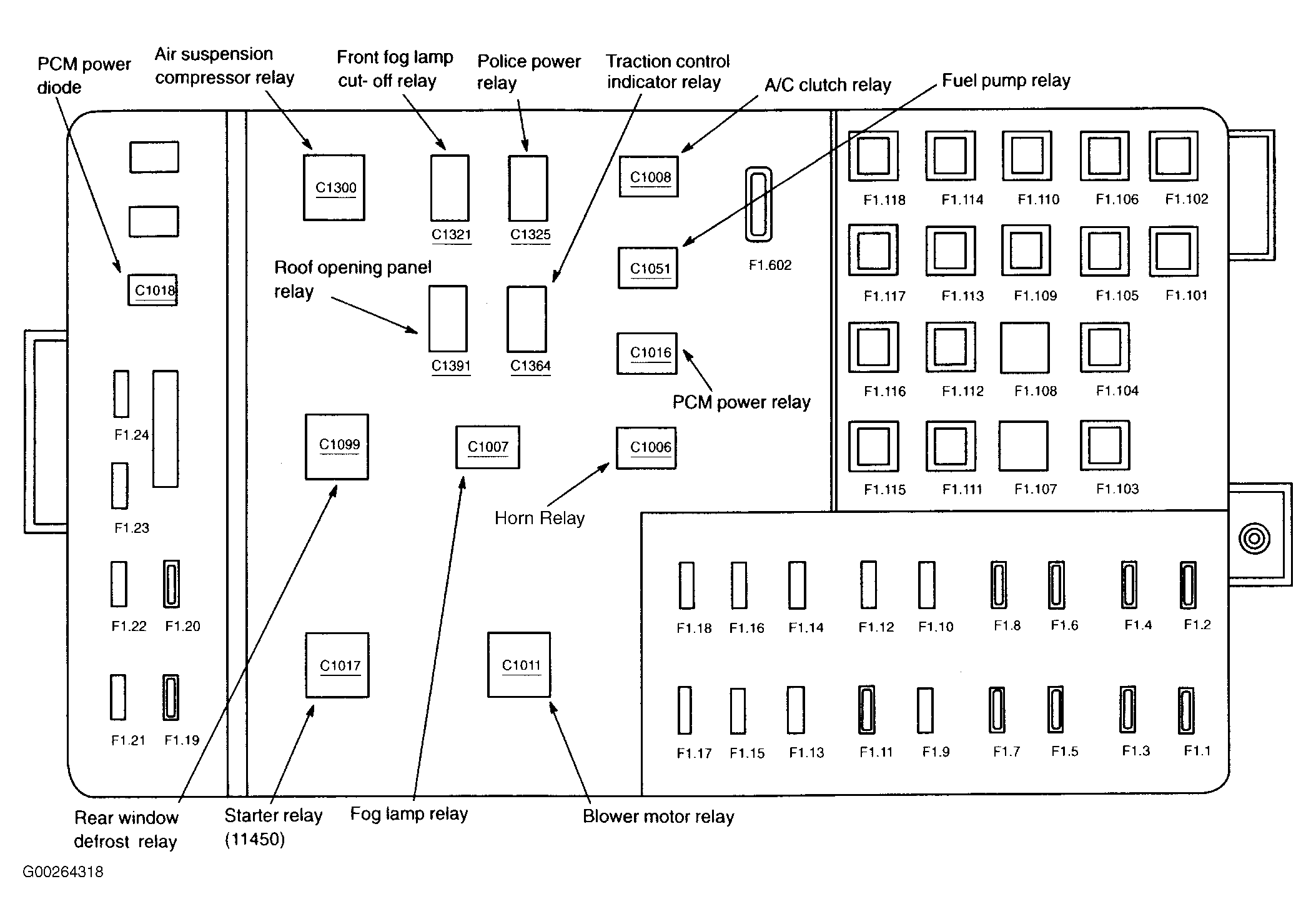

Fig 1: Identifying Battery Junction Box Components

Courtesy of FORD MOTOR CO.

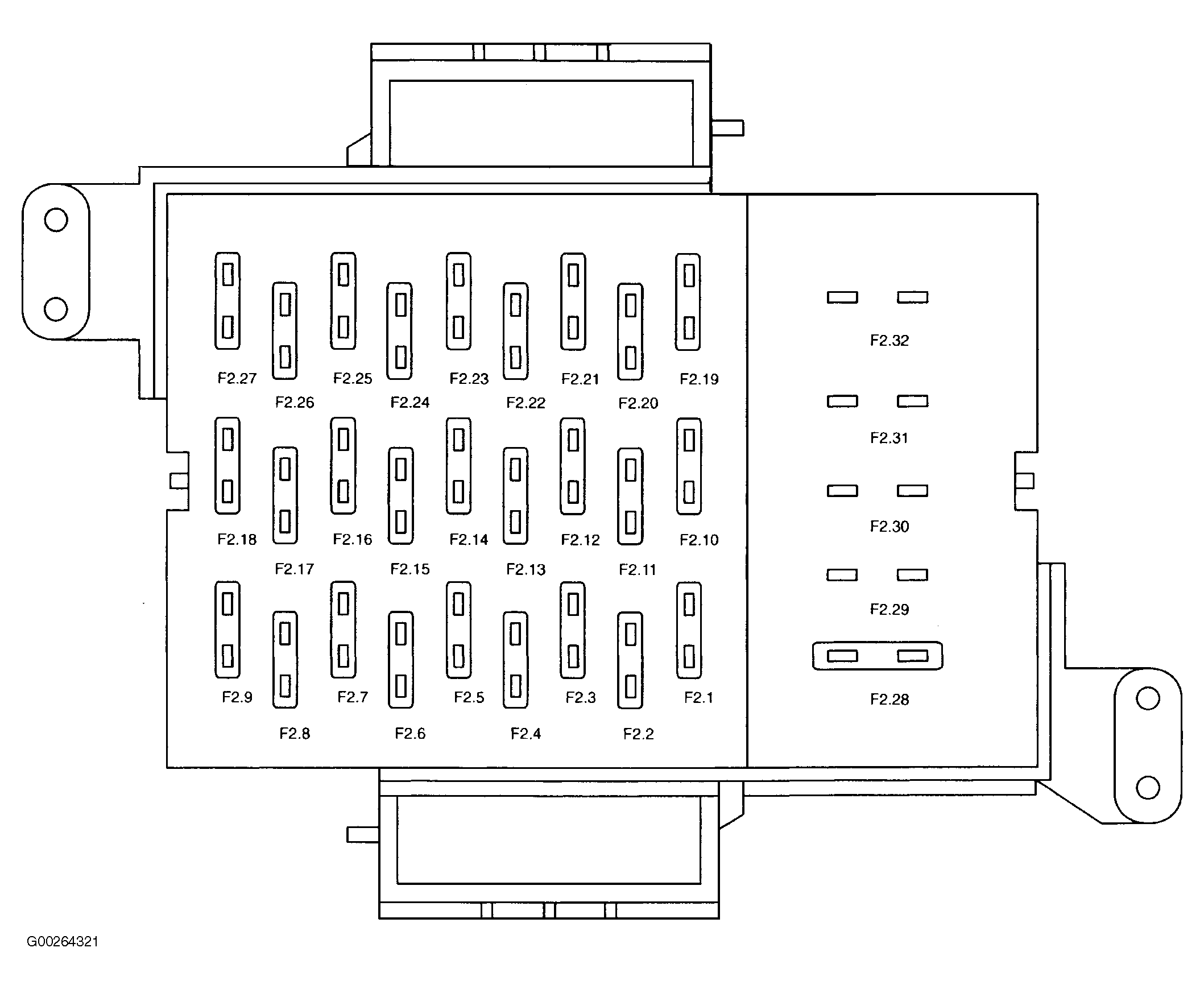

Fig 2: Identifying Central Junction Box Fuses

Courtesy of FORD MOTOR CO.
