Removal And Installation: Column: Removal

NOTE: All steering column components are assembled with specific fasteners. They are designed with a thread-locking system to prevent loosening due to vibrations associated with normal vehicle operation.

    ALL VEHICLES

  1. Make sure the front wheels are in the straight-ahead position.
  2. Disconnect the battery ground cable(s) (14301) and wait at least one minute to allow the depletion of the restraint system backup power supply. For additional information, refer to BATTERY, MOUNTING AND CABLES .

    3. ALL EXCEPT COMMERCIAL CHASSIS

    WARNING: To avoid the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the supplemental restraint system (SRS) deactivation procedure.
  3. Deactivate the supplemental restraint system (SRS) if equipped. For additional information refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .

    4. ALL VEHICLES

    WARNING: To reduce the risk of serious personal injury, follow all warnings, cautions, notes and instructions in the clockspring removal and installation procedure.
  4. Remove the clockspring. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .

    5. COMMERCIAL CHASSIS

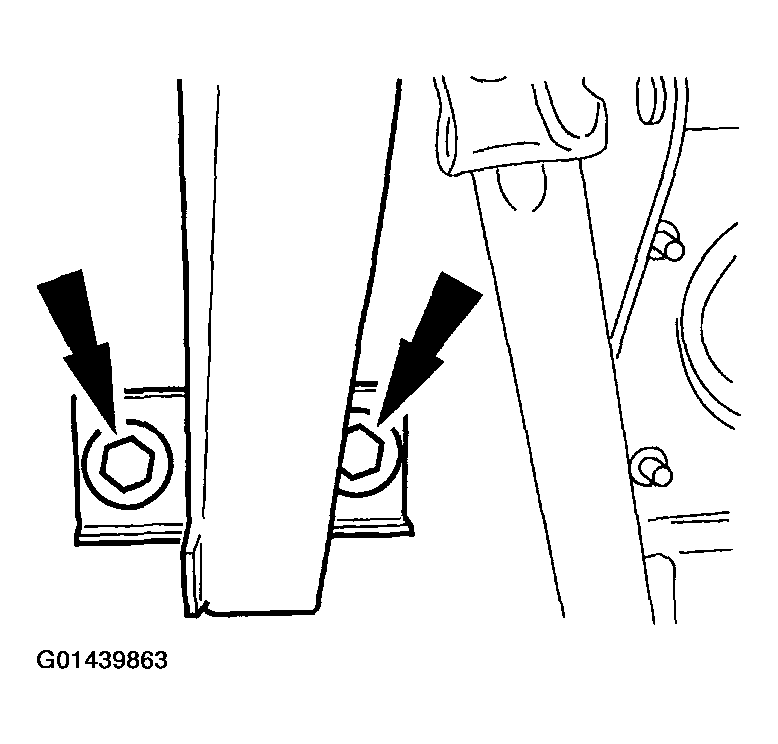

  5. Remove the nuts.
    Fig 1: Removing Nuts
    G01439863Courtesy of FORD MOTOR CO.
  6. Remove the nuts and the steering column support.

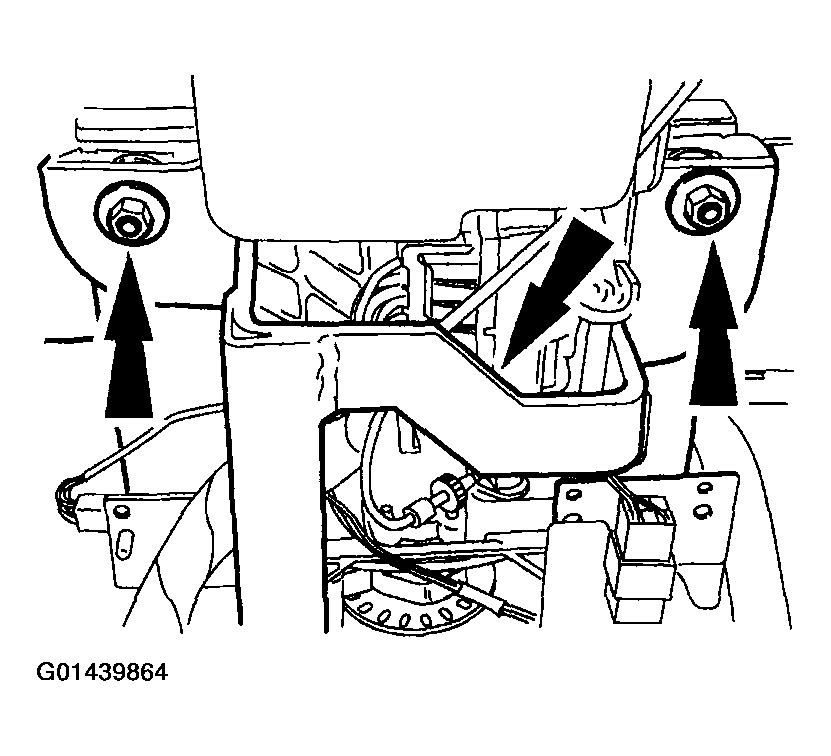

    Fig 2: Removing Nuts And Steering Column Support
    G01439864Courtesy of FORD MOTOR CO.

    7. ALL VEHICLES

  7. Remove the screw and detach the transmission range indicator from the column.

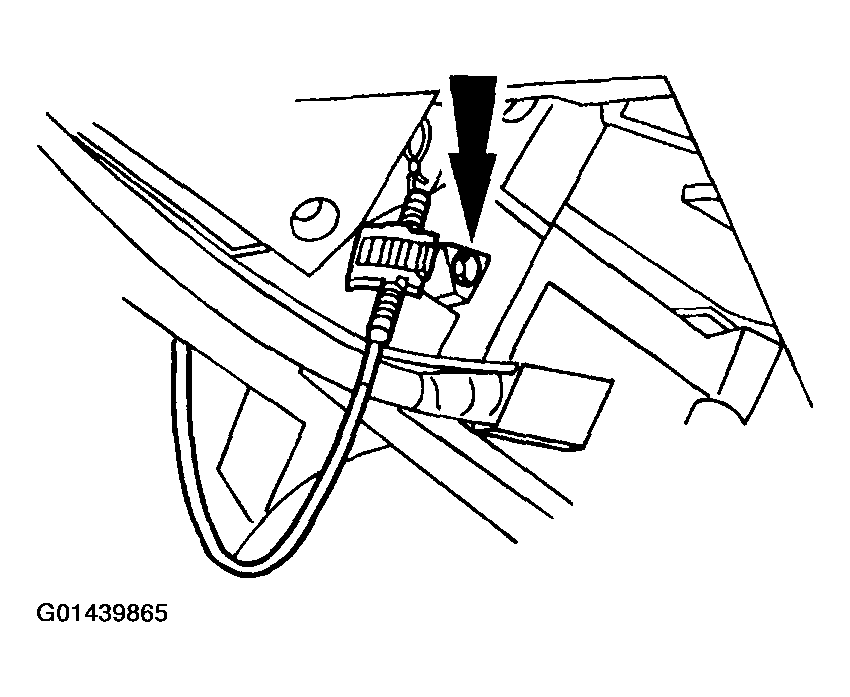

    Fig 3: Detaching Transmission Range Indicator From Column
    G01439865Courtesy of FORD MOTOR CO.
  8. Disconnect the transmission shift cable loop from the shift tube hook.

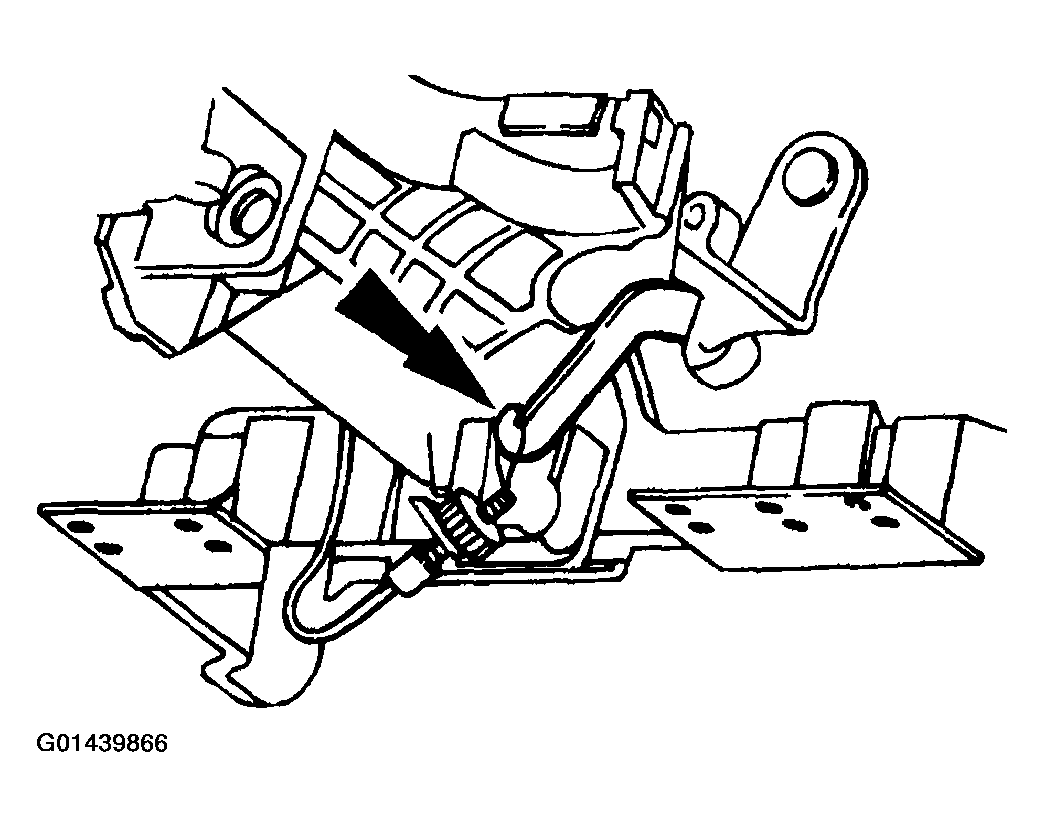

    Fig 4: Disconnecting Transmission Shift Cable Loop From Shift Tube Hook
    G01439866Courtesy of FORD MOTOR CO.
  9. Remove the two retaining screws and two electrical connectors from the switch. Remove the multi-function switch (13K359) from the steering column.

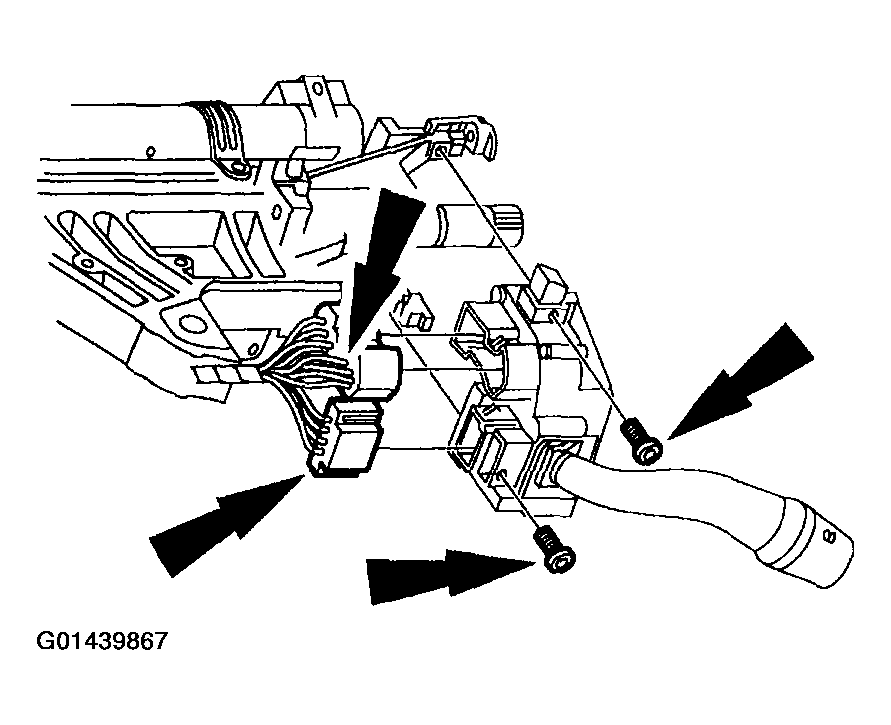

    Fig 5: Removing Multi-Function Switch From Steering Column
    G01439867Courtesy of FORD MOTOR CO.

    10. COMMERCIAL CHASSIS

  10. Remove the pinch bolt and detach the intermediate shaft from the steering column.

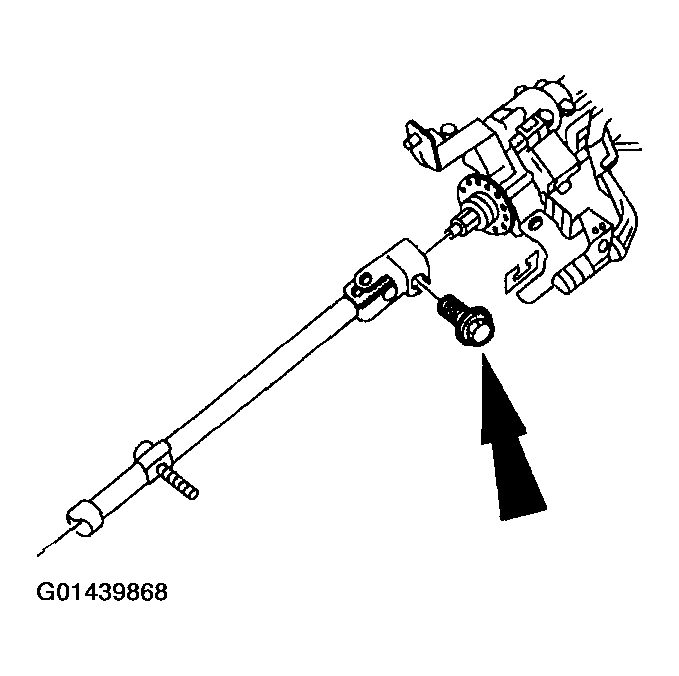

    Fig 6: Detaching Intermediate Shaft From Steering Column
    G01439868Courtesy of FORD MOTOR CO.

    11. ALL EXCEPT COMMERCIAL CHASSIS

  11. Remove the pinch bolt and detach the intermediate shaft from the steering column.

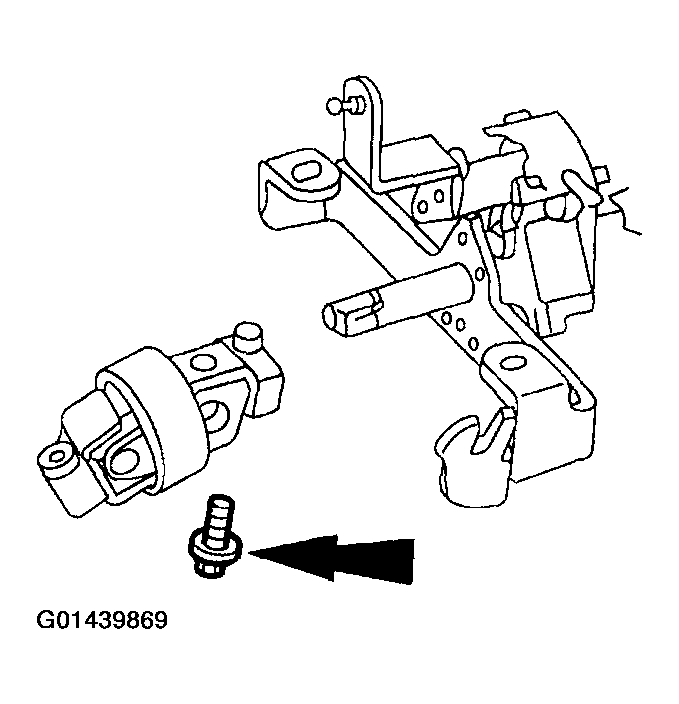

    Fig 7: Detaching Intermediate Shaft From Steering Column
    G01439869Courtesy of FORD MOTOR CO.

    12. ALL VEHICLES

  12. Disconnect the shift cable from the selector lever pivot arm.
  13. Remove the shift cable from the steering column lower mounting bracket by pushing the tab on the cable in and sliding the cable off the bracket.
  14. Disconnect the ignition switch (11572).
  15. Lower the steering column bend bracket and disconnect the plastic electrical connectors.

    16. COMMERCIAL CHASSIS

  16. While supporting the steering column, remove the retaining nuts.

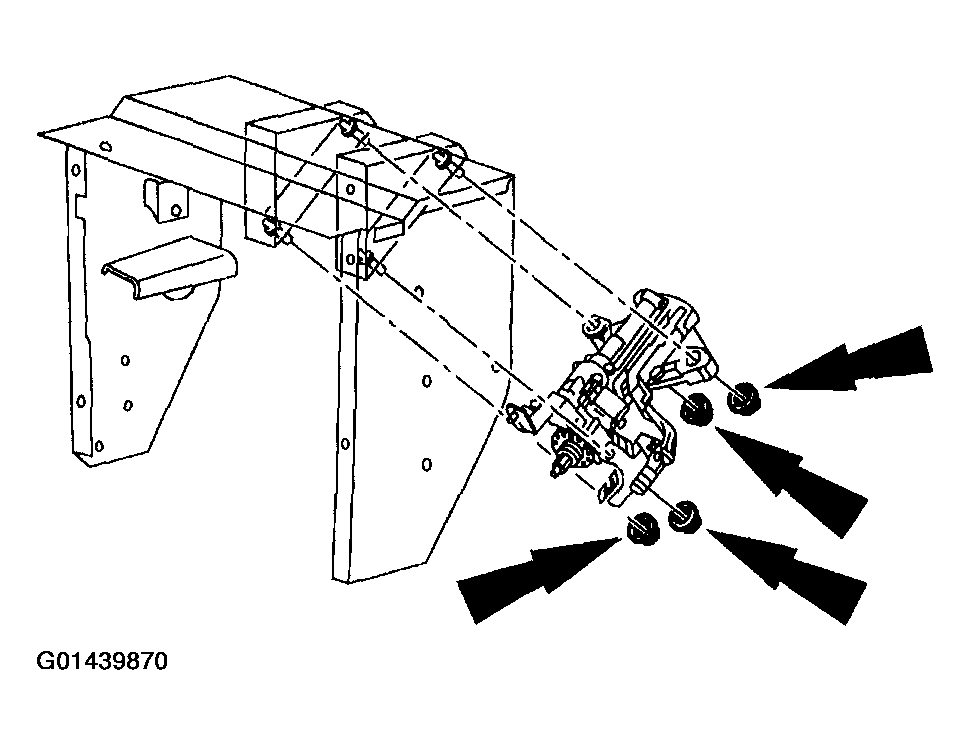

    Fig 8: Removing Retaining Nuts
    G01439870Courtesy of FORD MOTOR CO.

    17. ALL EXCEPT COMMERCIAL CHASSIS

  17. While supporting the steering column, remove the retaining nuts.

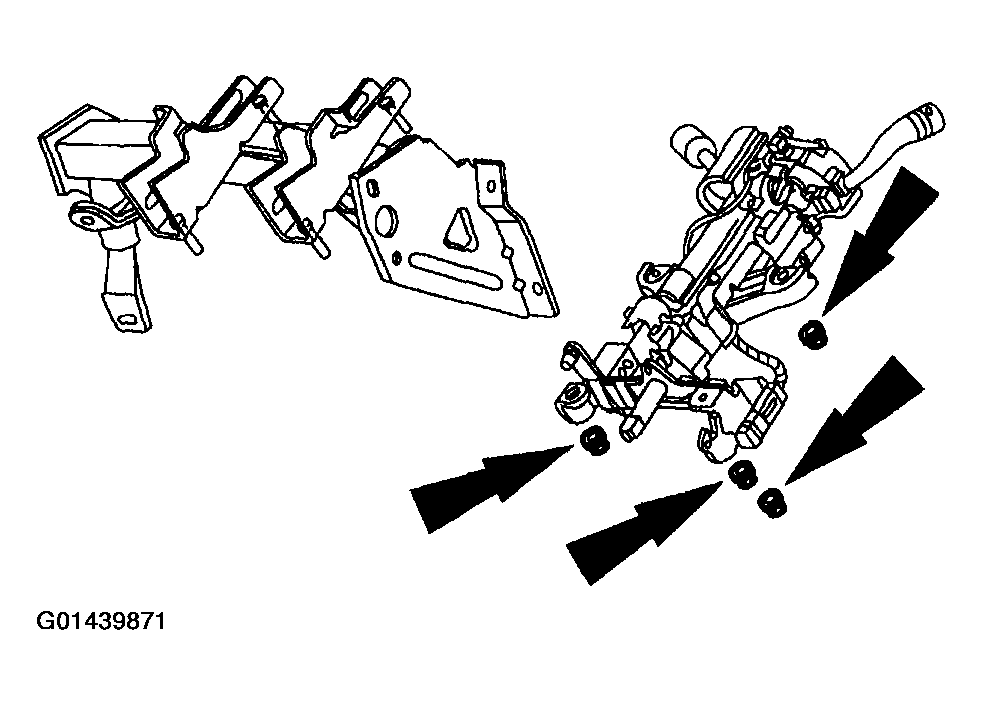

    Fig 9: Removing Retaining Nuts
    G01439871Courtesy of FORD MOTOR CO.

    18. ALL VEHICLES

  18. Remove the steering column from the vehicle.
