Removal and Installation

  1. Remove the wheel and tire. For additional information, refer to WHEEL AND TIRE .
  2. Detach the grommet from the body and pull the connector through the hole.

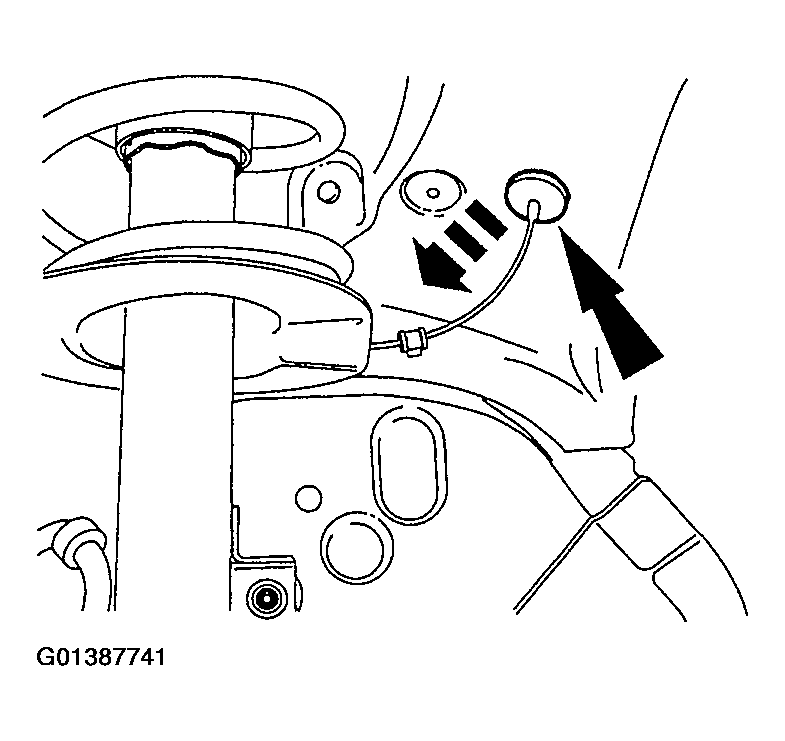

    Fig 1: Pulling Connector Through Hole
    G01387741Courtesy of FORD MOTOR CO.
  3. Disconnect the sensor wiring.

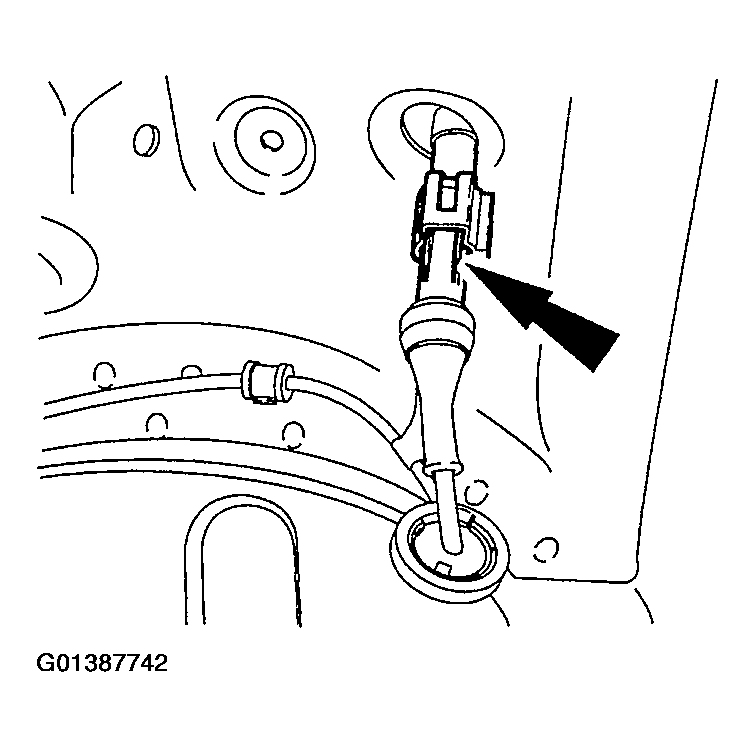

    Fig 2: Disconnecting Sensor Wiring
    G01387742Courtesy of FORD MOTOR CO.
  4. Detach the retainer.

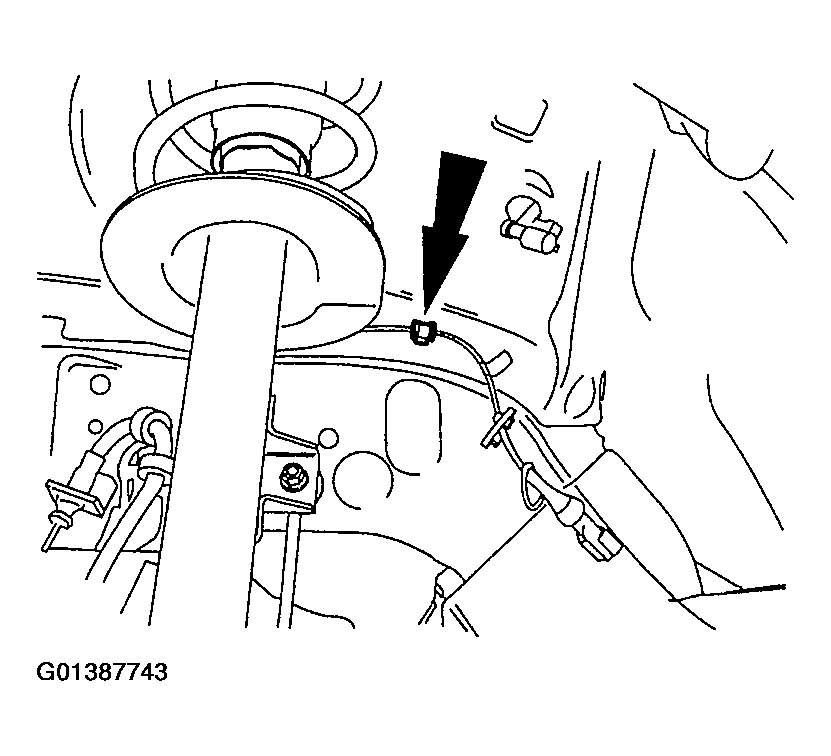

    Fig 3: Detaching Retainer
    G01387743Courtesy of FORD MOTOR CO.
  5. Remove the bolts.

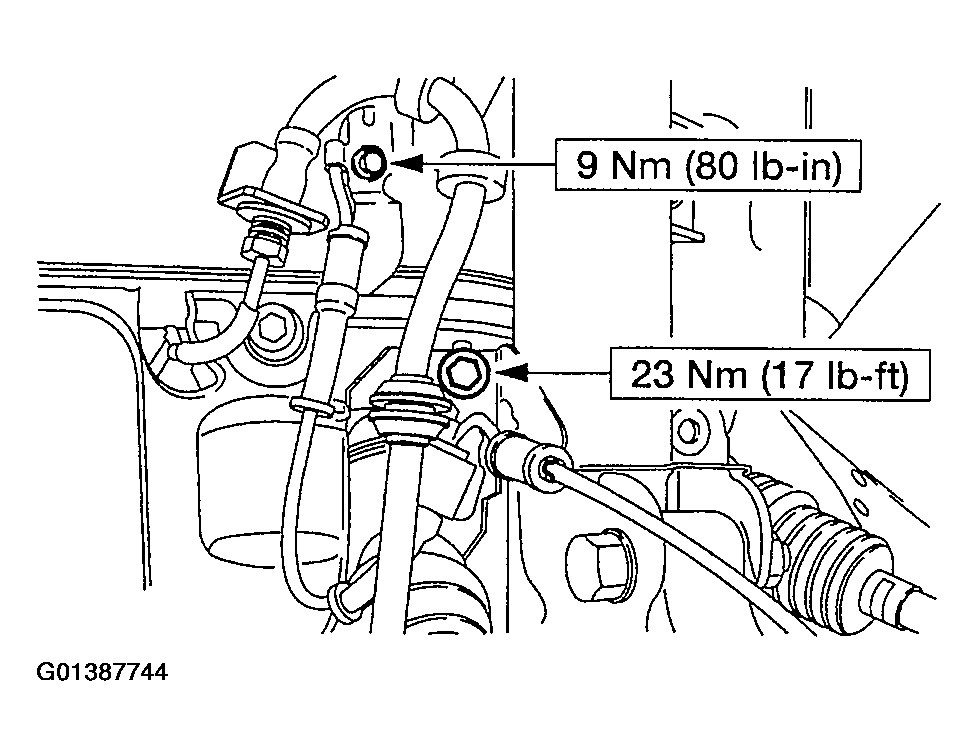

    Fig 4: Removing Bolts
    G01387744Courtesy of FORD MOTOR CO.
    6. NOTE: Clean off any dirt that may have collected around the sensor before removal.

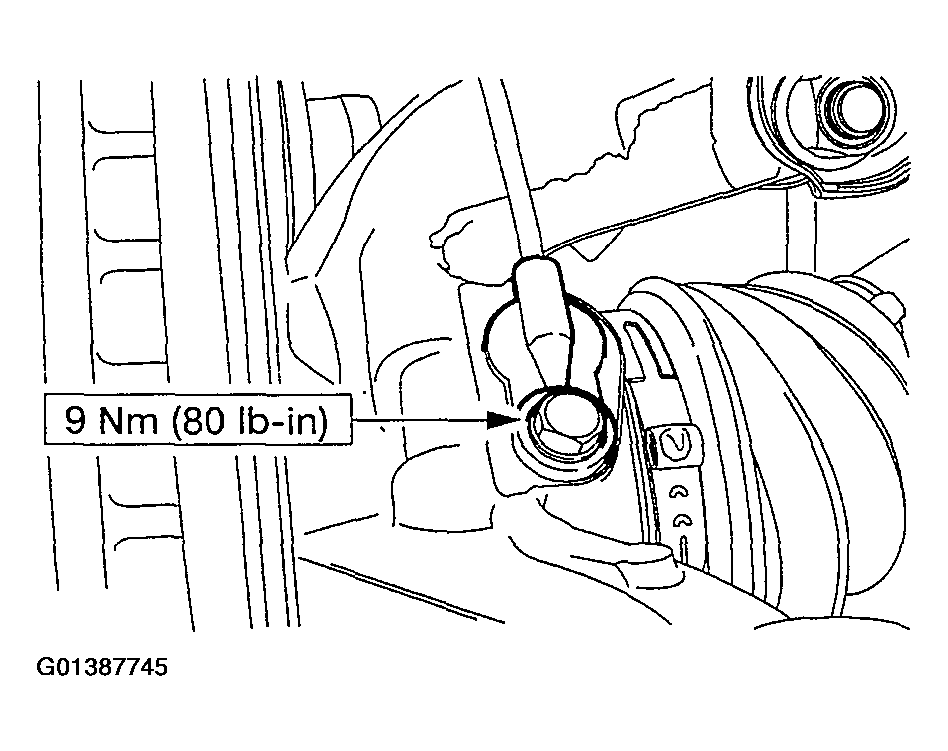

    Fig 5: Removing Bolt And Sensor
    G01387745Courtesy of FORD MOTOR CO.
  6. Remove the bolt and sensor.
    7. NOTE: Thoroughly clean the mounting surface.
  7. To install, reverse the removal procedure.
