Compression Pressure Limit Chart

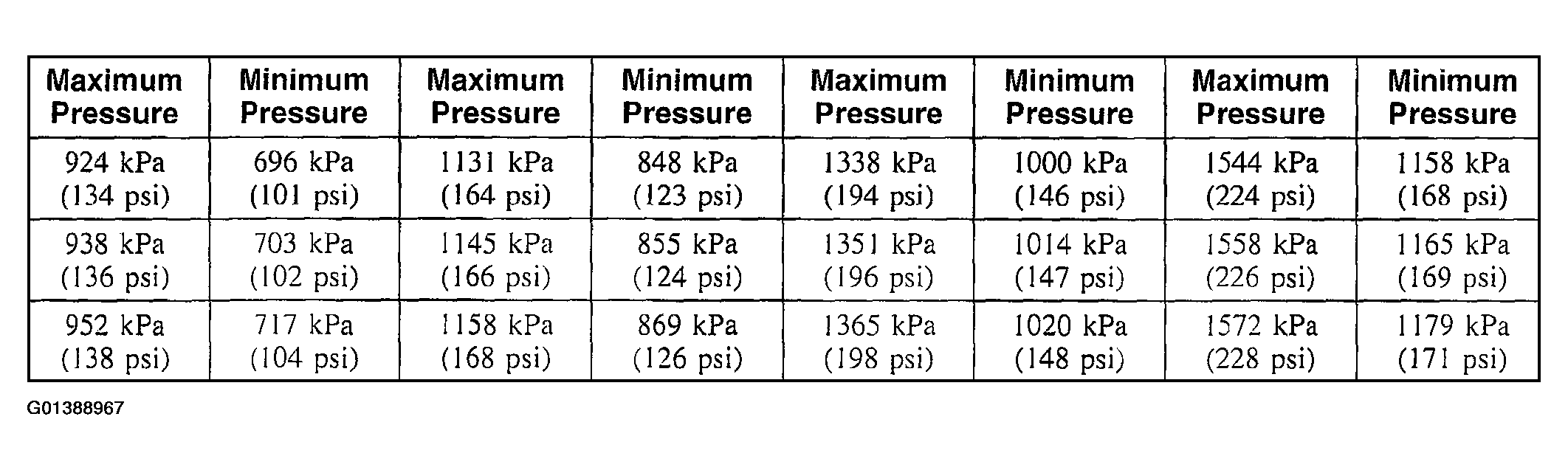

Fig 1: Compression Pressure Limit Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

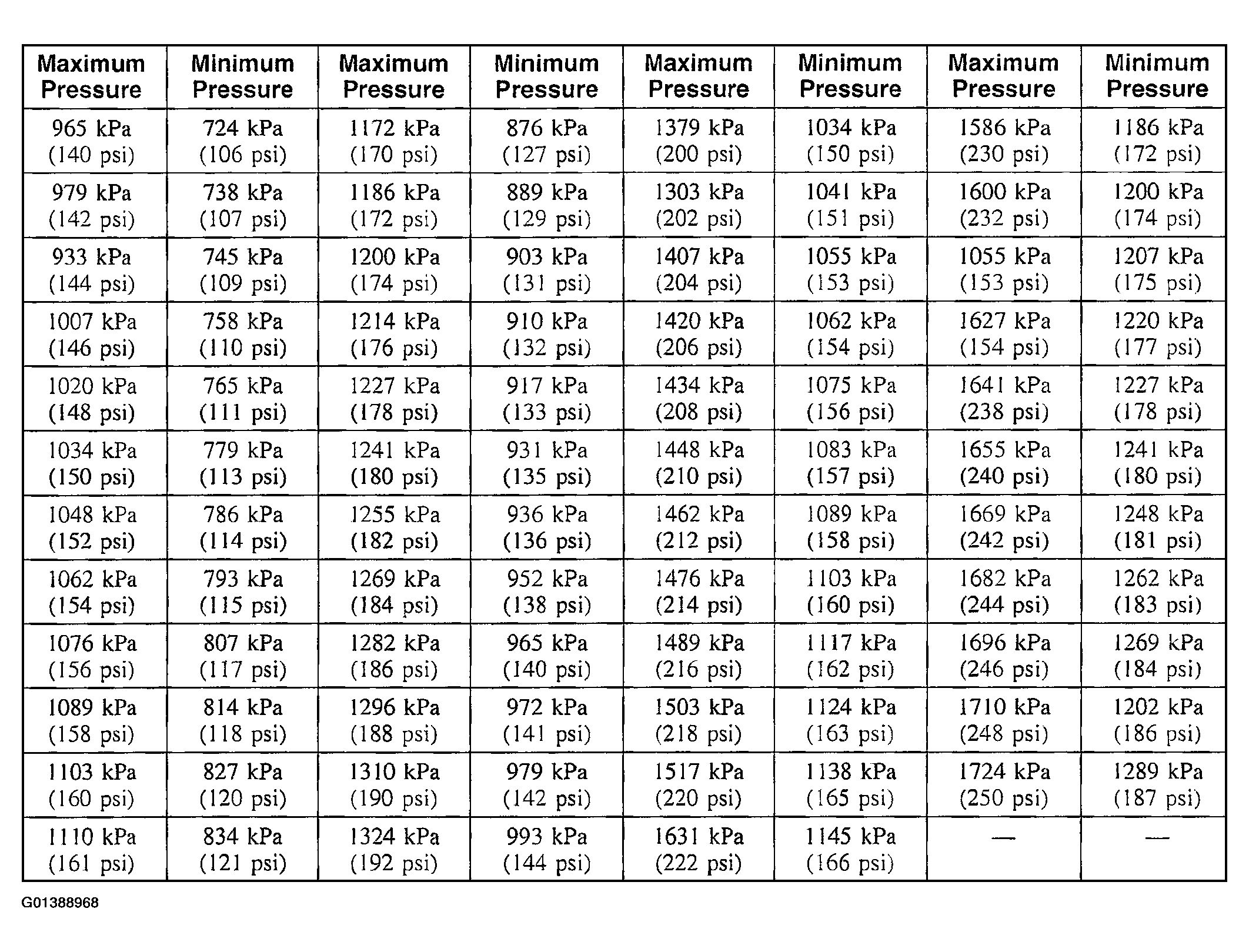

Fig 2: Compression Pressure Limit Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

If one or more cylinders reads low, squirt approximately one tablespoon of engine oil on top of the pistons in the low-reading cylinders. Repeat the compression pressure check on these cylinders.
