Piston Pin Diameter

  1. Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification.
    • Refer to the appropriate ENGINE article for the procedure.
    • If out of specification, install new components as necessary.

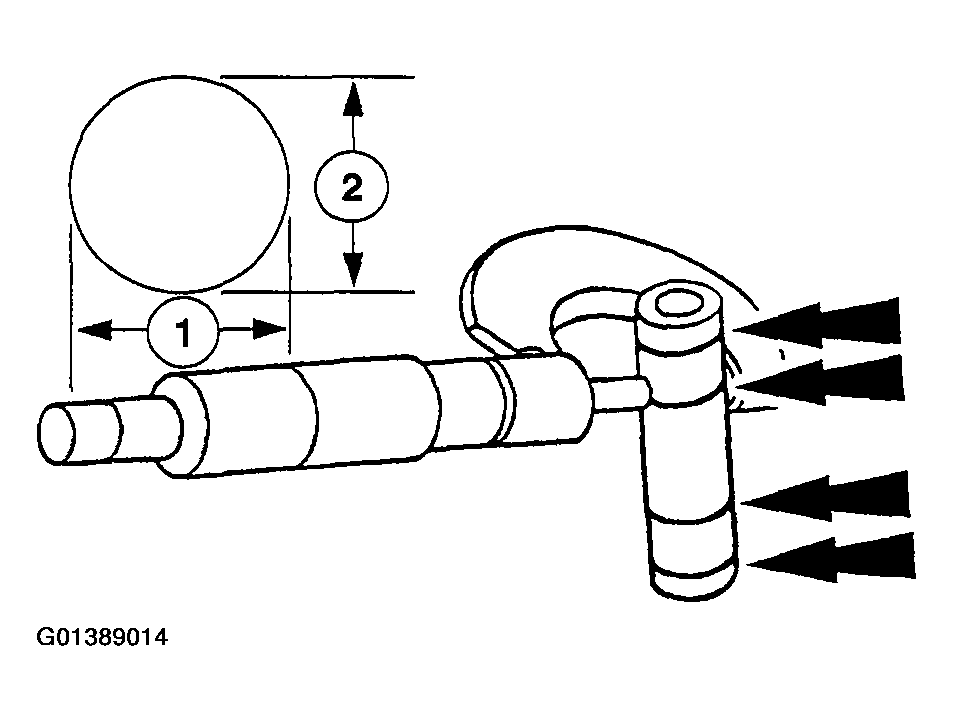

      Fig 1: Measuring Piston Pin Diameter
      G01389014Courtesy of FORD MOTOR CO.
