Valve Guide Inner Diameter

  1. Measure the inner diameter of the valve guides in two directions where indicated.
    • Refer to the appropriate ENGINE article for the procedure.

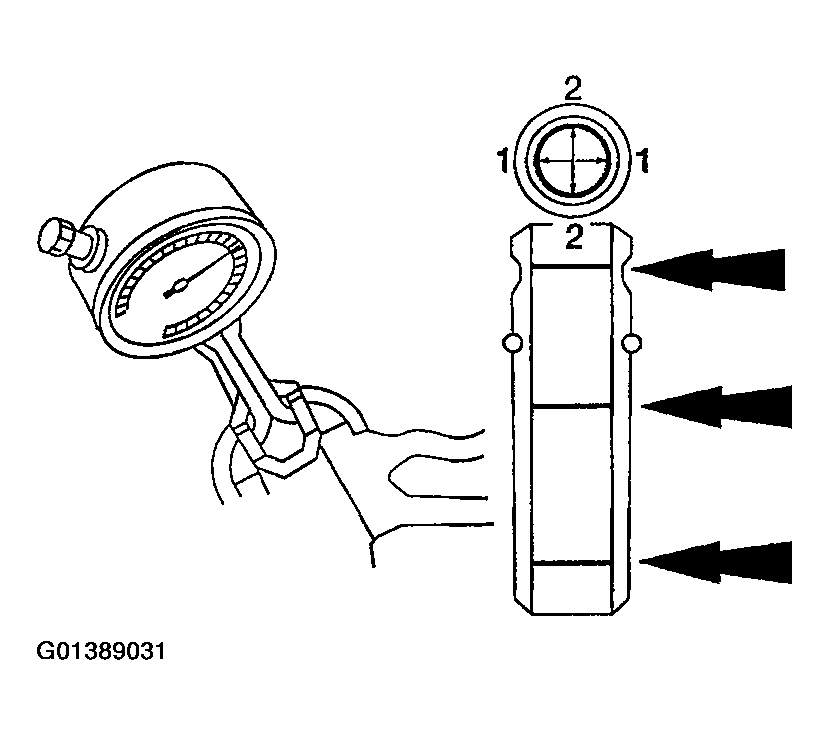

      Fig 1: Measuring Inner Diameter Of Valve Guides
      G01389031Courtesy of FORD MOTOR CO.
  2. If the valve guide is not within specifications, ream the valve guide and install a valve with an oversize stem or remove the valve guide and install a new valve guide.
