Valve Spring Free Length

  1. Measure the free length of each valve spring.
    • Refer to the appropriate ENGINE article for the procedure.
    • If out of specification, install new components as necessary.

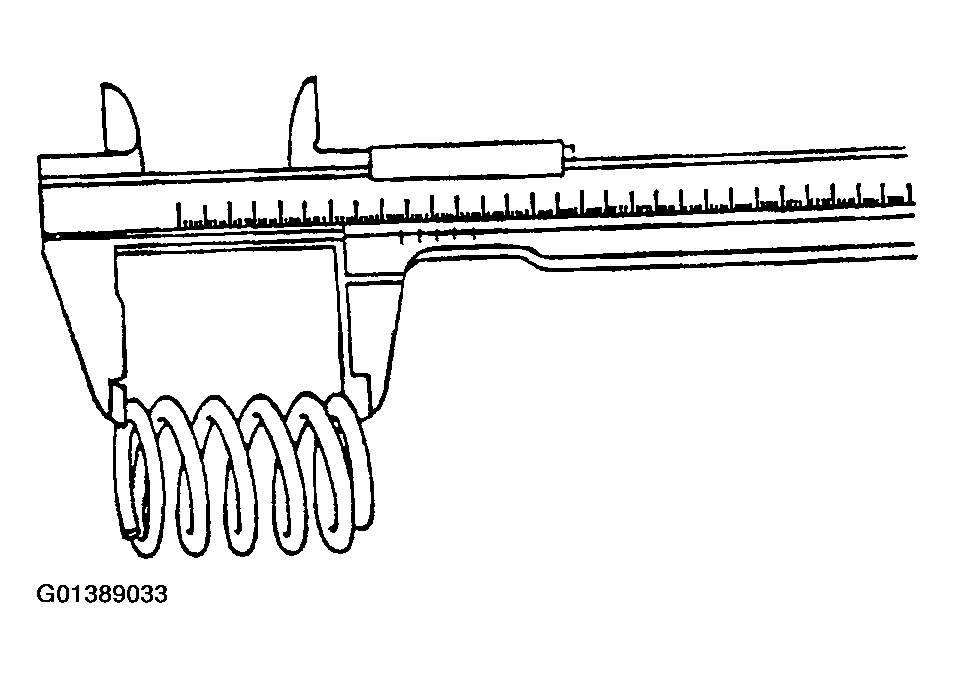

      Fig 1: Measuring Valve Spring Free Length
      G01389033Courtesy of FORD MOTOR CO.
