Valve Spring Installed Length

  1. Measure the installed length of each valve spring.
    • Refer to the appropriate ENGINE article for the procedure.
    • If out of specification, install new components.

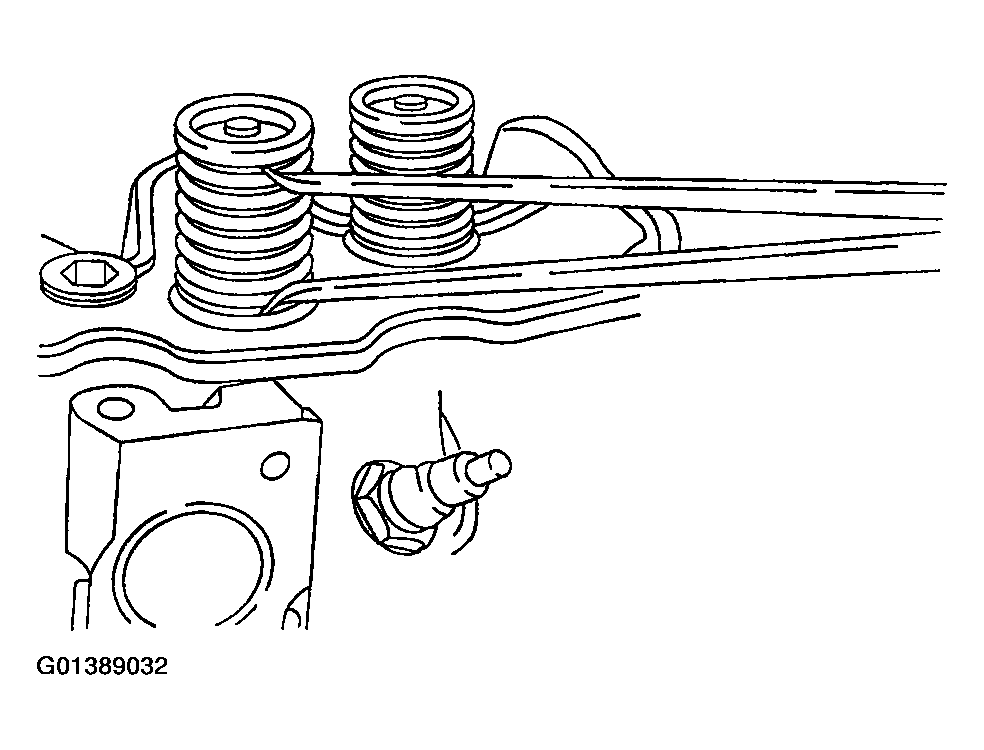

      Fig 1: Measuring Valve Spring Installed Length
      G01389032Courtesy of FORD MOTOR CO.
