Bumper - Exploded View, Front
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Escape shown, all other vehicles similar.

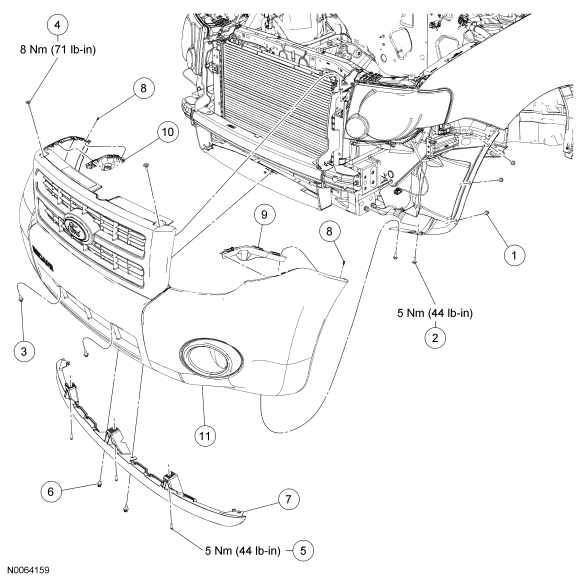

| Item | Part Number | Description |
|---|---|---|
| 1 | W706713 | Fender splash shield scrivet (4 required) |
| 2 | W707257 | Fender splash shield-to-air deflector bolt (4 required) |
| 3 | N807389 | Front bumper cover center scrivet (2 required) |
| 4 | W710794 | Front bumper cover upper bolt (2 required) |
| 5 | - | Front bumper cover air deflector bolt (3 required) |
| 6 | - | Front bumper cover air deflector pushpin (2 required) |
| 7 | - | Front bumper cover air deflector |
| 8 | - | Front bumper cover mounting bracket pushpins (2 required) |
| 9 | - | Front bumper cover mounting bracket |
| 10 | - | Front bumper cover mounting bracket |
| 11 | 17750 | Front bumper cover |

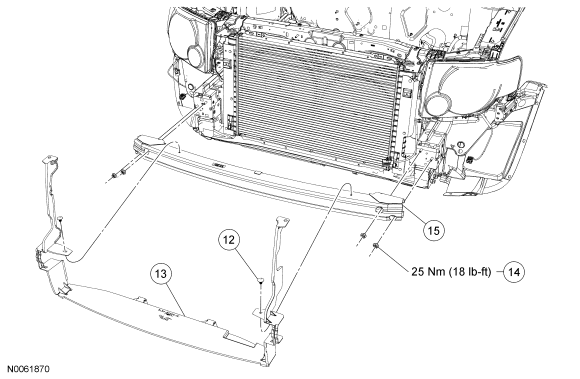

| Item | Part Number | Description |
|---|---|---|
| 12 | W701259 | Radiator opening cover pin-type retainer (2 required) |
| 13 | 8C299 | Radiator opening cover |
| 14 | W707144 | Front bumper nut (4 required) |
| 15 | 17859 | Front bumper |

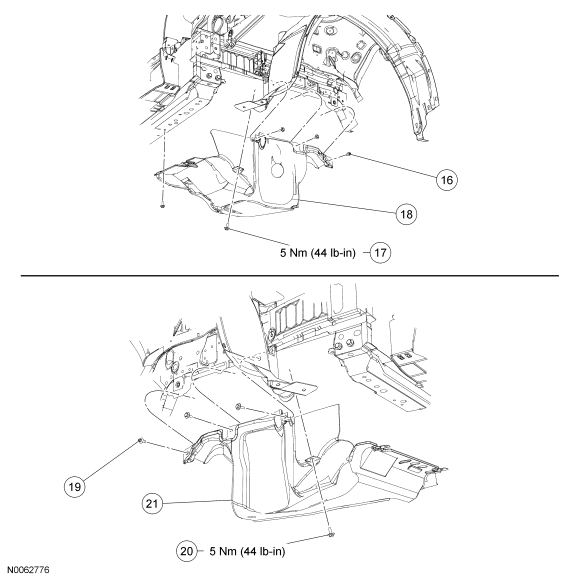

| Item | Part Number | Description |
|---|---|---|
| 16 | W706713 | LH front splash shield scrivet |
| 17 | W707257 | LH front splash shield bolt (3 required) |
| 18 | 16A574 | LH front splash shield |
| 19 | W706713 | RH front splash shield scrivet |
| 20 | W707257 | RH front splash shield bolt (3 required) |
| 21 | 16A573 | RH front splash shield |
- For additional information, refer to the procedures in this article.
