Bumper - Exploded View, Rear
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Escape shown, all other vehicles similar.

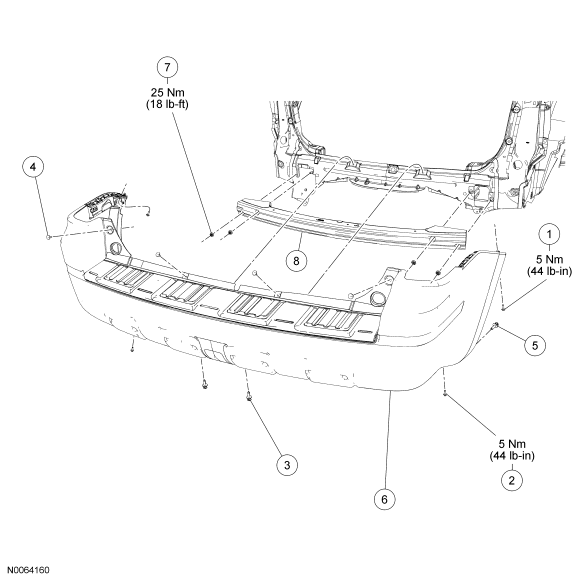

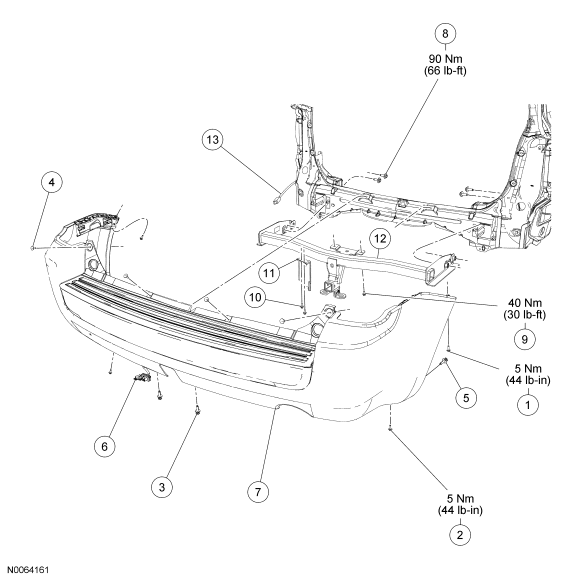

| Item | Part Number | Description |
|---|---|---|
| 1 | W503913 | Rear bumper cover upper screw (2 required) |
| 2 | W503913 | Rear bumper cover lower screw (2 required) |
| 3 | W708530 | Rear bumper cover lower pushpin (2 required) |
| 4 | W706607 | Rear bumper cover center screw (4 required) |
| 5 | W706713 | Rear splash shield-to-bumper cover screw (2 required) |
| 6 | 17775 | Rear bumper cover |
| 7 | W707144 | Rear bumper nut (4 required) |
| 8 | 17D942 | Rear bumper |
NOTE:
Escape shown, all other vehicles similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W503913 | Rear bumper cover upper screw (2 required) |
| 2 | W503913 | Rear bumper cover lower screw (2 required) |
| 3 | W708530 | Rear bumper cover lower pushpin (2 required) |
| 4 | W706607 | Rear bumper cover center screw (4 required) |
| 5 | W706713 | Rear splash shield-to-bumper cover screw (2 required) |
| 6 | 17D781 | Rear bumper cover trailer hitch electrical connector |
| 7 | 17775 | Rear bumper cover |
| 8 | W702256 | Trailer hitch-to-body bolt (4 required) |
| 9 | W500633 | Trailer hitch-to-back panel bolt (2 required) |
| 10 | - | Trailer hitch electrical connector mounting bracket bolt (2 required) |
| 11 | - | Trailer hitch electrical connector mounting bracket |
| 12 | 19D521 | Trailer hitch |
| 13 | 13A576 | Trailer hitch wiring harness |
- For additional information, refer to the procedures in this article.
