Selector Lever Cable: Installation

NOTE: LH drive shown; RH drive similar.

Install the gearshift cable.

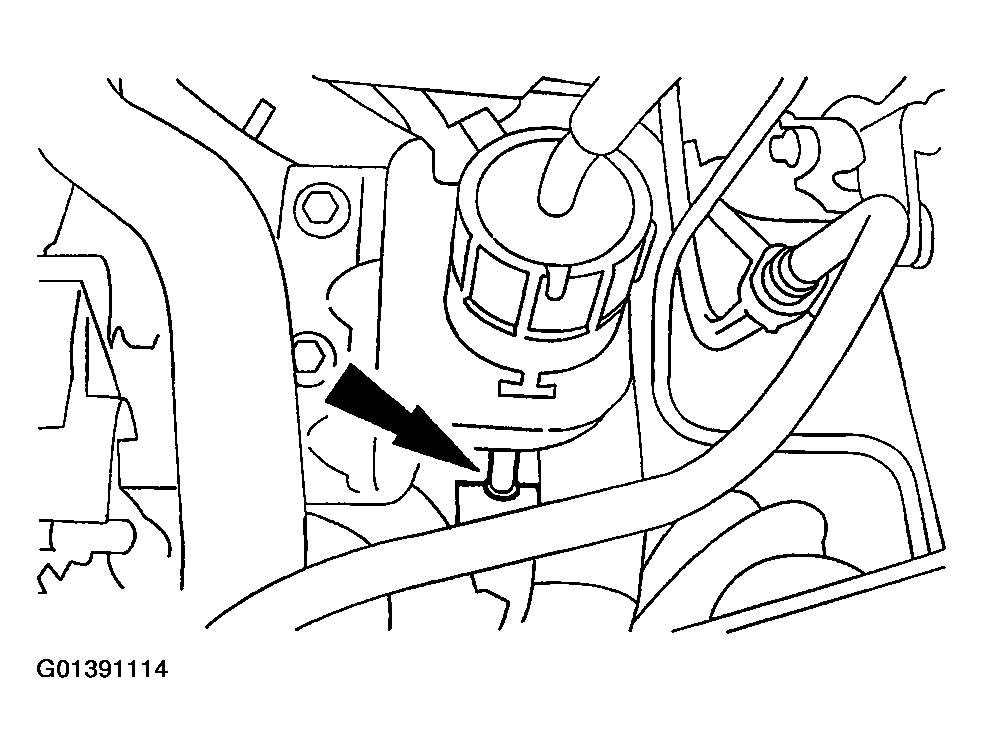

Fig 1: Installing Gearshift Cable
Courtesy of FORD MOTOR CO.
Install the gearshift cable in the bracket.

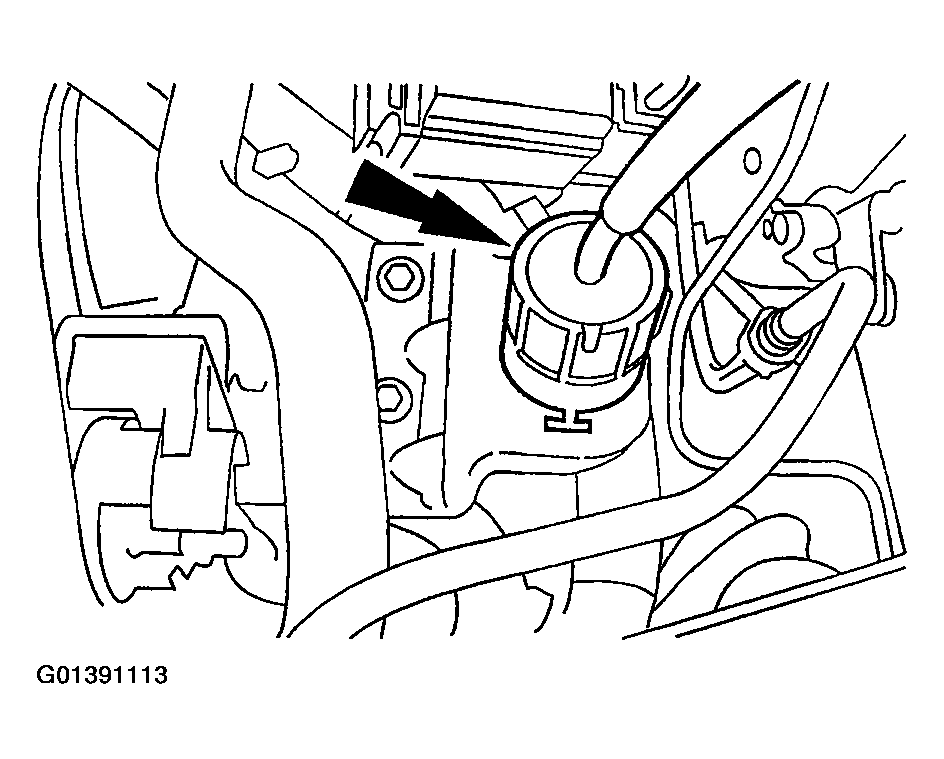

Fig 2: Installing Gearshift Cable In Bracket
Courtesy of FORD MOTOR CO.
Connect the gearshift cable to the transaxle shifter lever.

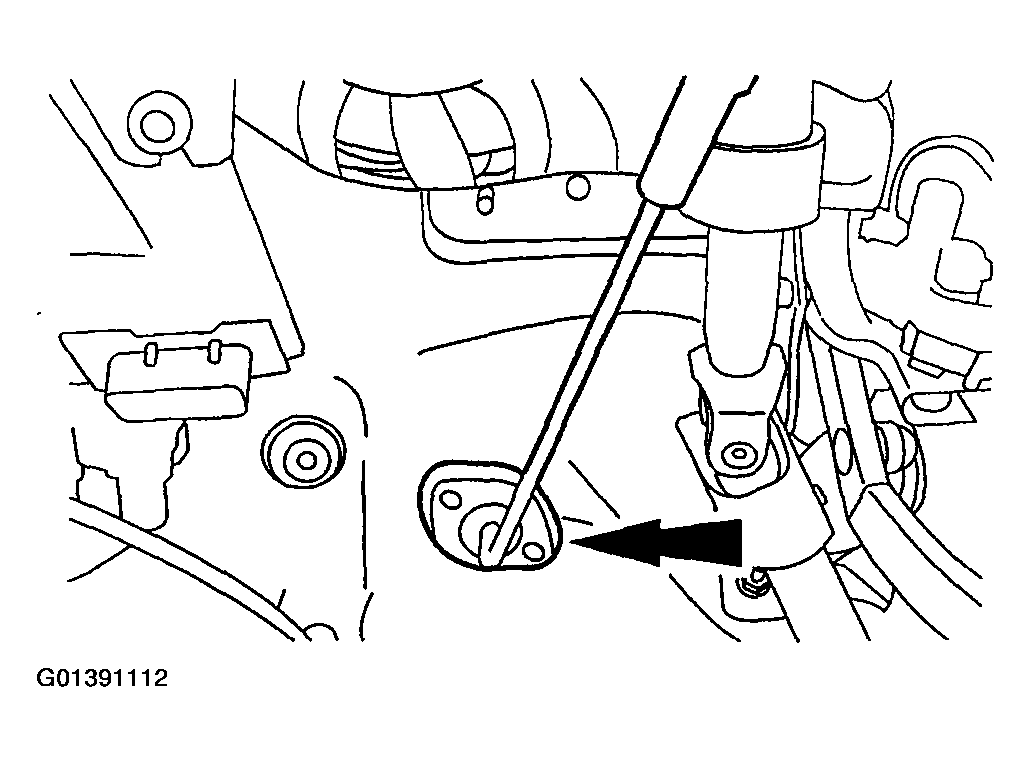

Fig 3: Connecting Gearshift Cable To Transaxle Shifter Lever
Courtesy of FORD MOTOR CO.
Install the gearshift cable nuts.

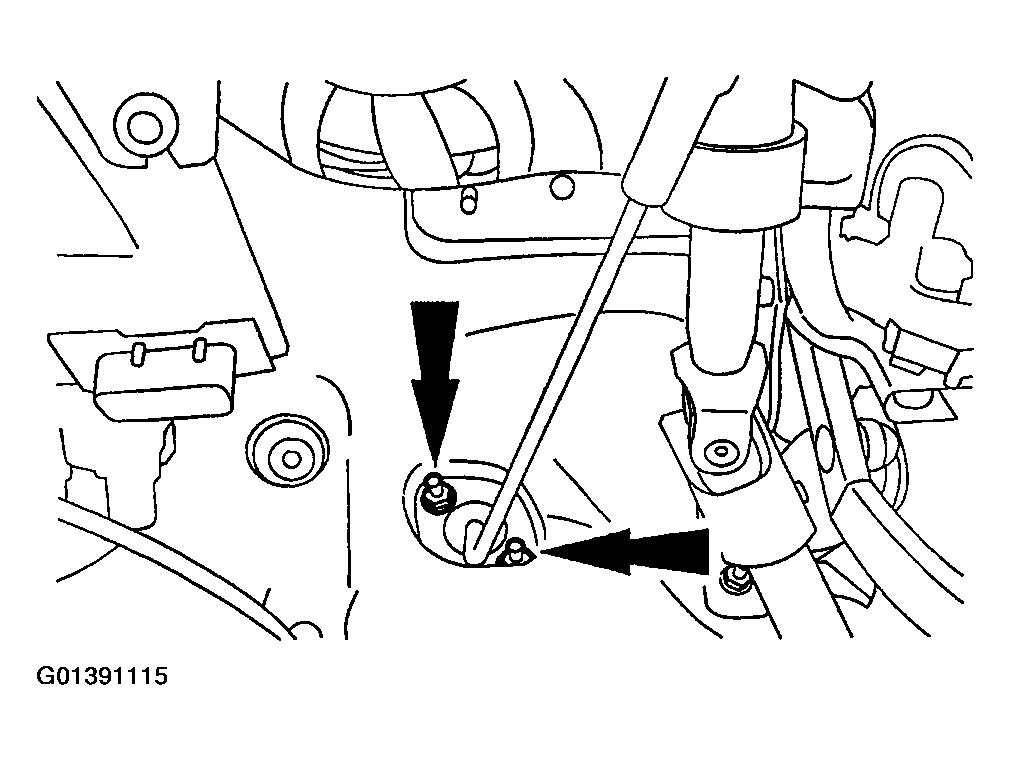

Fig 4: Installing Gearshift Cable Nuts
Courtesy of FORD MOTOR CO.
Connect the gearshift cable to the gearshift lever.
1. Attach the gearshift cable to the steering column bracket.
2. Connect the gearshift cable to the gearshift lever.

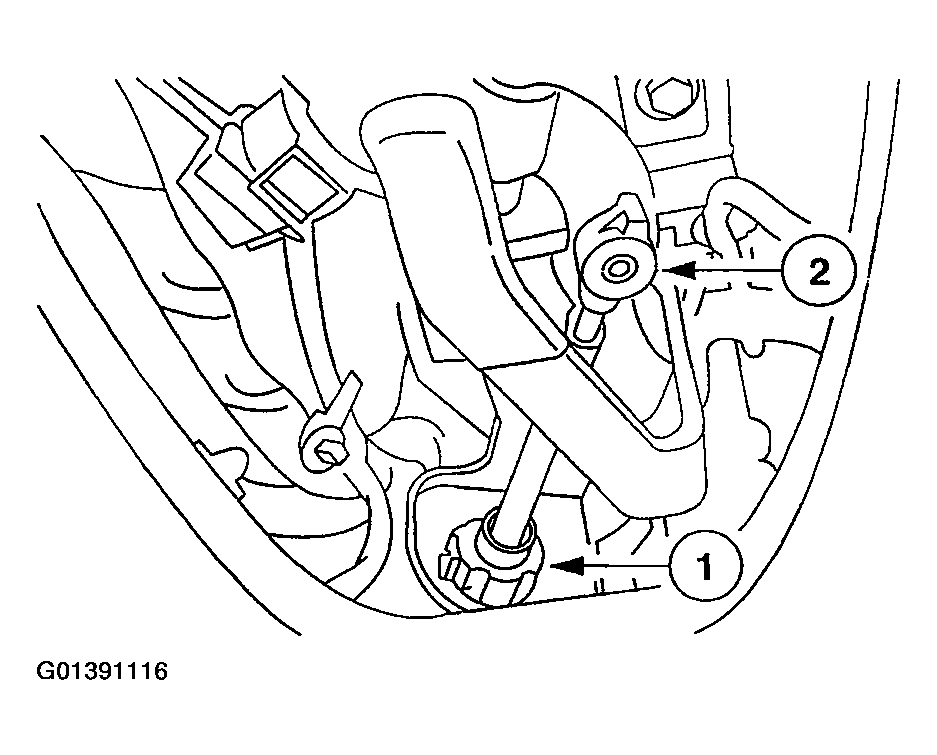

  Fig 5: Connecting Gearshift Cable To Gearshift Lever
  Courtesy of FORD MOTOR CO.
Position a 0.6 mm (0.023 in) feeler gauge between the gearshift lever selector and the gearshift lever detent.

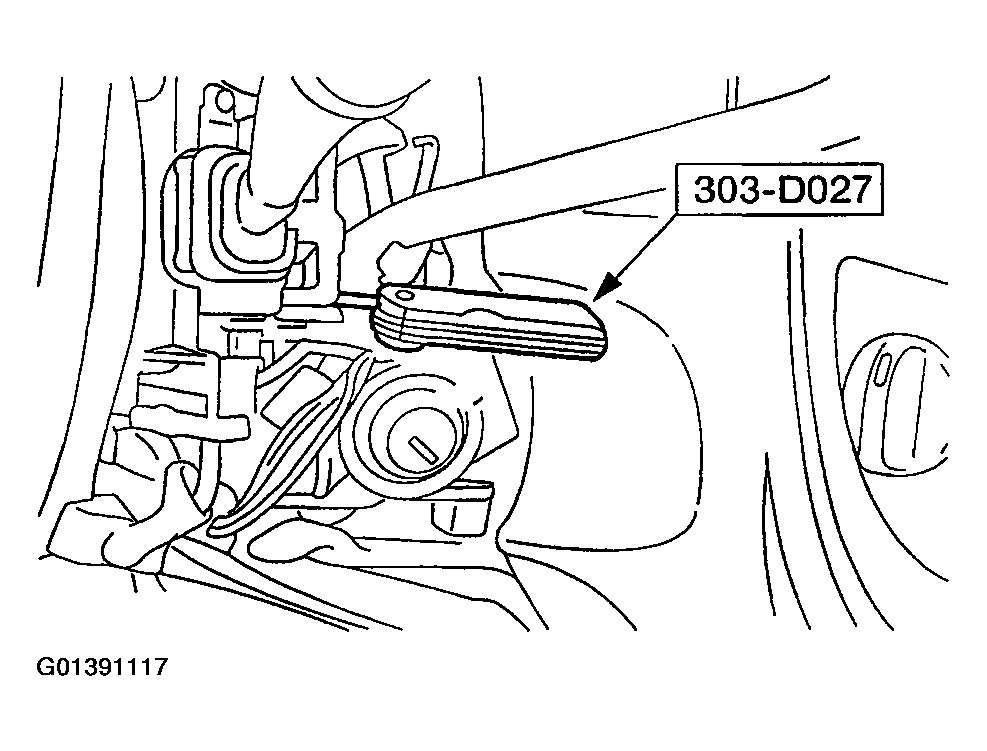

Fig 6: Measuring Gap Between Gearshift Lever Selector And Gearshift Lever Detent
Courtesy of FORD MOTOR CO.
Place the gearshift lever in the DRIVE position and hang a 1.4 kg (3 lb) weight from the gearshift lever.
Loosen the gearshift cable adjuster to adjust the cable then tighten.

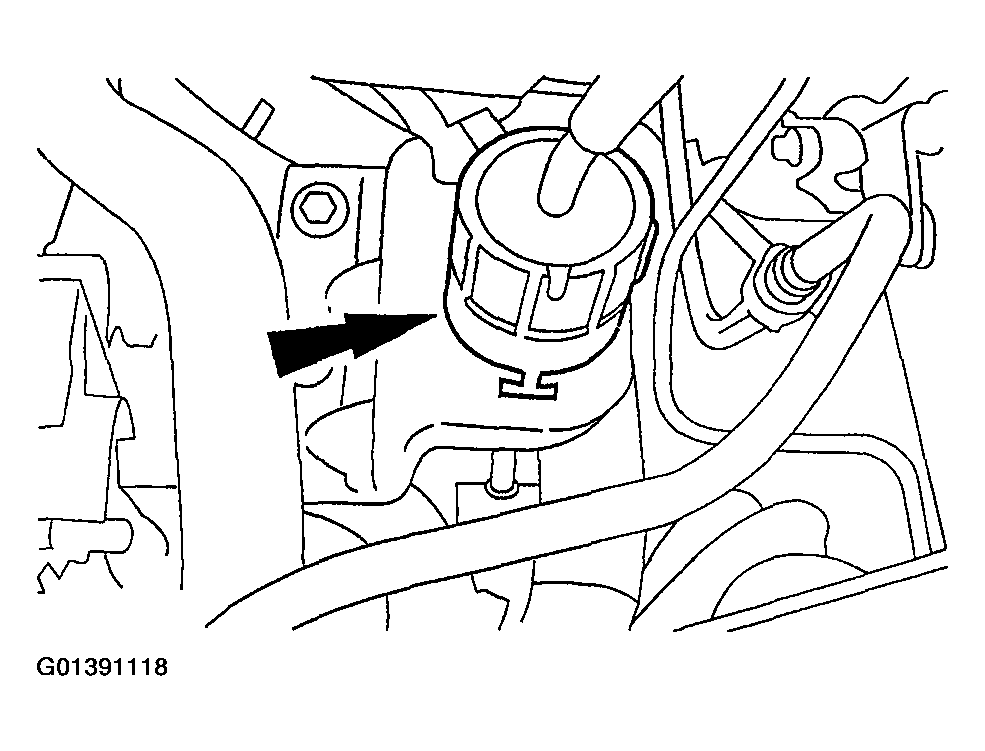

Fig 7: Adjusting Gearshift Cable
Courtesy of FORD MOTOR CO.
Install the lower steering column shroud.
1. Position the lower steering column shroud.
2. Install the screws.

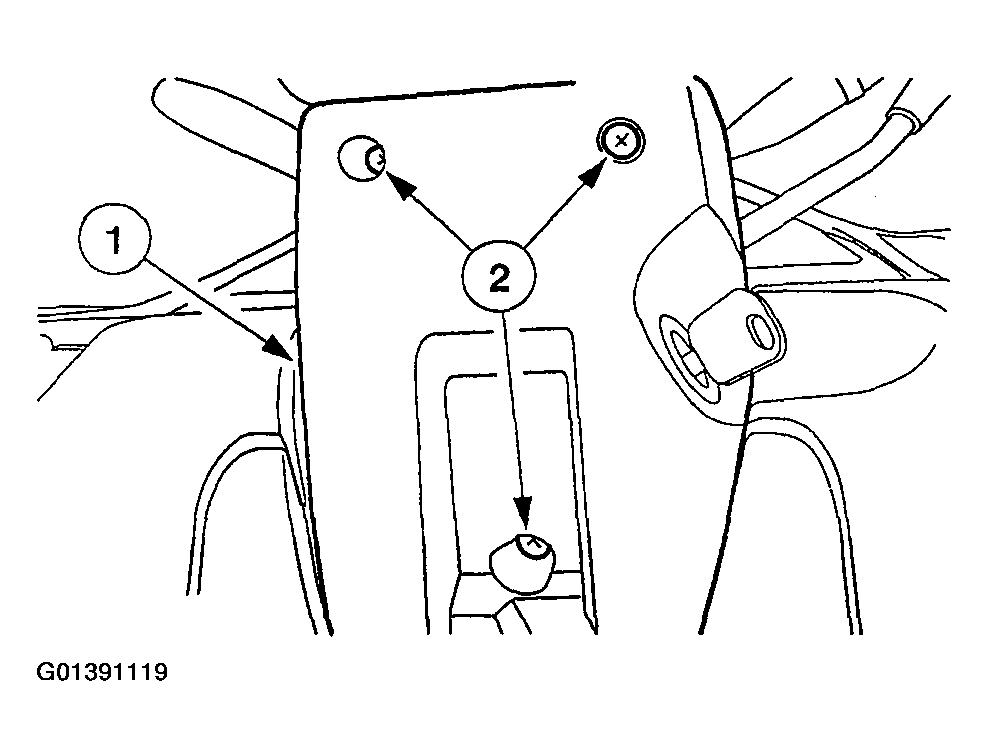

  Fig 8: Installing Lower Steering Column Shroud
  Courtesy of FORD MOTOR CO.

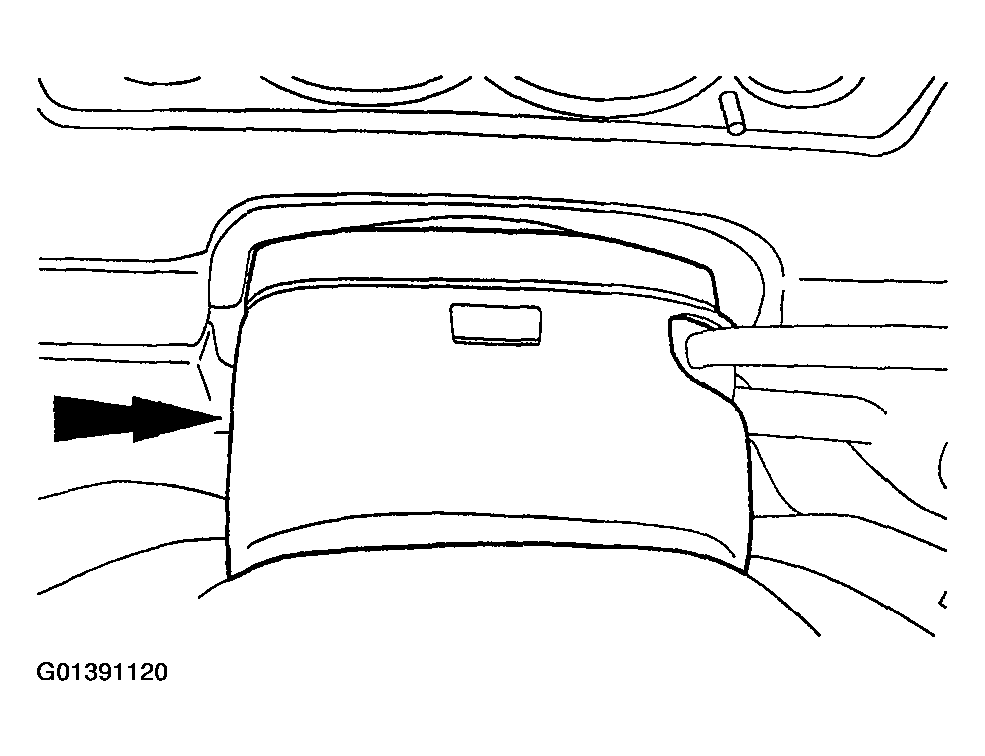

Install the upper steering column shroud.

Fig 9: Installing Upper Steering Column Shroud
