Pinpoint Test A: No Communication With The Module - Anti-Lock Brake Control Module

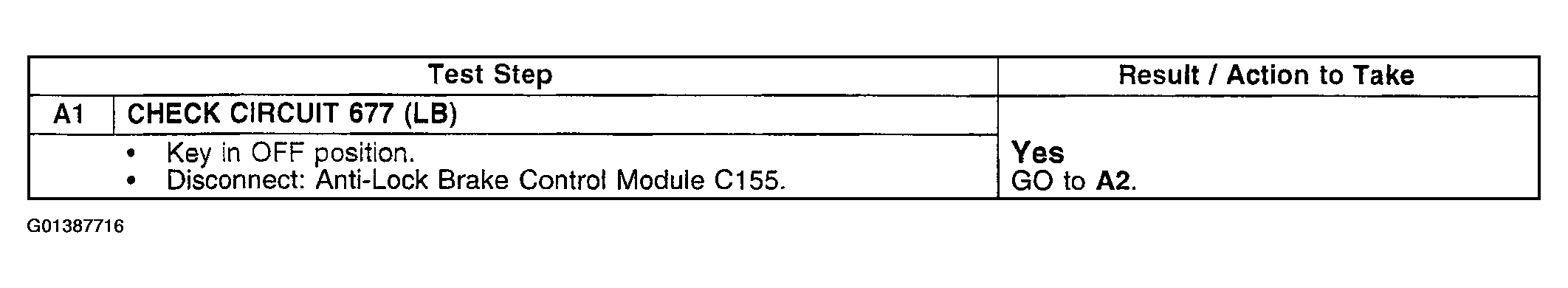

Fig 1: Pinpoint Test A: No Communication With Module - Anti-Lock Brake Control Module (Step A1)

Courtesy of FORD MOTOR CO.

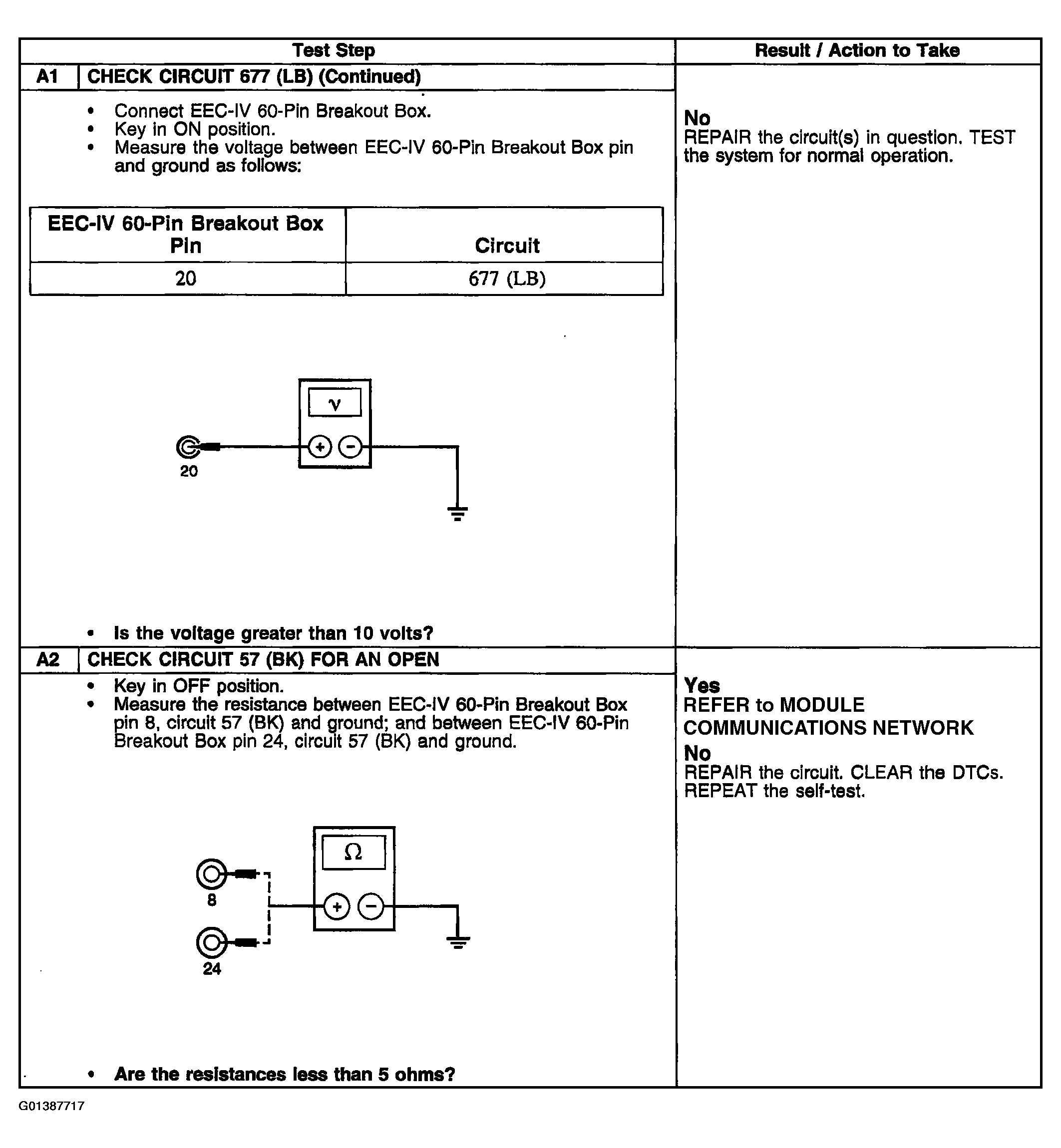

Fig 2: Pinpoint Test A: No Communication With The Module - Anti-Lock Brake Control Module (Step A1 Cont. & A2)

Courtesy of FORD MOTOR CO.
