Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C Compressor Clutch Diode | In battery junction box. |

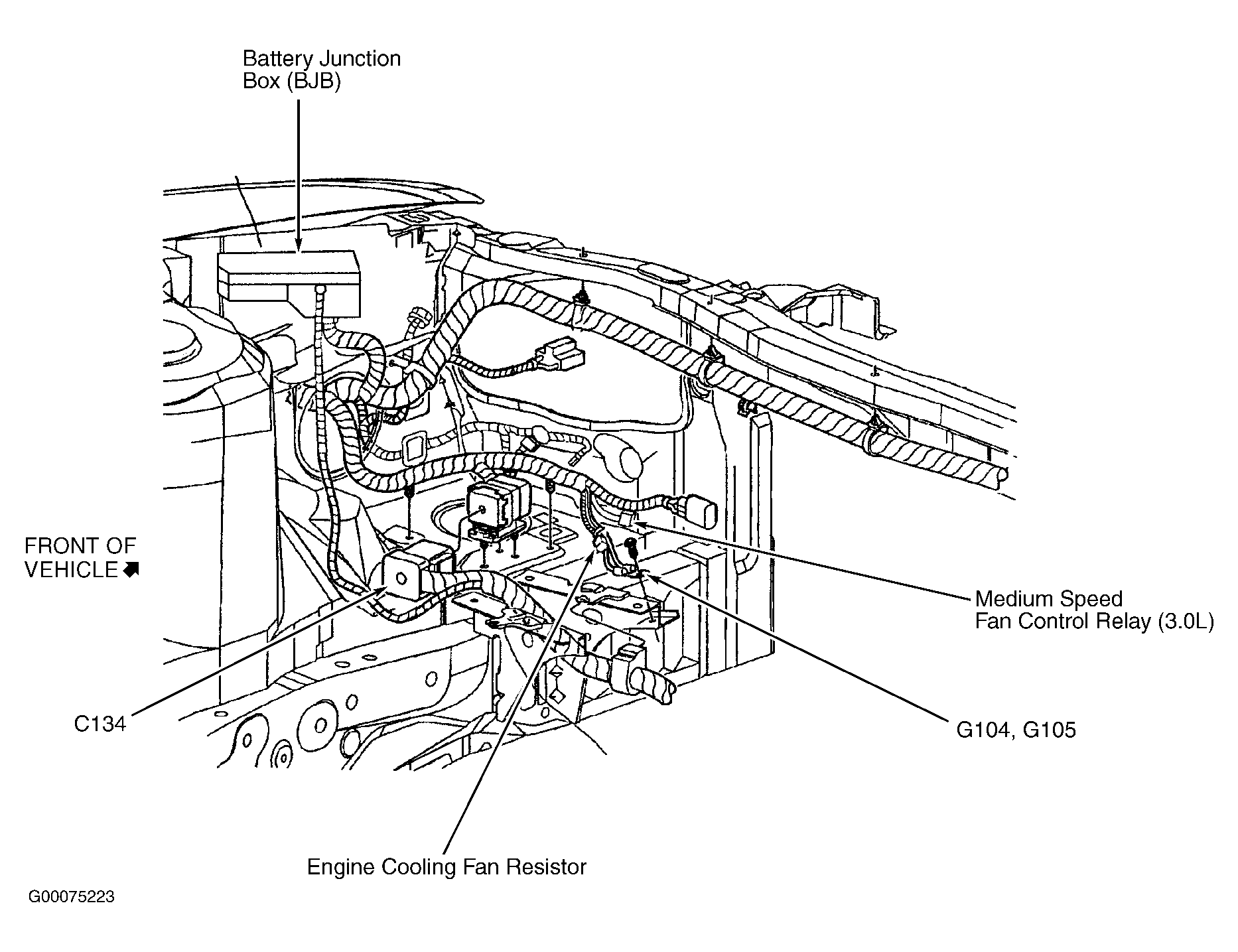

| Battery Junction Box (BJB) | On left front corner of engine compartment. See Figure . |
| Brake Shift Interlock Diode | Behind left side of dash, near steering column. |
| Central Junction Box (CJB) | Below left end of dash. See Figure . |
| PCM Power Diode | In central junction box. |
| Starter Relay Diode | In battery junction box. |
