Symptom Chart

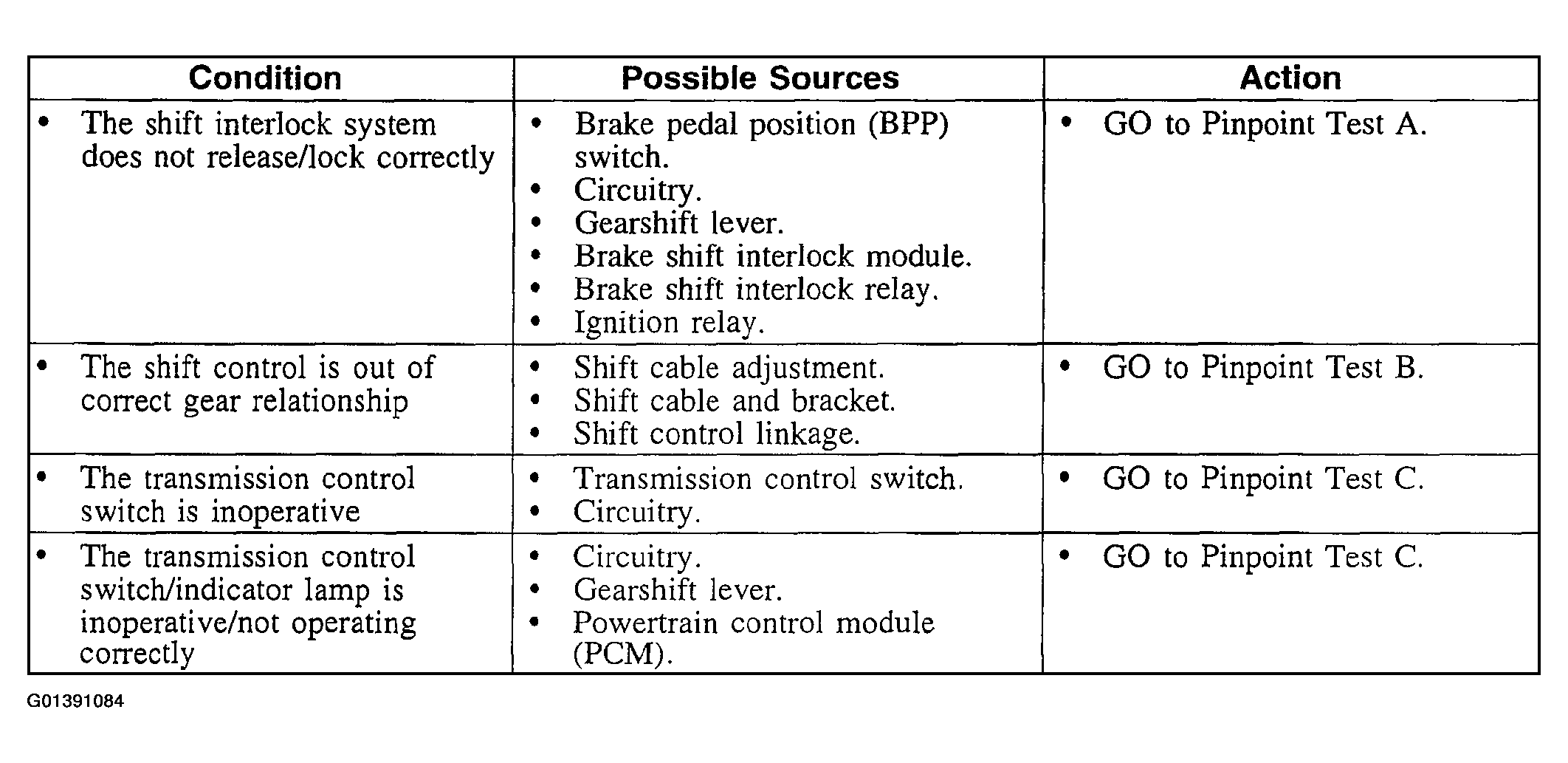

Fig 1: Problem Symptom Chart - Transmission External Controls
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
