Chain Sprockets: Assembly

Position the No. 16 reverse/overdrive ring gear bearing on the special tools.
- Position the bearing with the part number facing toward the handle of the special tool.

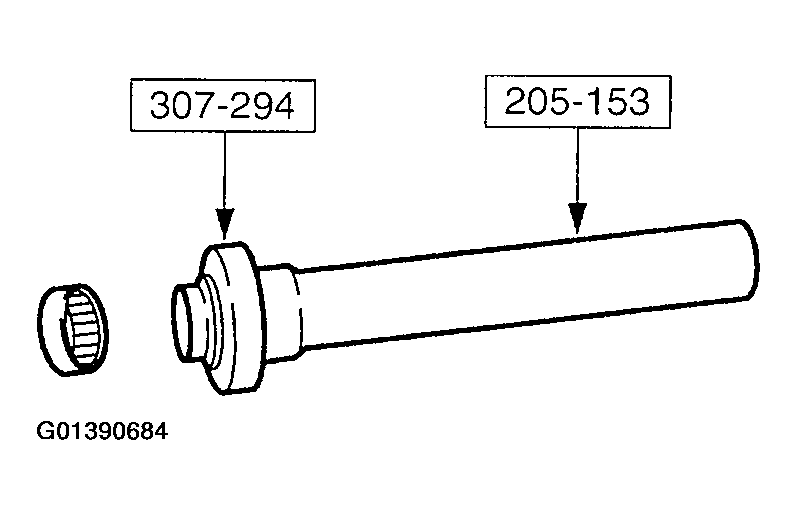

  Fig 1: Positioning Reverse/Overdrive Ring Gear Bearing On Special Tools
  Courtesy of FORD MOTOR CO.

NOTE: The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear

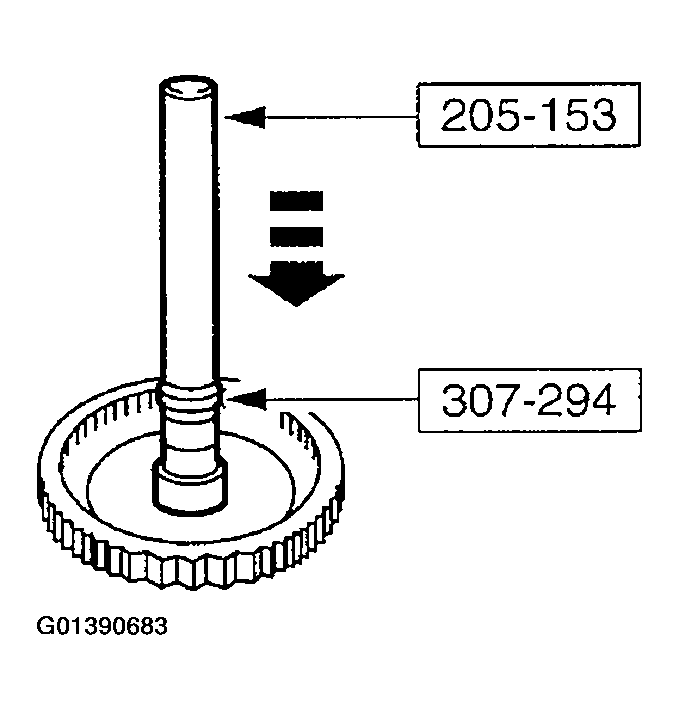

Fig 2: Installing Reverse/Overdrive Ring Gear Bearing

Courtesy of FORD MOTOR CO.

Using the special tools, install the No. 16 reverse/overdrive ring gear bearing.
Position the No. 17 stator support bearing on the special tools.
- Position the bearing with the part number facing toward the handle of the special tool.

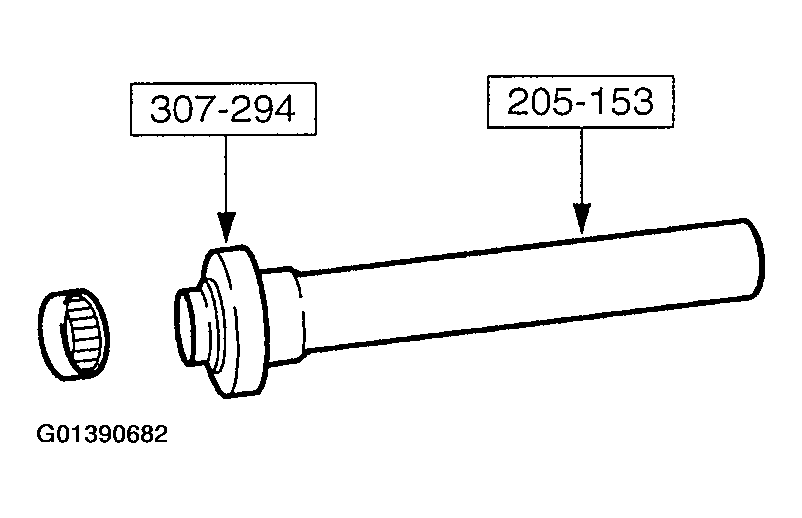

  Fig 3: Positioning Stator Support Bearing On Special Tools
  Courtesy of FORD MOTOR CO.

NOTE: The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear

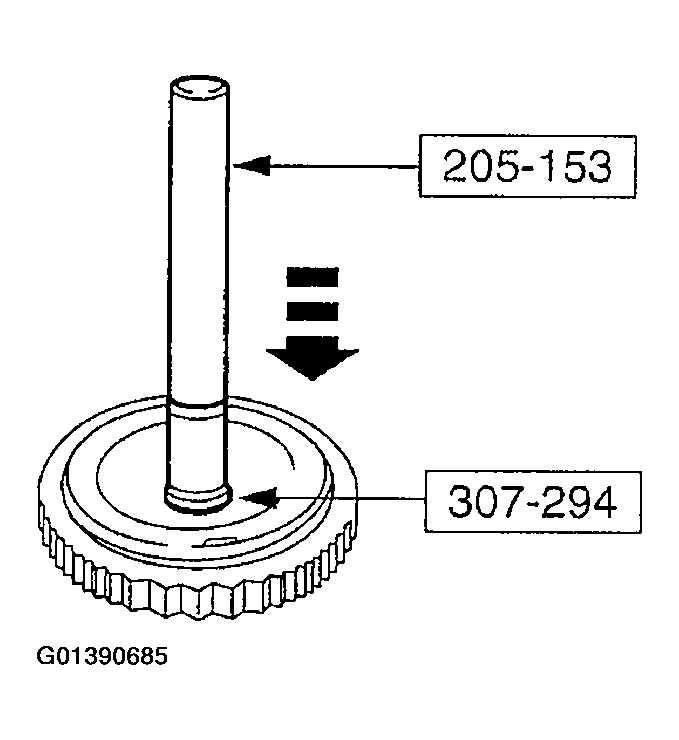

Fig 4: Installing Stator Support Bearing Into Stator Support Sprocket

Courtesy of FORD MOTOR CO.

Using the special tools, install the No. 17 stator support bearing into the stator support sprocket.
