Torque Converter Leak Check: Check

Clean the outside surface of the torque converter.
Install the special tool into converter hub.

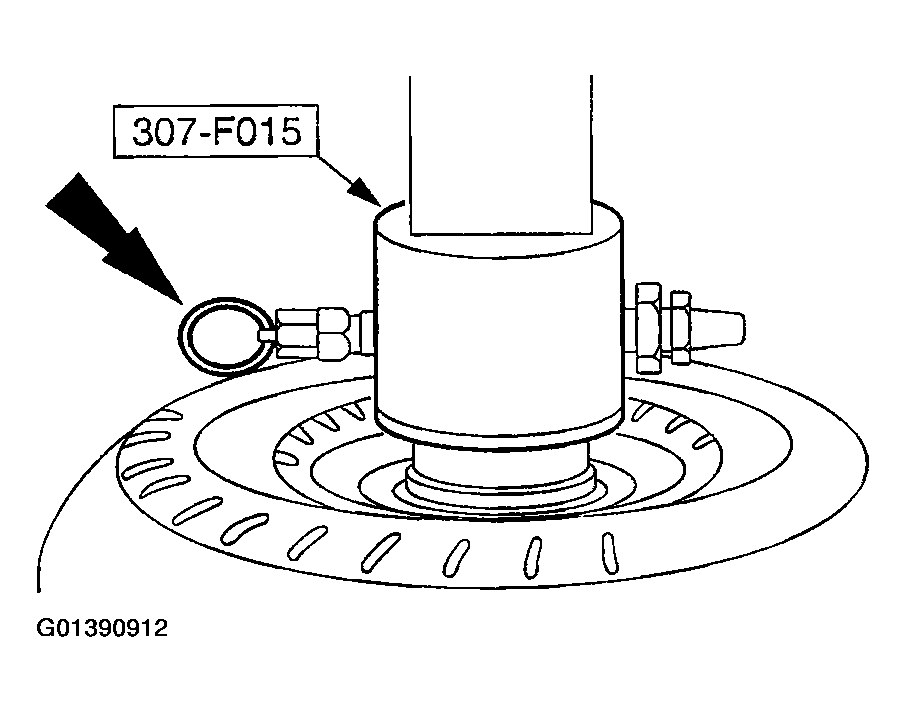

Fig 1: Installing Special Tool Into Converter Hub
Courtesy of FORD MOTOR CO.

WARNING: Always follow correct safety procedures while using press. Failure to follow these instructions can result in personal injury.

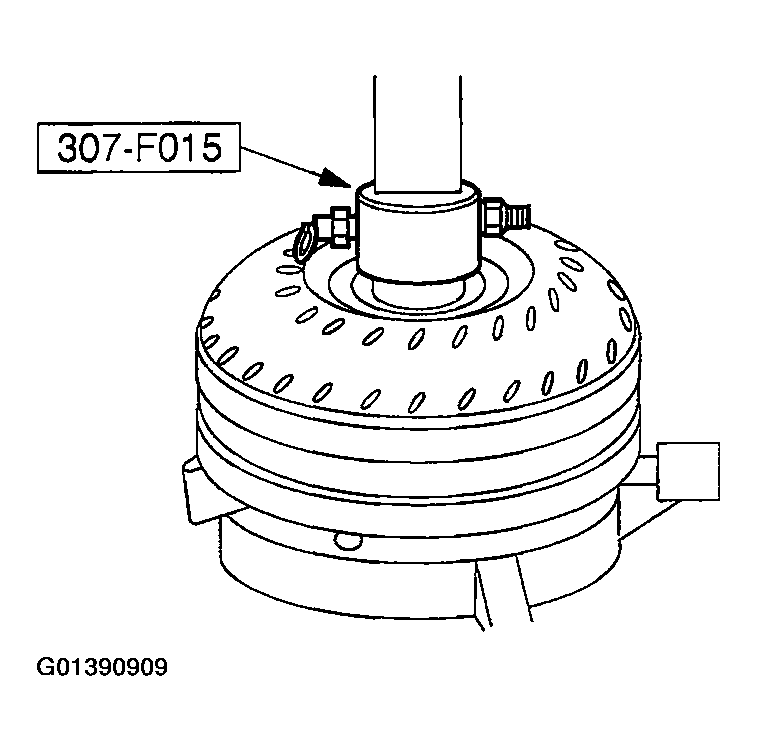

Fig 2: Installing Special Tool

Courtesy of FORD MOTOR CO.

Position the torque converter with the installed special tool into an arbor press. Secure press. Apply enough force from press to seal tool into torque converter.

NOTE: Use clean dry shop air.

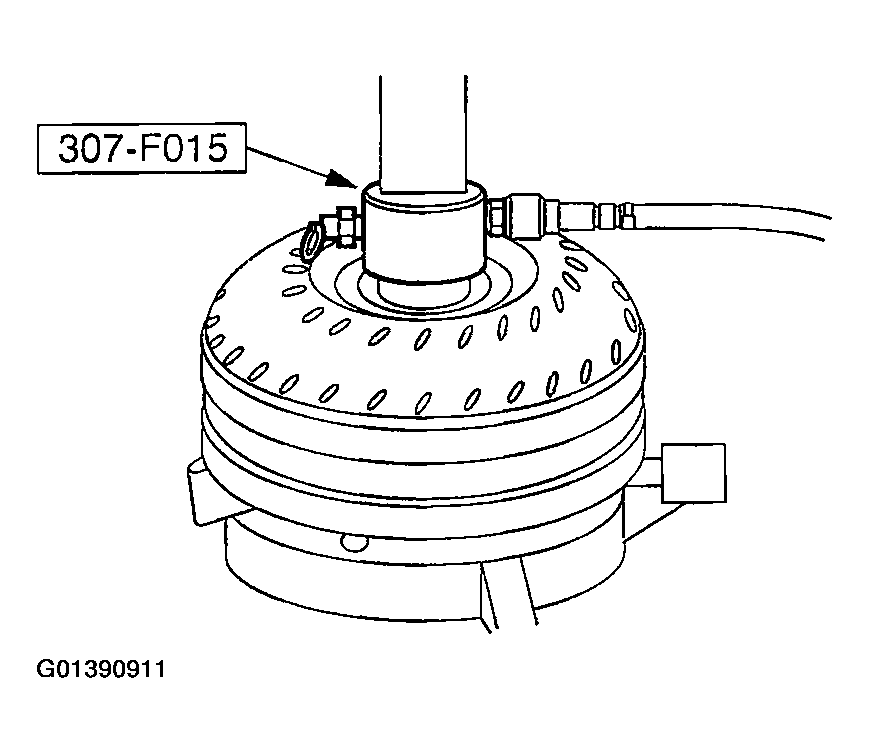

Fig 3: Applying Air Pressure To Valve

Courtesy of FORD MOTOR CO.

Using the special tool, apply air pressure to the valve.
With the special tool installed and air pressure applied to valve, inspect for leaks at converter hub, seams and studs. A soap bubble solution may be applied around those areas to aid in diagnosis. IF leaks are present, install a new converter.

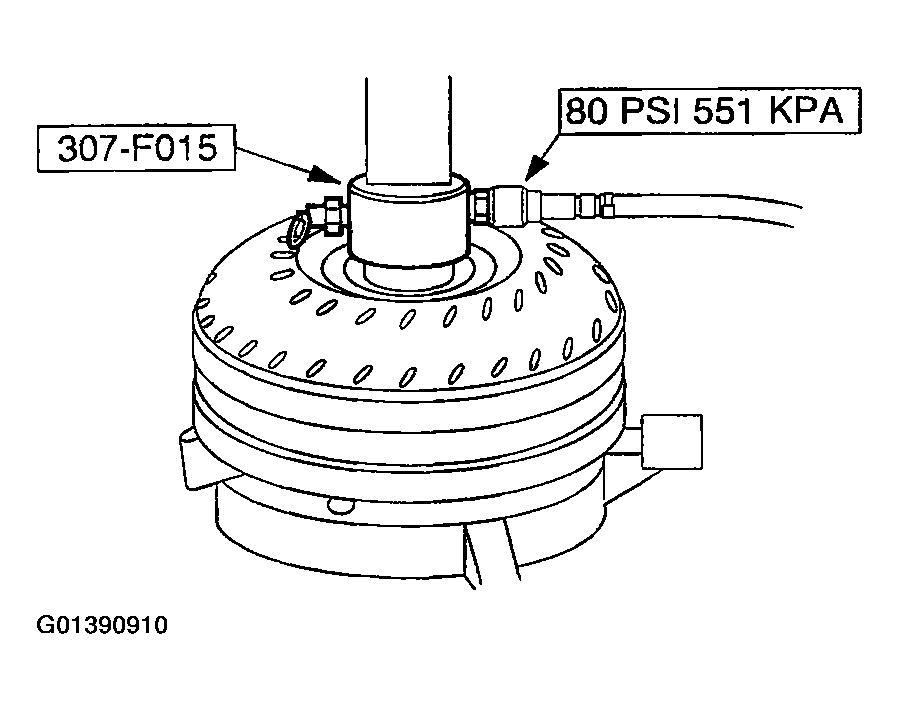

Fig 4: Checking Air Leakage
Courtesy of FORD MOTOR CO.
Remove air hose. Release the pressure and then slowly release the press, and the tool. Remove the converter from the press.

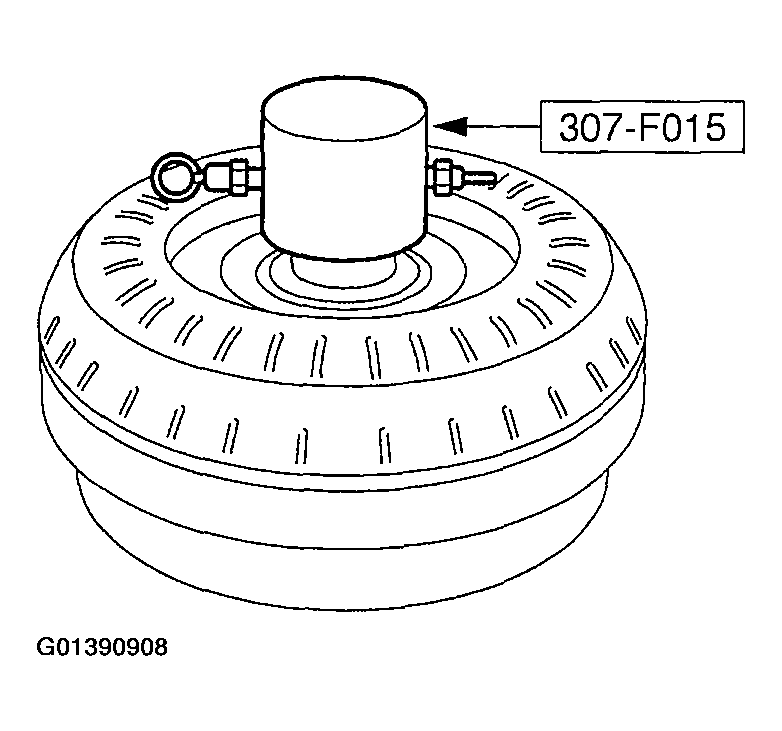

Fig 5: Removing Air Hose
Courtesy of FORD MOTOR CO.
