Driven Sprocket Alignment No. 11 Shim

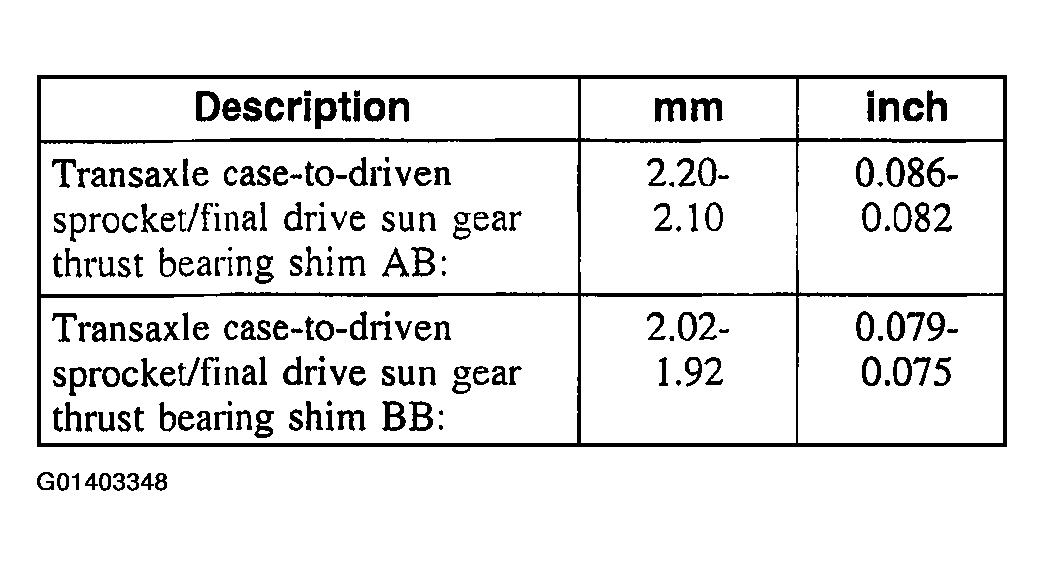

Fig 1: Driven Sprocket Alignment No. 11 Shim Description (1 Of 2)
G01403348Courtesy of FORD MOTOR CO.

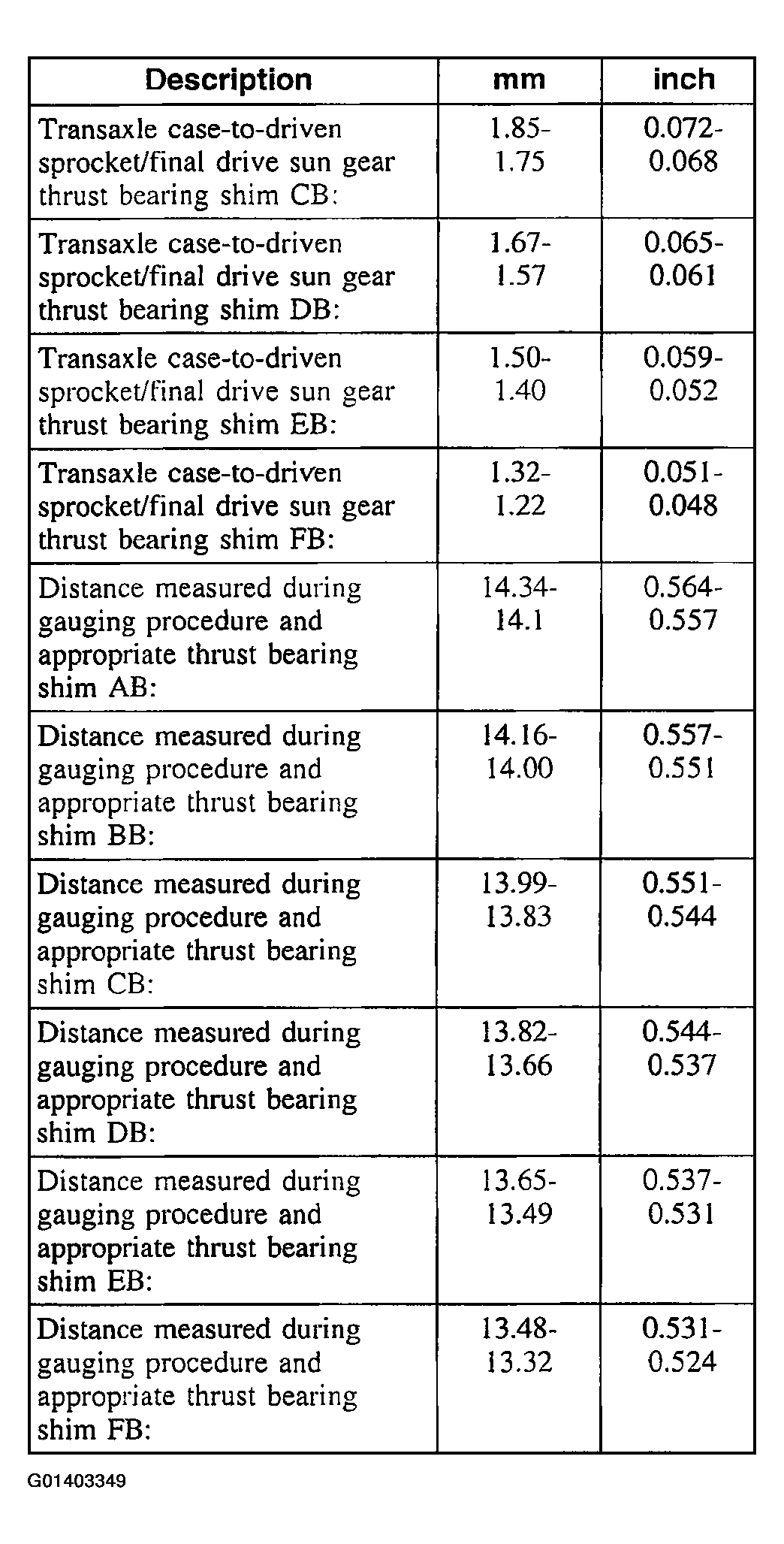

Fig 2: Driven Sprocket Alignment No. 11 Shim Description (2 Of 2)
G01403349Courtesy of FORD MOTOR CO.
